Pinned Tweet
ZP6003SWL@AlanDXSWL
8 Jun 2025
Esta cuenta es solo para subir mis capturas y temas relacionados a radios/SDR. Todas las recepciones son desde Asunción, Paraguay. Salvo indique lo contrario en un post. Mis reportes con más detalles están en Reddit: reddit.com/r/ShortwavePlus

r/ShortwavePlus

Radio related with focus on Shortwave Listening (2 - 30 MHz), SW Pirate Radio, and AM Broadcast Band DXing (.54 - 1.7 MHz). Monitoring of all radio frequencies from DC to Daylight are covered....

reddit.com
1
3
1,273

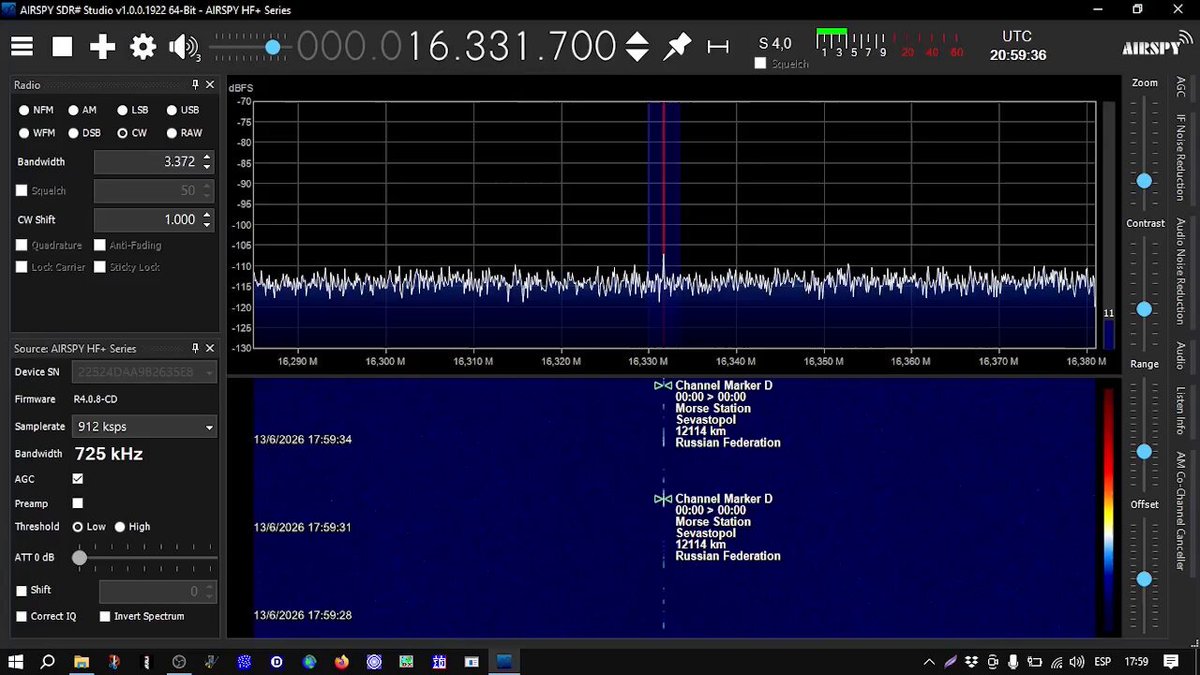

Channel Marker D 16331.7 kHz / Russian Military Beacon This is the first time I've heard this Russian beacon. The signal is weak, but the Morse code -.. can be heard clearly. I've also been receiving a Russian Morse code signal on the 15928 kHz frequency lately. Those codes are groups of letters and numbers. I'll post an image below. TX: Sevastopol, Crimea RX: Asunción, Paraguay Radio: #AirSpy HF Discovery Software: SDR# v.1922 (beta, last version) Antenna: K-480WLA D/T: 13 JUN 2026 - 2059 UTC #Shortwave #DXing #SWL
1:06
1
8
275

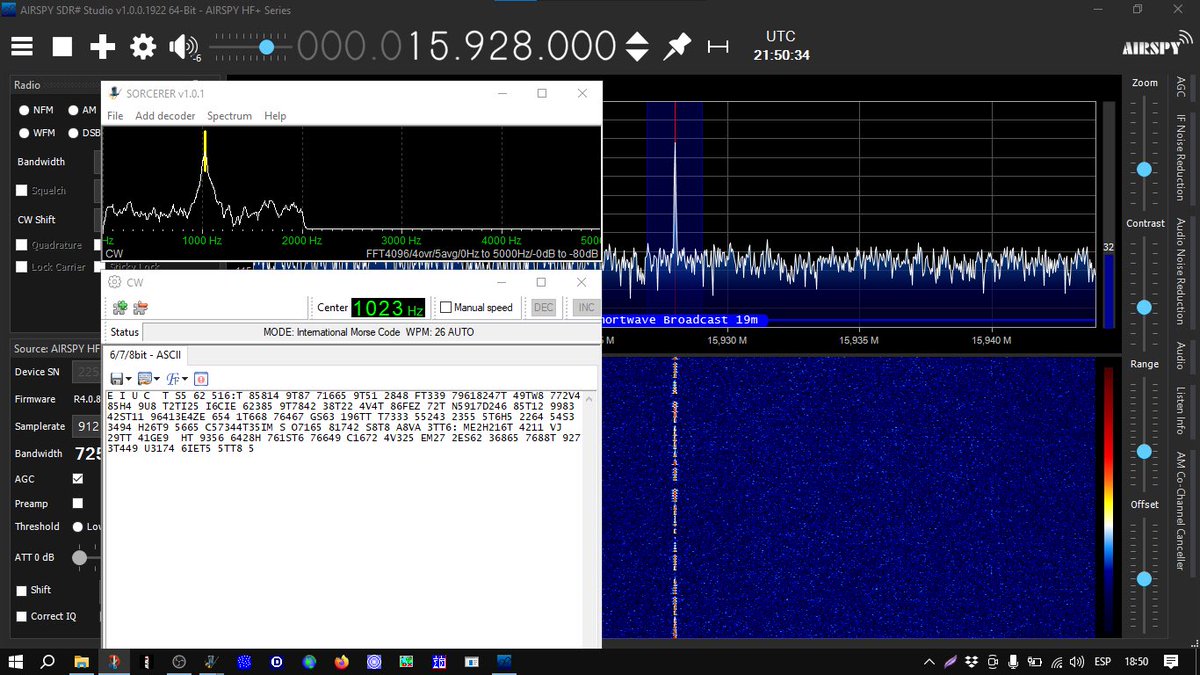

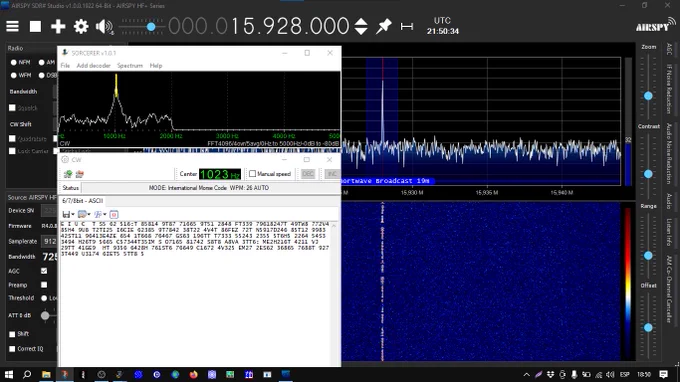

This is the image I mentioned earlier. I used Sorcerer’s CW decoder to view the contents of the transmission. It sounds very fast, and sometimes the signal comes and goes, so there are bound to be transcription errors. I’ve been seeing this transmission reach Paraguay for several days now. Every time I see it, it follows the same pattern: groups of letters and numbers consisting of 4 to 5 characters. But from what I've read, each group should consist of 5 characters. The weak signal causes the signal to be "disassembled"
3
84

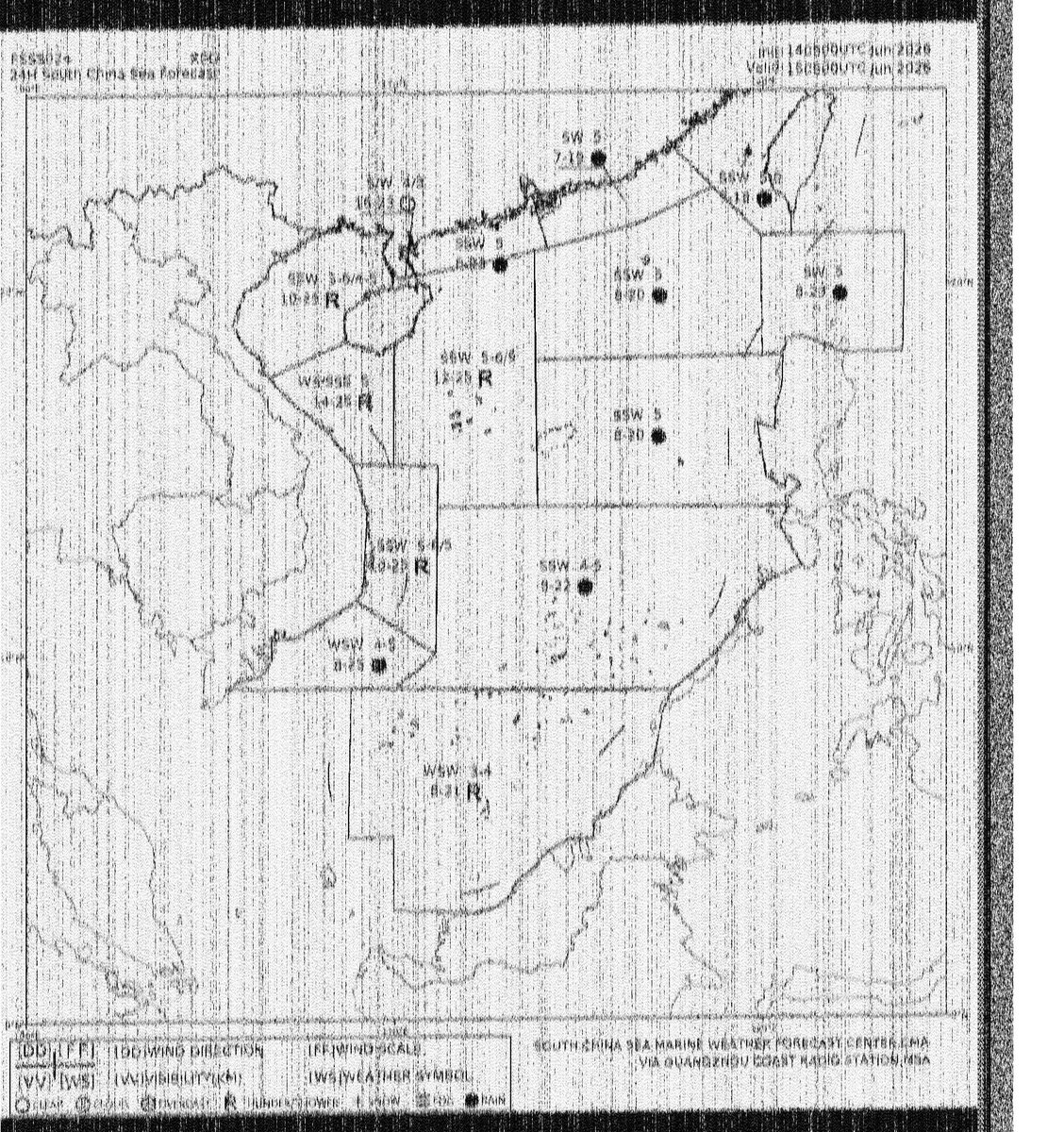

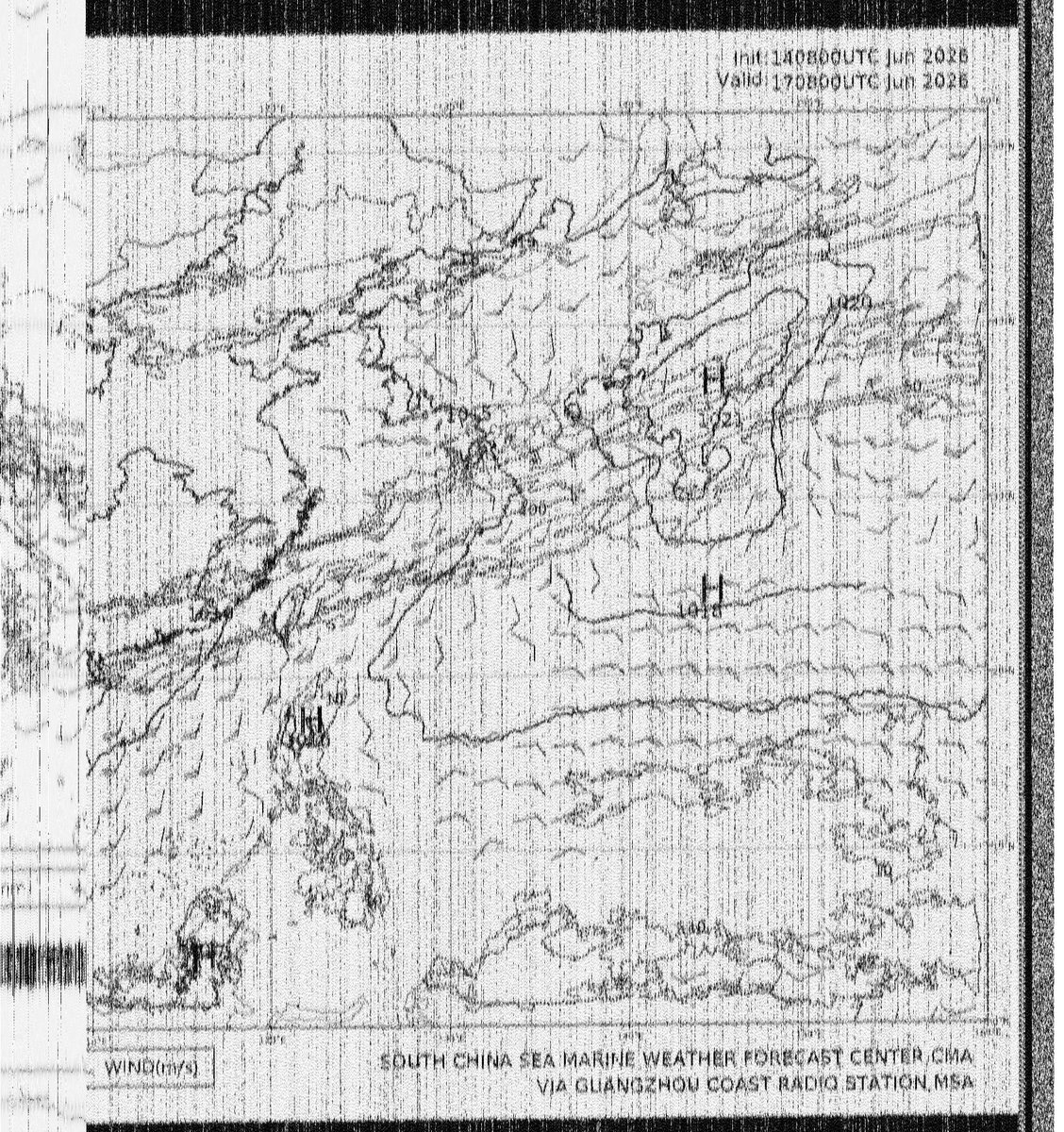

Marine Radiofax XSQ Guangzhou 16826.3 kHz (Wefax) I was only able to capture two images, one of which was partial. This is the first time I've received the Wefax signal from Guangzhou. Until today, I had only heard Volmet and beacon transmitters from this location. TX: Guangzhou, China RX: Asunción, Paraguay Radio: #AirSpy HF Discovery Software: SDR# v.1922 (beta, last version) and FLDIGI Antenna: K-480WLA D/T: 14 JUN 2026 - 1340 UTC #Shortwave #DXing #SWL
5
91

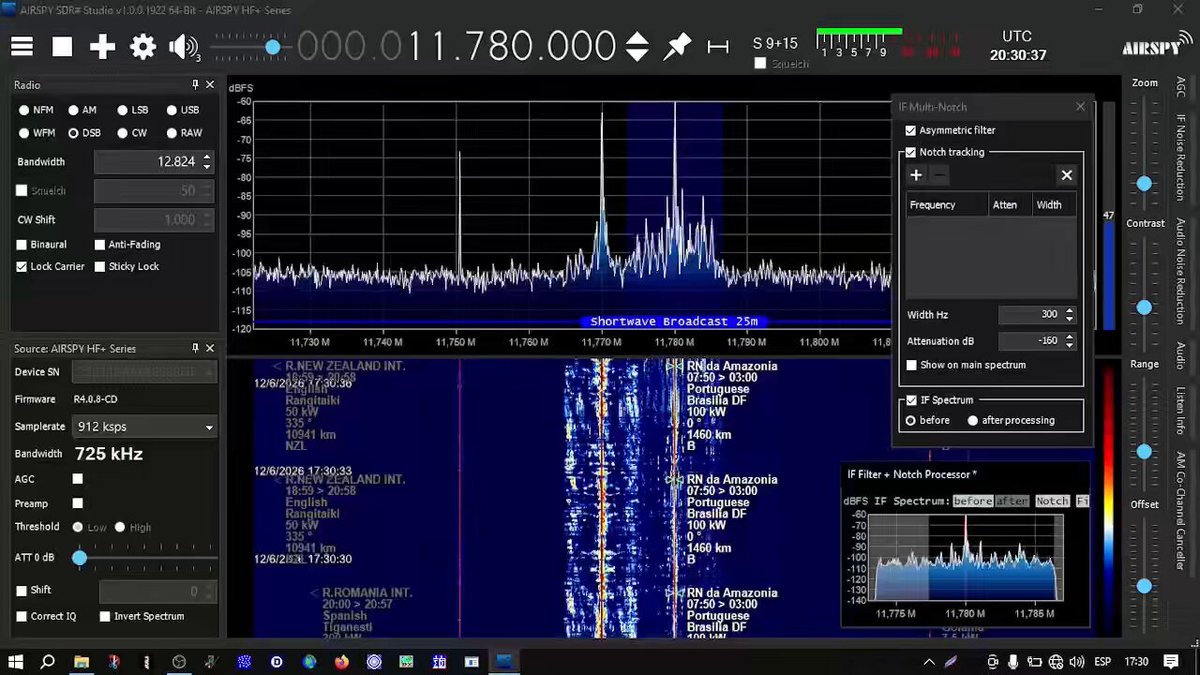

Rádio Nacional Amazônia 11780 kHz Using the SDR# IF filter to slightly attenuate the strong signal from China coming in from the side. TX: Parque do Rodeador, Brasilia, DF 🇧🇷 RX: Asunción, Paraguay Radio: #AirSpy HF Discovery Software: SDR# v.1922 (beta, last version) Antenna: K-480WLA D/T: 12 JUN 2026 - 2008 UTC #Shortwave #DXing #SWL
2:07
7
136

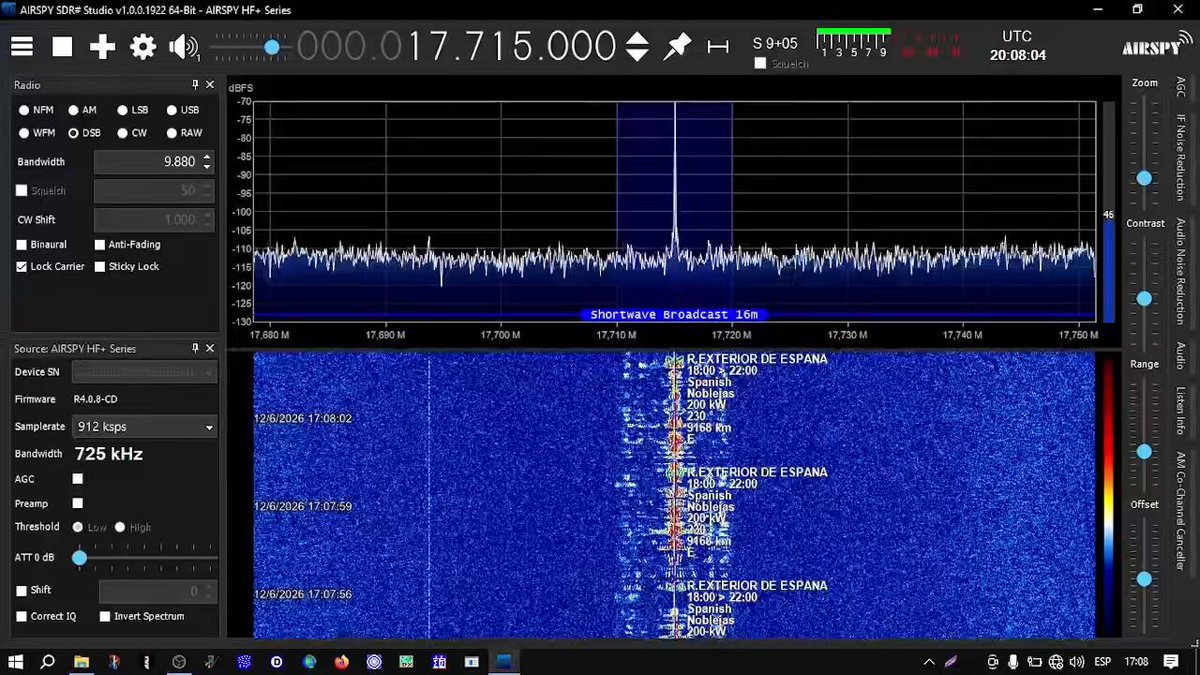

Radio Exterior España 17715 kHz. Broadcast in Arabic Target: North Africa and the Middle East TX: Noblejas 🇪🇸 RX: Asunción, Paraguay Radio: #AirSpy HF Discovery Software: SDR# v.1922 (beta, last version) Antenna: K-480WLA D/T: 12 JUN 2026 - 2008 UTC #Shortwave #DXing #SWL
2:41
5
114

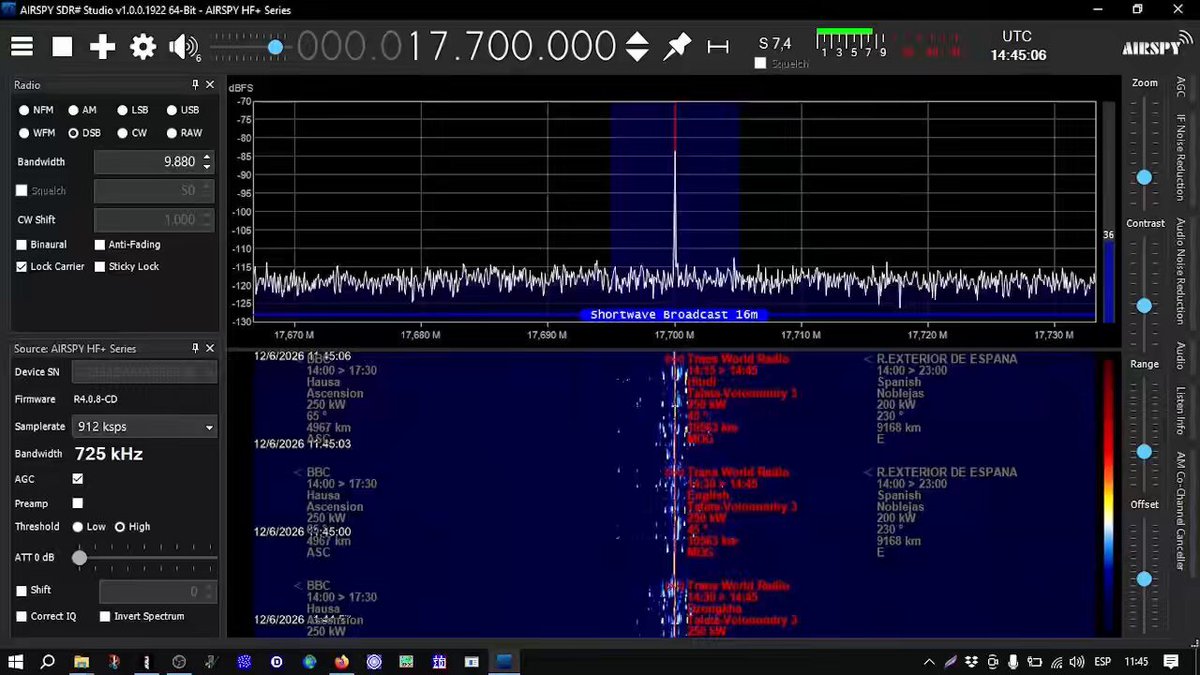

Trans World Radio 17700 kHz By midday, I usually can't pick up almost any HF signals anymore, but the TWR broadcast was clearly audible. Target: South Asia Lang: Desiya (a language spoken in northeastern India) TX: Talata Volonondry, Madagascar 🇲🇬 RX: Asunción, Paraguay Radio: AirSpy HF Discovery Software: SDR# v.1922 (beta, last version) Antenna: K-480WLA D/T: 12 JUN 2026 - 1445 UTC #Shortwave #DXing #SWL
2:01
1
4
70

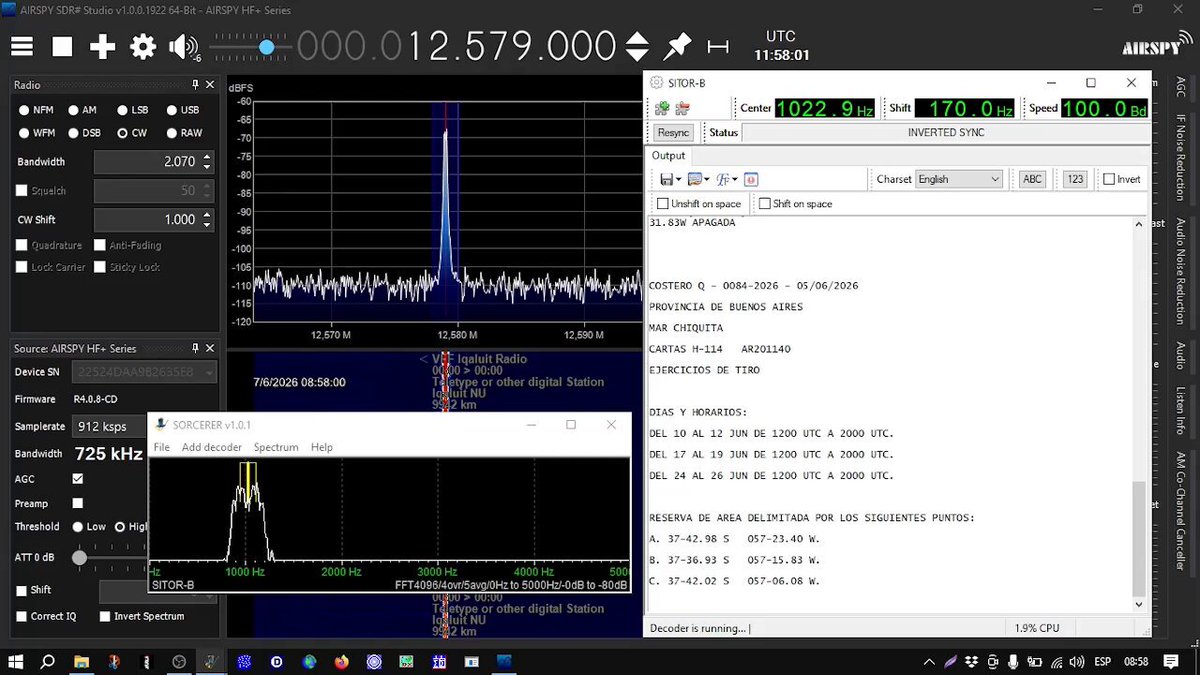

Navtex/SitorB SHN Argentina 12579 kHz. Nautical Radio Announcements I usually check the messages on the frequencies used by Argentina’s naval hydrographic services, and today the first two caught my attention: Firing tests (I assume this is a military exercise) Suborbital rocket launch test The image in the post shows both notices in English. About 10 seconds into the video, the screen zooms in so you can read the original messages in Spanish more clearly. SHN: Servicio de Hidrografía Naval (Naval Hydrographic Service) Callsing: L2C TX: Buenos Aires Radio: #AirSpy HF Discovery Antenna: K-480WLA Software: SDR# v.1922 (beta) and Sorcerer v.1.0.1 D/T: 7 JUN 2026 - 1158 UTC #Shortwave #DXing #SWL
2:44
1
11
297

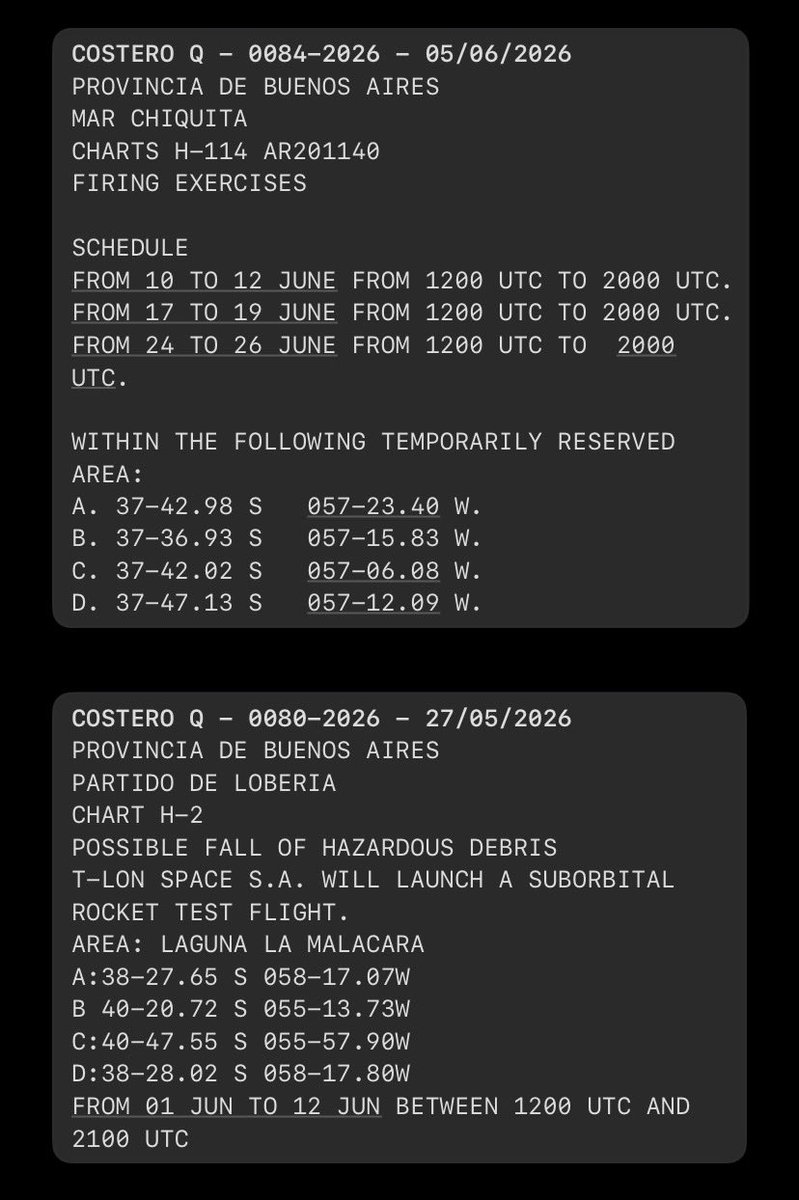

I forgot to include the image I mentioned in the tweet:
4
50

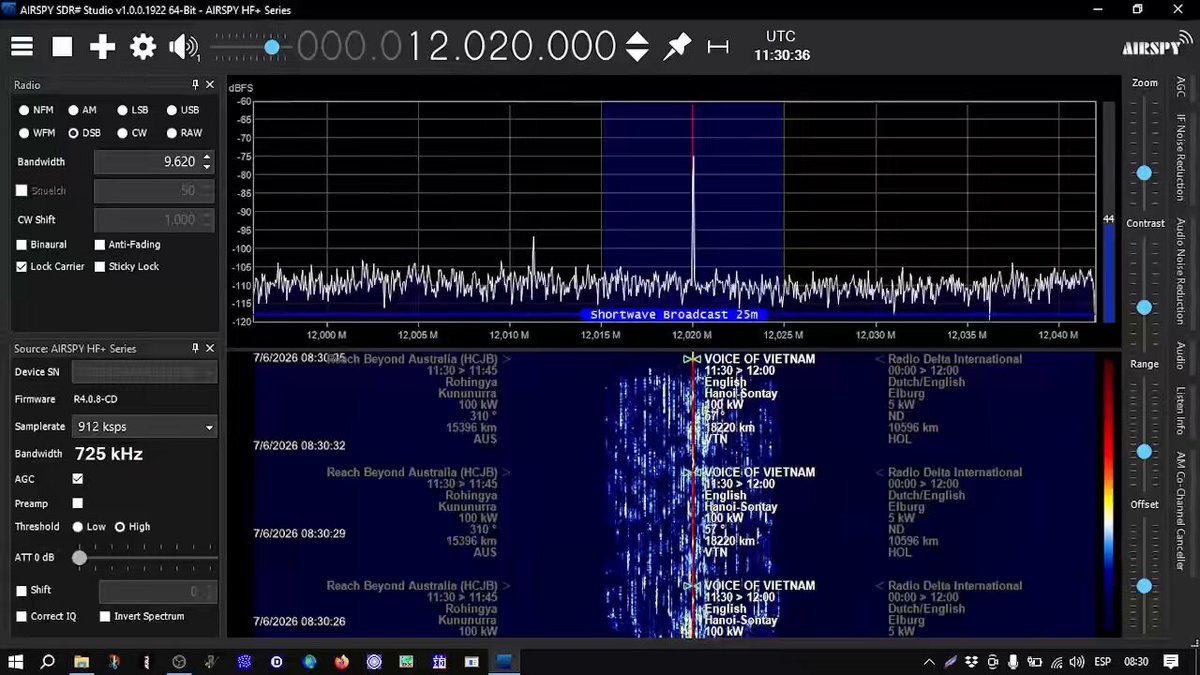

Voice of Vietnam 12020 kHz Target: Far East TX: Sontay, Hanoi 🇻🇳 RX: Asunción, Paraguay Radio: #AirSpy HF Discovery Software: SDR# v.1922 (beta) Antenna: K-480WLA D/T: 07 JUN 2026 - 1130 UTC #Shortwave #DXing #SWL
2:45
6
135

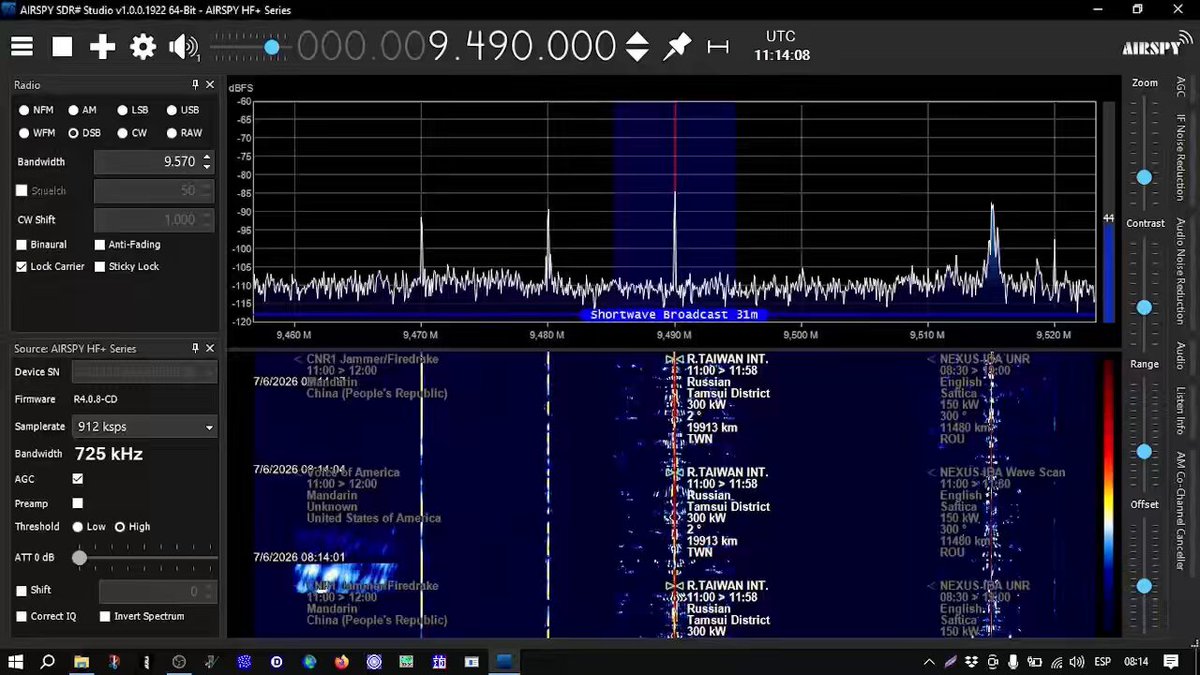

Radio Taiwan Int. 9490 kHz Russian segment Target: Siberia TX: Danshui/Tanshui, Taipei province RX: Asunción, Paraguay Radio: #AirSpy HF Discovery Software: SDR# v.1922 (beta) Antenna: K-480WLA D/T: 07 JUN 2026 - 1114 UTC #Shortwave #DXing #SWL
2:28
1
6
101

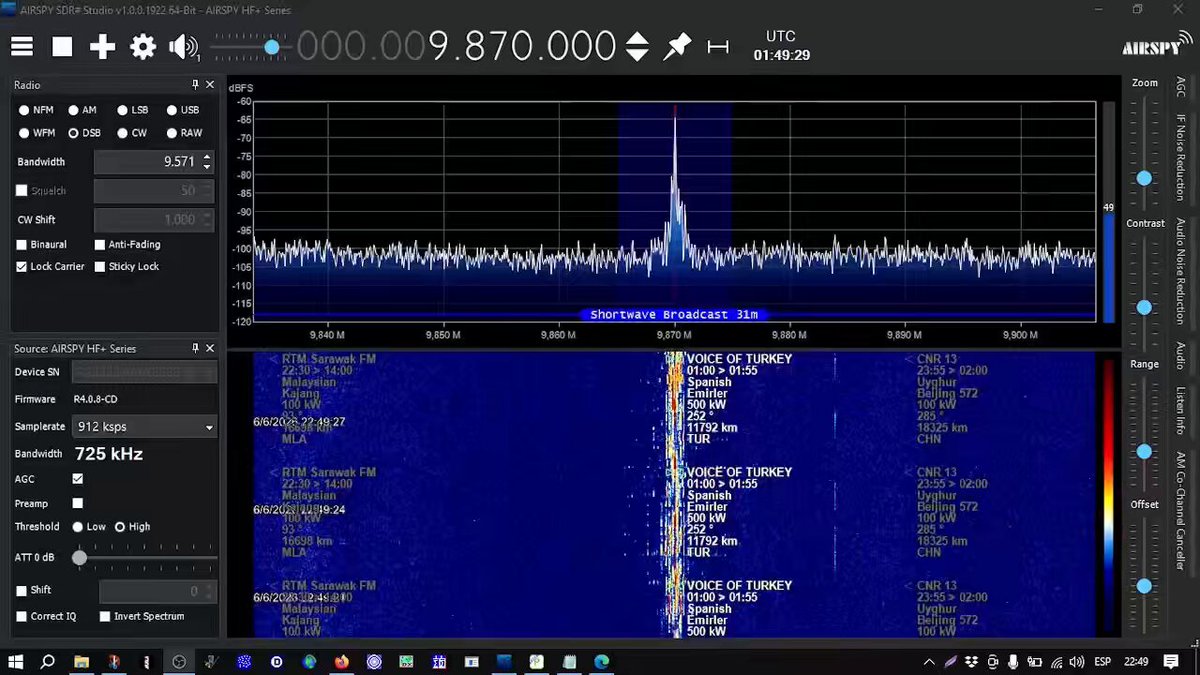

Voice of Turkey 9870 kHz - End of today's broadcast. Spanish Edition Lang: Spanish Target: South America TX: Emirler 🇹🇷 Radio: #AirSpy HF Discovery Antenna: K-480WLA Software: SDR# v.1922 (beta) D/T: 7 JUN 2026 - 0149 UTC #Shortwave #DXing #SWL
3:10
1
8
130

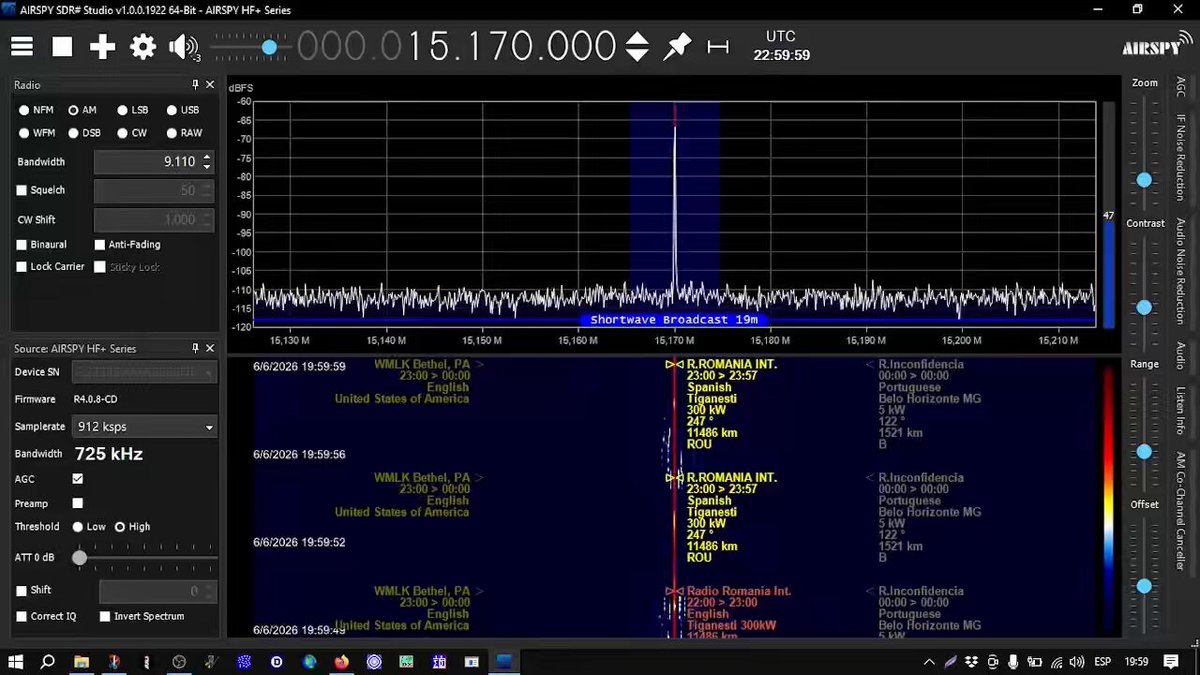

Radio Romania International 15170 kHz Lang: Spanish Target: South America TX: Tigănești, Rumania 🇷🇴 Radio: #AirSpy HF Discovery Antenna: K-480WLA Software: SDR# v.1922 (beta) D/T: 6 JUN 2026 - 2300 UTC #Shortwave #DXing #SWL
4:28
1
7
126

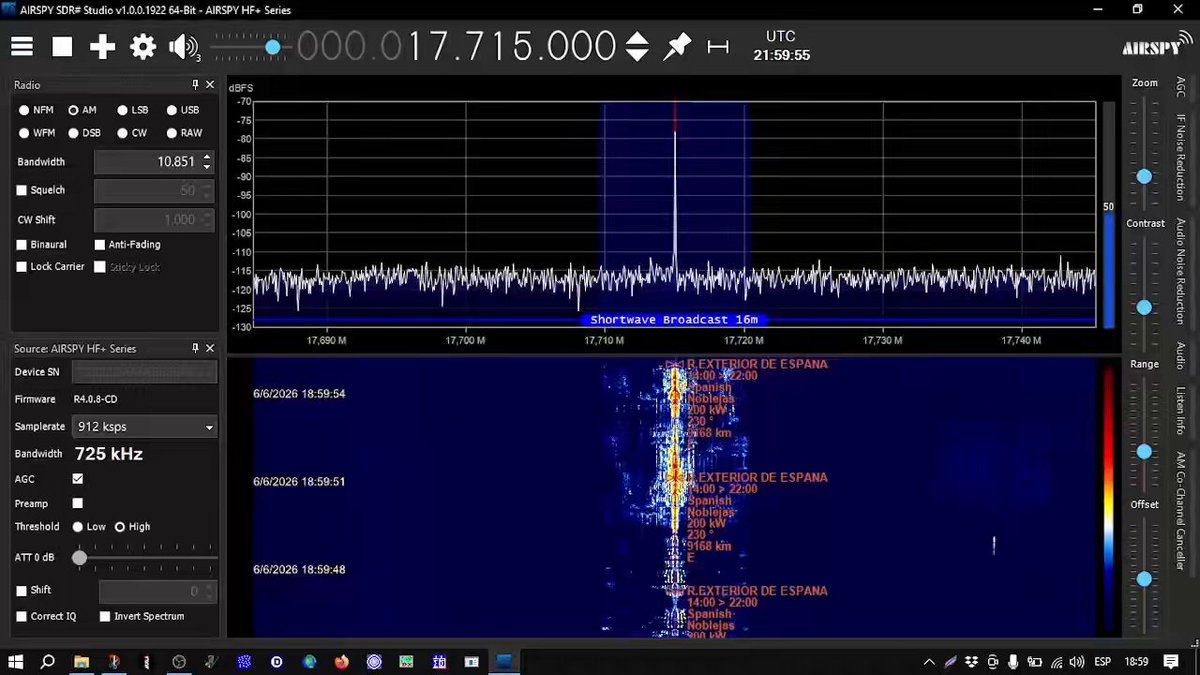

Radio Exterior España 17715 kHz A 5-minute news update Target: South America TX: Noblejas 🇪🇸 RX: Asunción, Paraguay Radio: #AirSpy HF Discovery Antenna: K-480WLA Software: SDR# v.1922 (beta) D/T: 6 JUN 2026 - 2200 UTC #Shortwave #DXing #SWL
5:26
6
105

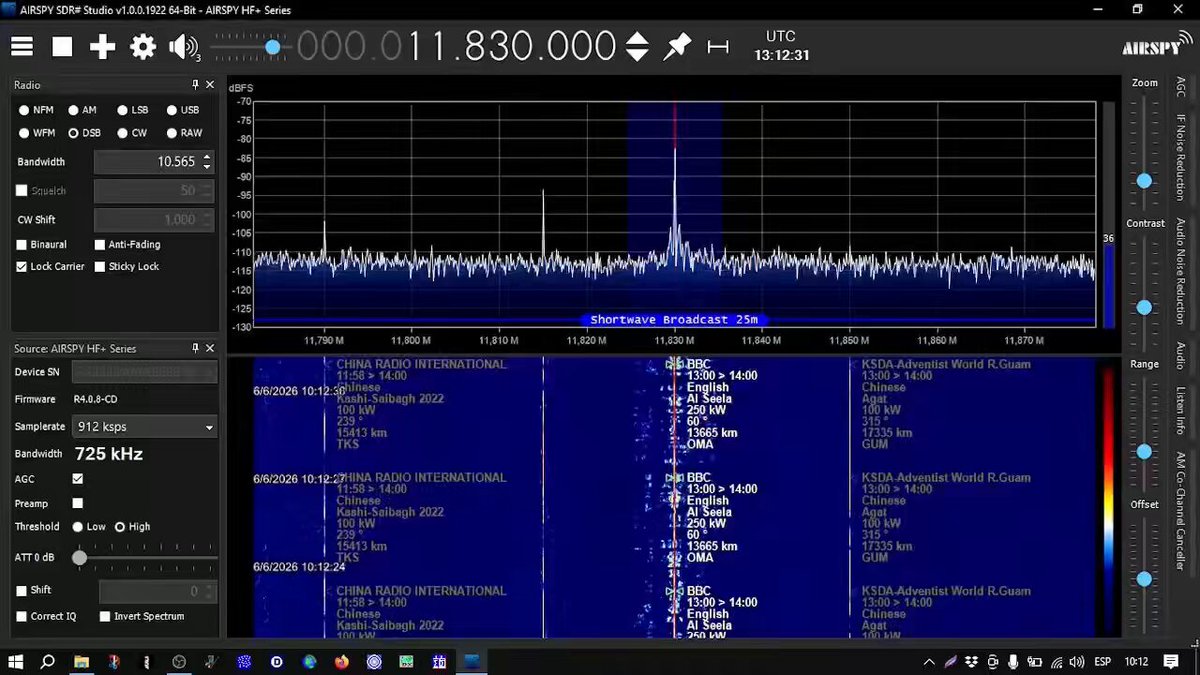

BBC World Service - Various frequencies and transmitters TX: 11830 and 15295 A'Seela, Omán 🇴🇲 17515: Al-Dhabbaya, UAE 🇦🇪 21565: Talata Volonondry, Madagascar 🇲🇬 Target: 11830 and 15295: South Asia 17515: South East Asia (in Burmese language) 21565: Indonesia Local info: RX: Asunción, Paraguay Radio: #AirSpy HF Discovery Software: SDR# v.1922 (beta) Antenna: K-480WLA D/T: 06 JUN 2026 - Between 1312 and 1343 UTC #Shortwave #DXing #SWL
3:13
8
173

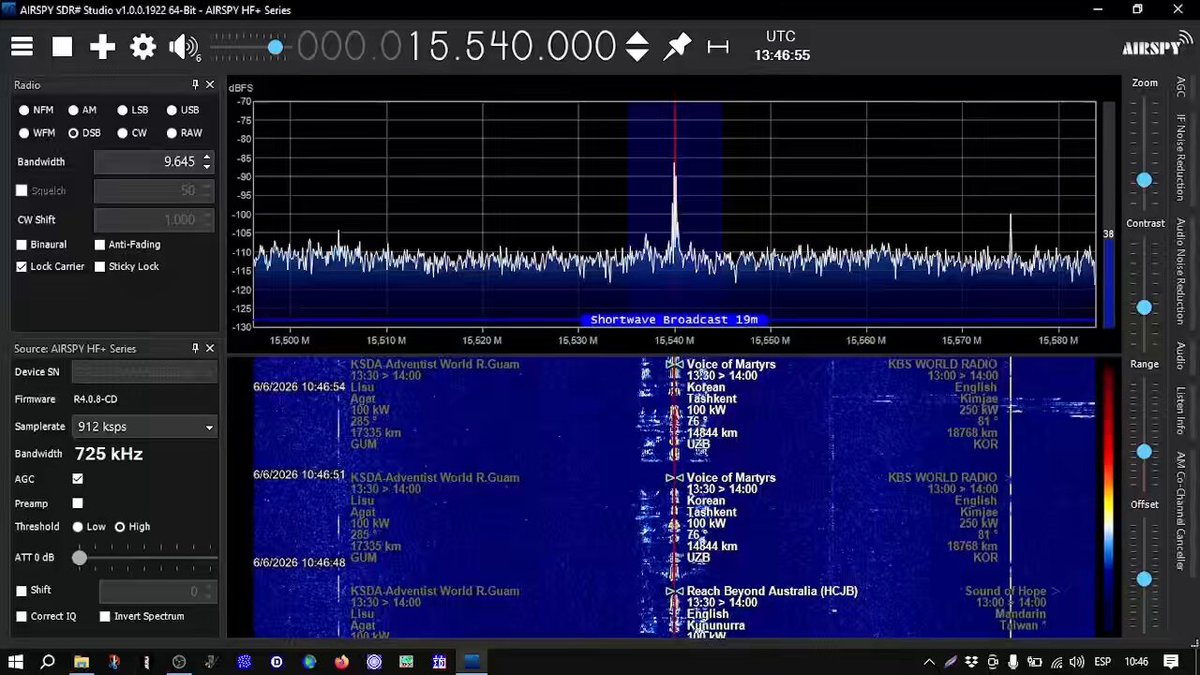

Voice of Martyrs 15540 kHz After the first minute, a sad but beautiful song starts playing. If you like music, you might like this. Reception test this morning using the K-480WLA antenna with a few modifications. Local time: 10:47 AM UTC: 13:47 Target: East Asia Lang: Korean TX: Tashkent, Uzbekistan 🇺🇿 RX: Asunción, Paraguay Radio: #AirSpy HF Discovery Software: SDR# v.1922 (beta) Antenna: K-480WLA D/T: 06 JUN 2026 - 1347 UTC #Shortwave #DXing #SWL
4:27
1
5
68

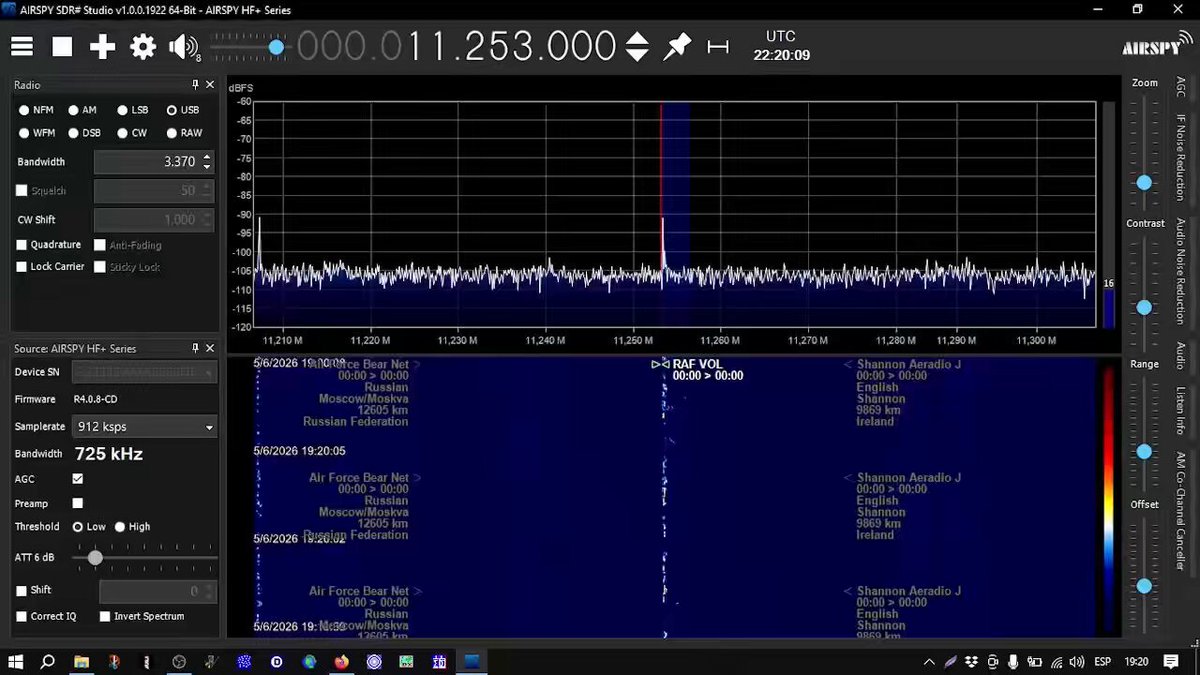

RAF Volmet Military 1 - 11253 kHz After almost a year, I'm hearing the UK Royal Air Force's Volmet signal again. Target: Europe TX: Inskip (Lancashire) 🇬🇧 RX: Asunción, Paraguay Radio: #AirSpy HF Discovery Software: SDR# v.1922 (beta) Antenna: K-480WLA D/T: 05 JUN 2026 - 2220 UTC #Shortwave #DXing #SWL
2:27
6
151
Radio Vaticana 11870 kHz. Programming transition from French to Portuguese Target: West Africa TX: Santa Maria di Galeria 🇻🇦 RX: Asunción, Paraguay Radio: #AirSpy HF Discovery Software: SDR# v.1922 (beta) Antenna: K-480WLA D/T: 30 MAY 2026 - 2059 UTC #Shortwave #DXing #SWL
2:00
5
105
DWD 2 Pinneberg RTTY 11039 kHz The video starts with the audible RTTY signal from DWD with SDR# and then the FLDIGI captured, zoomed in so you can see the text in the capture better. At the end, an image of the K-480WLA receiver module and the AirSpy HF Discovery. TX: Pinneberg 🇩🇪 RX: Asunción, Paraguay Radio: #AirSpy HF Discovery Software: SDR# v.1922 (beta), FLDIGI v4.2.06 Antenna: K-480WLA D/T: 23 MAY 2026 - 2201 UTC #Shortwave #DXing #SWL #FLDIGI
2:21
1
3
156

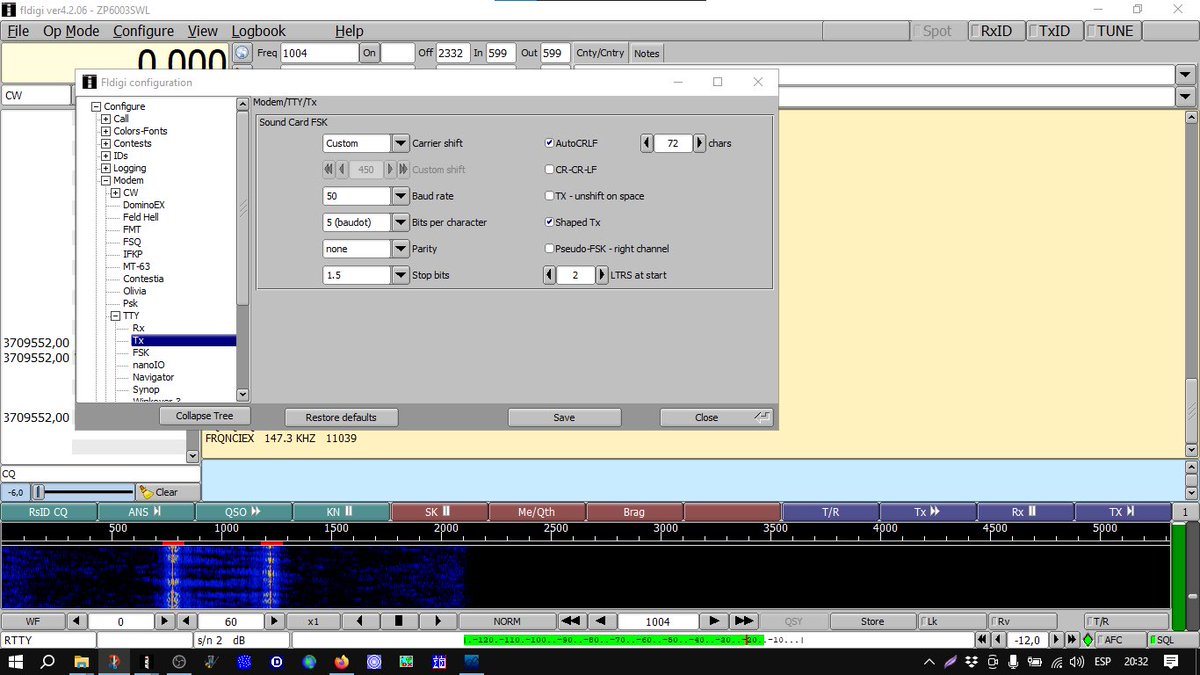

Yesterday I posted this on Reddit in case it helps anyone else who wants to try DWD RTTY with FLDIGI: I was finally able to receive a clear RTTY signal from DWD. I could always see it, but I couldn't decode it because the signal was weak, and I also had a bit of trouble getting the FLDIGI settings right. The limited information available online about the settings never worked for me. That is, until I read here that someone mentioned it worked for them by switching to CW mode in the SDR# and FLDIGI. And that worked for me. I didn't get good reception with the MLA-30 , but the K-480WLA did the job. FLDIGI configuration:
56
Radio Ext. España 17715 kHz - Antenna comparison w/ the Standard C6500 When I recovered this radio, it worked fine with a long wire antenna, but when I tried the MLA-30 , the reception was very poor; it seemed to overload the radio. But I didn't worry about it, since the radio was working and that was enough. Today I tried the K-480WLA, and it worked better than I expected. The first 30 seconds of the video are with the standard wire antenna (16 AWG), approximately 30 meters long. You can hear some persistent background noise, but the reception is relatively clear. The next 30 seconds are with the K-480WLA, and you can hear that it significantly reduced the background noise and improved the reception quality. The last 15 seconds show how I made a basic connection to the Standard C6500. Now that I know it works, I'm going to build a custom connection for this device. Target: South America TX: Noblejas, 🇪🇸 RX: Asunción, Paraguay Radio: Standard C-6500 Communications Receiver Antenna: Longwire and K-480WLA antenna D/T: 23 MAY 2026 - 2115 UTC #Shortwave #DXing #SWL #480WLA
1:19
2
3
224
