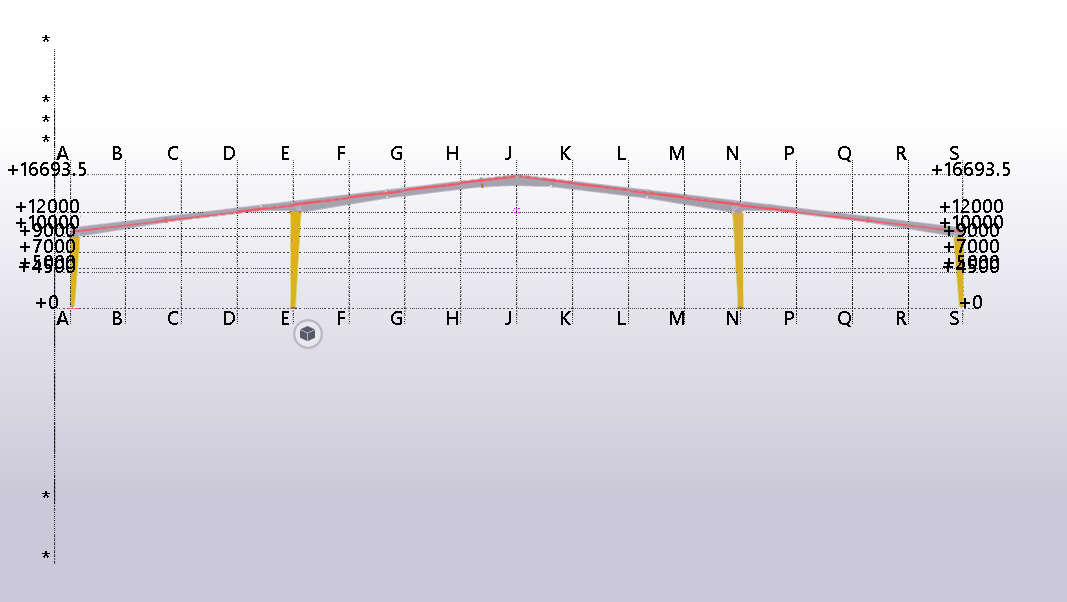

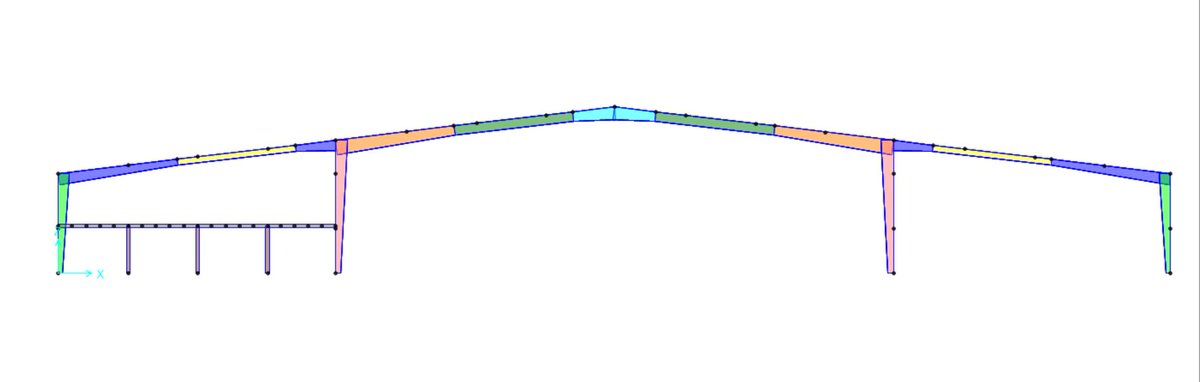

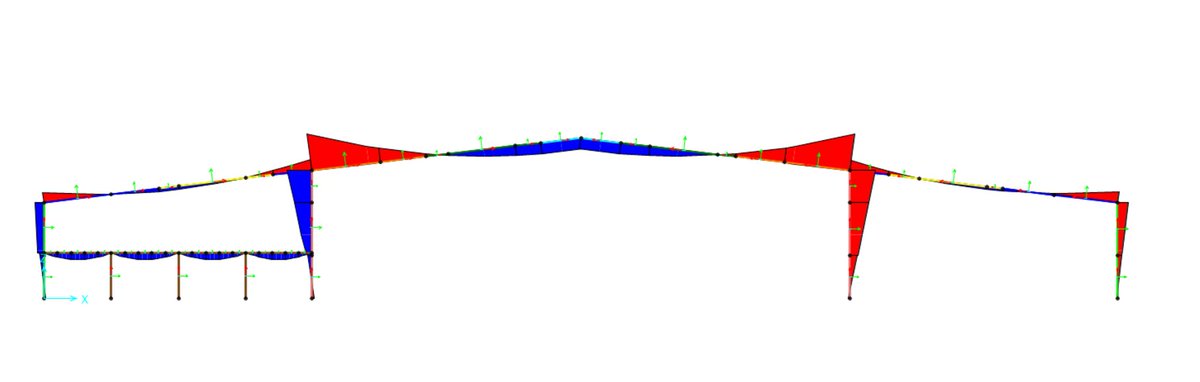

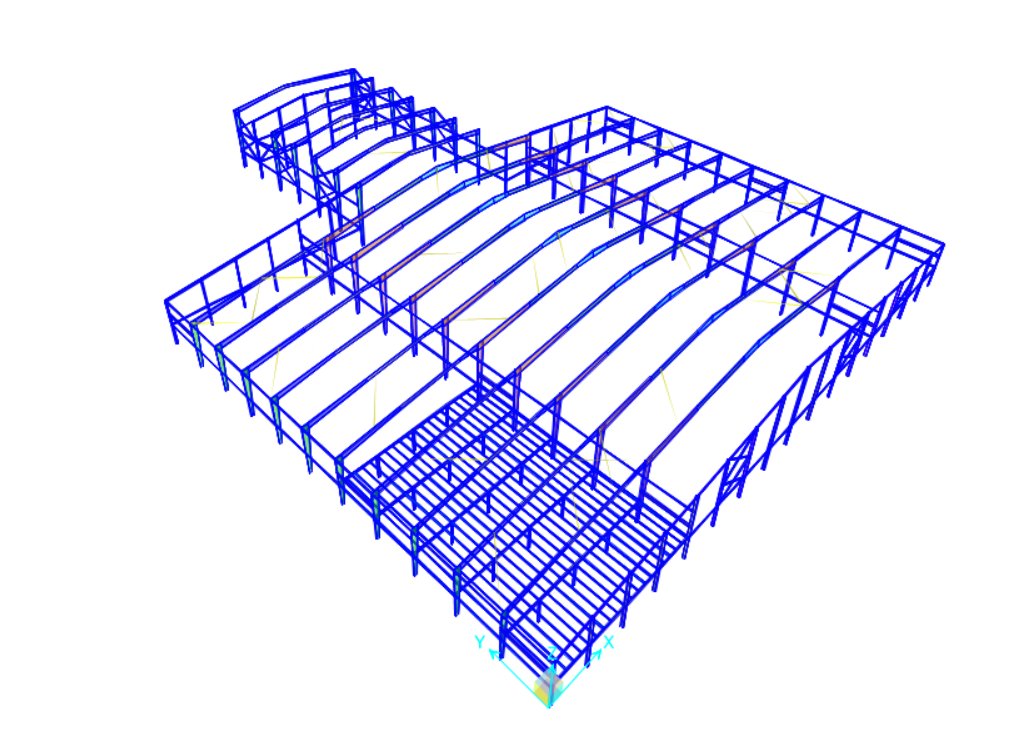

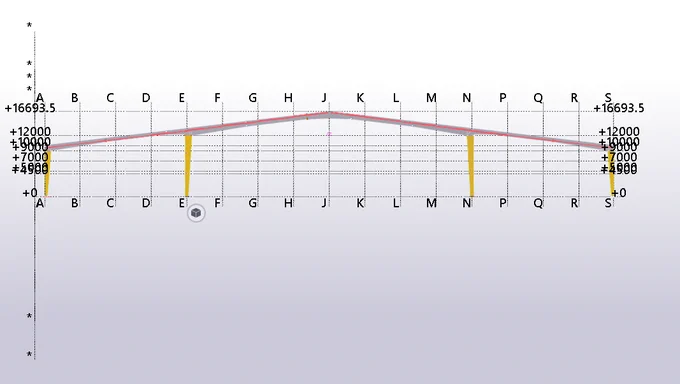

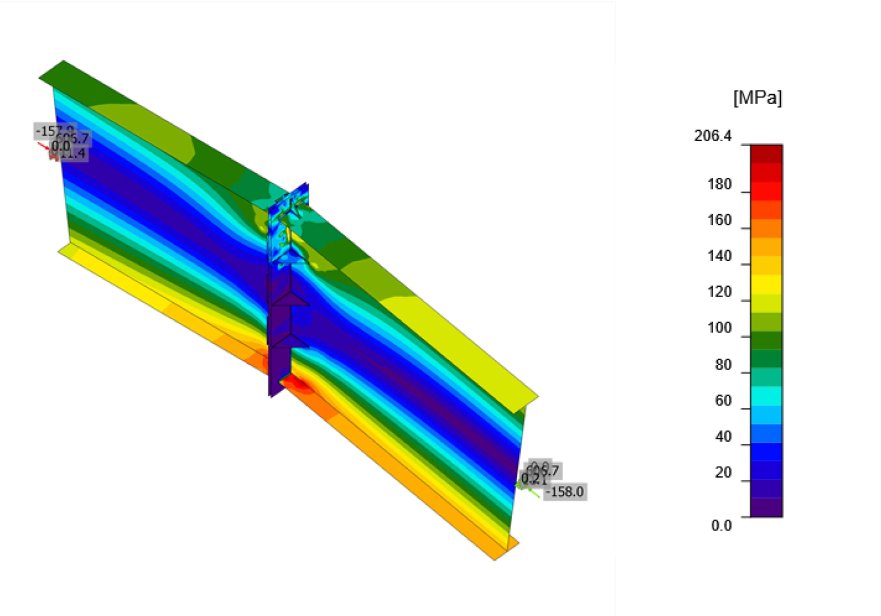

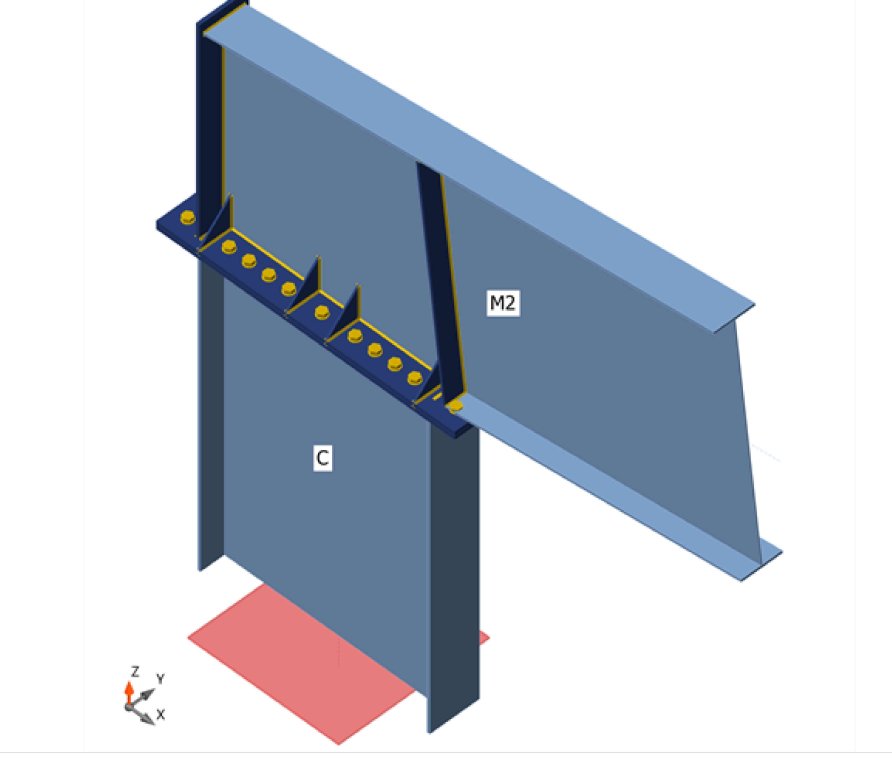

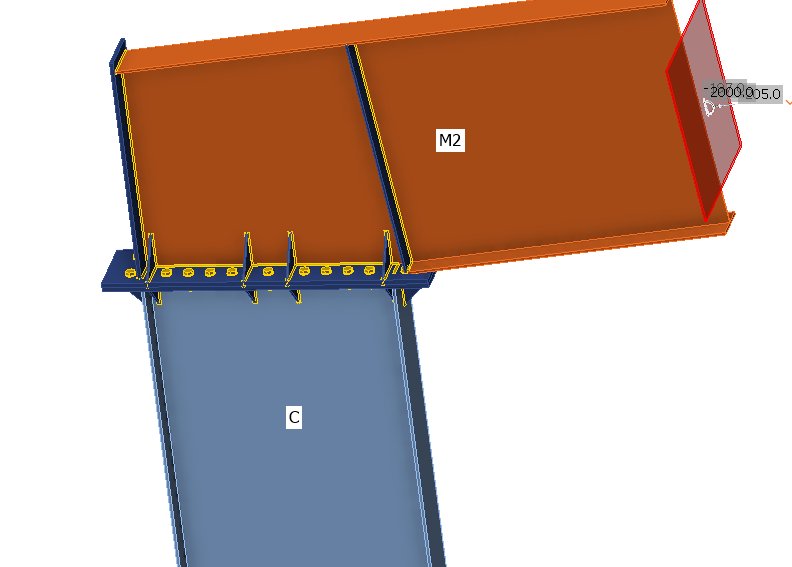

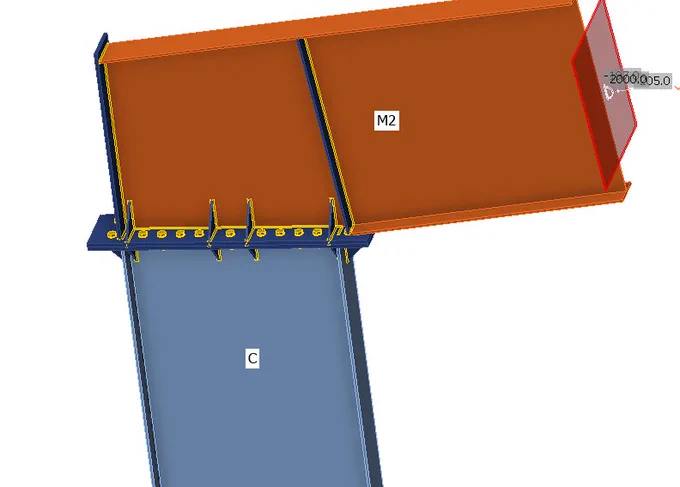

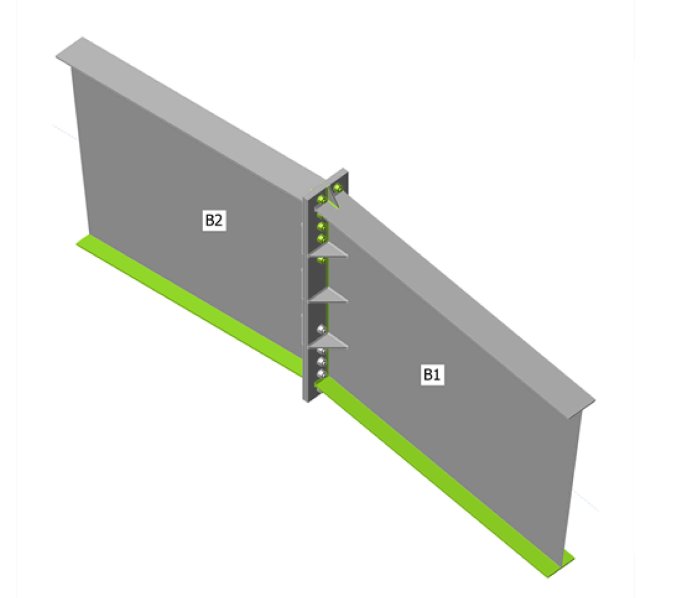

Massive PEB Hangar Design with Advanced Engineering Specifications
Dimensions: Width: 112 m , Length: 140 Clear Span:
56 m free span without any internal columns
Design Loads:
Dead Load: 0.11 kN/m²
Live Load: 0.6 kN/m²
Collateral Load: 0.15 kN/m²
Wind Speed:164km/h
2
1
3
56

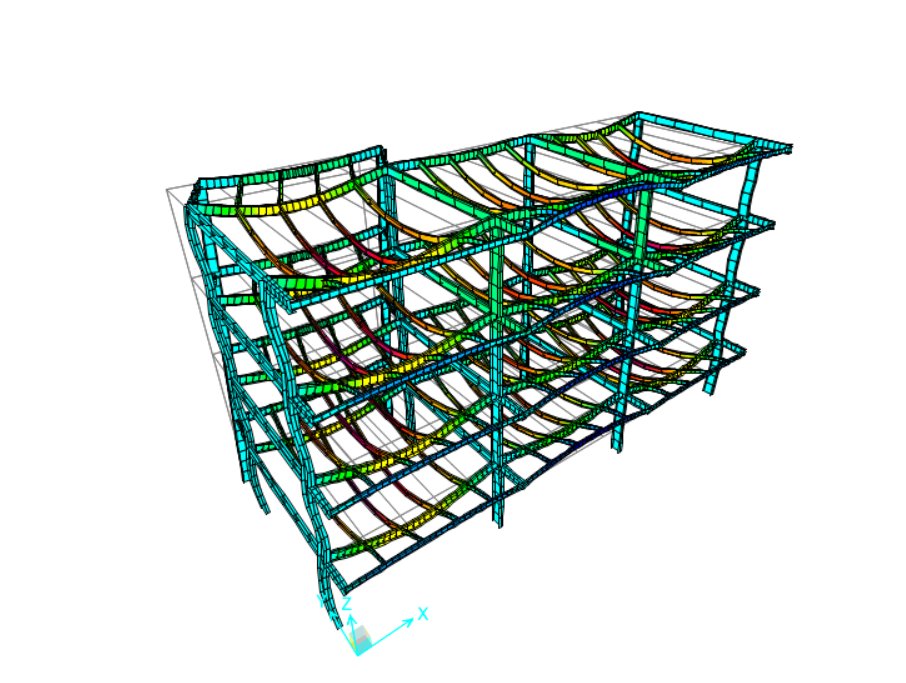

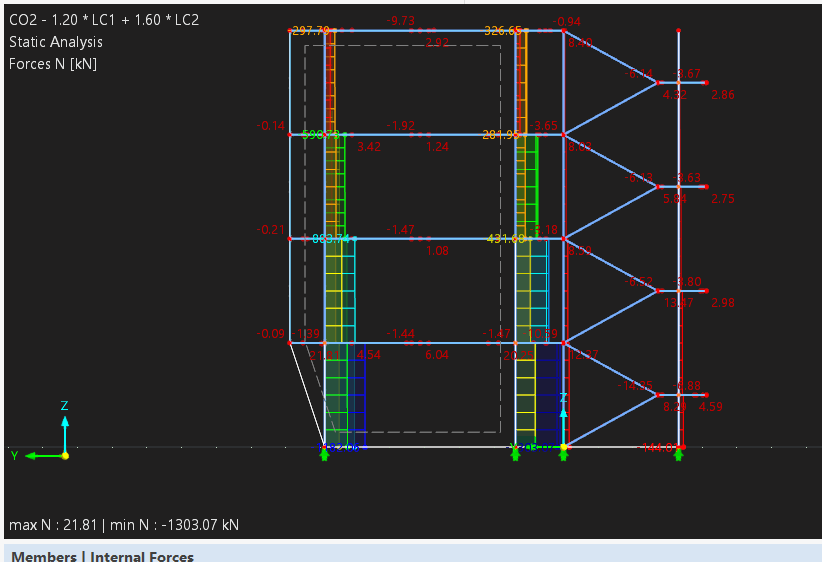

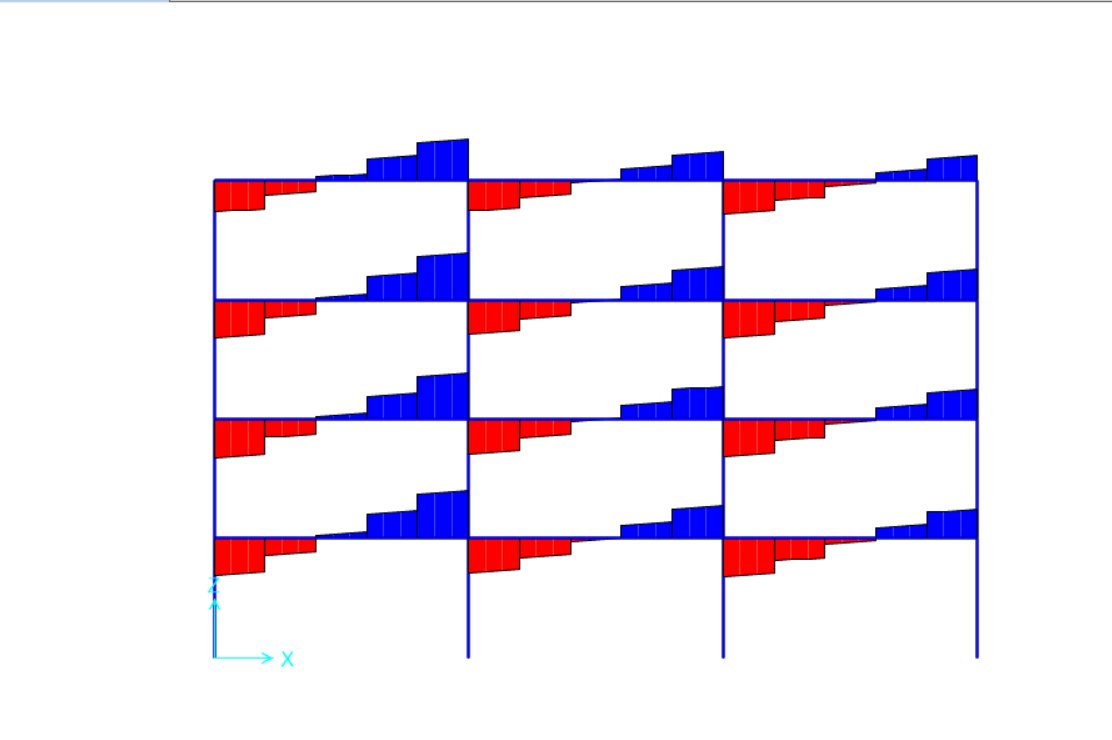

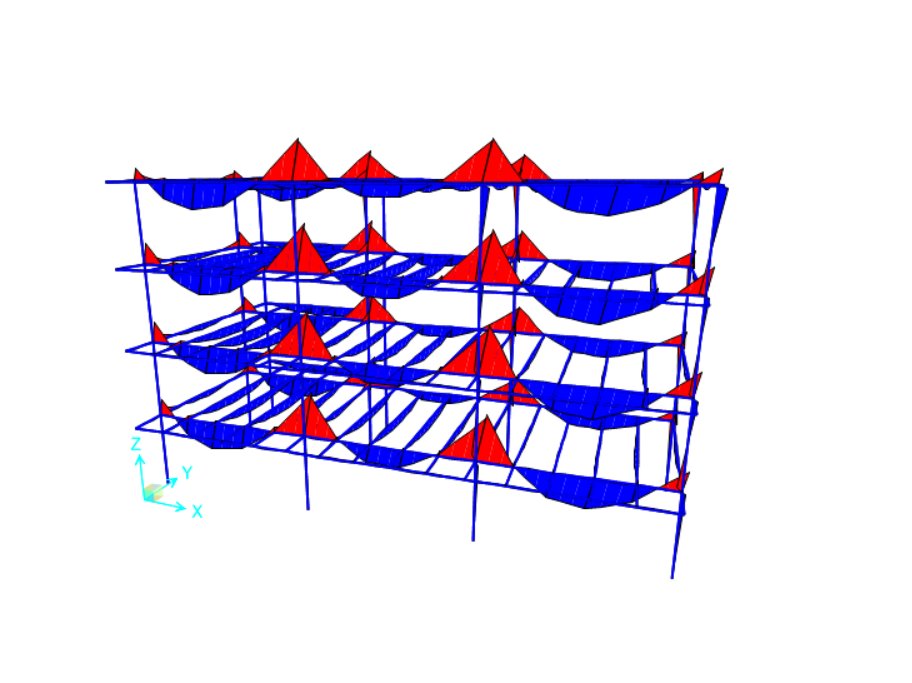

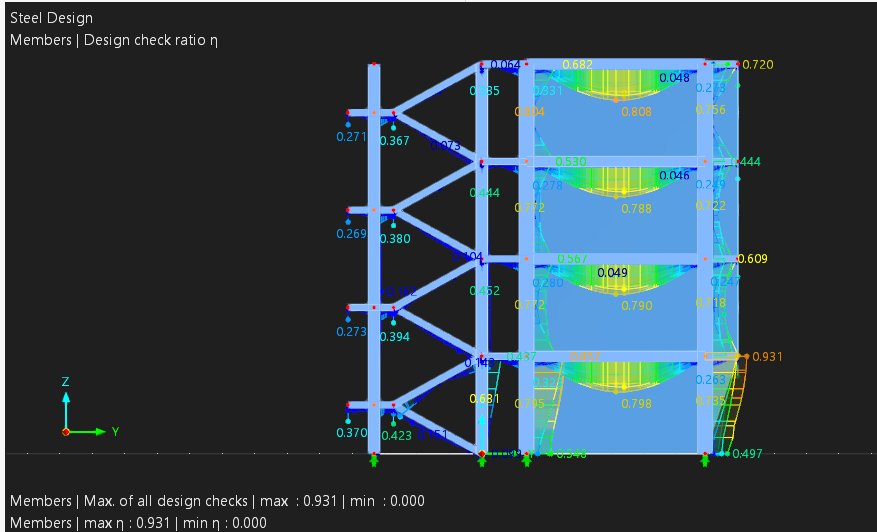

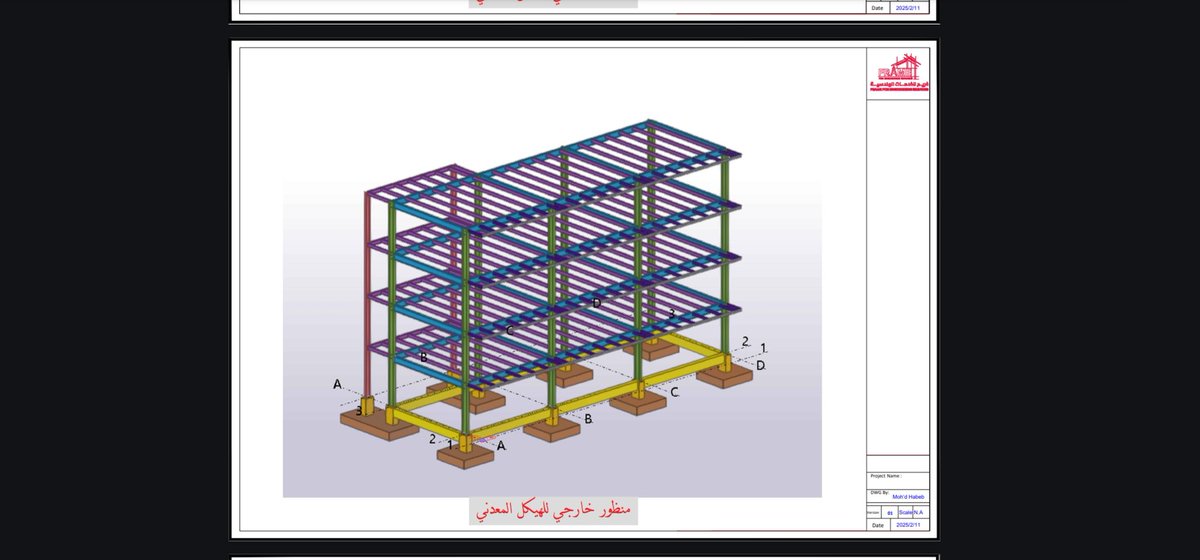

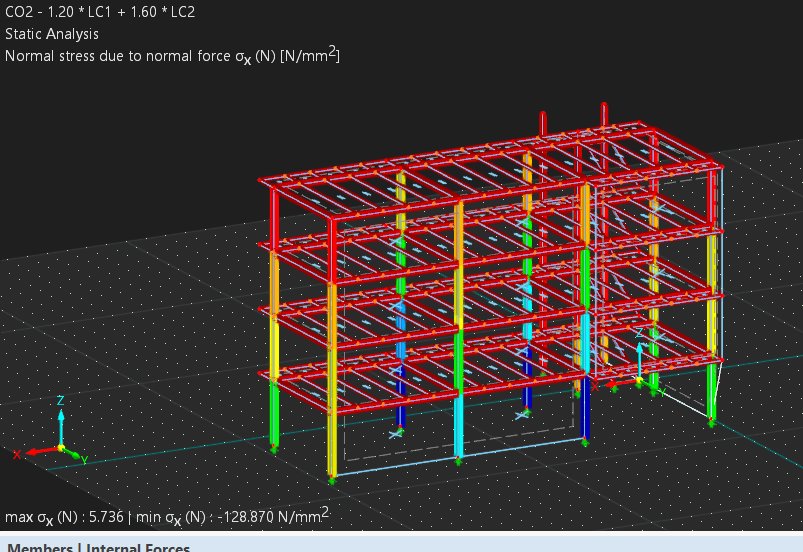

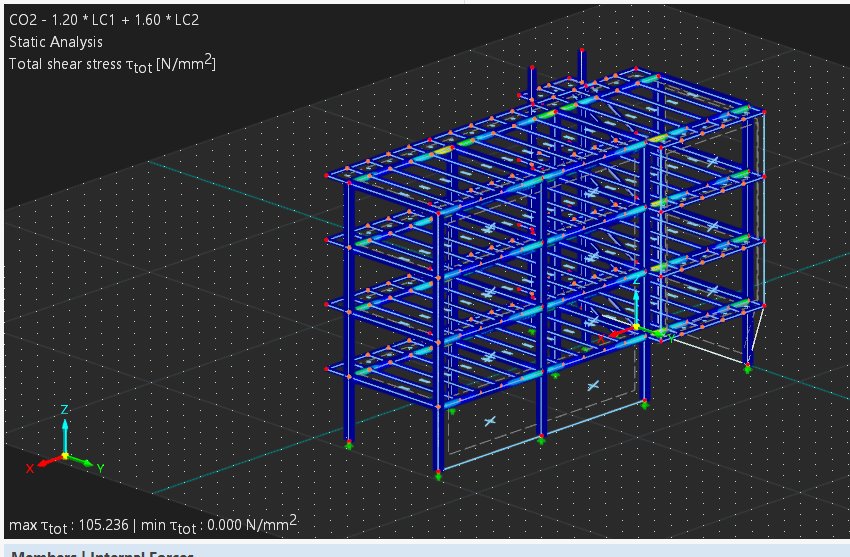

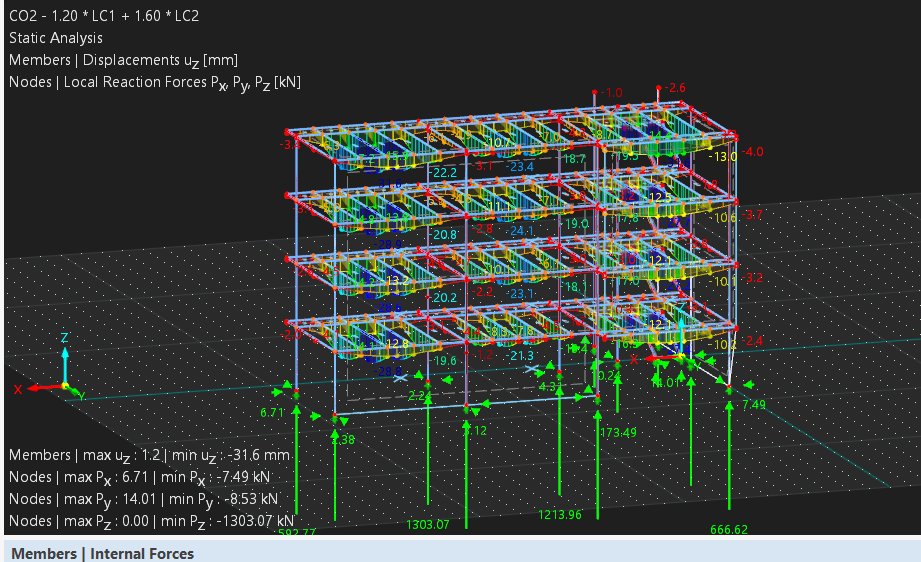

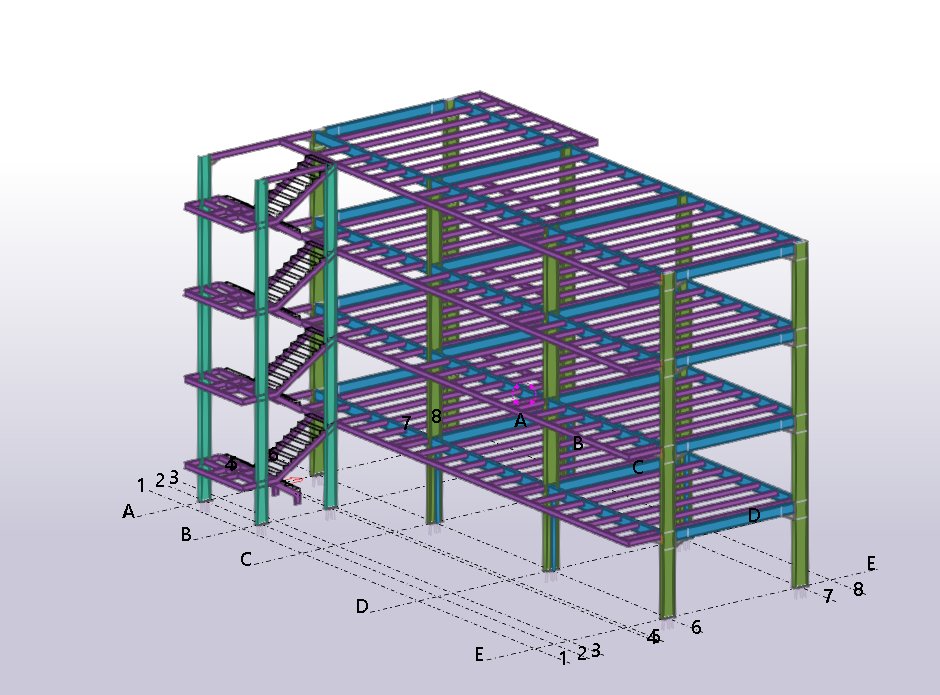

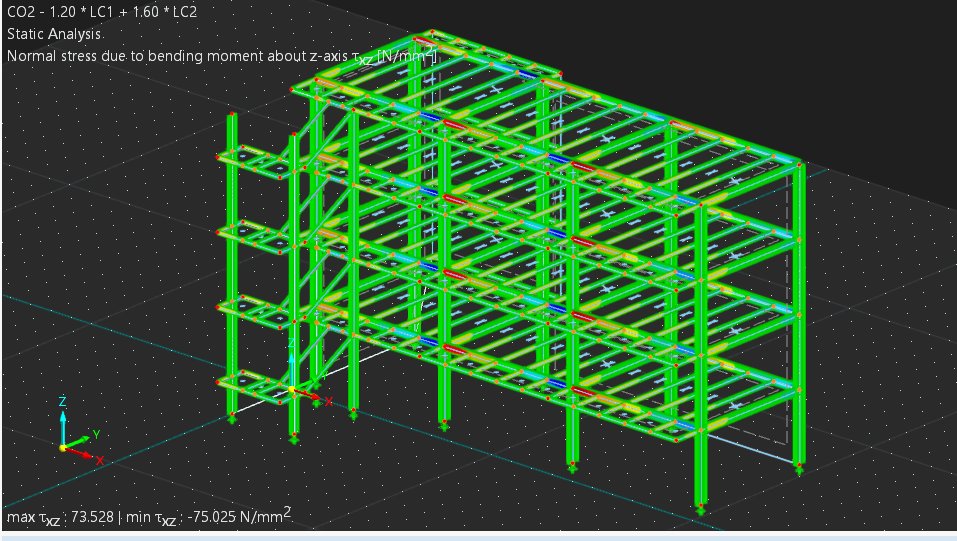

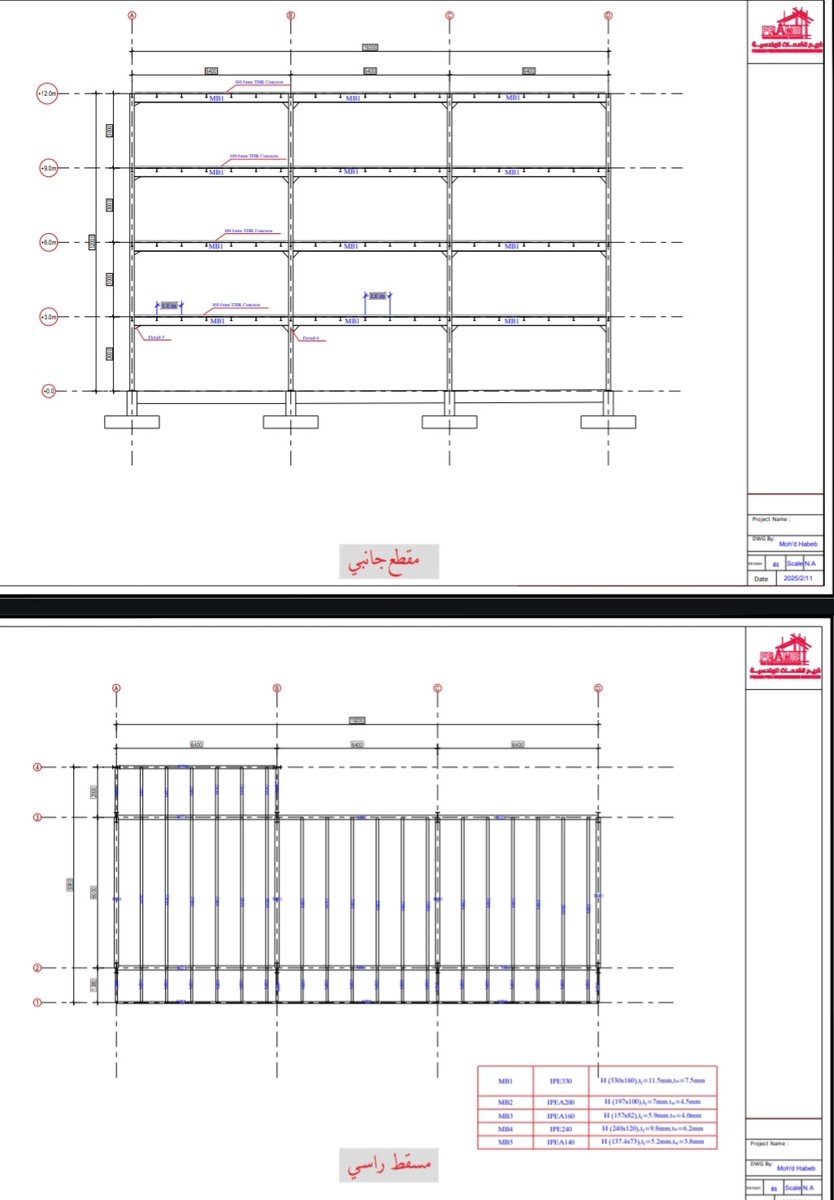

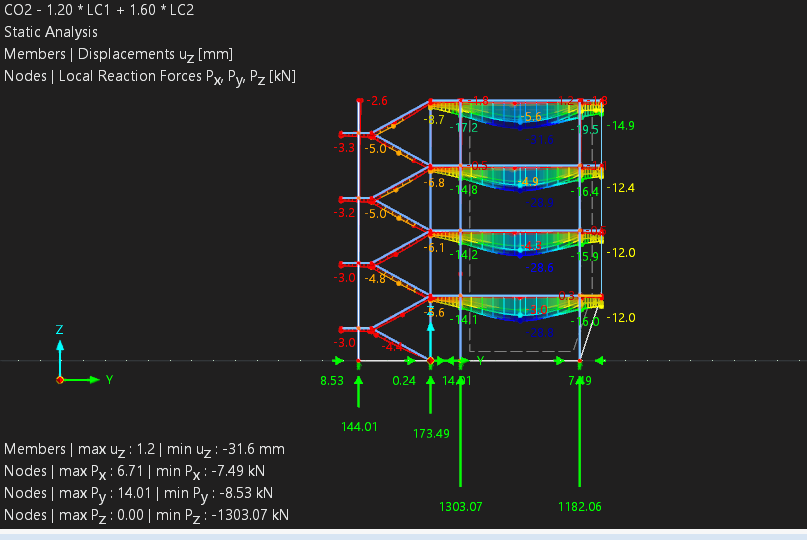

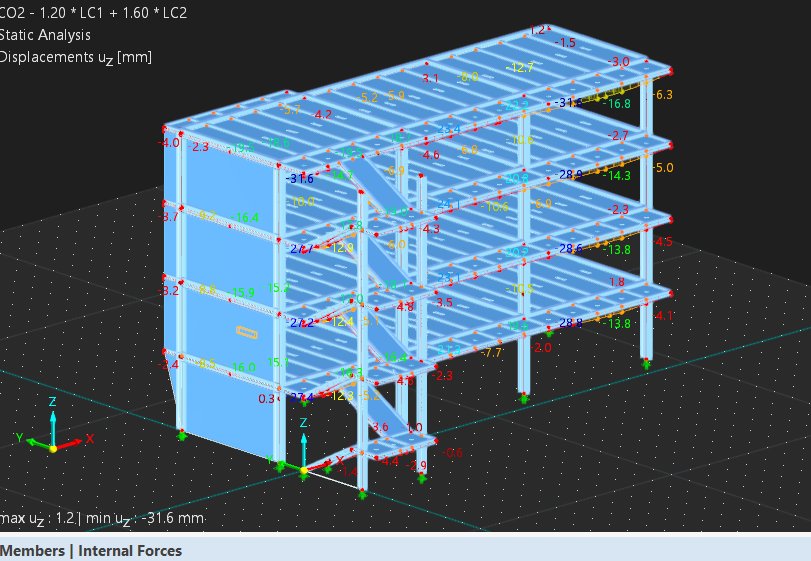

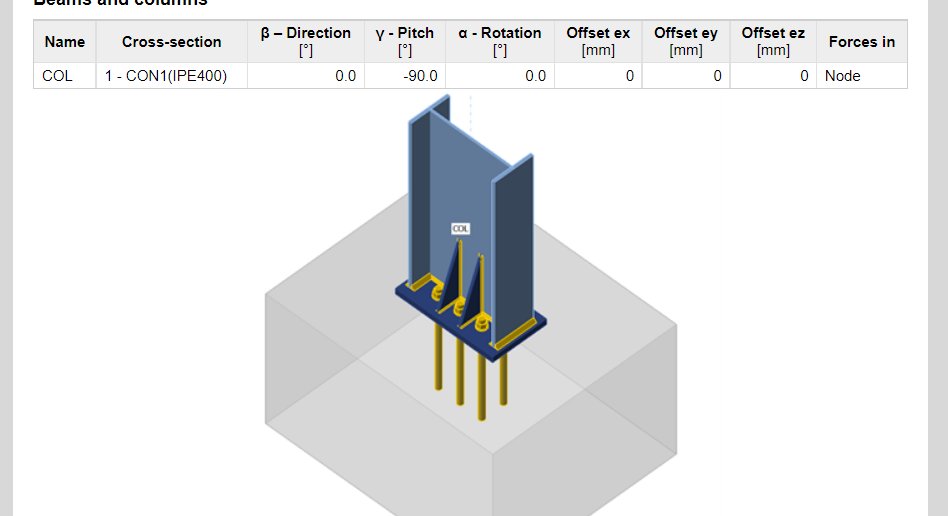

Design & Analysis of Multi-Storey Steel Structures

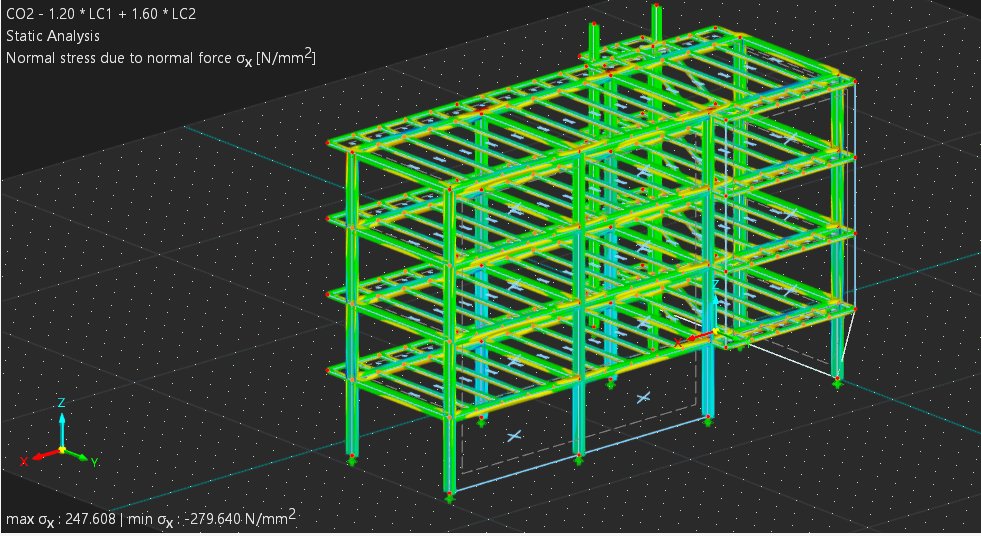

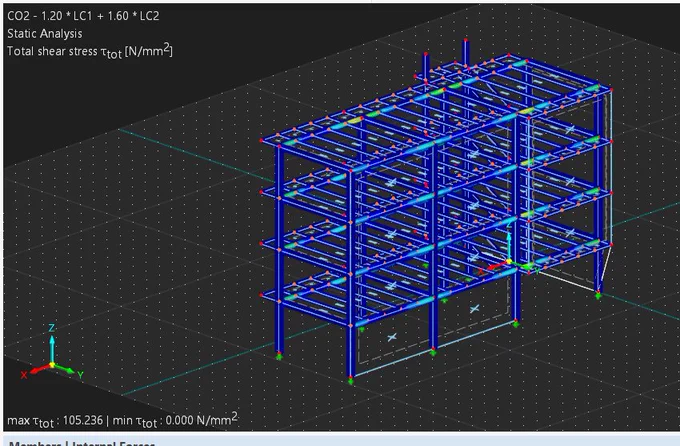

Completed the structural design and analysis for 4 multi-storey steel buildings, focusing on safety, efficiency, and code compliance.
Project Highlights:
- Total area: 158 m² ( each Storey )
- Structural system: Steel frame
1
2
45

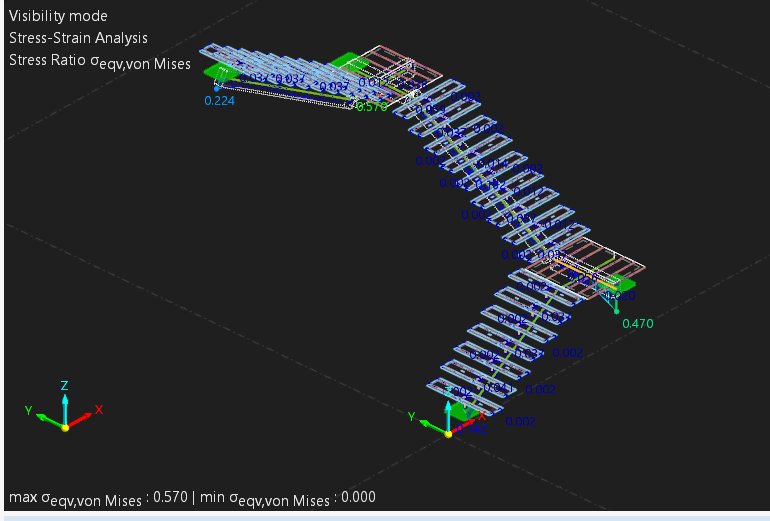

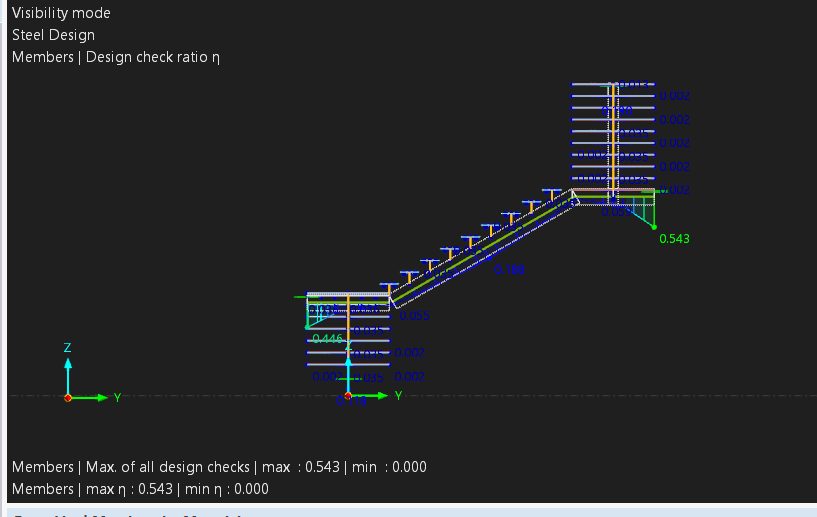

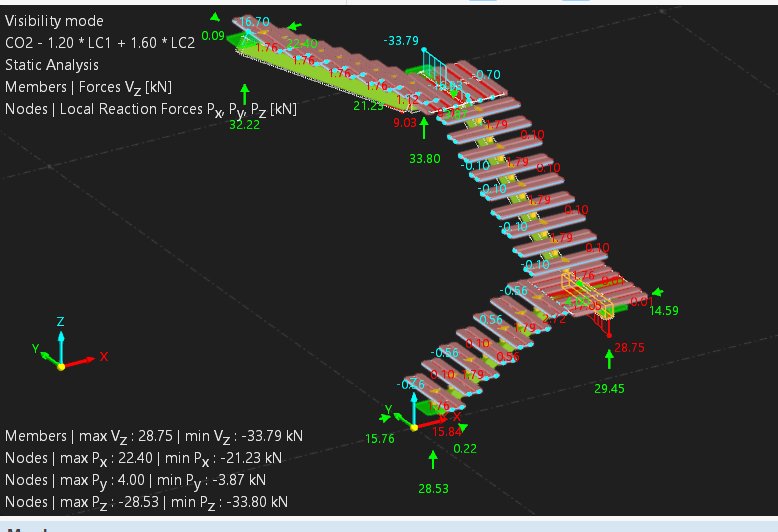

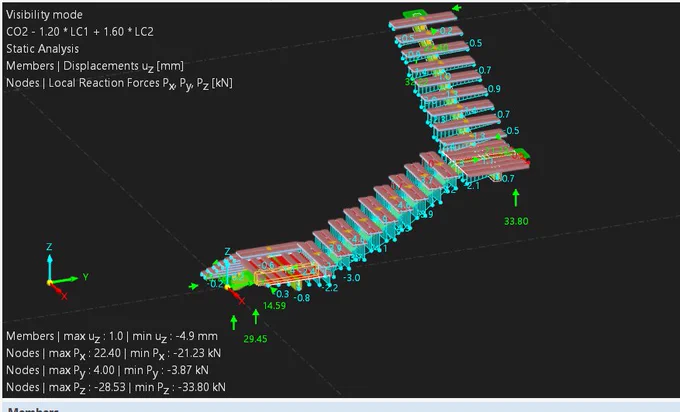

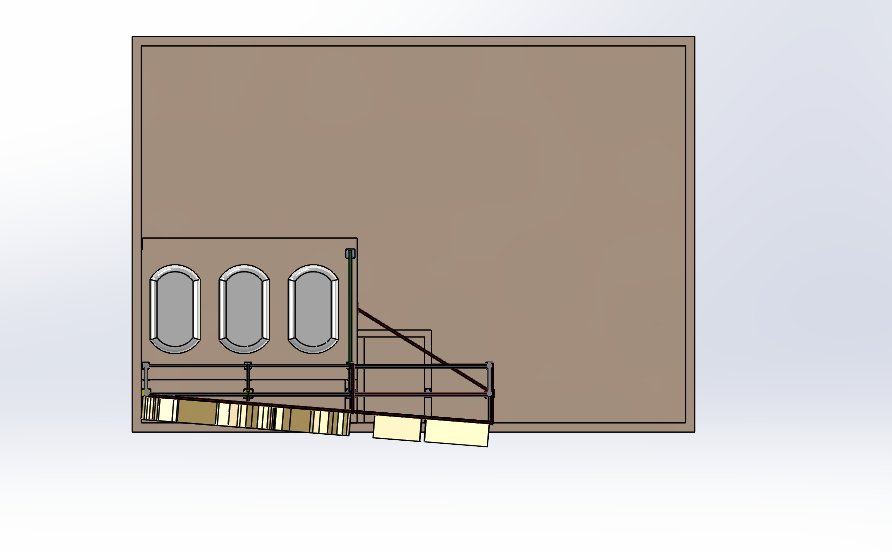

تصميم وتحليل لهيكل معدني ( سُلم Step staircase ) بناء على الأكود :
Design and analysis for steel structure (Step Stair case ) according to :
- ASCE 7-22 &7- 16 for Loading
- AISC 360 |2016 for Steel Design .
- EN 1993 for Connection Design .
- IBC 2018 for Deflection Limits.
44

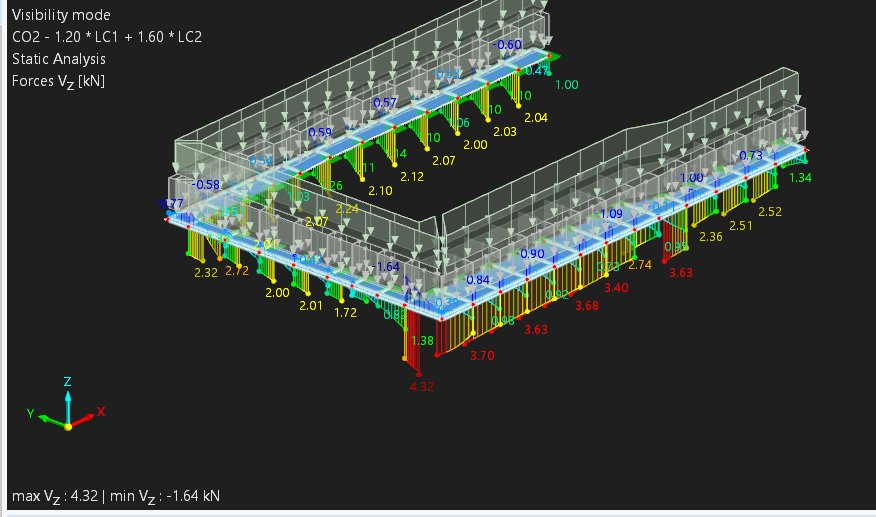

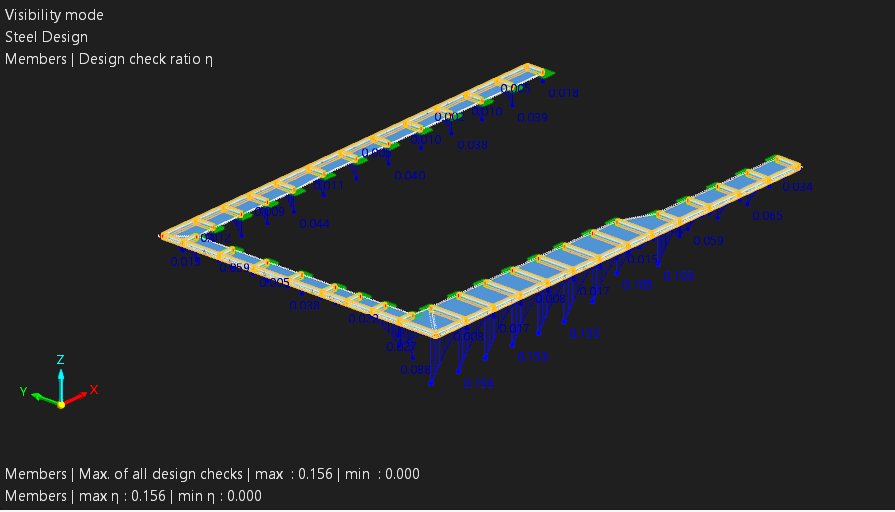

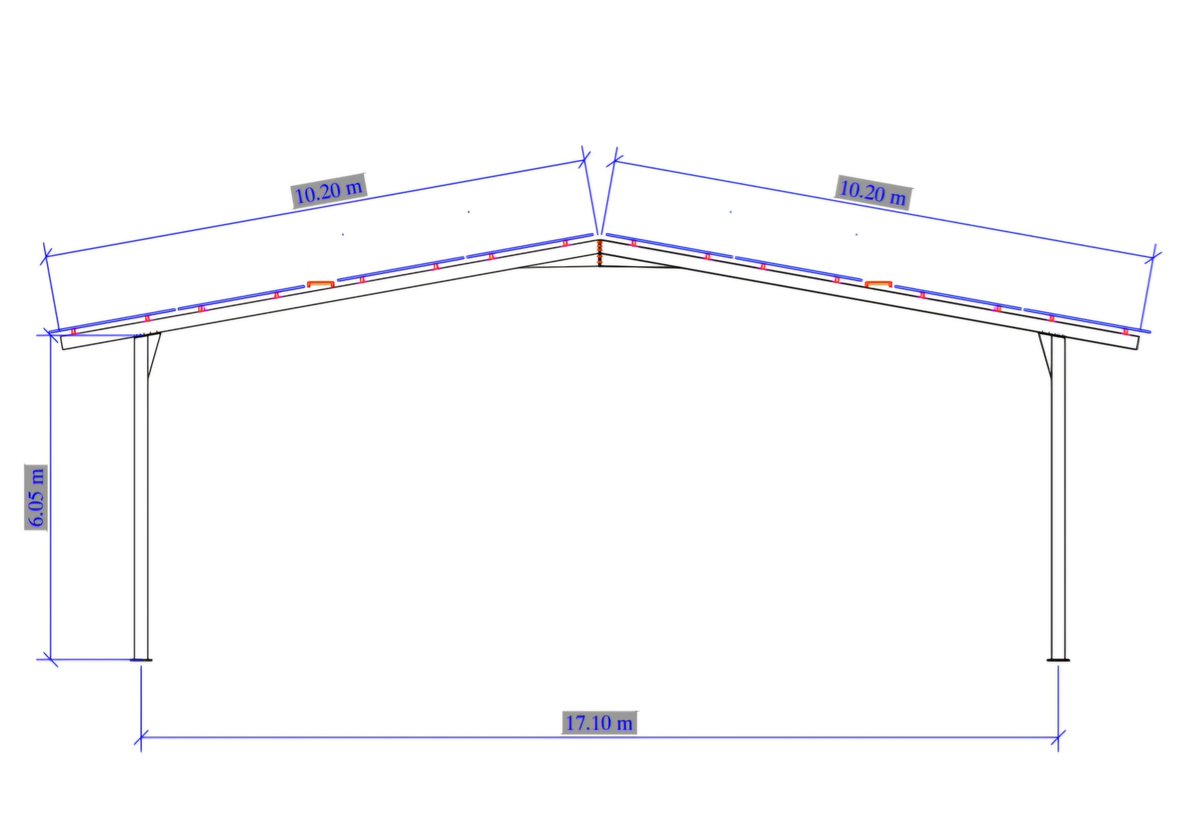

Design and analysis for (Canopy)
Design Codes , Standards and References :
- ASCE 7-22 &7- 16 for Loading.
- AISC 360 |2016 for Steel Design.
- ASCE 7-16: for wind load.
- EN 1993 for Connection Design .
- ASCE 7-2022 Section 2.4.1 for Deflection Limits .
1
2
43

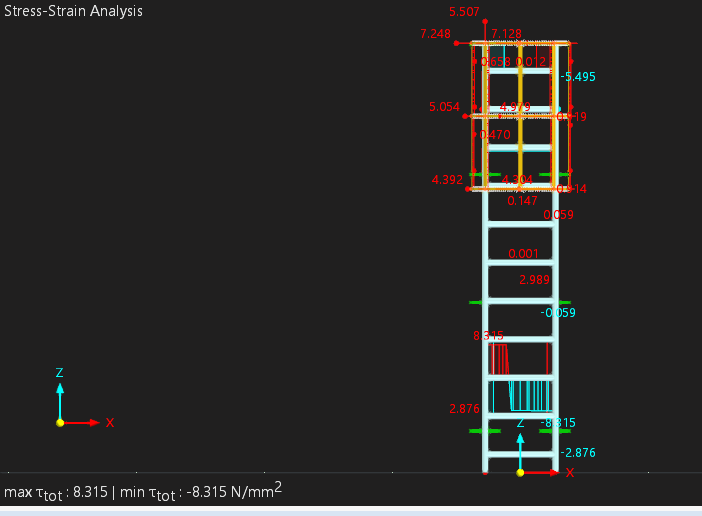

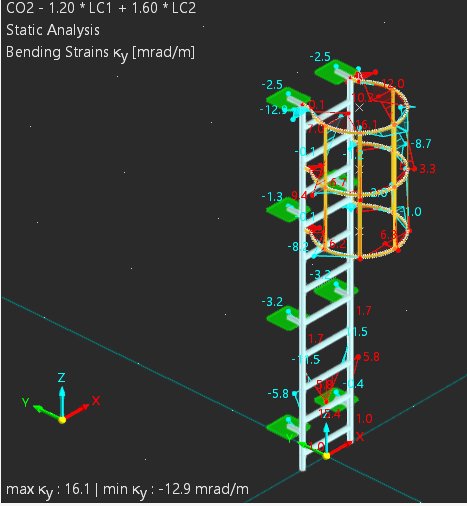

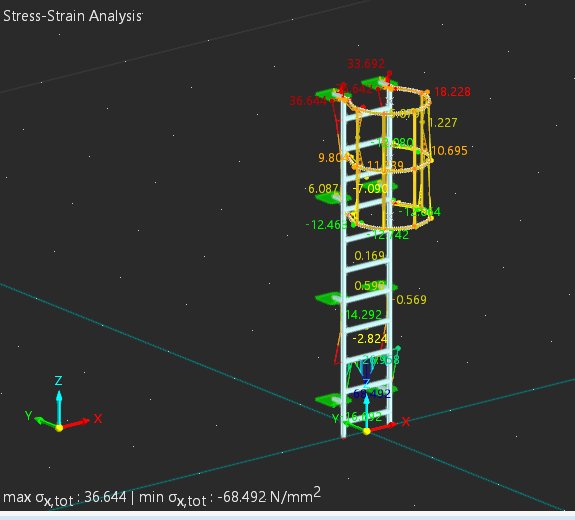

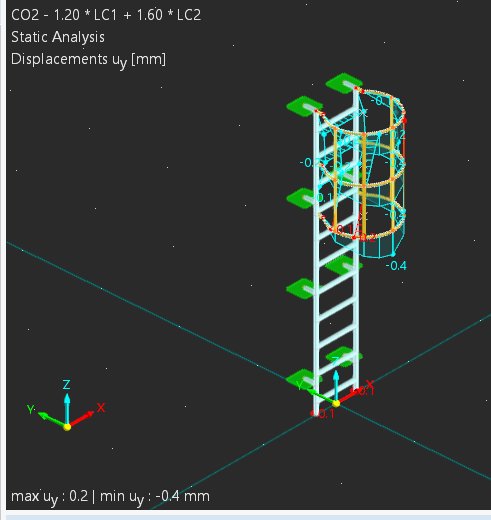

Design Cat Ladder According to
:
ASCE 7-22 &7-16 for Loading
AISC 360 | 2016 for Steel Design
AISC 370 | 2016 for Stainless Steel Design
EN 1993 for Connection Design
#تصاميم
#تنفيذ
#هياكل_معدنية
#هياكل_استيل
#ستينلس_ستيل
52

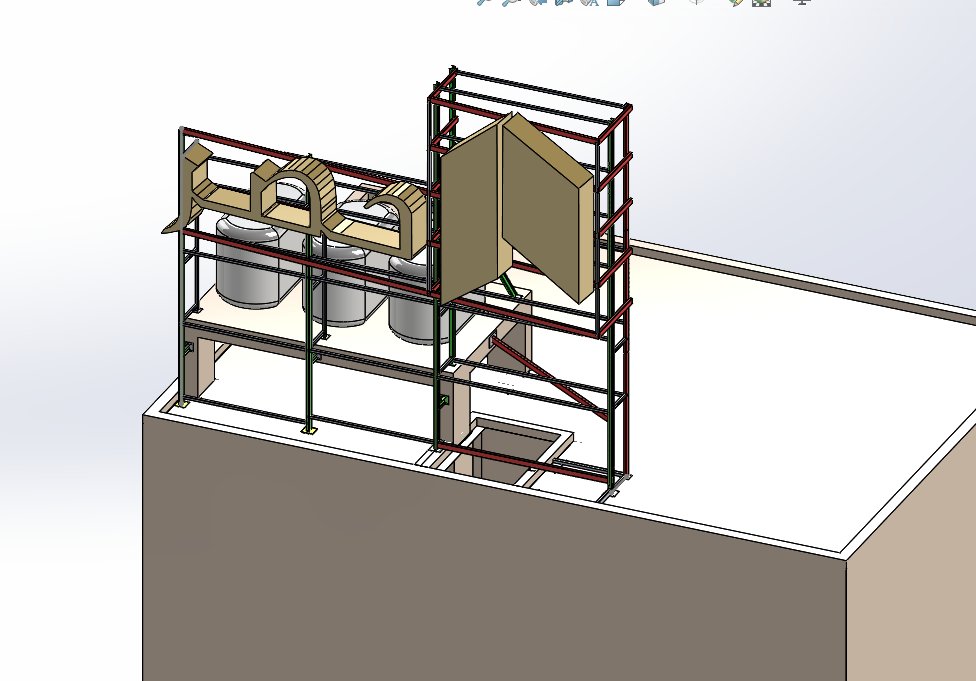

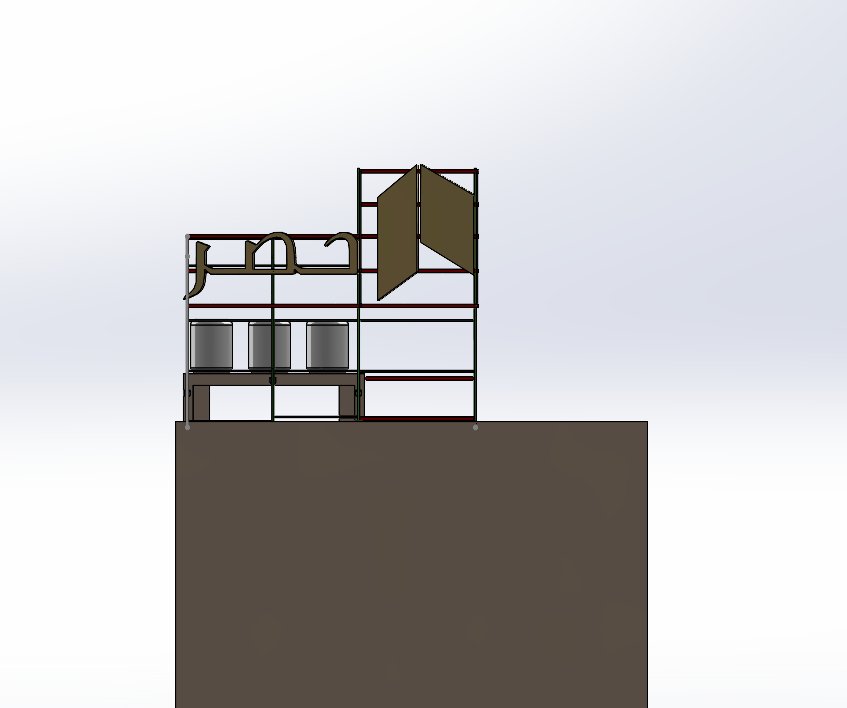

تصميم هيكل لوحة إعلانات

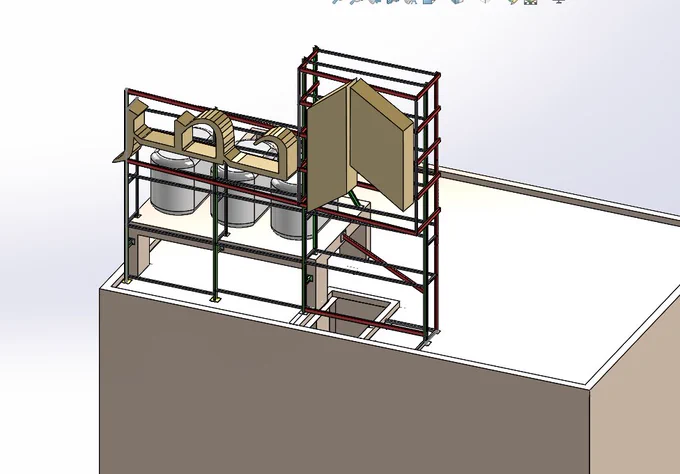

Billboard Sign Structure Design..
#لوحات_اعلانية
#قواعد_طاقة_شمسية
#هناجر
#هياكل_معدنية
1
57

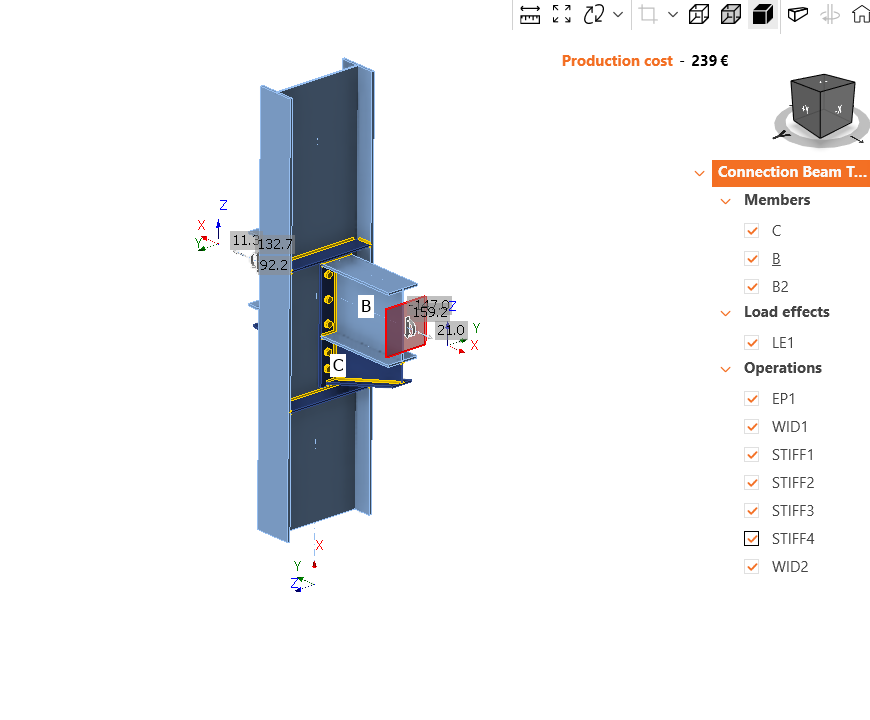

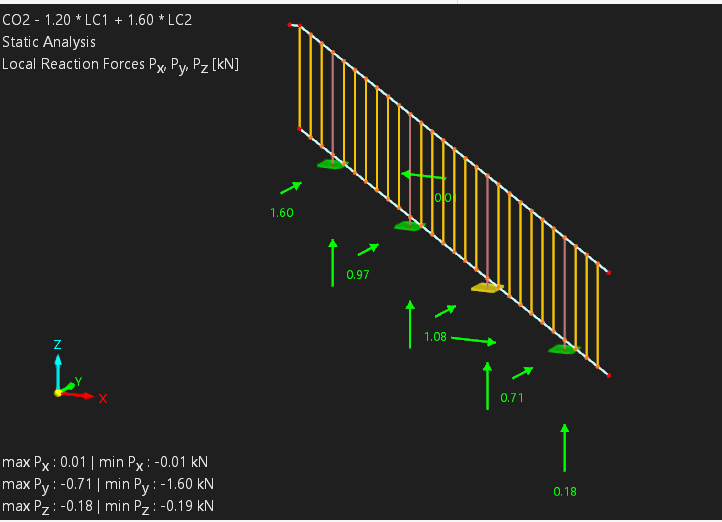

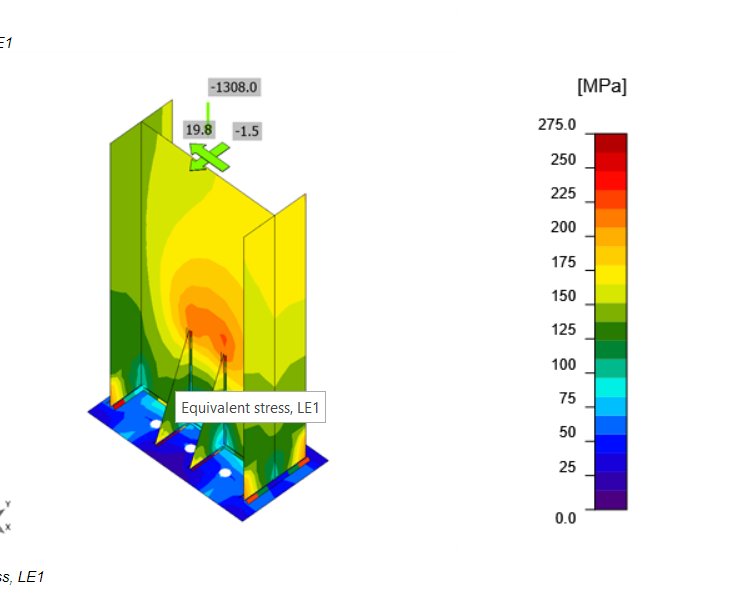

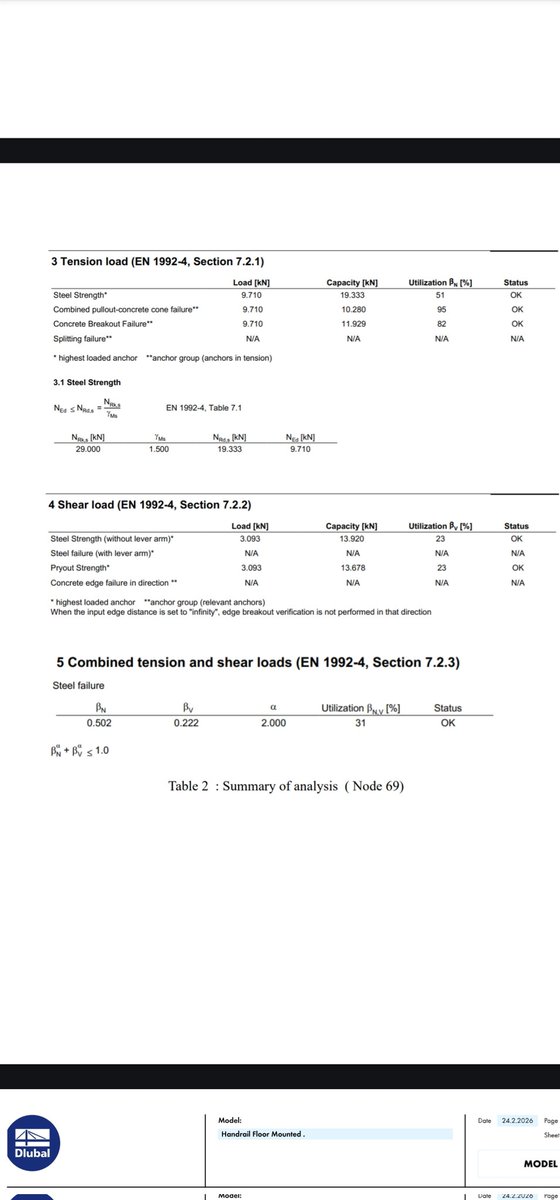

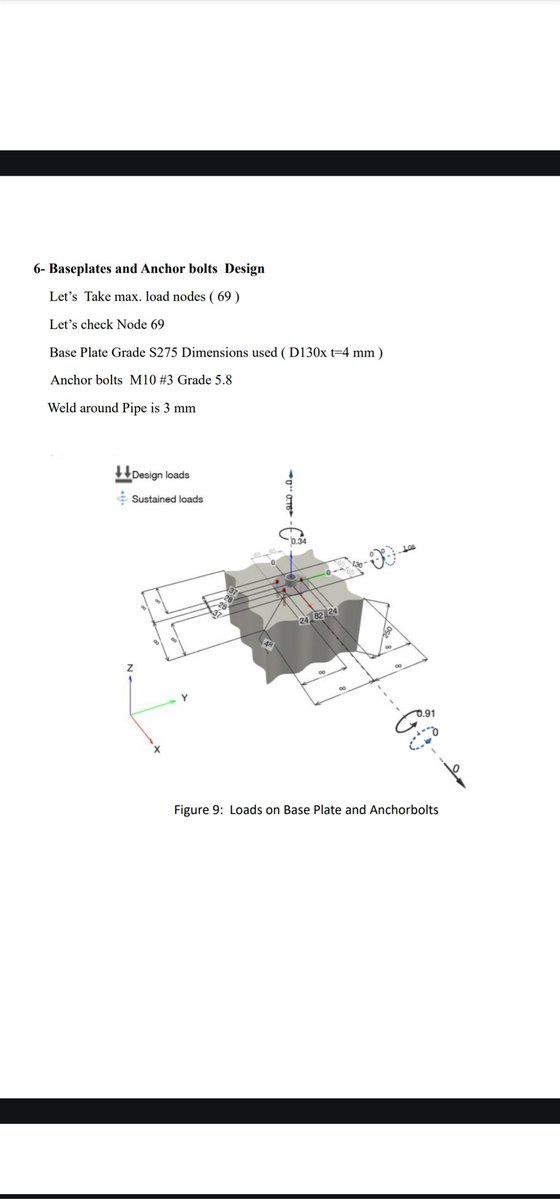

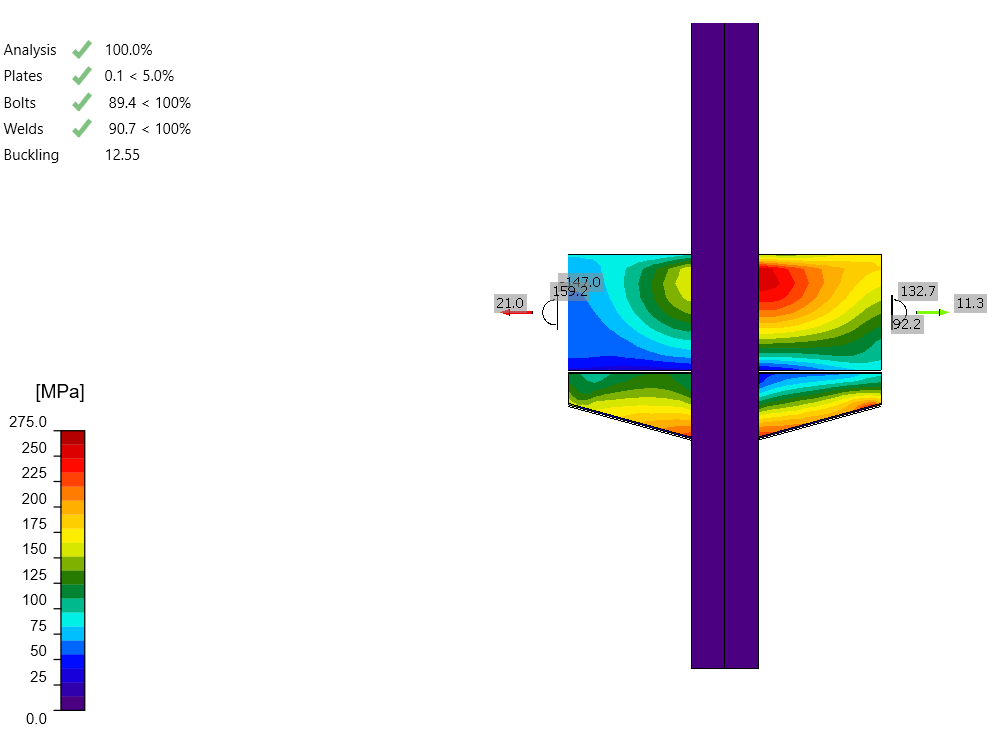

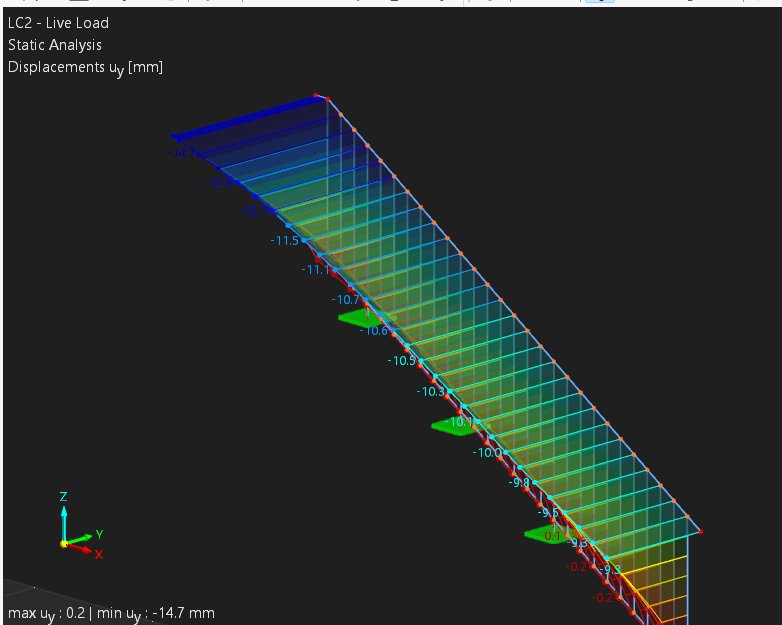

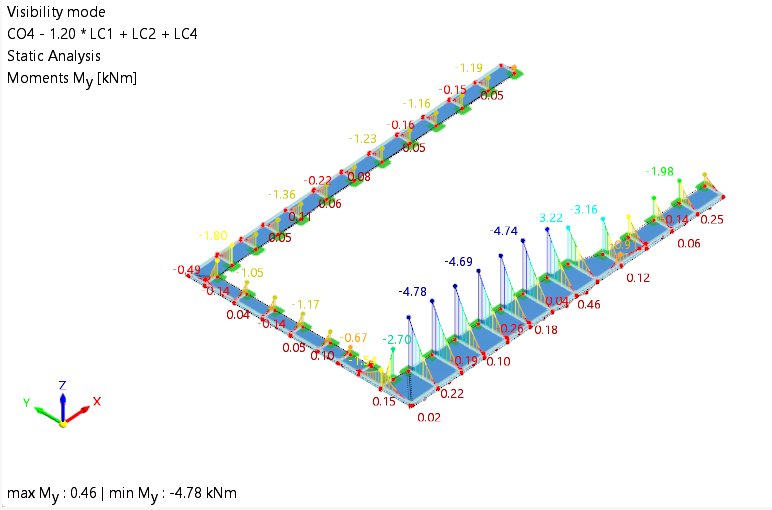

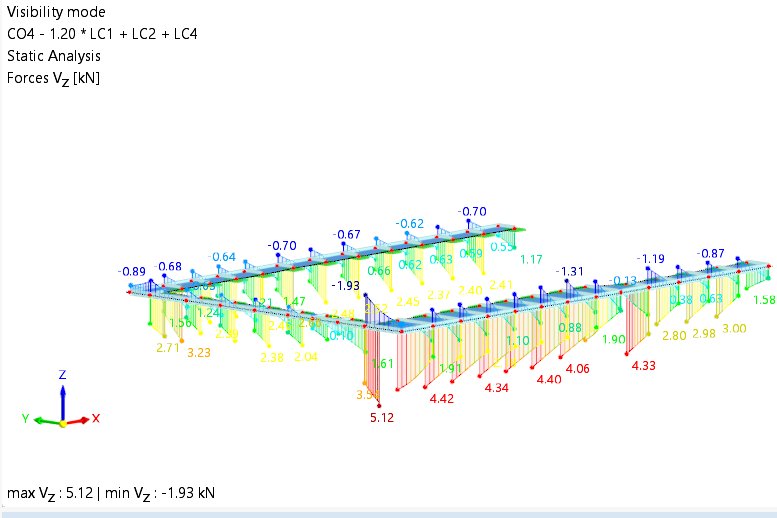

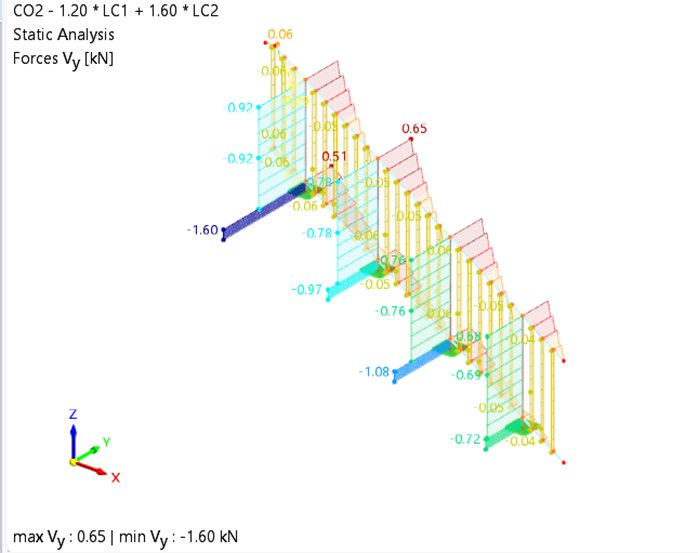

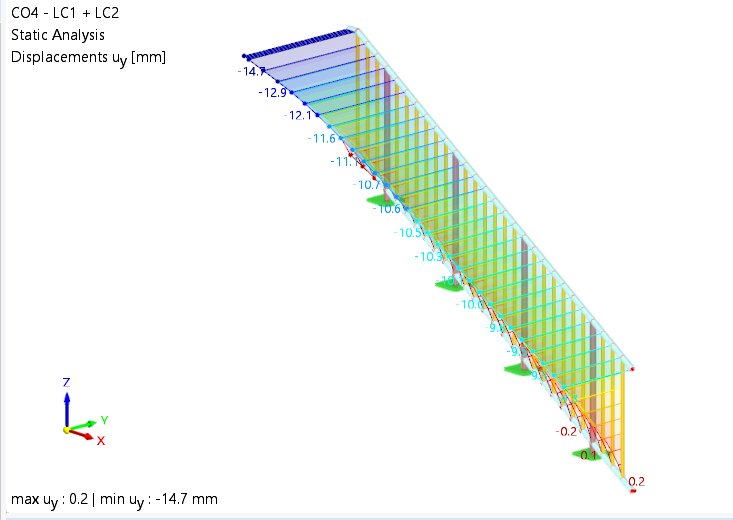

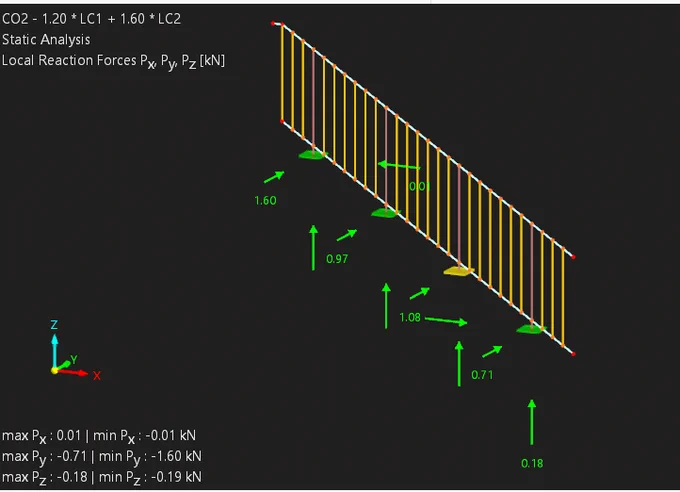

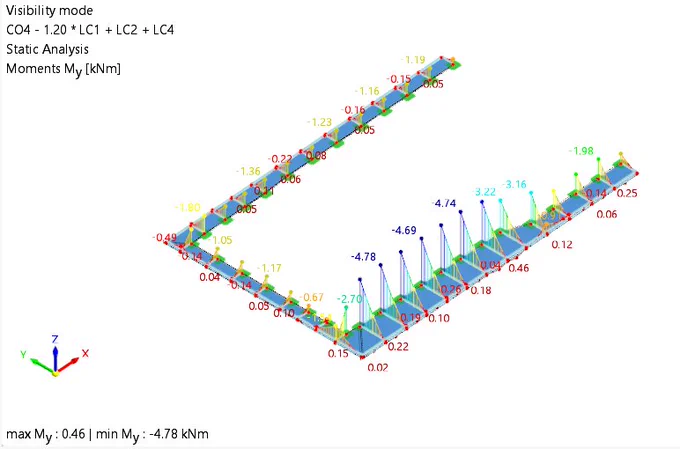

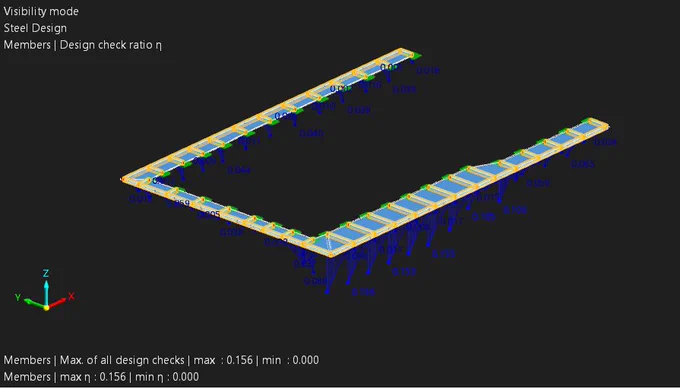

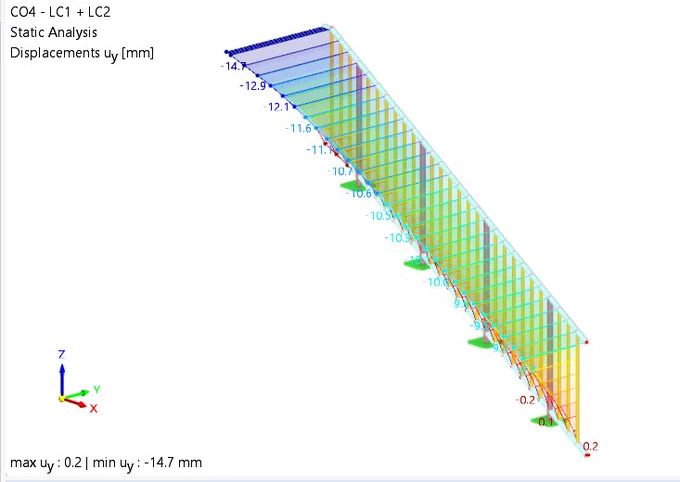

Handrail Design According to ASCE 7-2016 | Analysis Using Dlubal RFEM | Connection Design with Hilti PROFIS Engineering
I recently completed the structural design and verification of a Floor-mounted handrail system in accordance with ASCE 7-2016
#StructuralEngineering
2
51

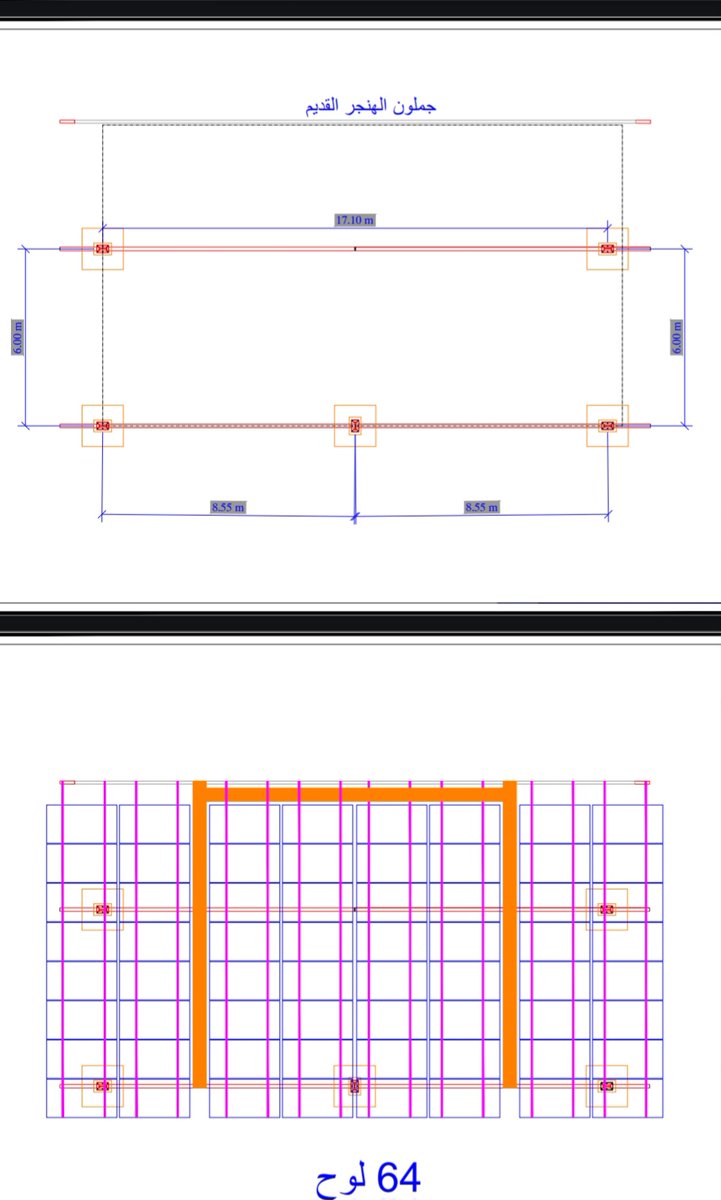

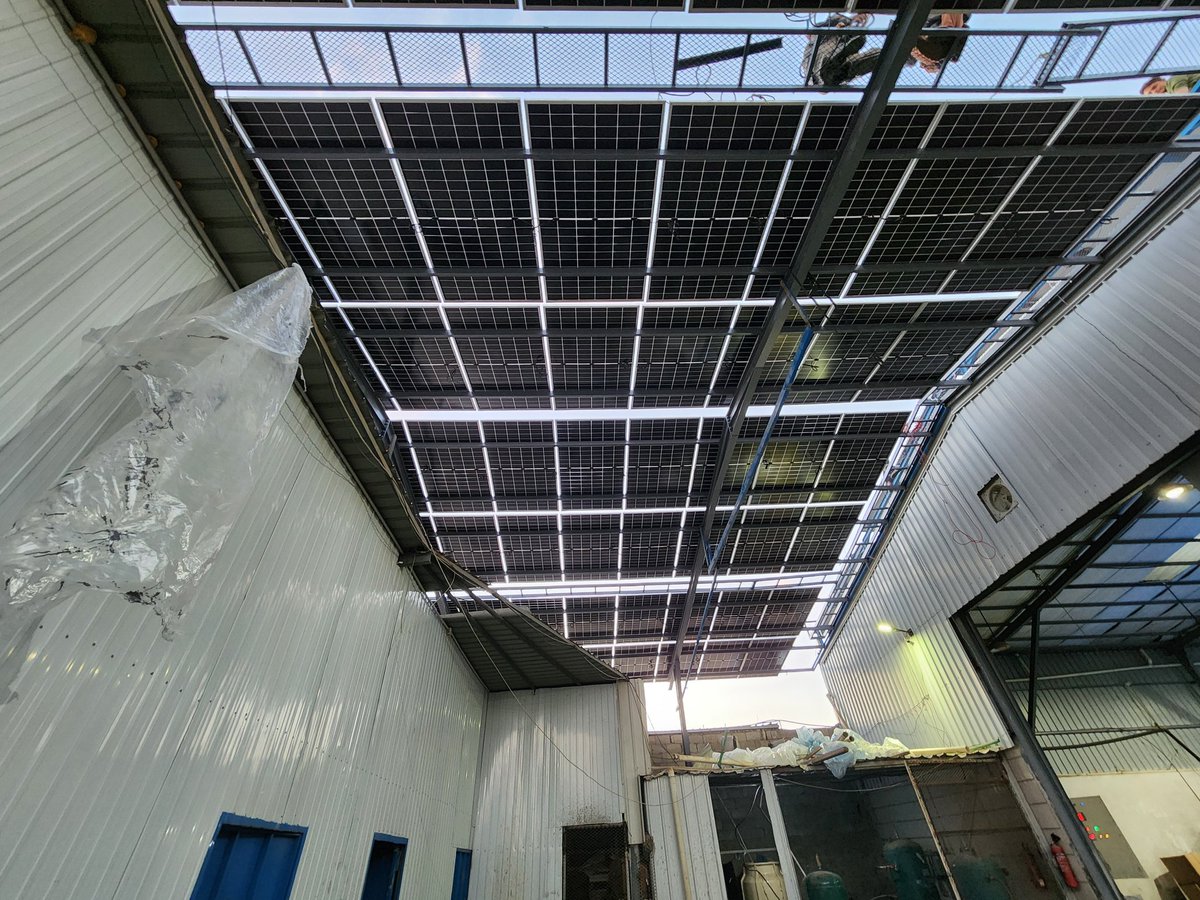

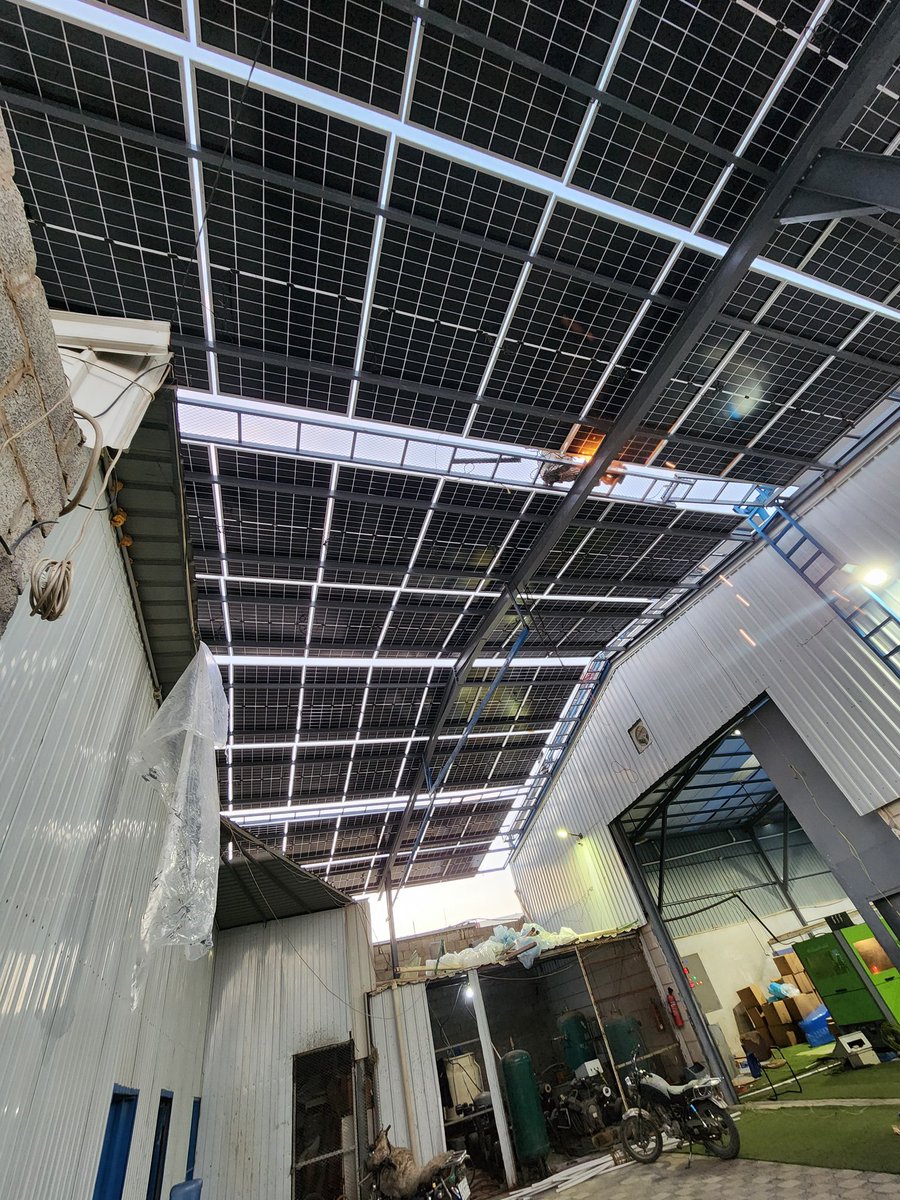

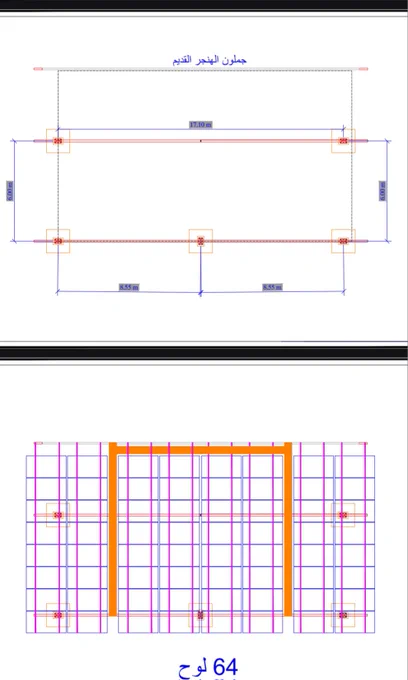

نمذجة وتصميم هيكل حامل للالواح الشمسية عدد 60 لوح حجم 700 وات ...
Modeling & Design Solar Structure
#هناجر
#قواعد_طاقة_شمسية
#مظلات
#تصاميم
#هياكل_معدنية
#ظله
#تفصيل
#لحام
#hangars
#steel_structures
#solar_structures
#shading
#Car_shading
#welding
#fabrications
43
