11 Jun 2025

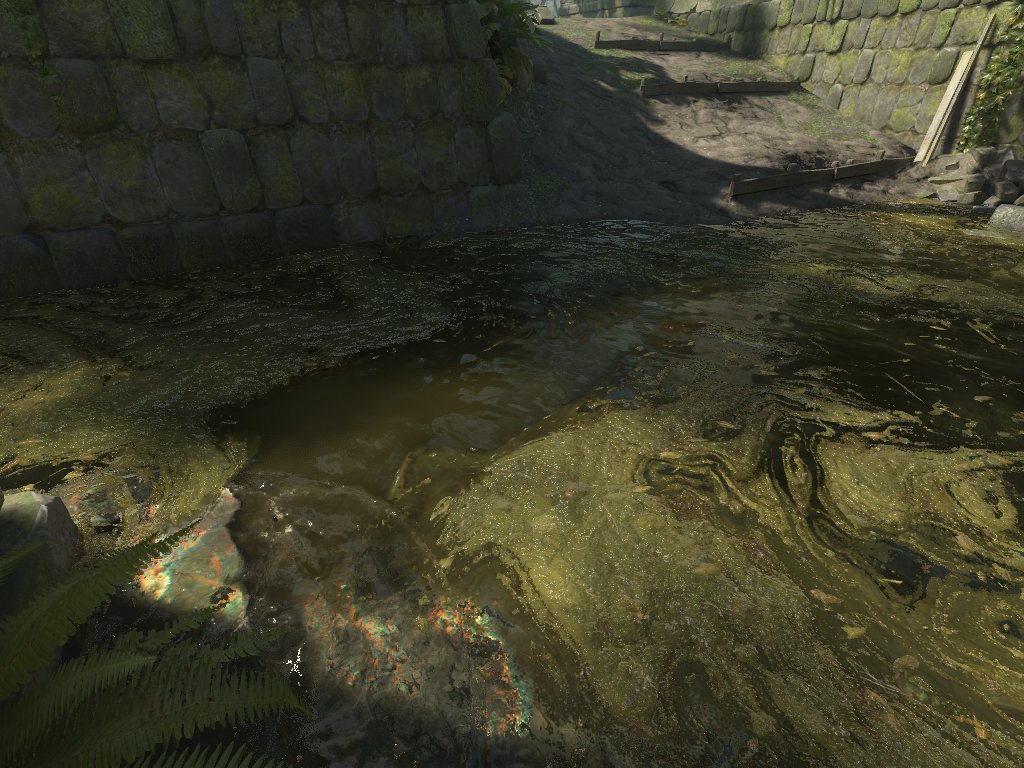

Decided to check out how water is rendered in Counter-Strike 2
Given how interactive water in CS2 is, I expected to see some cell fluid simulation, but turns out they use just a low-res off-screen buffer with flat 2D decals for various water effects. Reminds me of HL2 water :)
15
171
2,428
151,488
Released my proof of concept BC1 encoder for channel packed textures on github!
I hope that bc7enc and icbc developers will consider paying more attention to channel packed textures in the future. 🙂
github.com/rmn20/dxt_cpt
2
43
Downloaded 763 1k ARM textures from polyhaven and tested b7enc and my encoder (with 4x4 principal axis) using SSIM, RMSE and LPIPS
I used L5 bc7enc mode as L18 is too slow and L5 seems to be closer to my encoder under the hood
So my encoder seems to score better only on LPIPS...
2
1
217
And if I use 6x6 principal axis, it loses even on LPIPS. I guess 6x6 PA degrades small detail too much.
Also, note that most textures have a completely black metallic channel, so results are slightly skewed.
1
1
164
If we assume that ALL textures had zeroed-out metallic channel, the results would look something like this:
SSIM:
BC7ENC: 0.93925
MY ENC: 0.93565
RMSE:
BC7ENC: 5.1213
MY ENC: 5.3502
LPIPS:
BC7ENC: 0.05145
MY ENC: 0.0456
93
Downloaded about 700 1K ARM/ORM textures from polyhaven to evaluate results of my BC1 encoder using SSIM, but it consistently gets lower scores than bc7enc, curious
1
175
Found another heuristic for improving visual quality of BC1 textures with channel packing.
The idea is to calculate principal axis using pixels of adjacent blocks. This blurs hue and can reduce detail of channels parallel to PA, but this also reduces artifacts on block boundaries

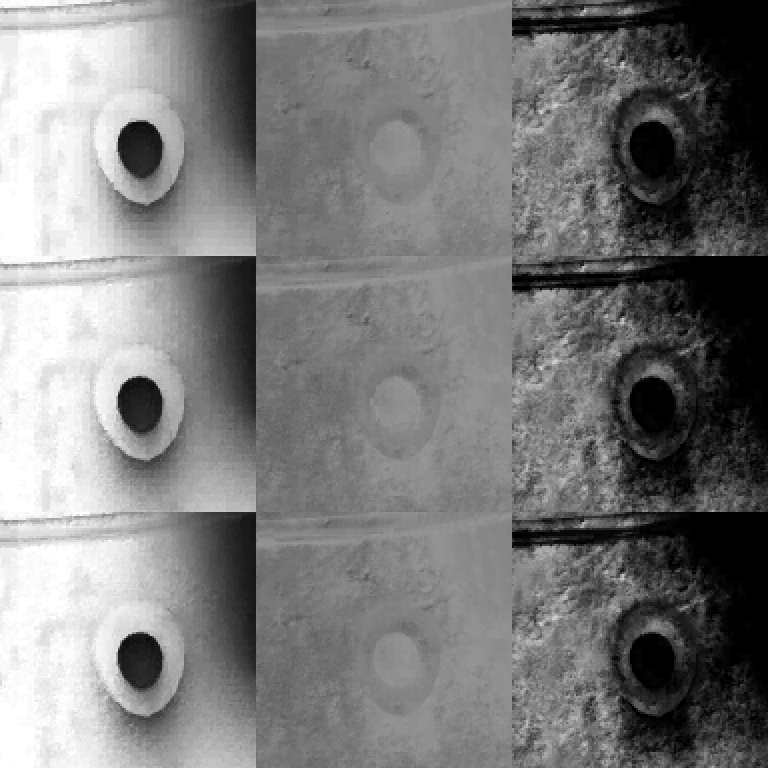

ALT Red, green and blue channels of bc7enc, experimental encoder with PA calculated using 4x4 blocks, and 6x6 blocks
2
161

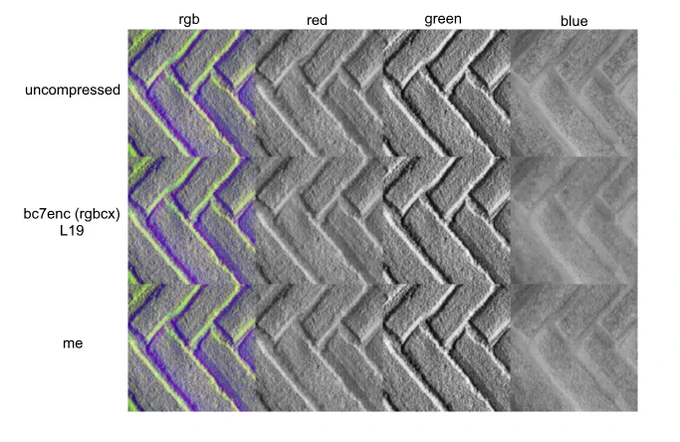

Experimenting with S3TC/BC1/DXT1 compression. The idea is to intentionally leak channel data into each other to reduce blockiness and get at least some data instead of averaged out 4x4 blocks.
2
4
59
4,206
raytraced reference vs normal map bent normals and ao for self-shadowing separate bent normals and ao texture for light bounce ðŸ«
1
22
1,942

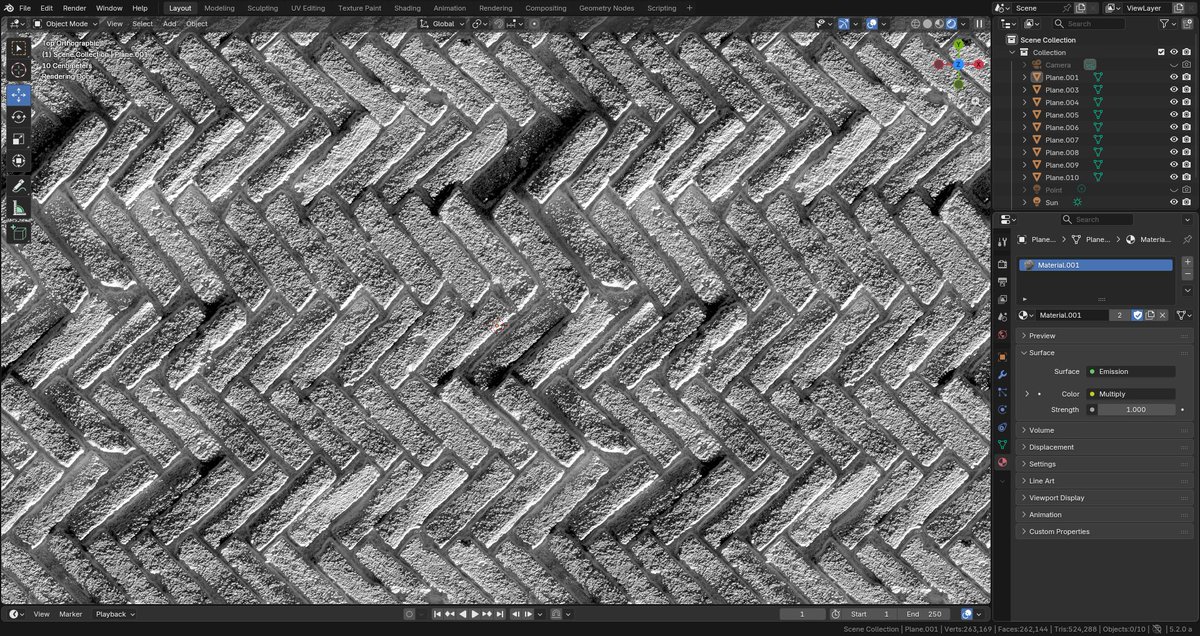

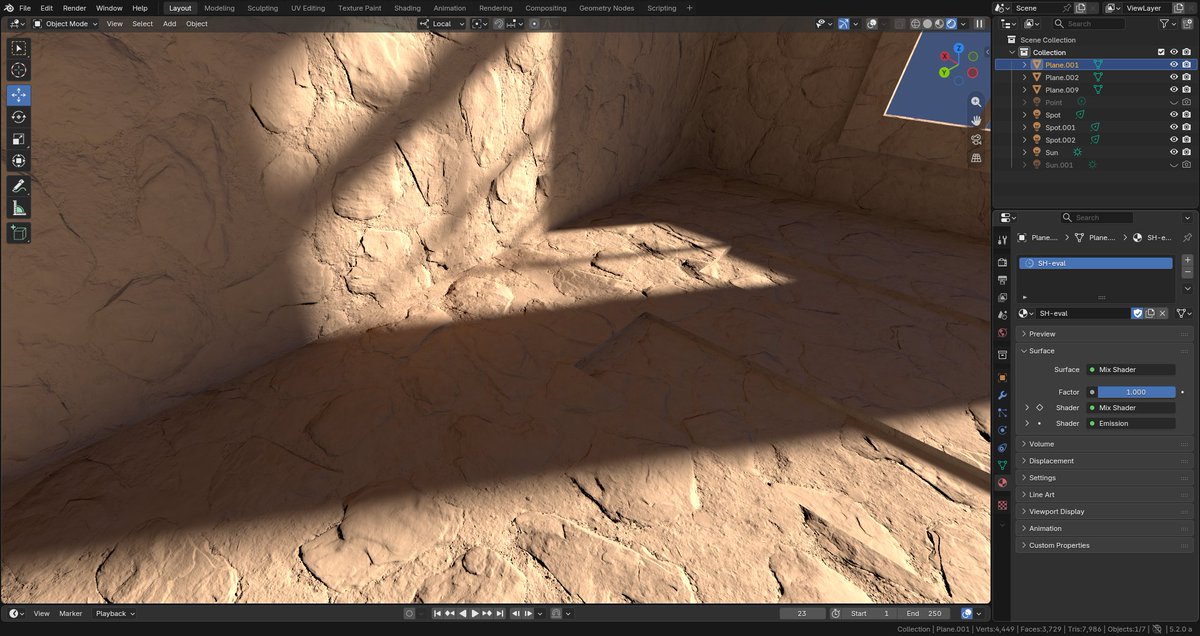

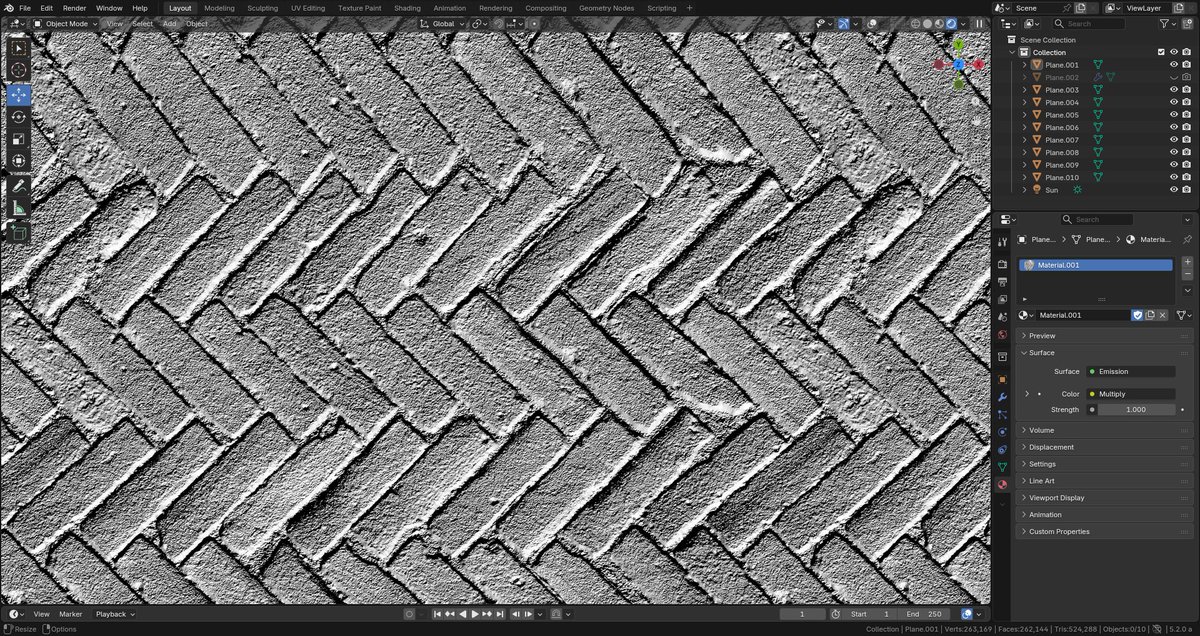

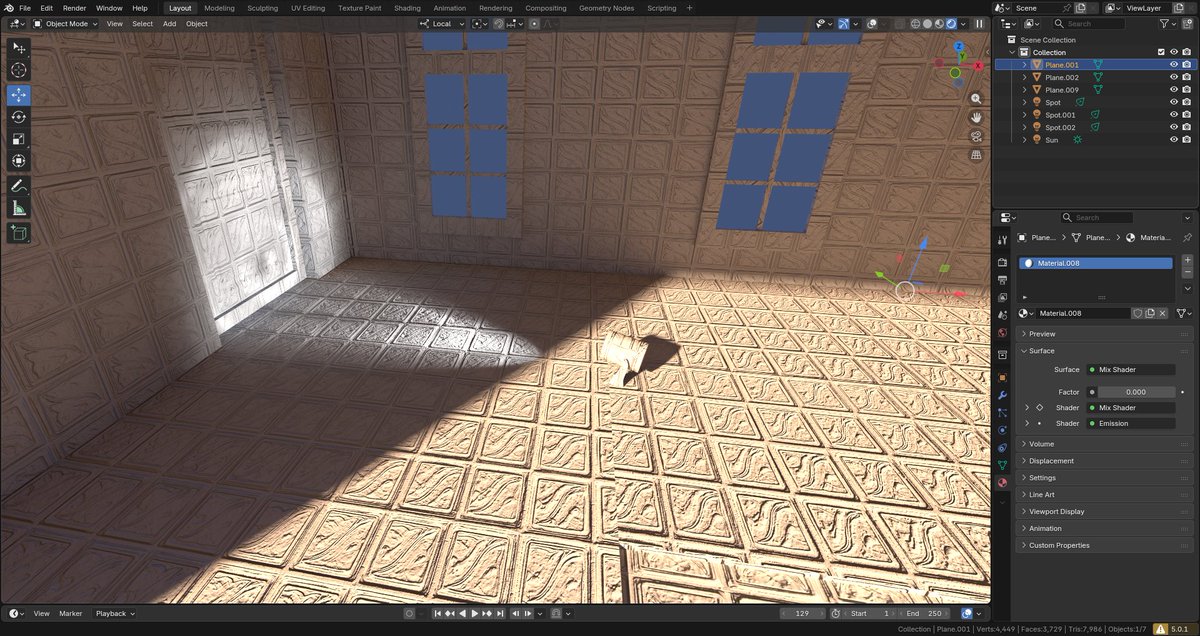

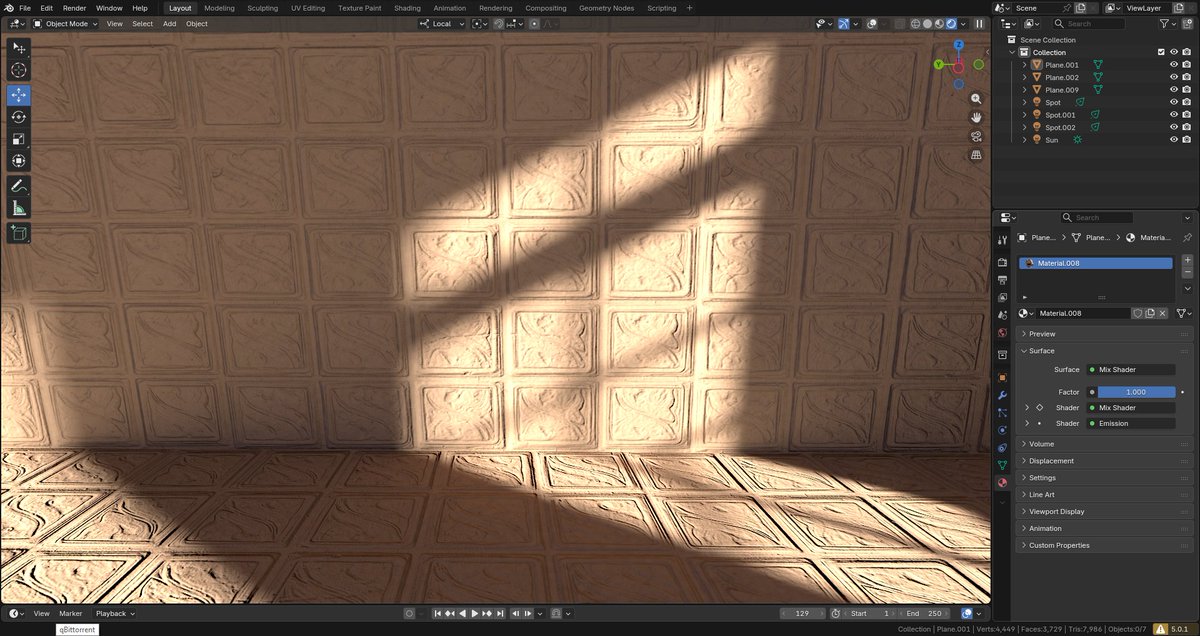

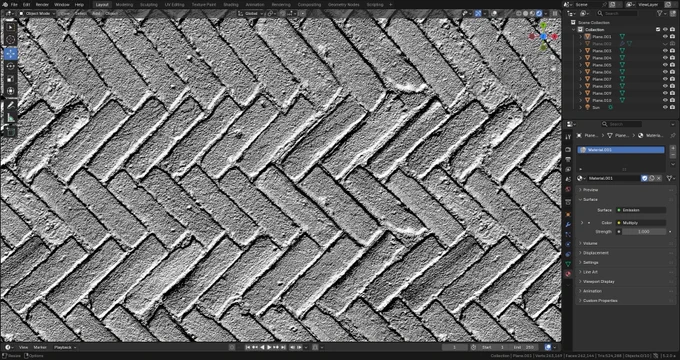

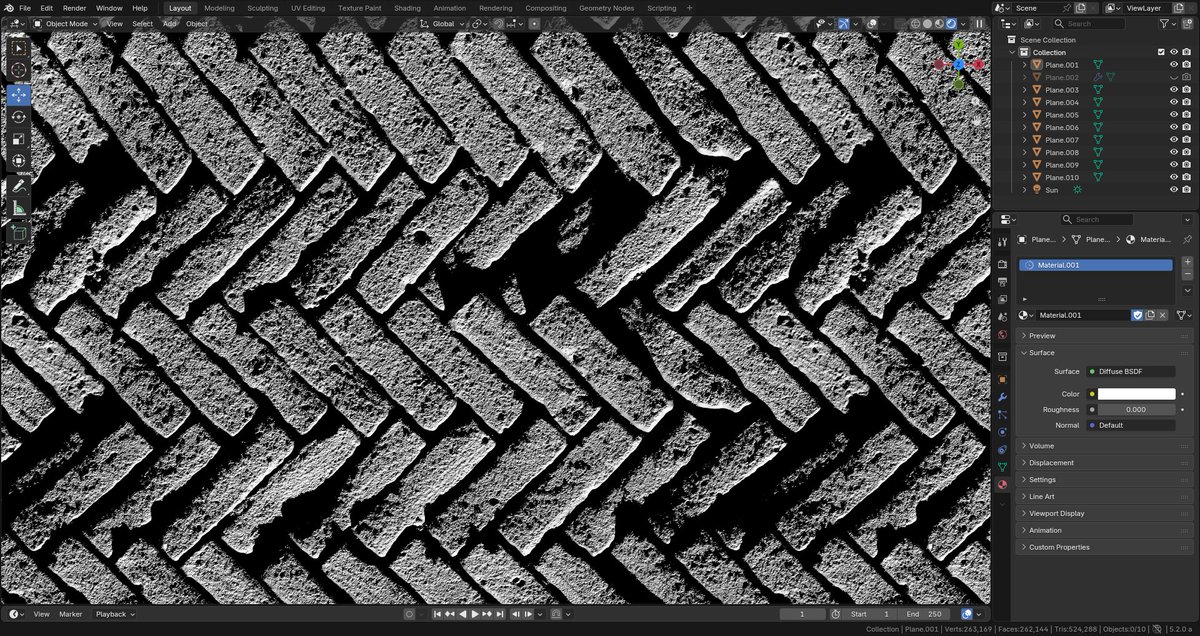

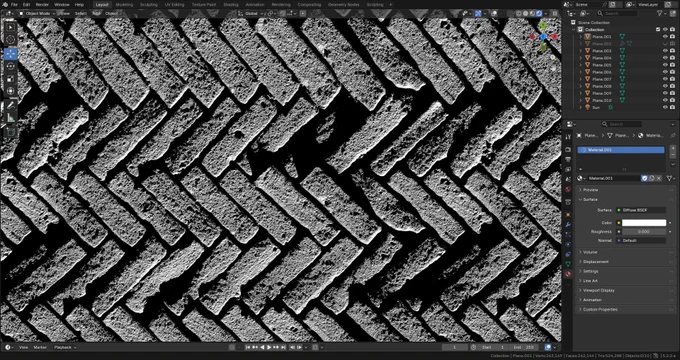

Came up with a cursed workaround for baking bent normals purely in Blender 3D using the raycast shader node. Bent normals are usually used for self-shadowing and reflection occlusion.
1. Regular normal map
2. Normal map raytraced shadows
3. Normal map bent normal map
#b3d
2
252
Still looks videogame-y to my taste but better than regular normal maps...
100

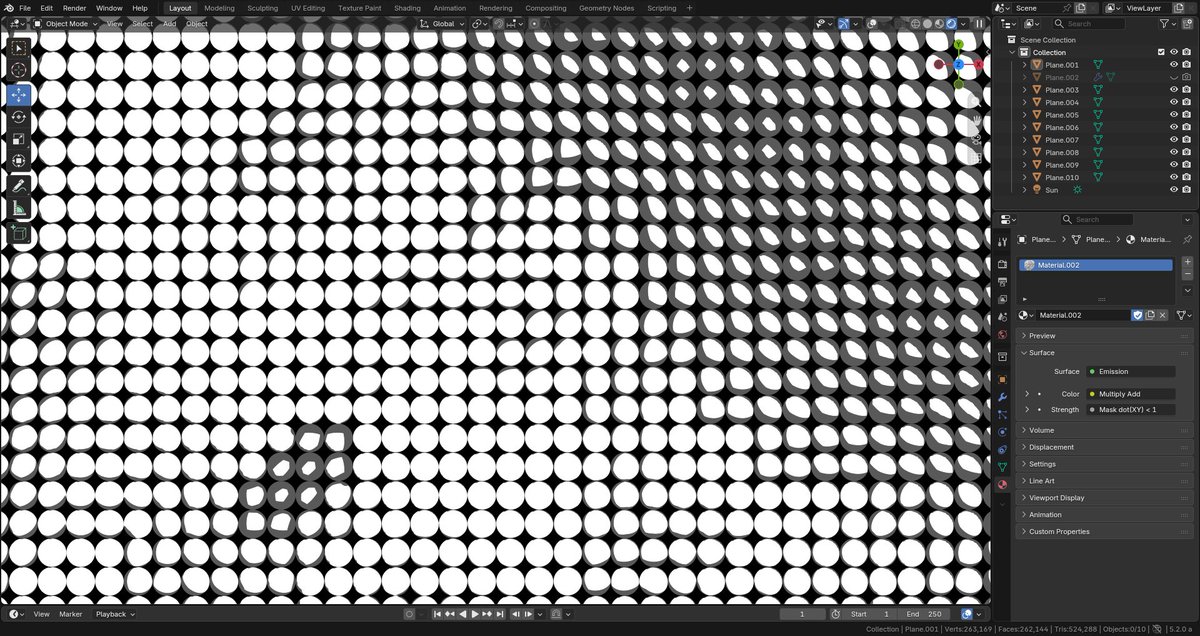

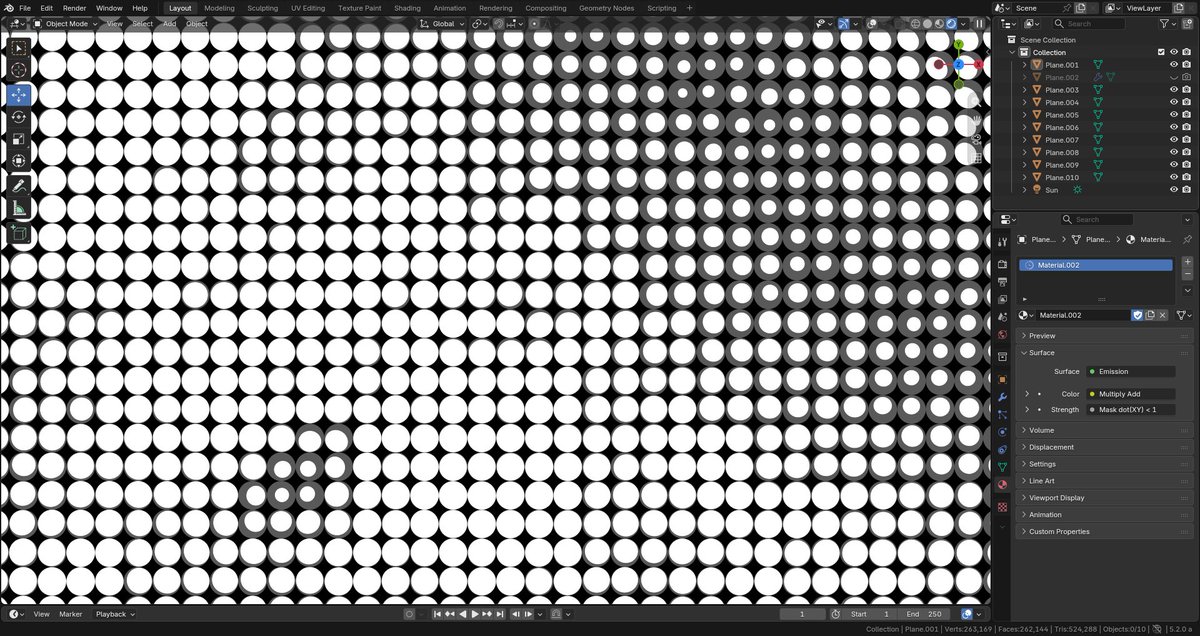

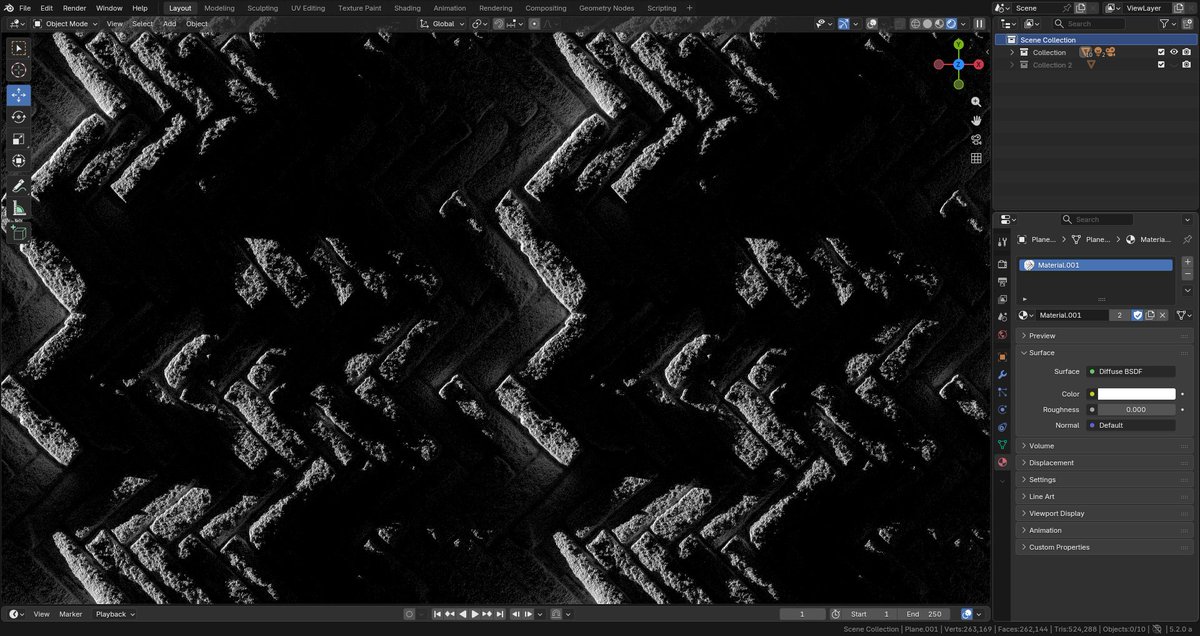

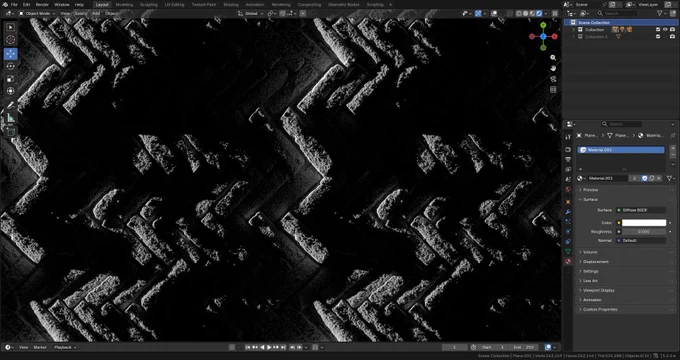

This is how visibility data looks like at the pixel level.
1. Raytraced visibility
2. Visibility approximated using bent normals
102

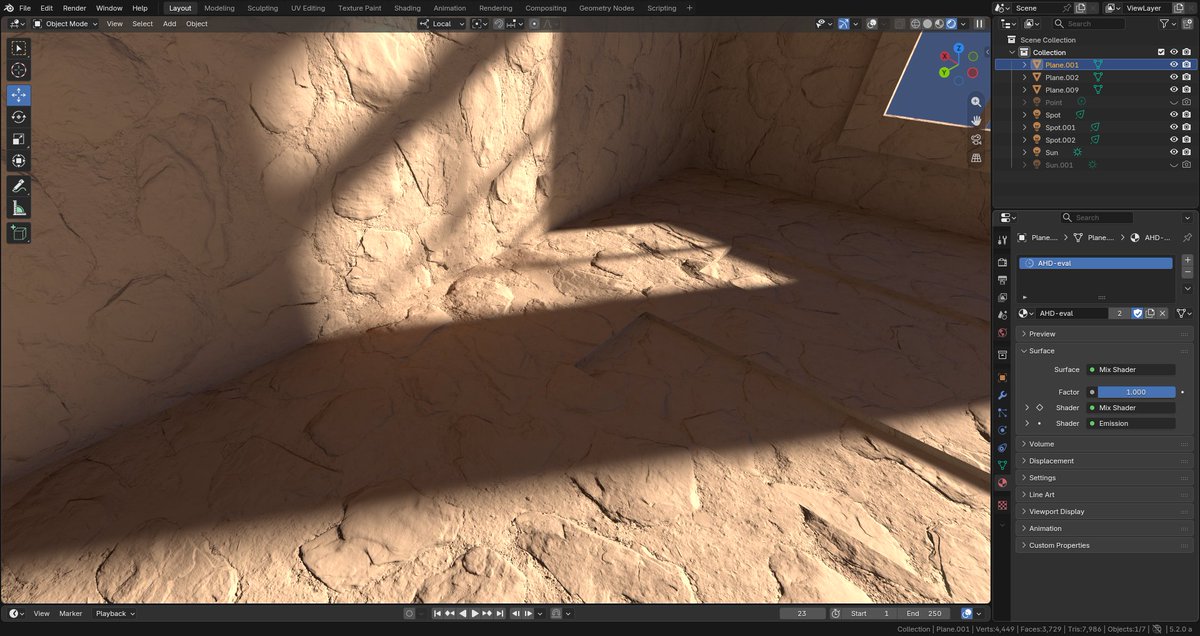

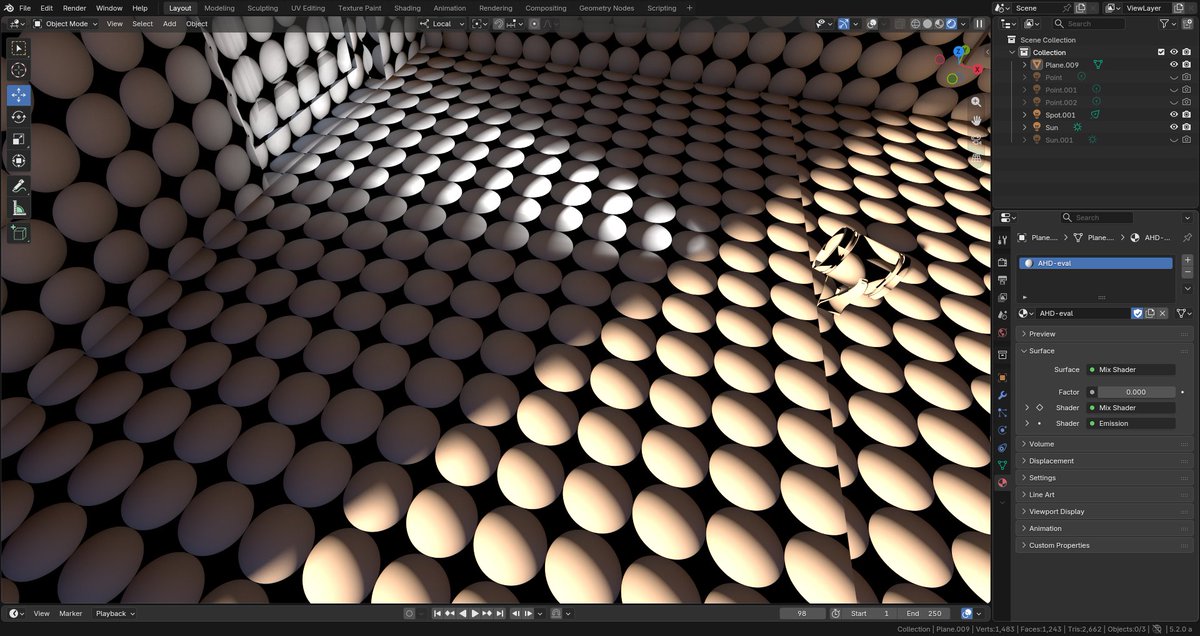

Found a nice way to visualize and debug directional lighting data
Again, raytraced reference vs per-channel RGB AHD lightmap
3
49
3,540

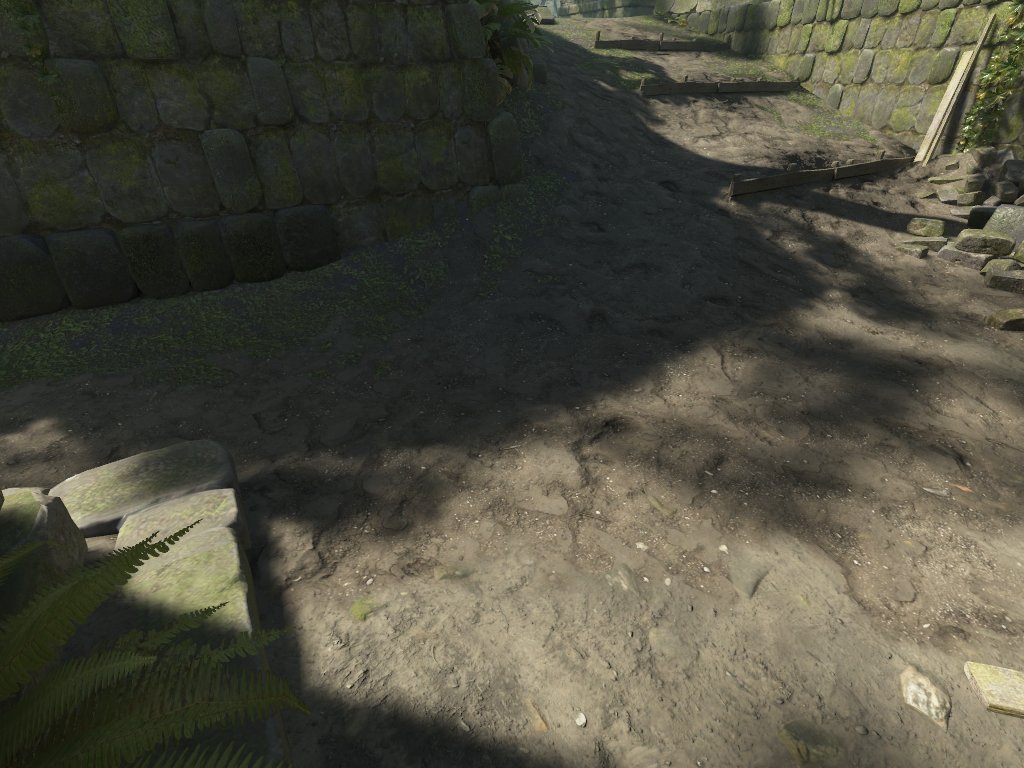

Ray-traced reference vs spherical harmonics (L0 L1) 1024x lightmap vs per-channel AHD (dominant direction) irradz 1024x lightmap
I can barely see any difference...
3
5
72
6,236
