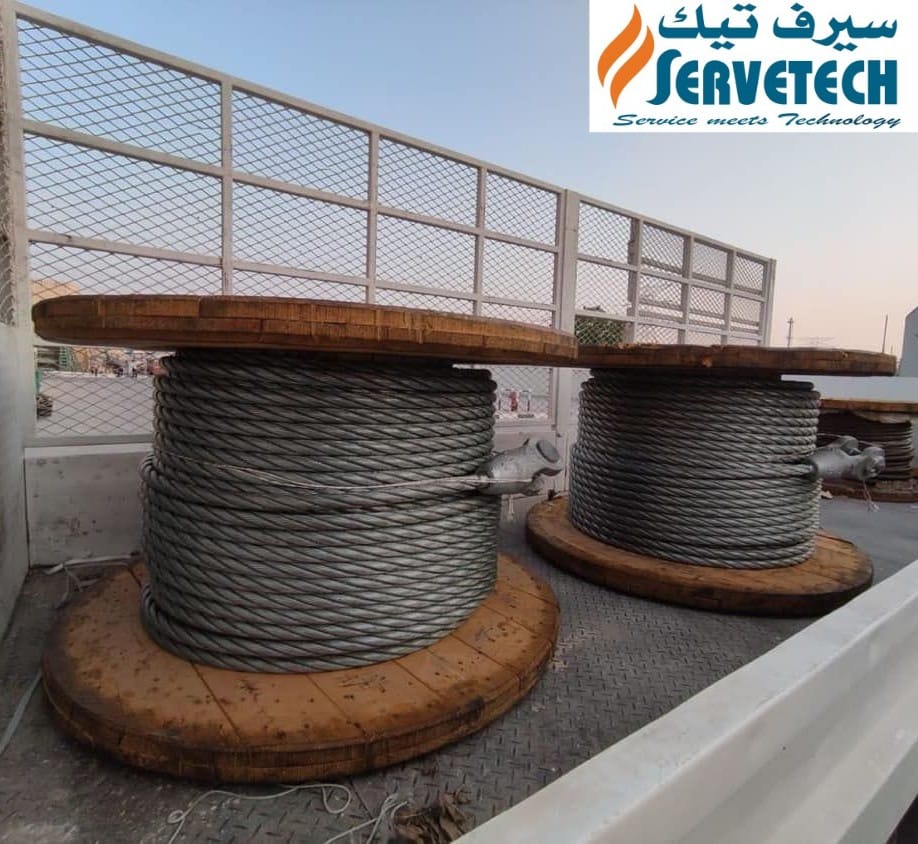

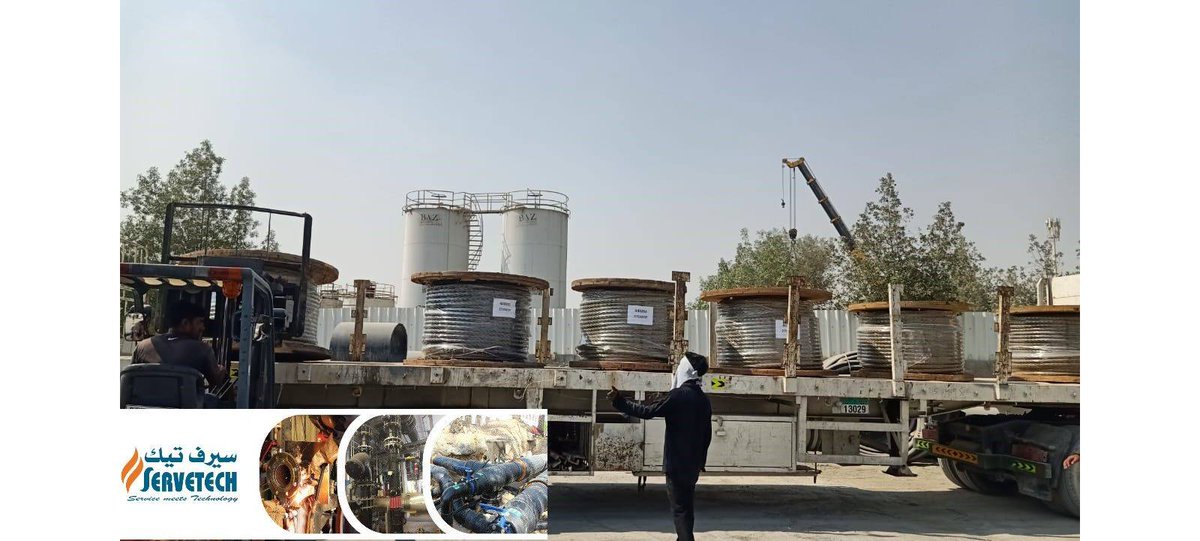

ALT These applications make that the steel mooring system is used for higher water depths. The Catenary effect is lot lower than with a chain mooring line. Typical wire rope constructions are spiral strand, six strand and multiple stand rope. The cost of a wire mooring line is relatively low.

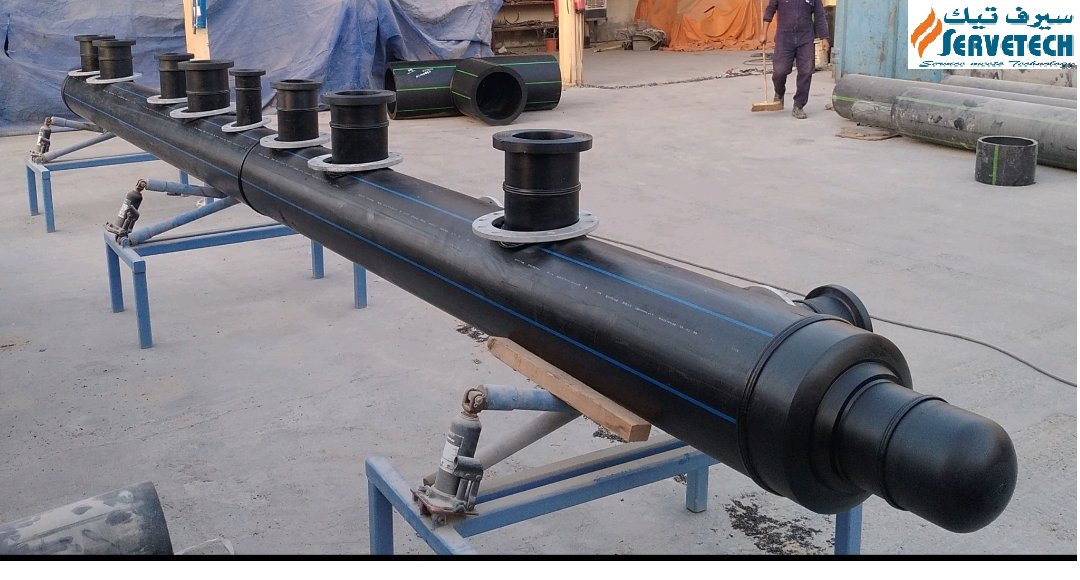

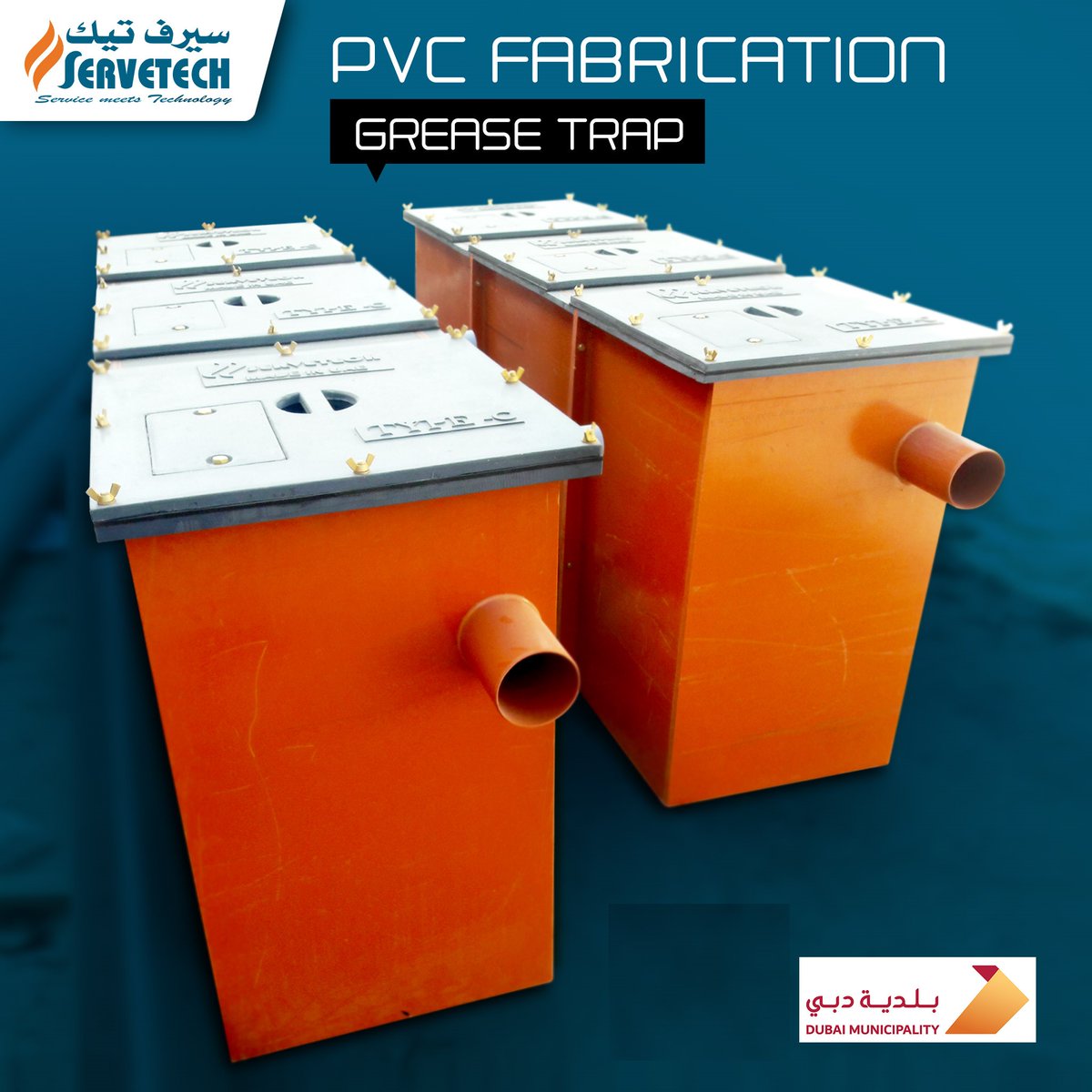

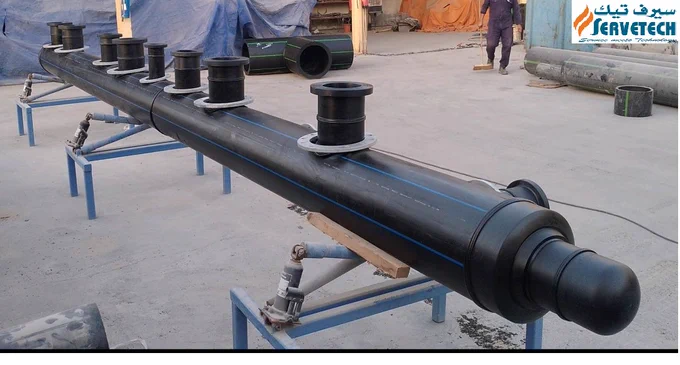

ALT Servetech Group is specialised in standard and custom-designed PVC and Metal fabrication services.We have a team of skilled and efficient fabrications and the use of high-quality equipment gives us a competitive advantage in this industry. PVC fabrication facility includes all kinds of PVC items like radius bends,Grease Traps,Sand Traps,gully trap custom-made drainage fittings as per site requirements etc.. ✅Easy to operate ✅ Light weight and transferable For more details: 0545631217 #servetech#greasetrap#upvcpipes#upvcfittings#uae#tradingtips

ALT Unit shall include: 3/8” uniform wall thickness, deep seal trap covered by lid, adjustable lid system, stainless steel calibrated orifice plate (internal flow control), internal air relief by-pass, adjustable oil draw-off assembly (1 1/2″) on each side, double vent connections (3″) on each side, sample port access and 4″ no hub inlet and outlet connections. Steel encased composite lid provides a water / gas tight seal and has a minimum of 20,000 lbs. load capacity. The lid is designed in accordance with the loading requirements of AASHTO H20.

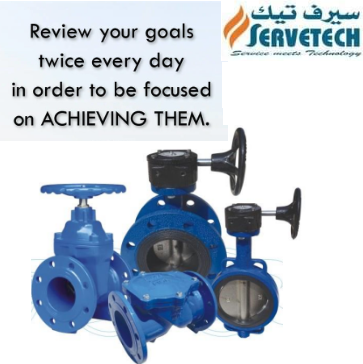

ALT 1️⃣ Determine the type of valve: gate valve, globe valve, ball valve, butterfly valve, throttle valve, safety valve, pressure reducing valve, steam trap, etc. 2️⃣ Determine the parameters of the valve: for automatic valves, according to different needs to determine the allowable flow resistance, discharge capacity, back pressure, etc., and then determine the nominal diameter of the pipeline and the diameter of the seat hole. 3️⃣ Determine the geometric parameters of the selected valve and fittings: the length of the structure, flange connection form and size, the size of the valve height direction after opening and closing, the size and number of connected bolt holes, the entire valve external dimensions, etc. 4️⃣ Determine the nominal diameter of the pipeline connected to the valve and the connection method, to understand which is flange, threaded, welded and other connections; know which way to operate the valve, manual, electric, electromagnetic, pneumatic or hydraulic, electrical

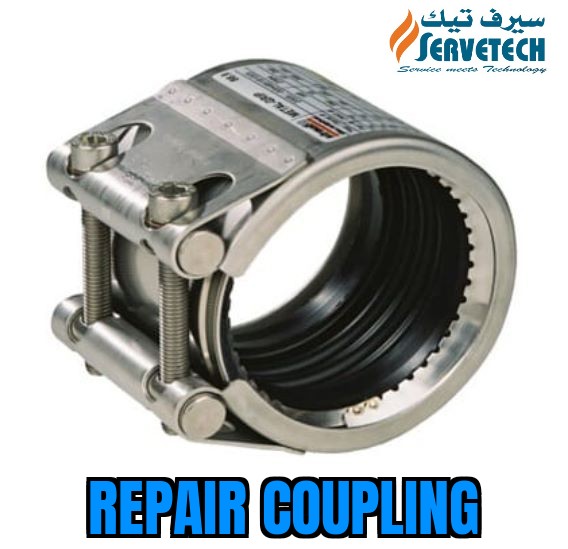

ALT These Couplings are the easiest way to join pipes of all materials. They require no special tools or pipe-end preparation. Flexible, lightweight, 316SS construction; Straub Couplings handle pipe-misalignment, vibration, and are used in shipbuilding, wastewater treatment, general industry, and construction. They will replace welded, flanged, threaded, or grooved type pipe joints. Hi-Performance Pipe Couplings, are the 21st Century way to join pipes. Available in diameters from 1″ to 120″.

ALT The following list shows the most commonly used accessories with the control valve, as per the requirements. 🔹 Pneumatic Positioners. 🔹 I/P Transducers. 🔹 Volume Boosters. 🔹 Position Transmitters. 🔹 Limit Switches. 🔹 Solenoid Valves. 🔹 Air Lock relay. 🔹 Handwheel.

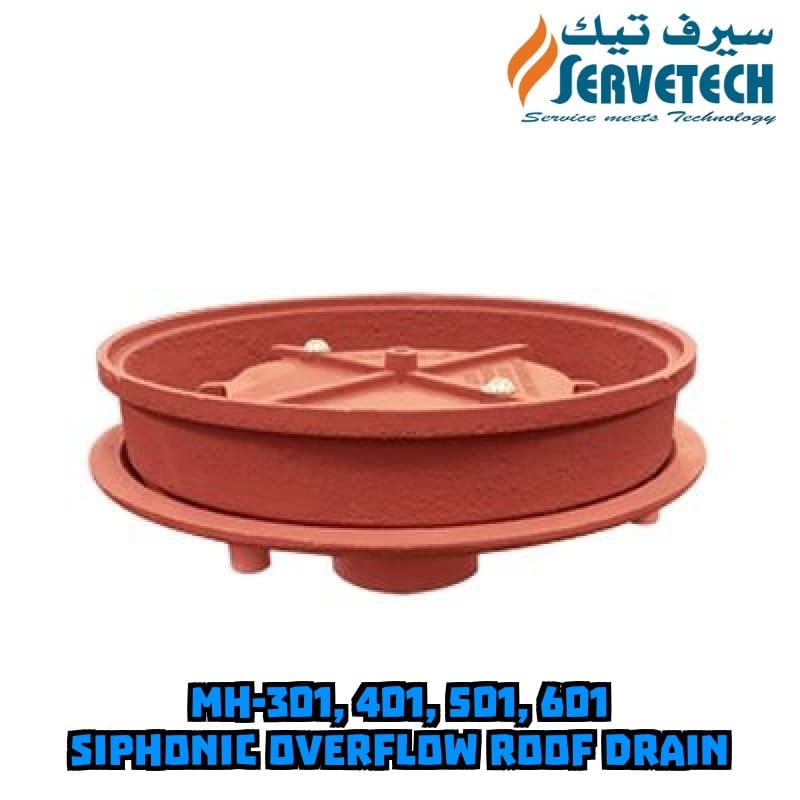

ALT MIFAB®’s HYDROMAX MH-301, MH-401, MH-501 and MH-601 lacquered cast iron siphonic roof drain with wide anchor flange, cast iron waterproofing membrane clamp ring with integral 2” water dam and ductile iron air baffle / inducer with Type 304 stainless steel Allen key hardware. #servtech #MEP #mepcontractor #pipeline #mifab #roofdrain
