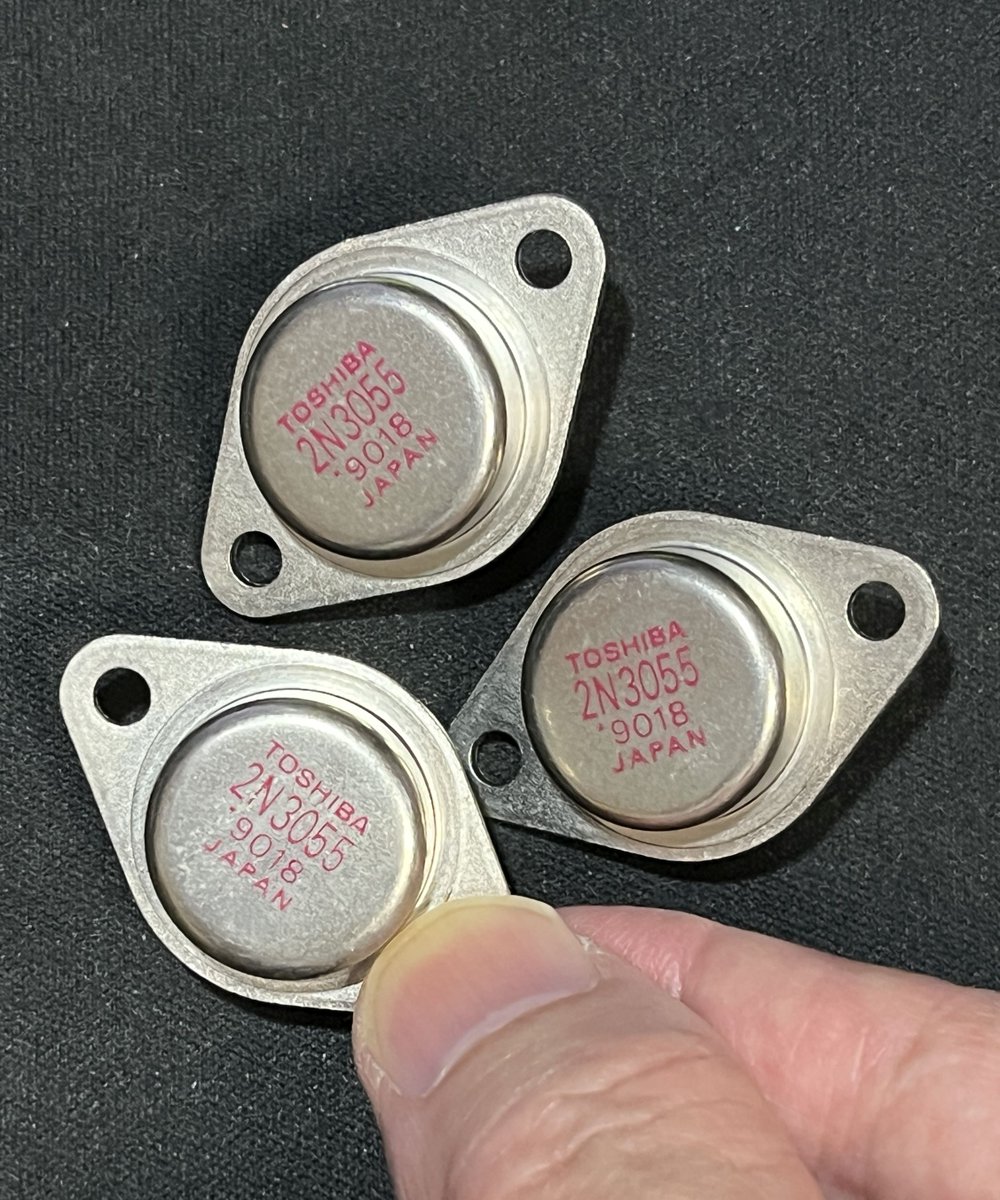

The 2N3055: The Transistor That Built an Era (and Still Goes On) If you’ve ever opened up a vintage hi-fi amplifier, a 1970s laboratory power supply, or an early industrial motor controller, you’ve almost certainly seen it: the iconic, silver TO-3 metal "top hat." Introduced by RCA in the early 1960s, the 2N3055 silicon NPN power transistor is arguably the most famous, reliable, and omnipresent transistor ever manufactured. Decades after its debut, it remains a staple in the electronics world. Here is a look at why this component became an absolute legend: A Quick History Before the 2N3055, power electronics heavily relied on germanium transistors, which were notoriously sensitive to thermal runaway, they could not handle much power, and they were expensive. RCA changed the game by utilizing silicon. Initially built using a rugged hometaxial process, it was seemed indestructible under heavy loads, it handle more power than the previous germanium transistors and it broke the sub-$1 barrier. Later, manufacturers transitioned to the more cost effective epitaxial-base processes and this also improved speed and efficiency. It quickly became the industry standard, manufactured by everyone from Motorola (ON Semi) to STMicroelectronics. The Basic Performance (The Workhorse Stats) The 2N3055 wasn't built to be fast or elegant; it was built to handle raw abuse. * Collector-Emitter Voltage (VCEO): 60V (perfect for standard audio and power rails) * Continuous Collector Current (IC): 15A * Total Power Dissipation (PD): 115W (when properly bolted to a hefty heatsink) * Frequency (fT): Around 2.5 MHz for the epitaxial version, but not quoted for the hometaxial version. Current Usage: Where is it today? While modern designers swear by efficient switching MOSFETs and high-speed IGBTs for new commercial products, the 2N3055 is far from retired: 1. Linear Power Supplies: Because it behaves beautifully in its linear region, it’s still the go-to choice for DIY bench power supplies where low noise is critical. 2. Audio Restoration & Boutique Amps: Audiophiles still prize the warm, classic clipping characteristics of 2N3055-driven output stages. 3. Education & Prototyping: It is the quintessential teaching tool. Its physical size makes it easy to mount, probe, and—crucially—it can survive the inevitable wiring mistakes made by engineering students. The 2N3055 proves that in engineering, reliability and simplicity often outlast cutting-edge innovation. 👉 What was your first project using a 2N3055? Have you used one recently, or have you fully migrated to plastic TO-220s and surface-mount components? Let’s reminisce in the comments! More information available in a link to my website in the comments. 👇 #ElectronicsEngineering #HardwareDesign #VintageTech #ElectricalEngineering #Innovation #EmbeddedSystems #RetroElectronics
