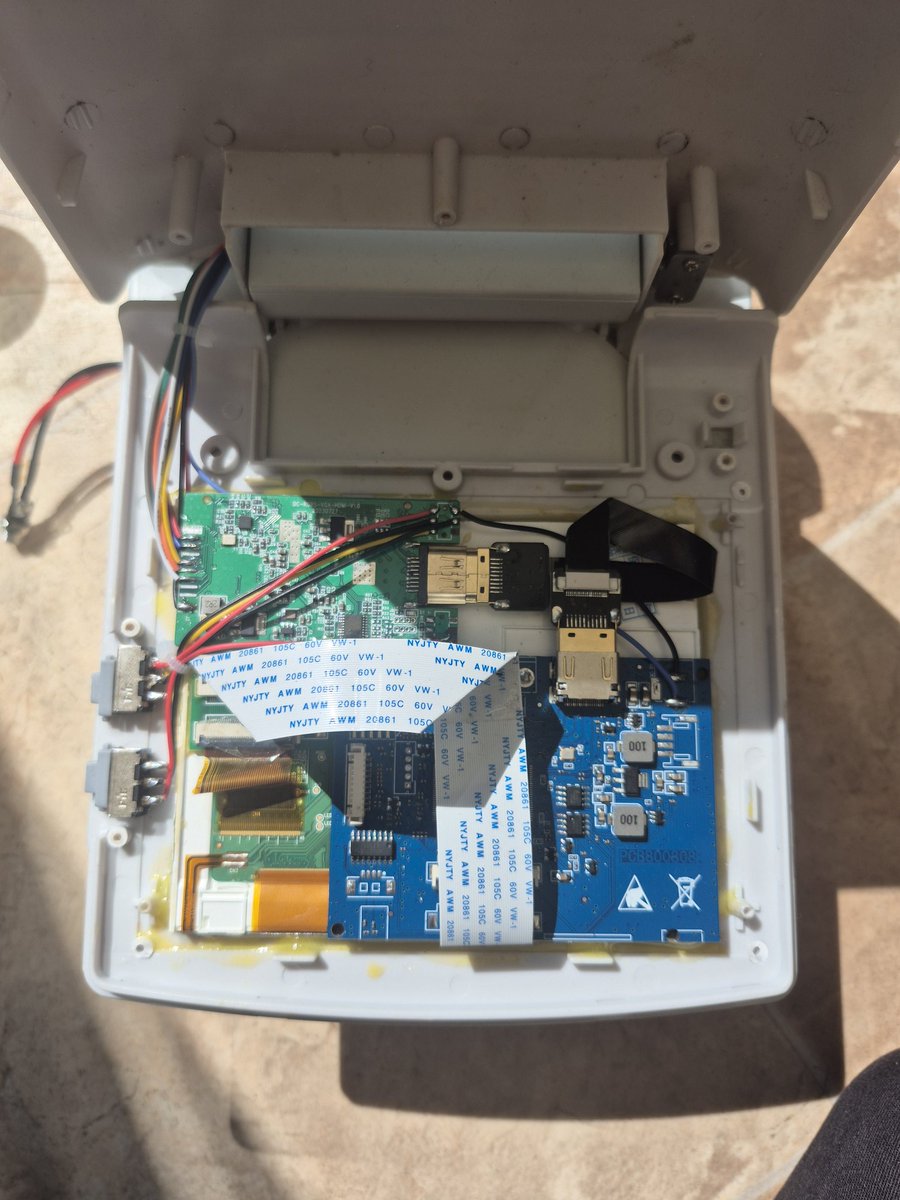

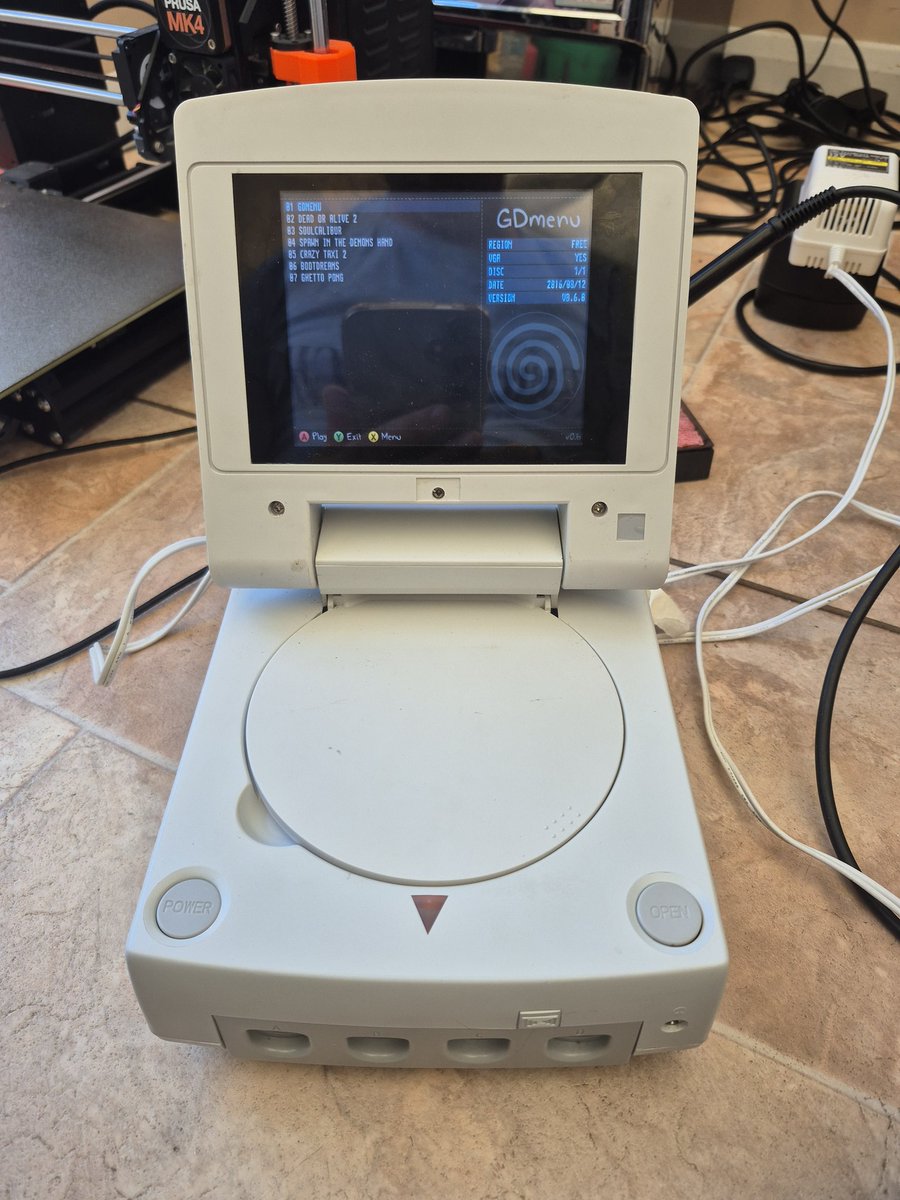

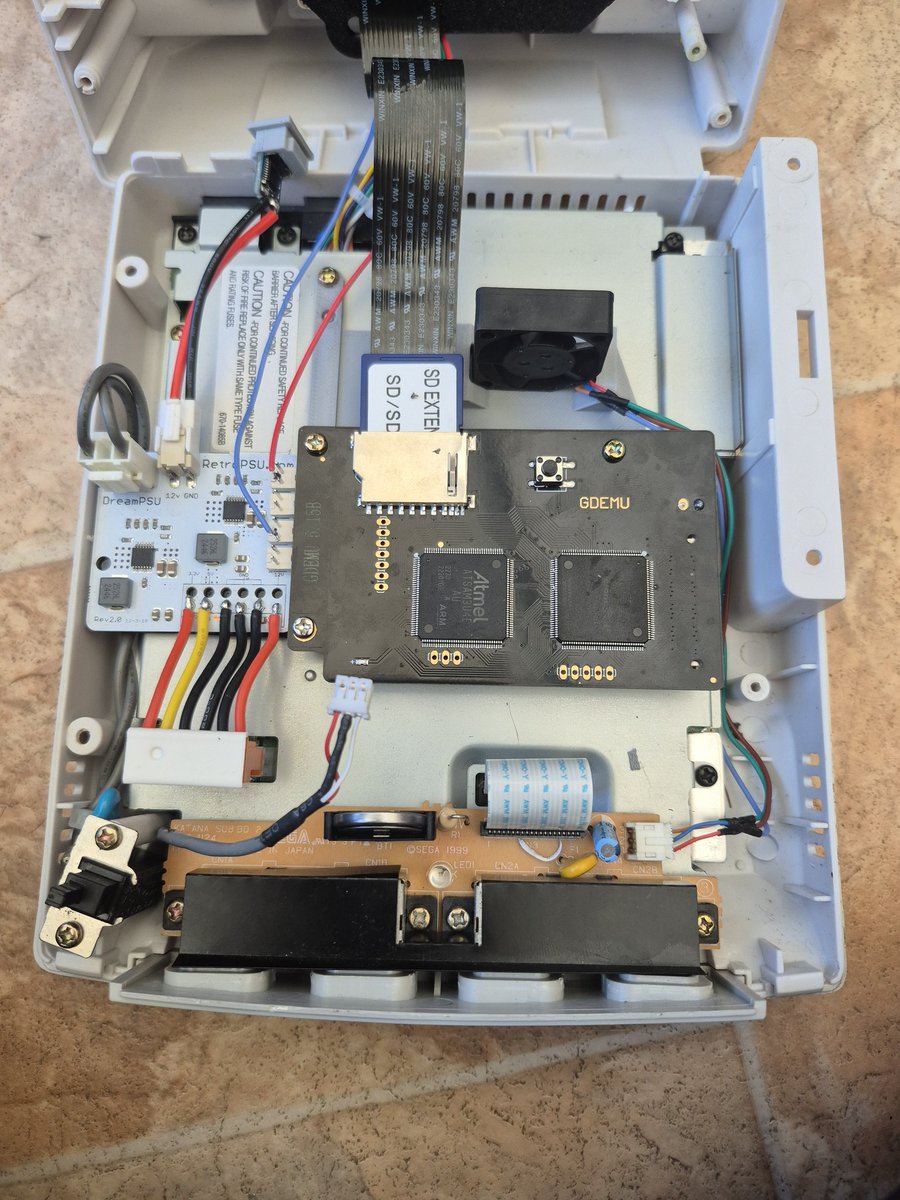

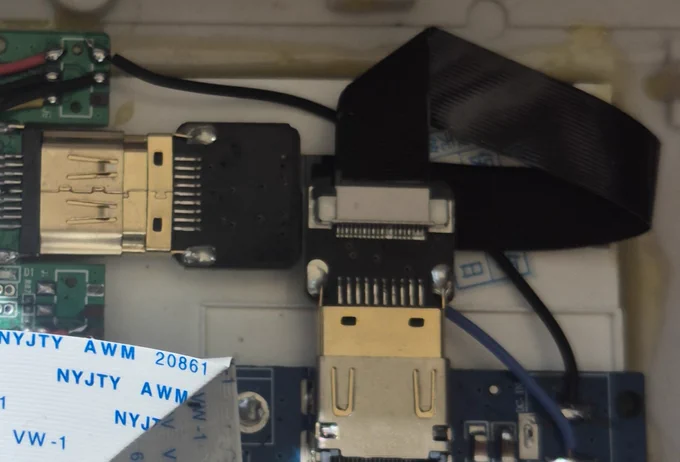

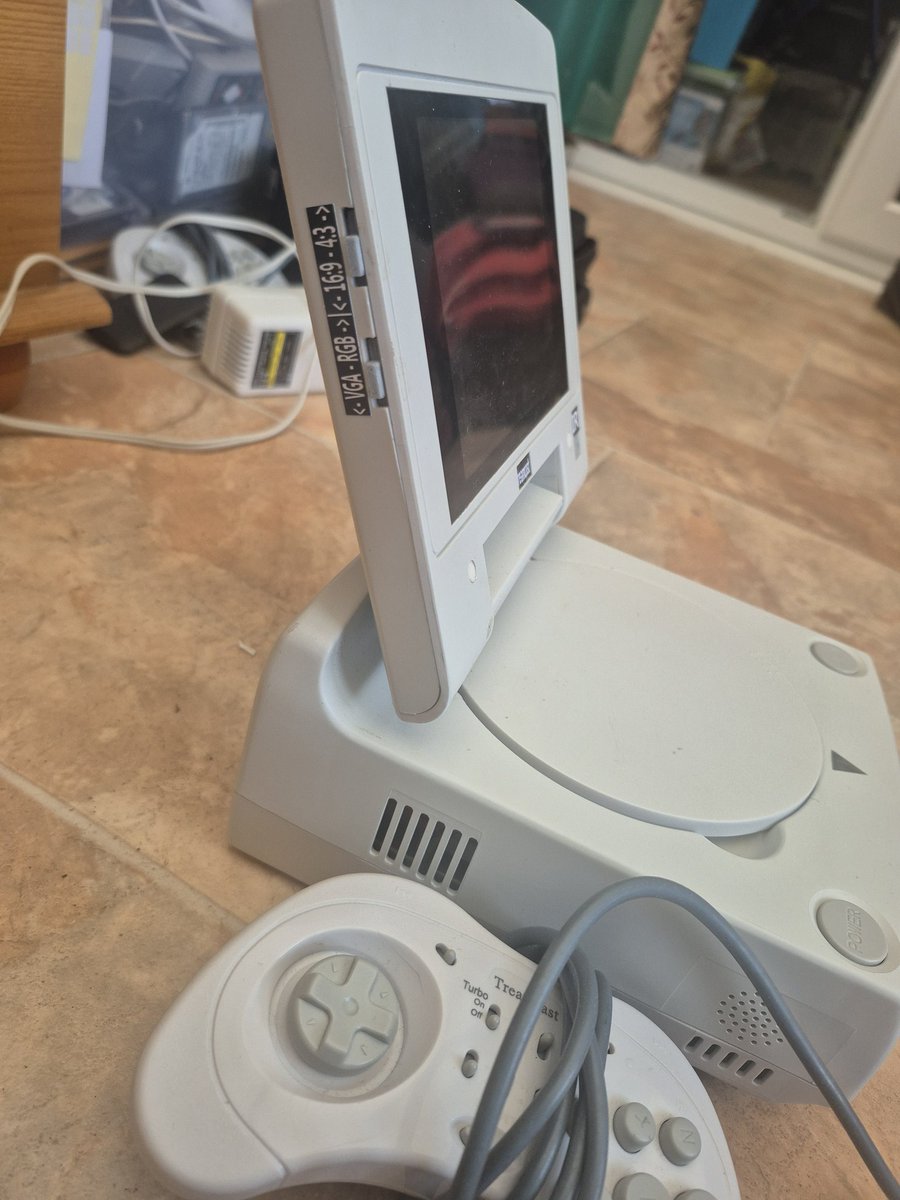

Over 6 months ago, I purchased a "untested" Complete Treamcast bundle from eBay. Upon receiving it. It was obvious that the original TFT screen was broken due to showing coloured lines and bad contrast. So I scoured all the usual places, AliExpress etc, with no luck on sourcing an original panel. I finally found a new HD panel that matched the parameters I needed. It arrived, I lined it up, and epoxied it to the top frame. I then sourced a BitFunx DC to HDMI adaptor and a flat flex HDMI cable to connect it all up. This new panel combination will give me superior visual quality. I also removed the Brightness & Contrast wheels and installed switches which controlled the aspect ratio and signal type. I recapped the audio amplifier while I was in there as the Treamcast had built in audio with 2 small speakers. The original Treamcast PSU was custom made which was super cheaply made and needed to be put in the trash. I wired up a PicoPSU as it would just "drop-in" due to screw hole placement in the bottom casing. I added USB-C with a custom printed mount at the back. A GDEMU was added with a 3D printed mount which was remixed by me to hold a fan to keep things cool. Obviously a ressetable fuse and rechargeable clock battery were needed. Lastly, I replaced all the microswitches in the controllers as they were worn.

Finished up a personal project and it's come out better than expected 😘 Here's a hint.... Full post tomorrow....

I've not been on here much lately due to some major changes in my life....but.... I'm excited to show this off...currently in progress... My love for the PS1 😘

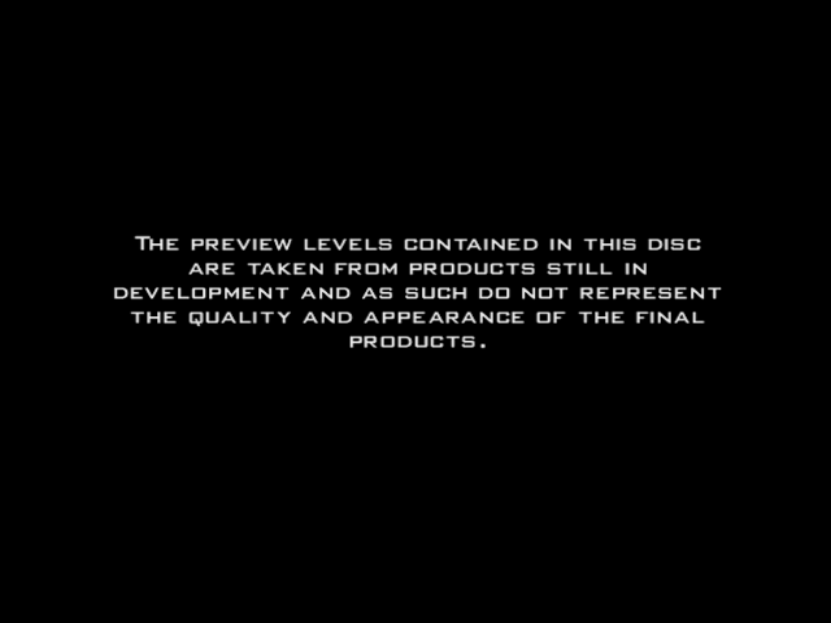

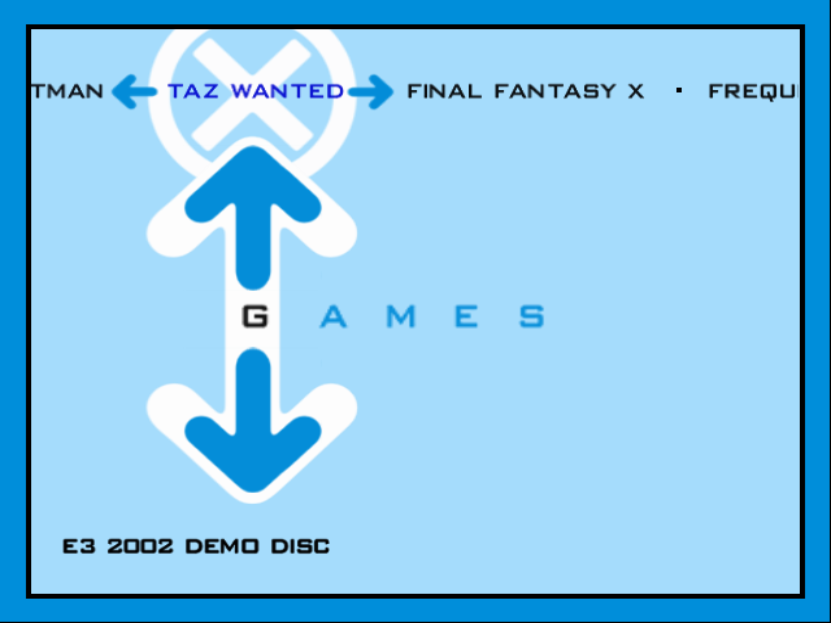

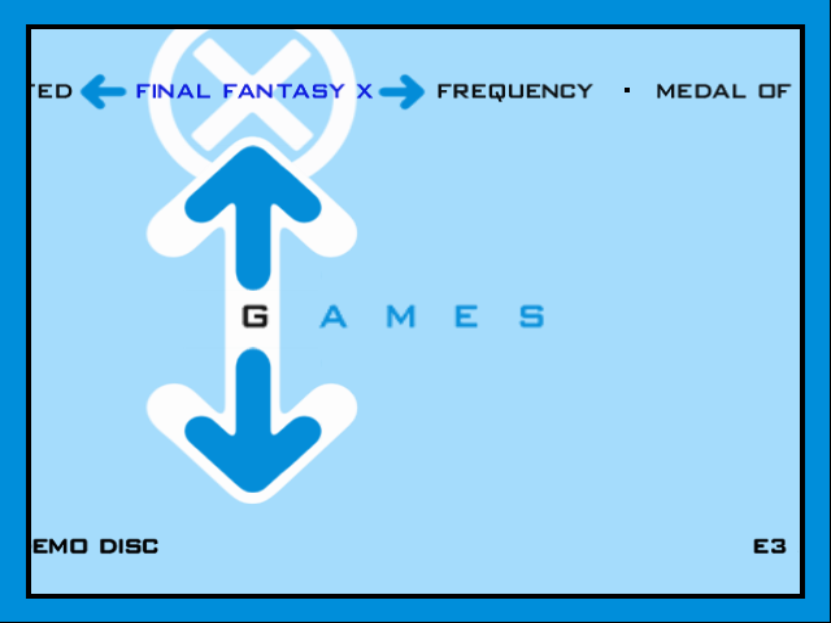

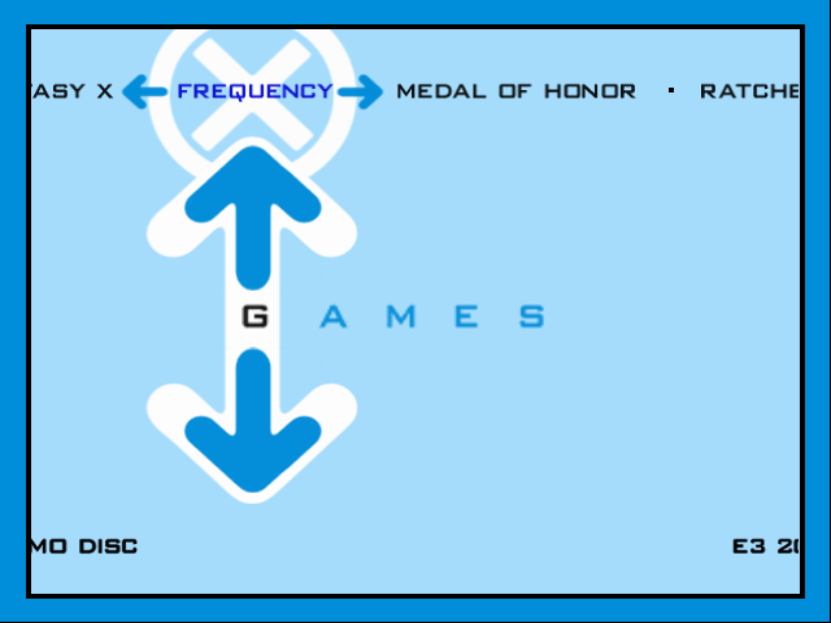

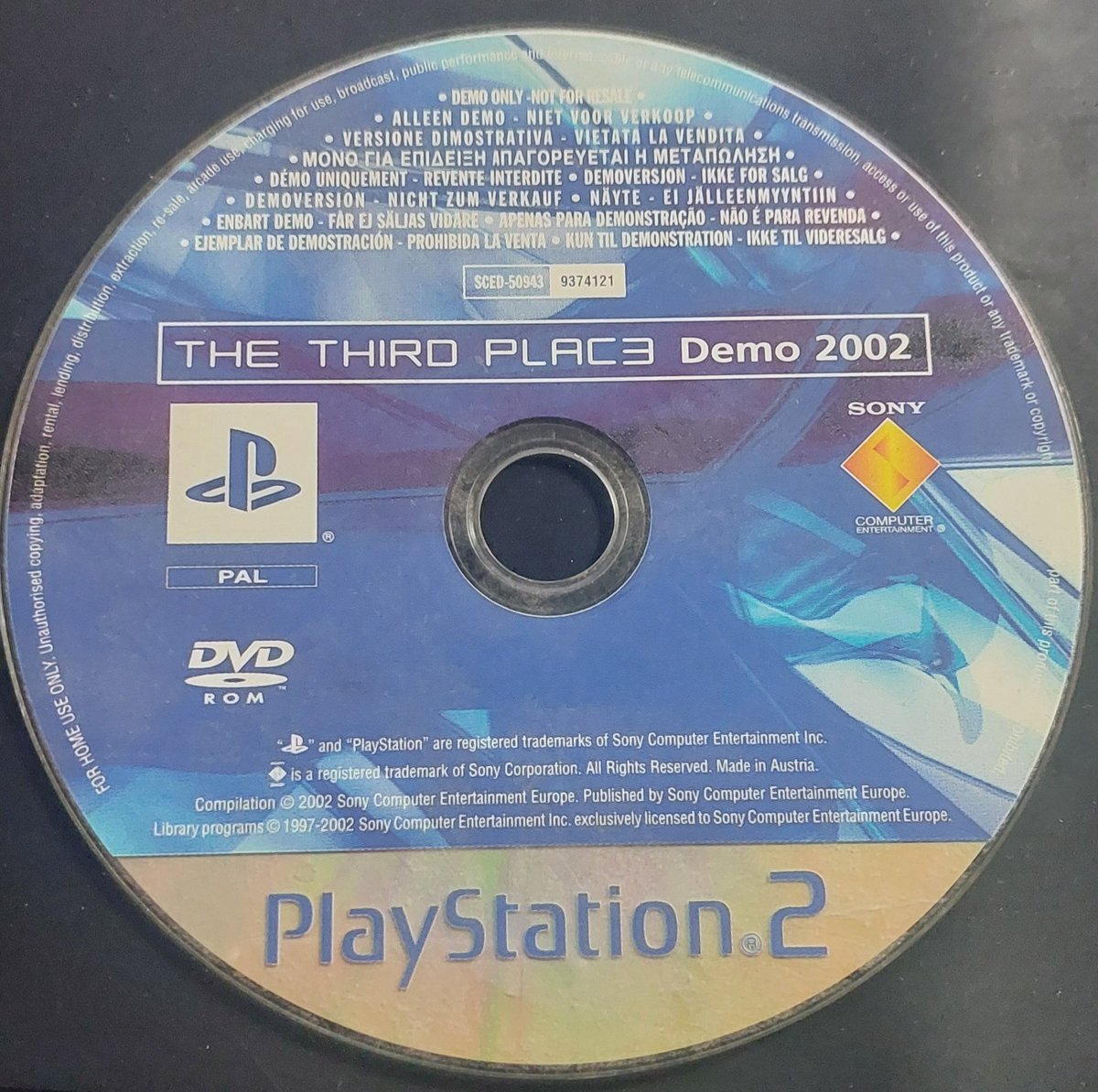

Got this in a random bundle today. I have searched everywhere and can't find any info on it. Even searched the SCED number. Anyone seen one of these before?
