Prompt:

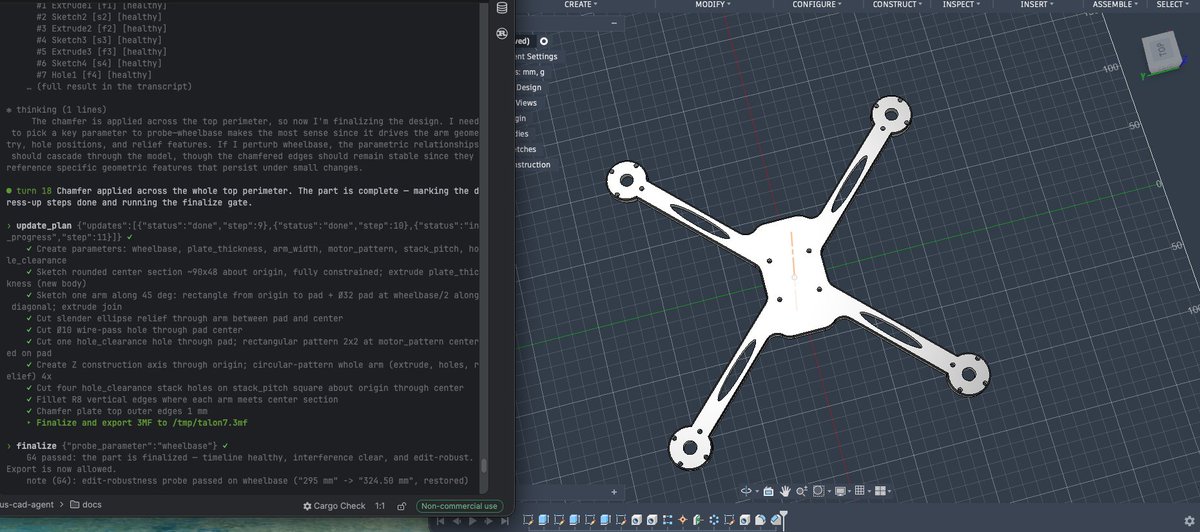

Build Talon, a 3D-printable unibody bottom plate for a 7-inch ArduPilot quad.
Create parameters first: wheelbase = 295 mm, plate_thickness = 7 mm,
arm_width = 16 mm, motor_pattern = 19 mm, stack_pitch = 30.5 mm,
hole_clearance = 3.4 mm. Body: a fully constrained rounded center section
about the origin, roughly 90 × 48 mm, extruded plate_thickness. One arm: a
fully constrained sketch running from the center section out along the 45°
diagonal, ending in a Ø32 mm motor pad whose center sits at half the
wheelbase diagonal from the origin; extrude it joined to the center. Motor
mount: cut a Ø10 mm wire-pass hole through the pad center, then one
hole_clearance hole through the pad, rectangular-patterned 2 × 2 at
motor_pattern spacing centered on the pad. Weight relief: cut one slender
ellipse through the arm between pad and center. Now create a construction
axis through the origin along Z and circular-pattern the entire arm — pad,
holes, and relief cut together — 4 times around it. Stack mount: cut four
hole_clearance holes through the center section on a stack_pitch ×
stack_pitch square about the origin. Strengthen: fillet the vertical edges
where each arm meets the center section R8, and chamfer the plate's top
outer edges 1 mm for bed lift-off. Do not scale the body — printed frames
keep their hole clearances, not a shrinkage factor. Finalize, then export
3MF to /tmp/talon7.3mf.
