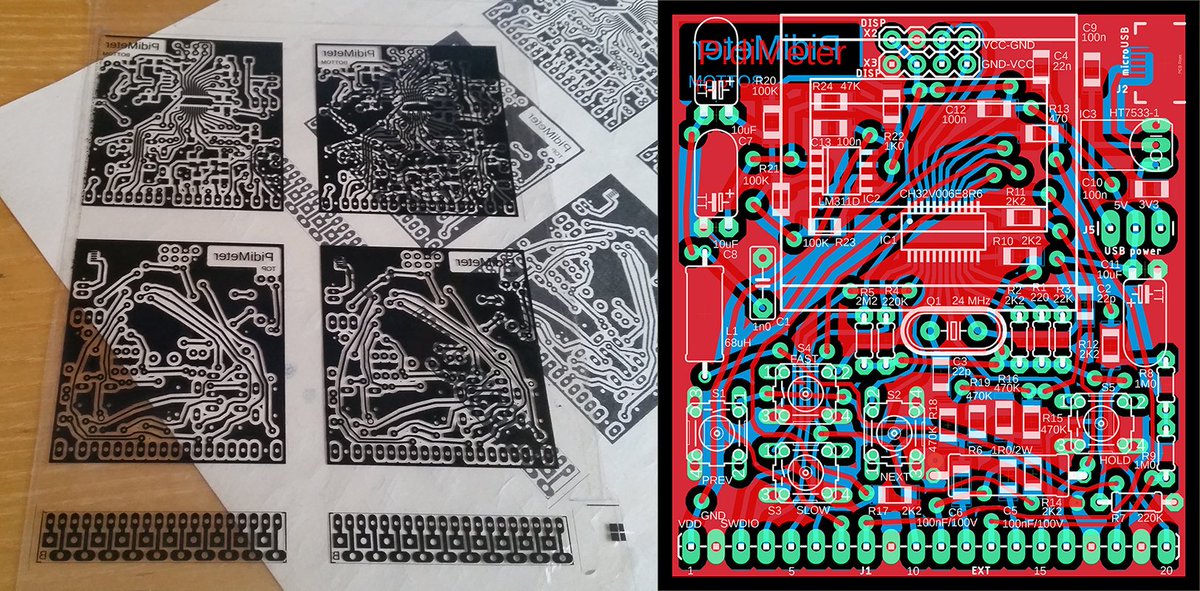

#PidiMeter #PidiMultiMeter ... And now going to make PCB (UV LED). ... It's a bit complicated device, I really don't know if it will work. 🤨
2
6
42
1,801

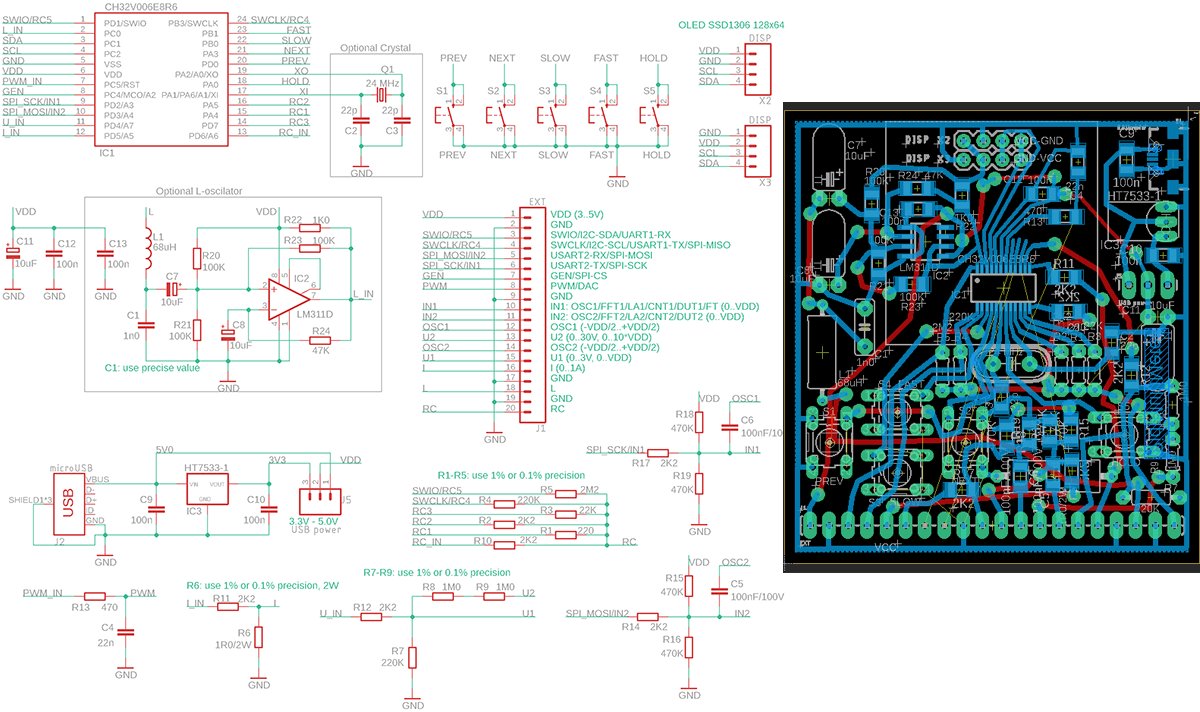

#PidiMet #PidiMultiMeter Vylepšená verze v2 měřáku je trochu složitější. Konektor interface má 20 pinů. Při návrhu PCB se docela zapocuji.😨Já vím že pro jiné hračka. Potřebuji totiž robustnost spojů aby z toho mohl být prototyp s fotocestou, tak je ten PCB takový dost krkolomný.
2
10
109
5,150

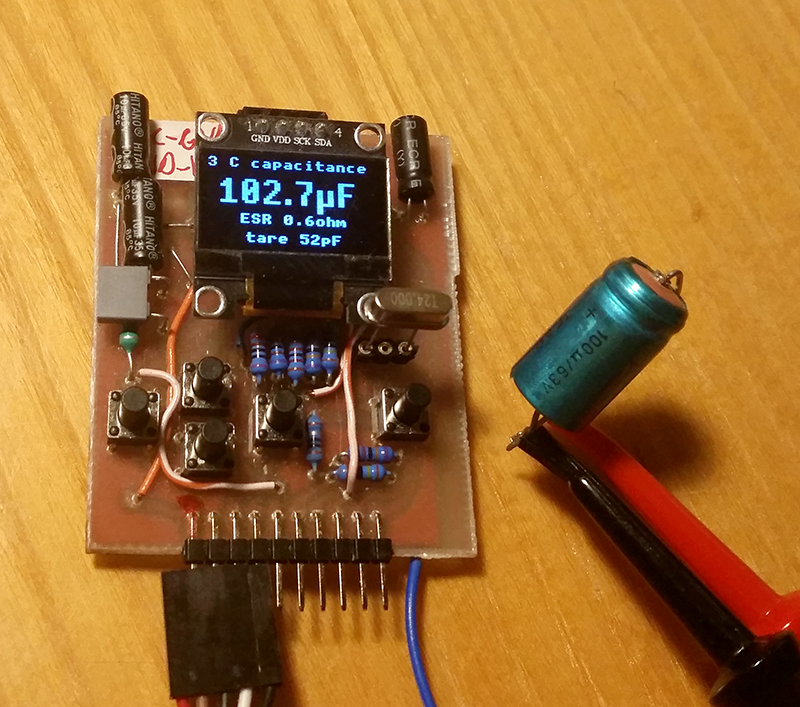

#PidiMet #PidiMultiMeter Last measuring mode of the meter is complete - measuring capacity and ESR of a capacitors. Range 1 pF to 4 mF, accuracy 5 to 10%. Now I want to try to rework the hardware a little before publishing it. The result is 16 functions, "16-in-1 multimeter."
10
24
267
9,013

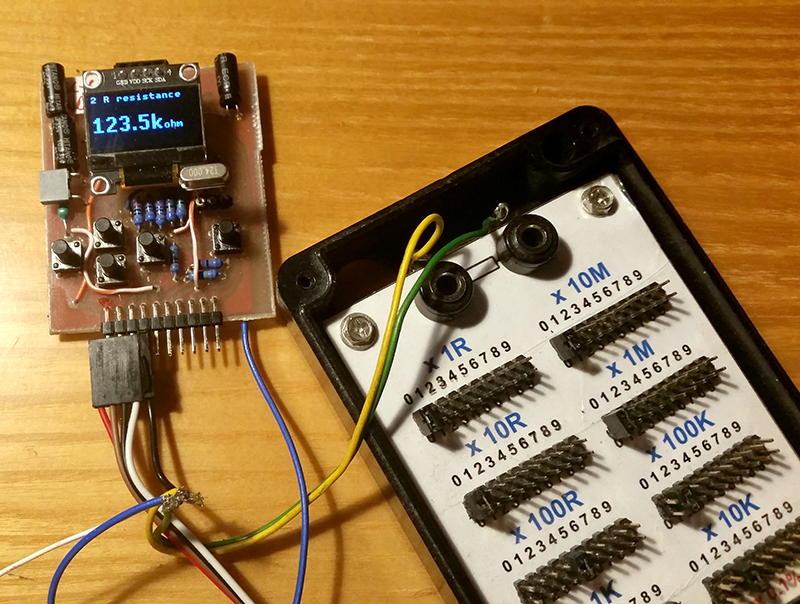

#PidiMet #PidiMultiMeter Resistance measurement is complete. Measurement range 0.1 ohm to 100 Mohm, with 5% accuracy and 0.1 ohm resolution.
5
1
51
1,533

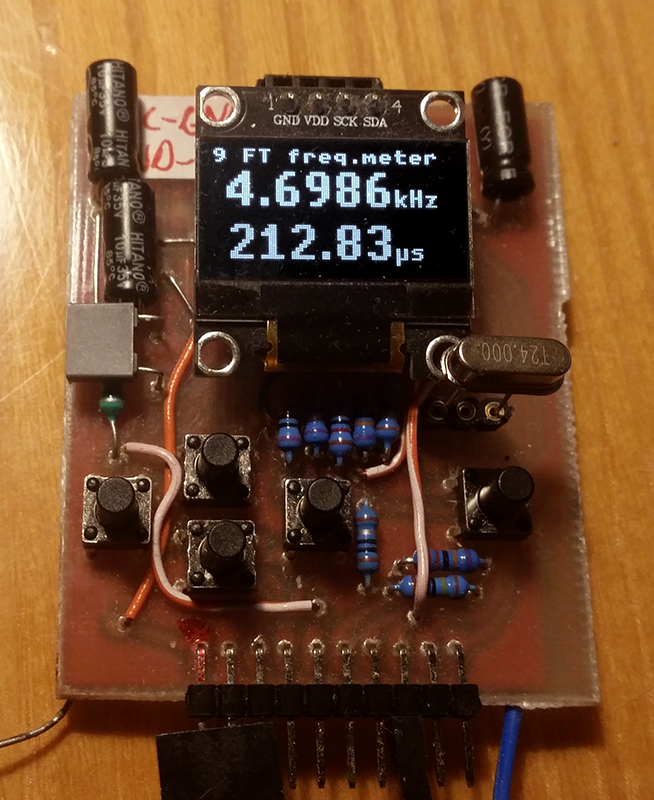

#PidiMet #PidiMultiMeter Another mode of small multimeter with CH32V006 successfully completed: Measures frequency and period of a signal. Measurement range 0.001Hz to 24 MHz, with 5-digit accuracy - accuracy determined only by the crystal used.
2
6
45
1,595
#PidiMet #PidiMultiMeter Another mode of small multimeter with CH32V006 successfully completed: 16-Band Logarithmic Spectrum Analyzer with peaks, attack and decay. Hold mode. Frequency range 16Hz - 16kHz. Display refresh 22FPS. 3 display modes: curve line, smooth bars, peak bars.
6
42
333
14,406
#PidiMet #PidiMultiMeter Another mode of small multimeter successfully completed - Oscilloscope. Sampling rate up to 3Msps, 1 or 2-channel mode, 9 time base modes. Automatic signal synchronization using local integral steepness. Hold mode.
22
63
672
30,991

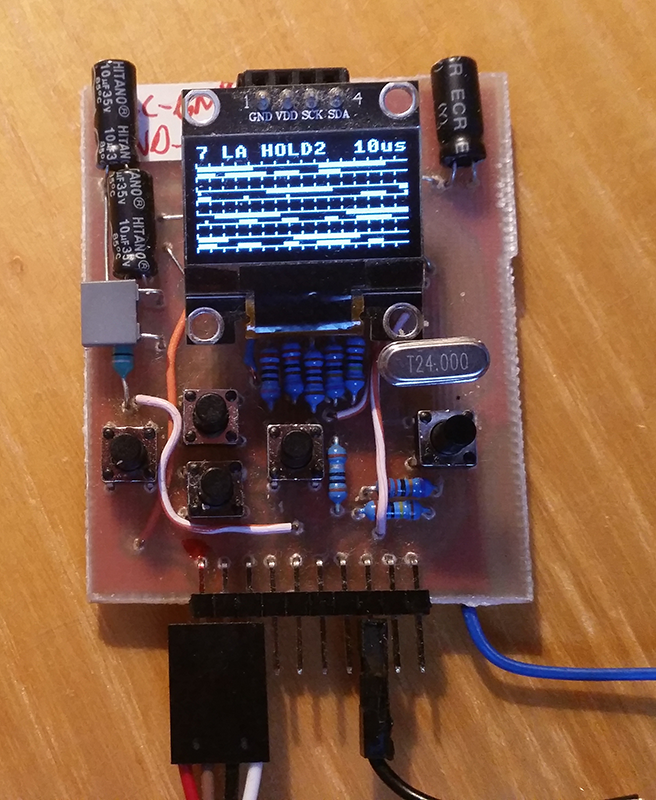

#PidiMultiMeter Another mode of the small multi-meter has been successfully implemented - a logic analyzer. Sampling rate up to 8 MHz, mode of 1 or 2 input channels, 5 scale ranges (10 ms to 1 us), HOLD mode, Auto-start with signal edge.
2
5
48
1,511
