2 Aug 2025

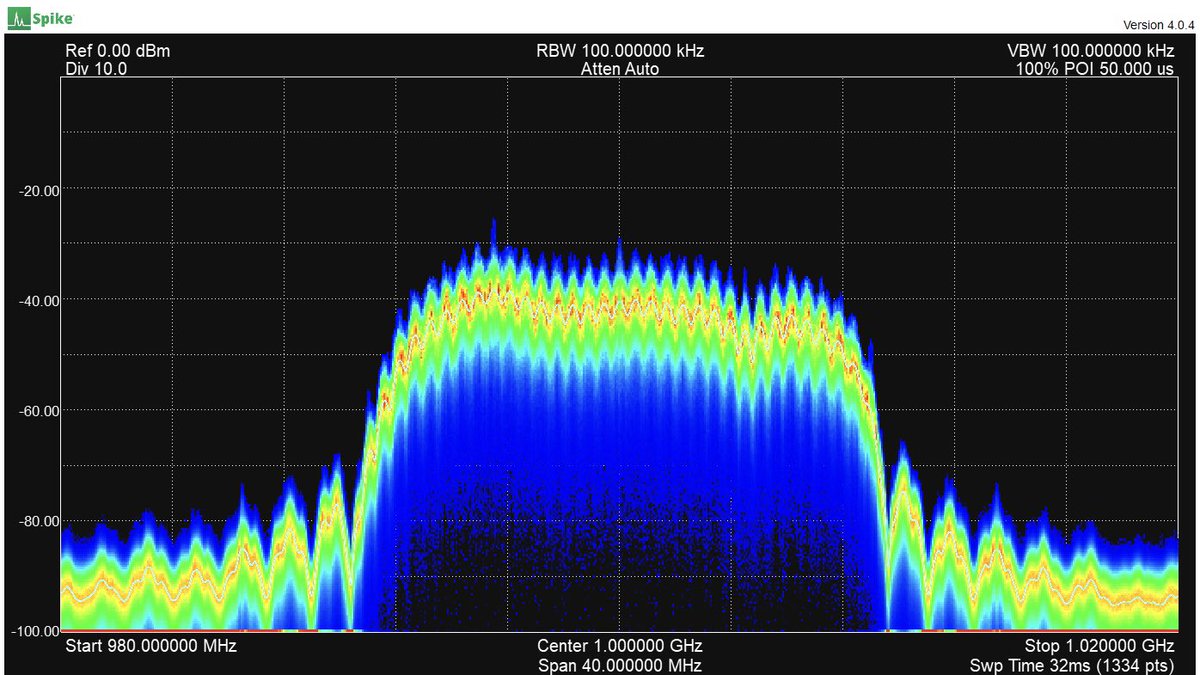

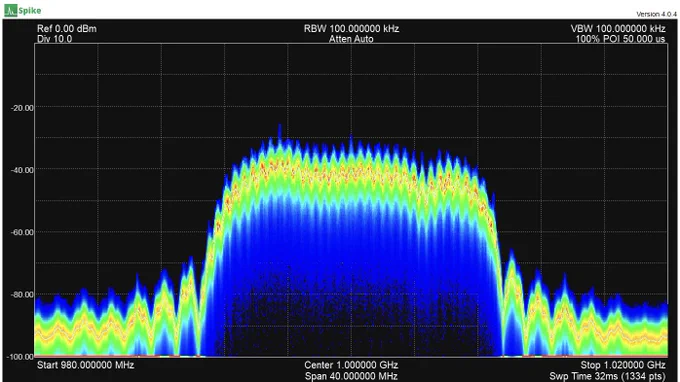

You can do many things with it: RF receiver and SDR testing, pulse generation, amplifier EVM testing, WiFi testing, antenna pattern measurement etc. A hobbyist can survive with tools like RFExplorer signal generator, but if you are serious, you need a serious tool, and this is the most affordable professional vector/signal generator I've found. Here's a QAM1024 signal generated by VSG60A:
11
1,461
28 Jul 2025

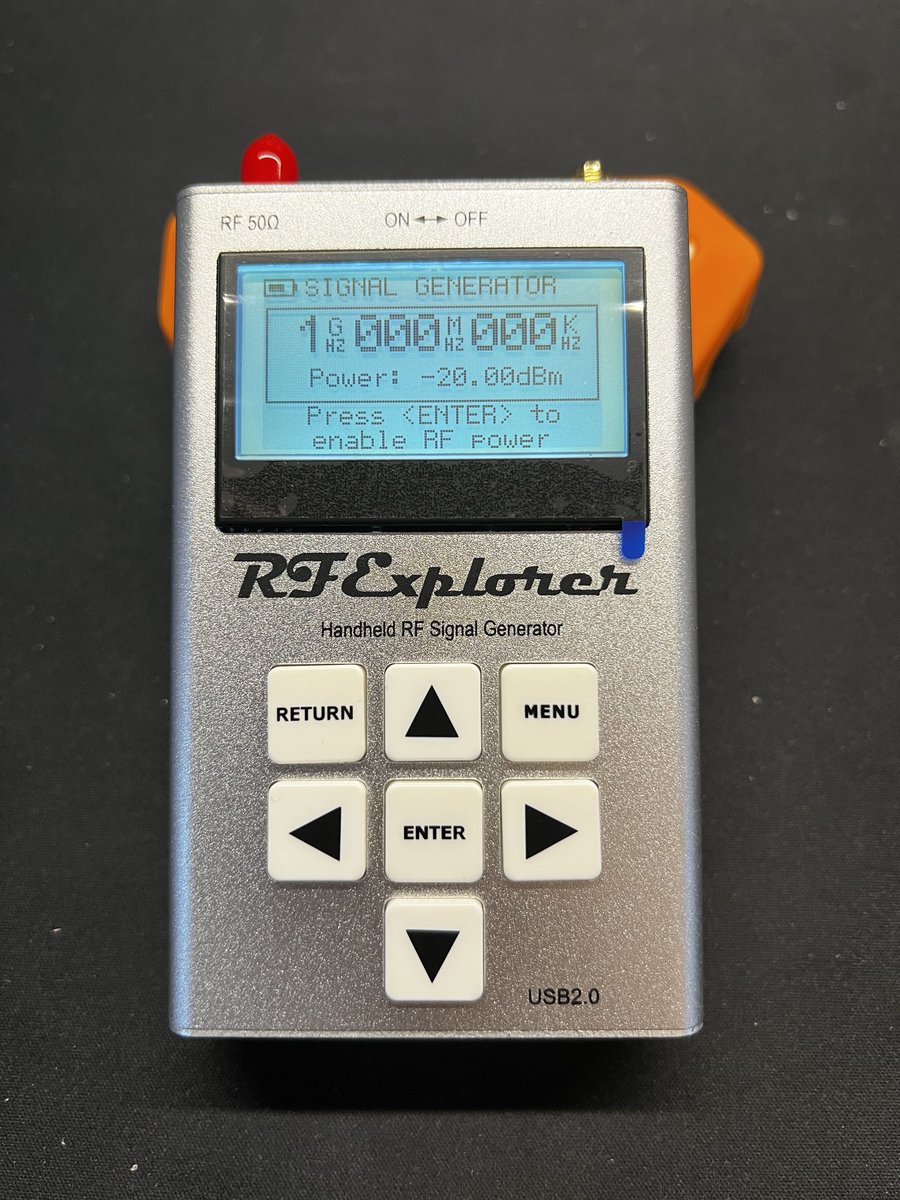

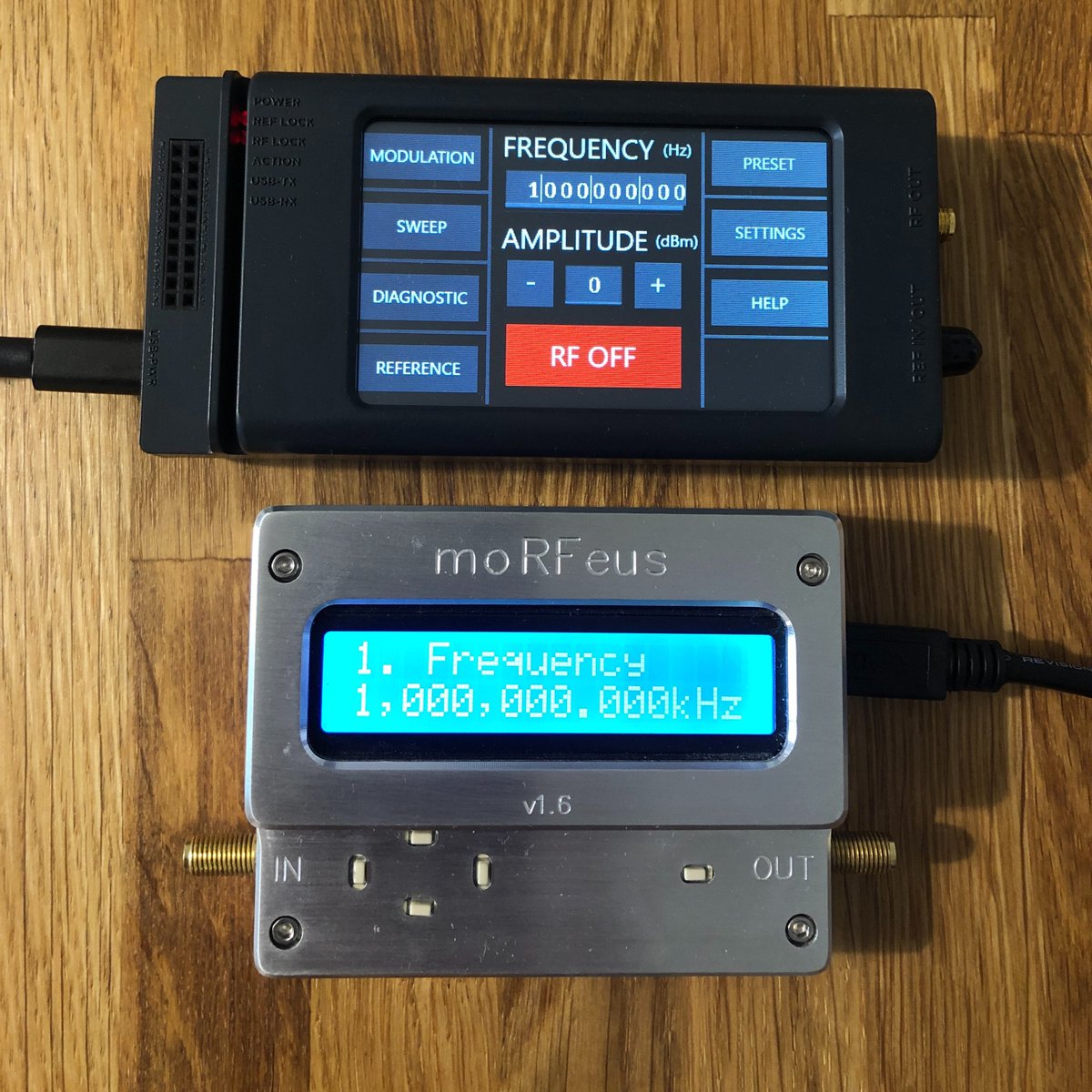

I think there's a gap in the RF market for an affordable (and potentially portable) RF signal generator for hobbyist use. The only option was EraSynth Micro. It's discontinued. There's also RFExplorer, but it has many problems including an awful UI. The specs don't need to be crazy. Just copy what EraSynth Micro did. Any other option has some shortcomings (e.g. moRFeus has no amplitude control. Only 0dBm output. And tinySA's output is topped at -18dBm.) And professional options are expensive. I have one from Signal Hound, but something with display would be much handier for quick experiments. Basically, something like tinySA or NanoVNA but for signal generation.
27 Jul 2025

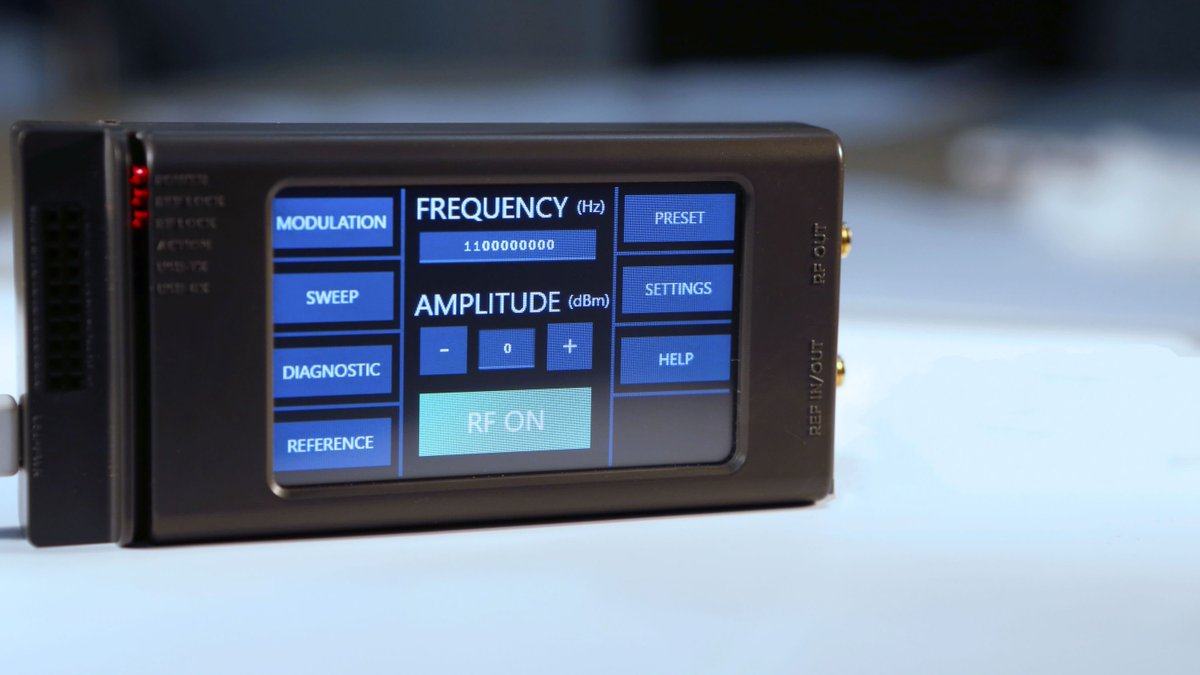

If you could revive a discontinued RF/electronics tool, what would you choose? Here's one of my candidates: EraSynth Micro, a portable RF signal generator with great performance and features for its price point. No good alternative exists for it.
8
3
130
16,499
27 Jul 2025
Replying to @AMurderOfDucks
Check its CrowdSupply page. It was sold for ~ $250-280. I'd say it's worth even at a higher price tag. The only alternative is RFExplorer which has worse specs (amplitude accuracy and phase noise) and awful UI. There's a small market for this. crowdsupply.com/era-instrume…
1
2
175

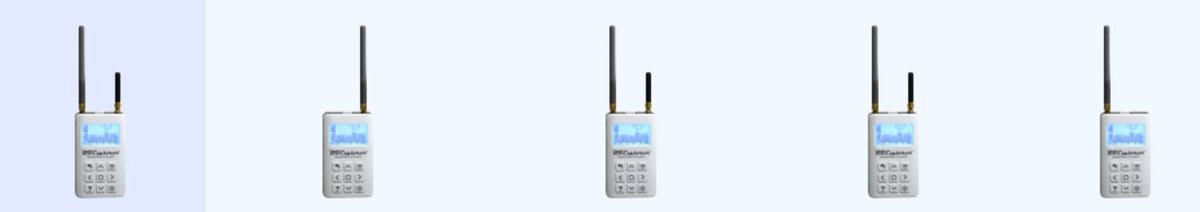

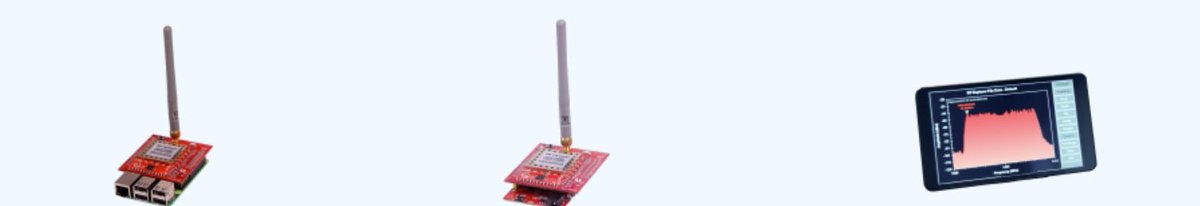

Struggling to choose the right RF Explorer for your wireless project? Check out our range of RF analyzers for every need – from advanced professional models to entry-level options. Find the perfect fit today! 🔍 Explore: j3.rf-explorer.com/main-menu… #RFExplorer #WirelessTech #SignalAnalysis #IoT #5G #SpectrumAnalyzer
1
2
19
1,440
Excited to collaborate with @RFExplorer on the RF Explorer 6G Combo PLUS Slim—a portable spectrum analyzer for wireless engineers, IoT devs & RF researchers! 📡 15 MHz – 6.1 GHz | High-res RF analysis | Lightweight & portable 🔗 Check it out: seeedstudio.com/RF-Explorer-… #RFExplorer #SpectrumAnalyzer #IoT #5G #WirelessTesting #SeeedCoCreate #Tech
2
7
2,441
20 Jan 2025
2nd update: did some tests yesterday and today to compare the "power meter" feature against 4 RF power meters, and used 2 different signal generators (RFExplorer siggen combo, and SignalHound VSG60A) Results for a 100MHZ 0dBm CW signal: Anritsu MA24108A: -0.39dBm Mini Circuits FCPM-6000RC: -0.33dBm KC9531B: -0.15dBm GenComm GC747A: -0.23dBm RFExplorer Pro: 1.50 dBm All other devices measure the signal withing a reasonable offset (0.5dBm) except RFExplorer Pro. Already in contact with vendor to find a solution.
5
571
18 Jan 2025

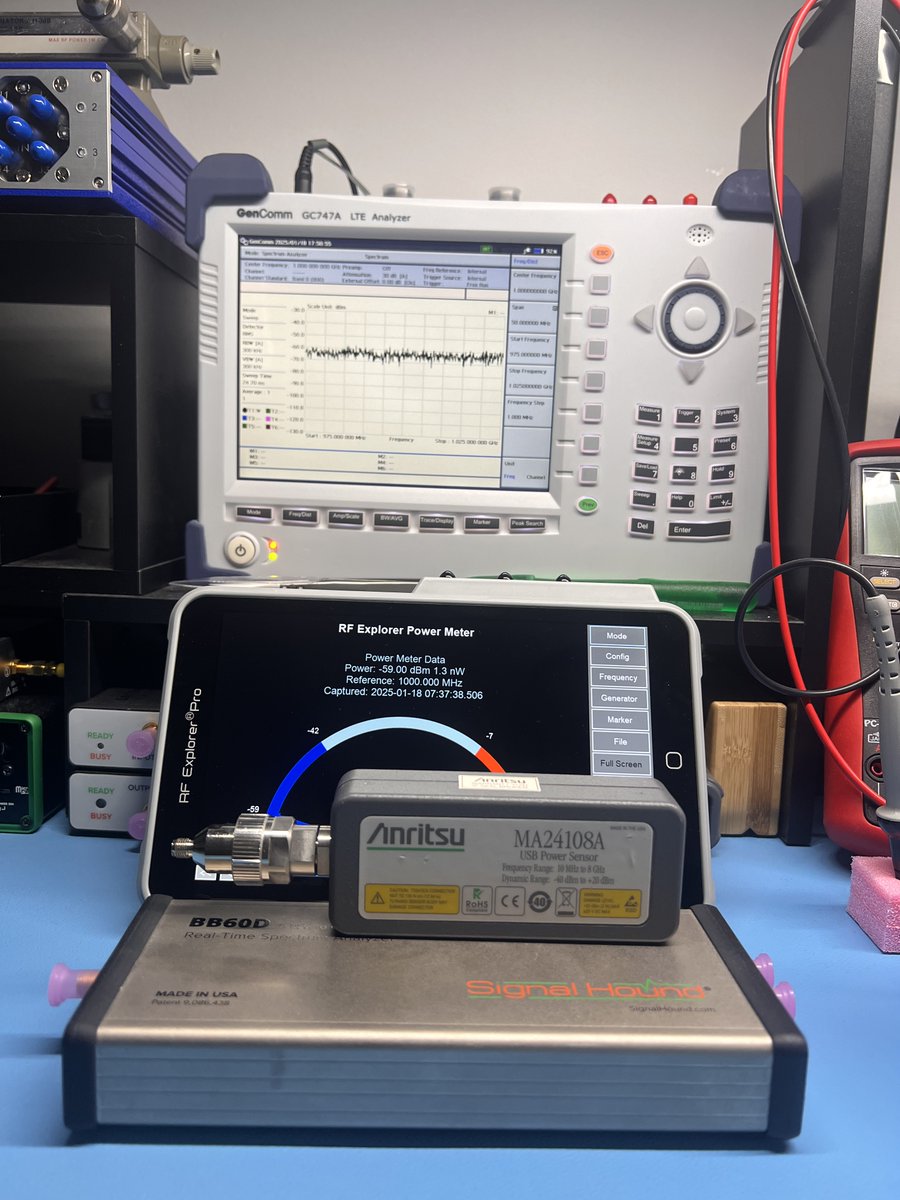

DO NOT BUY THIS DEVICE YET!!! My initial tests show the device is very inaccurate in the "spectrum analyzer" and "power meter" modes. Signal generator works good though. I used a calibrated Anritsu MA24108A RF power meter, and a Signal Hound BB60D to compare. As the first test, I simply connected the output of a 100MHZ OCXO (which is known to produce about 7dBm) The Anritsu and BB60D measure the signal very accurately (Anritsu reads 7.22dBm, BB60D reads 7.45dBm) RFExplorer Pro measures 4.75dBm in the Power Meter mode!! Also, in the Spectrum Analyzer mode, it measures the signal as -2dBm !!! The phase noise is also awful. I need to do more extensive tests in the entire frequency range, but for now and based on the initial tests I can say it's way out of spec, and I'm not sure if it will be fixed by future software updates. Will publish more detailed tests, not only for amplitude accuracy in the entire band, but also phase noise.
17 Jan 2025

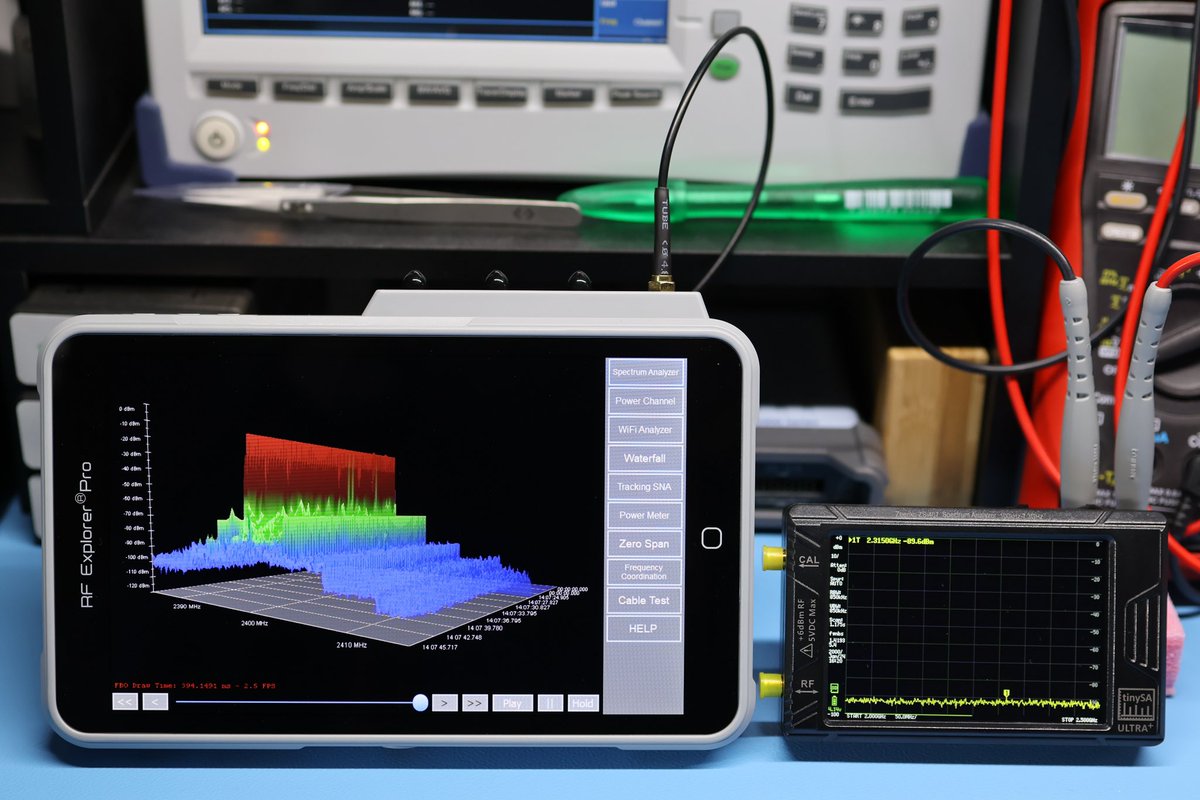

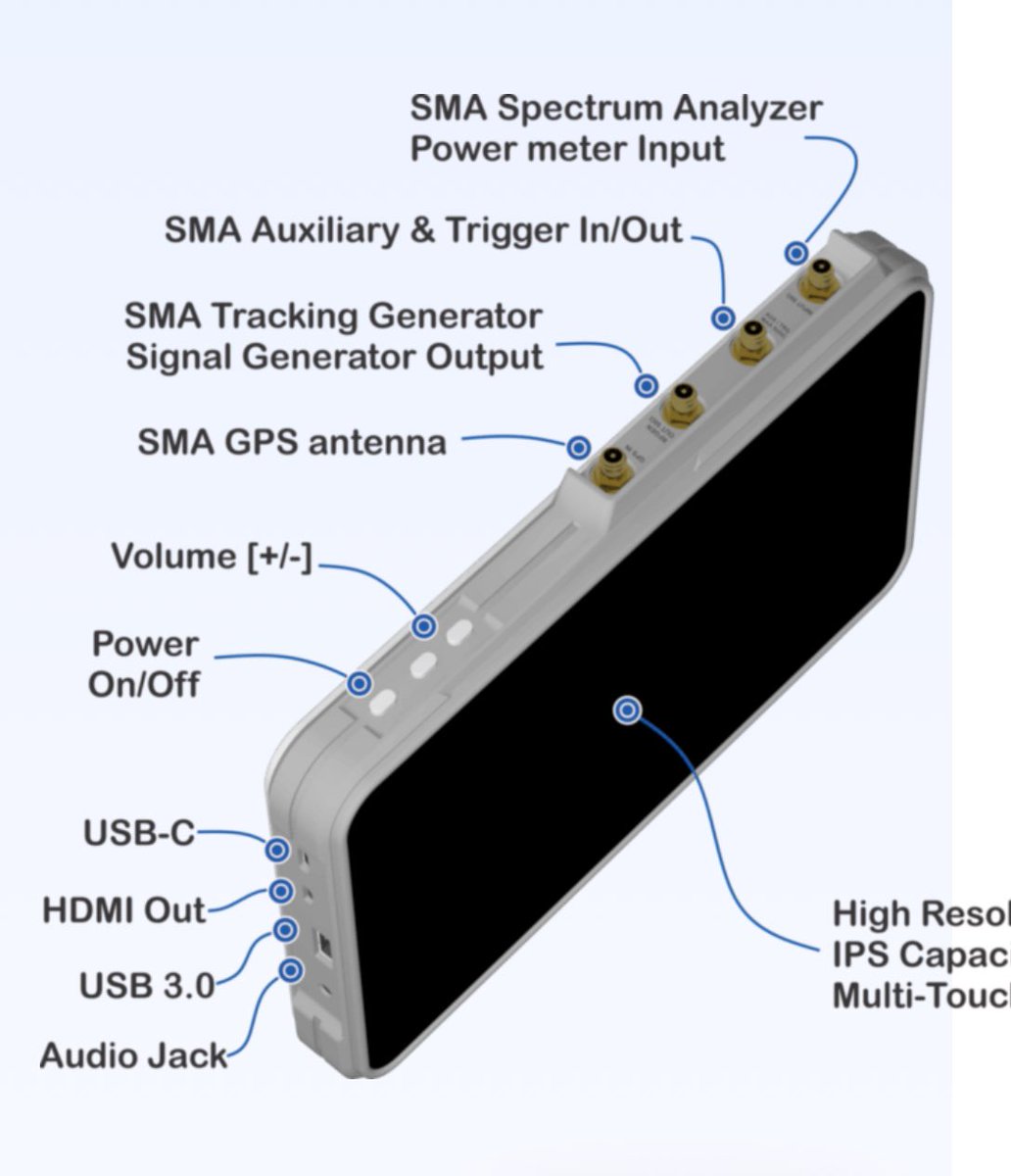

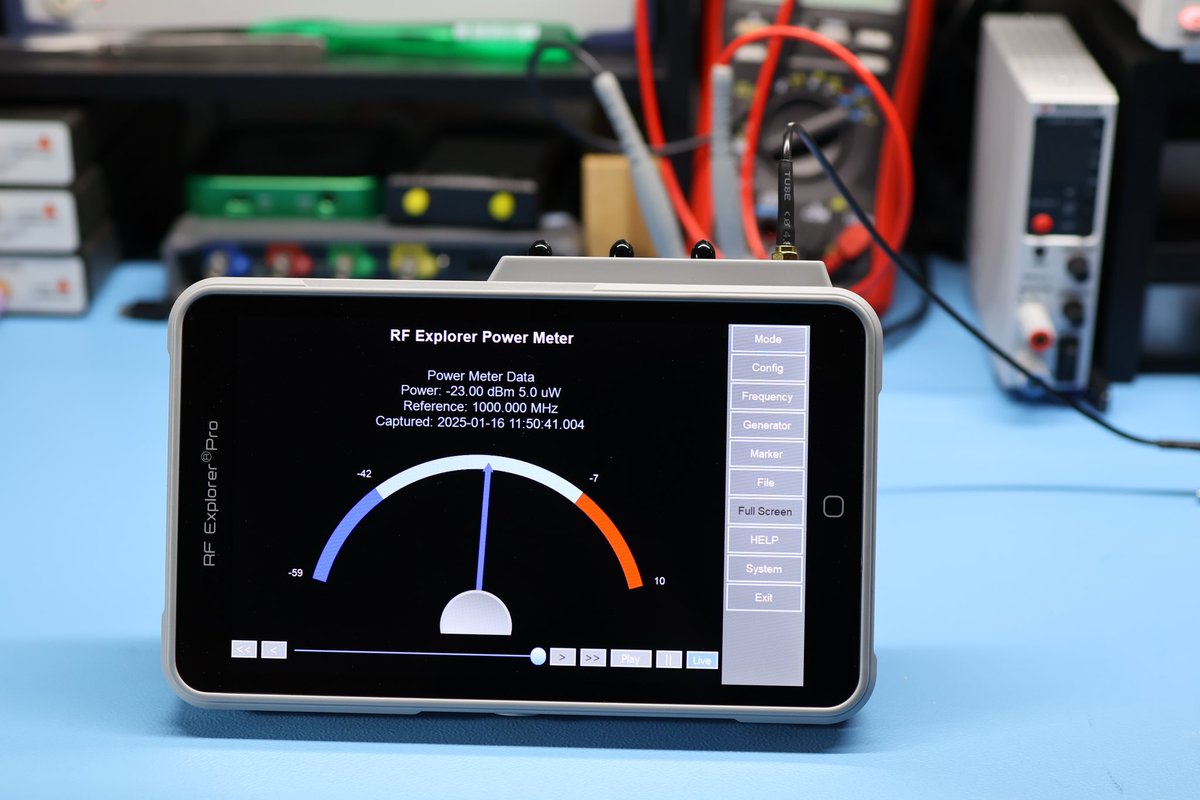

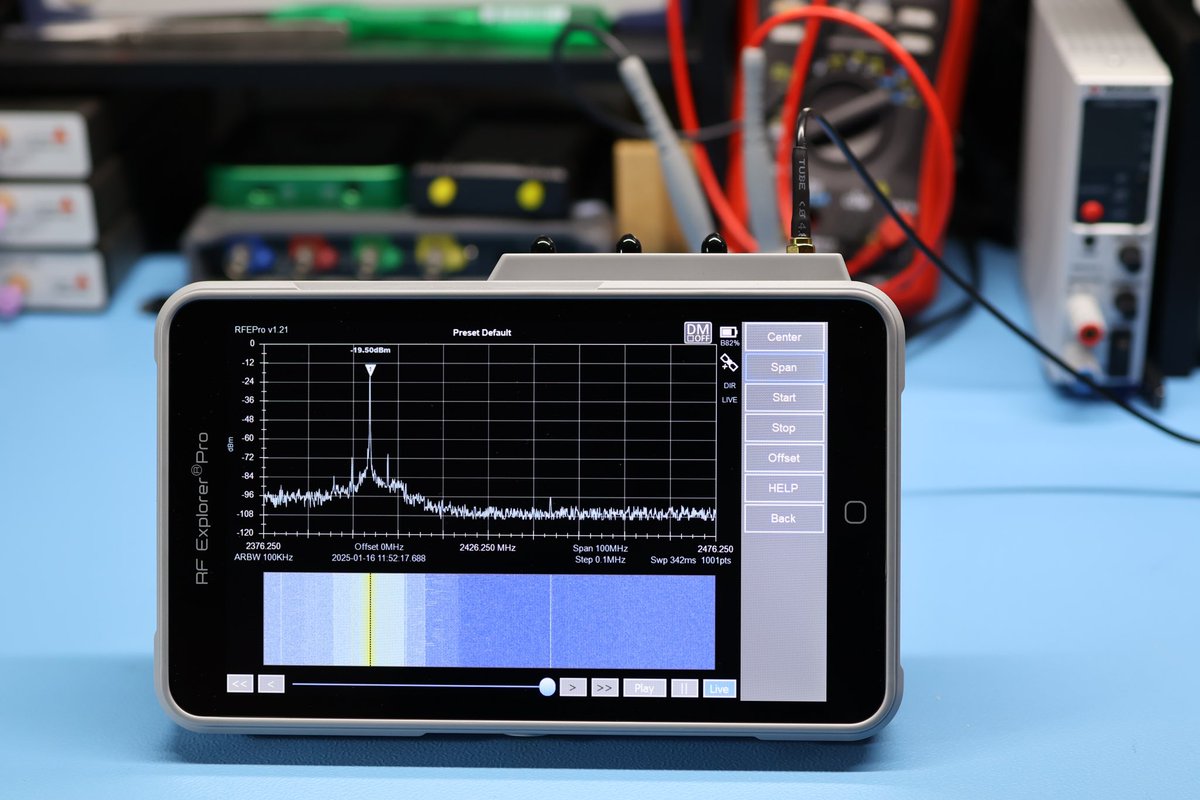

Newest product from RFExplorer is a very special and unique device: RFExplorer Pro, a new RF multi tool (spectrum analyzer, power meter, cable tester, tracking generator, and Wi-Fi analyzer) covering 15MHZ up to 7.5GHZ. It's running Windows. Display is 8 inches IPS touchscreen. Comes with a protective carrying case. It's very light at 570g (Siglent SHA852A is 3.2kg!) It's still early for me to share a review. I have positive and negative first impressions to share (about the design choices, build quality, accuracy, and also the software) To my knowledge there's still no review of this device, so feel free to ask questions and I will try to test the device and answer them in the upcoming days. Apart from UI/software, I'm particularly going to check the measurement accuracy. One thing is clear though: there's no competition in this price segment: tinySA is small and with many limitations, and portable devices from established brands (Rigol, Anritsu etc) cost a few times more. Probably it won't replace my Signal Hounds, but will come in very handy for field use. Also pictured side by side with tinySA for scale. Price for the base version: €1200 To unlock 7.5GHZ you need to buy a license.
5
75
7,113
Replying to @ElecNotes

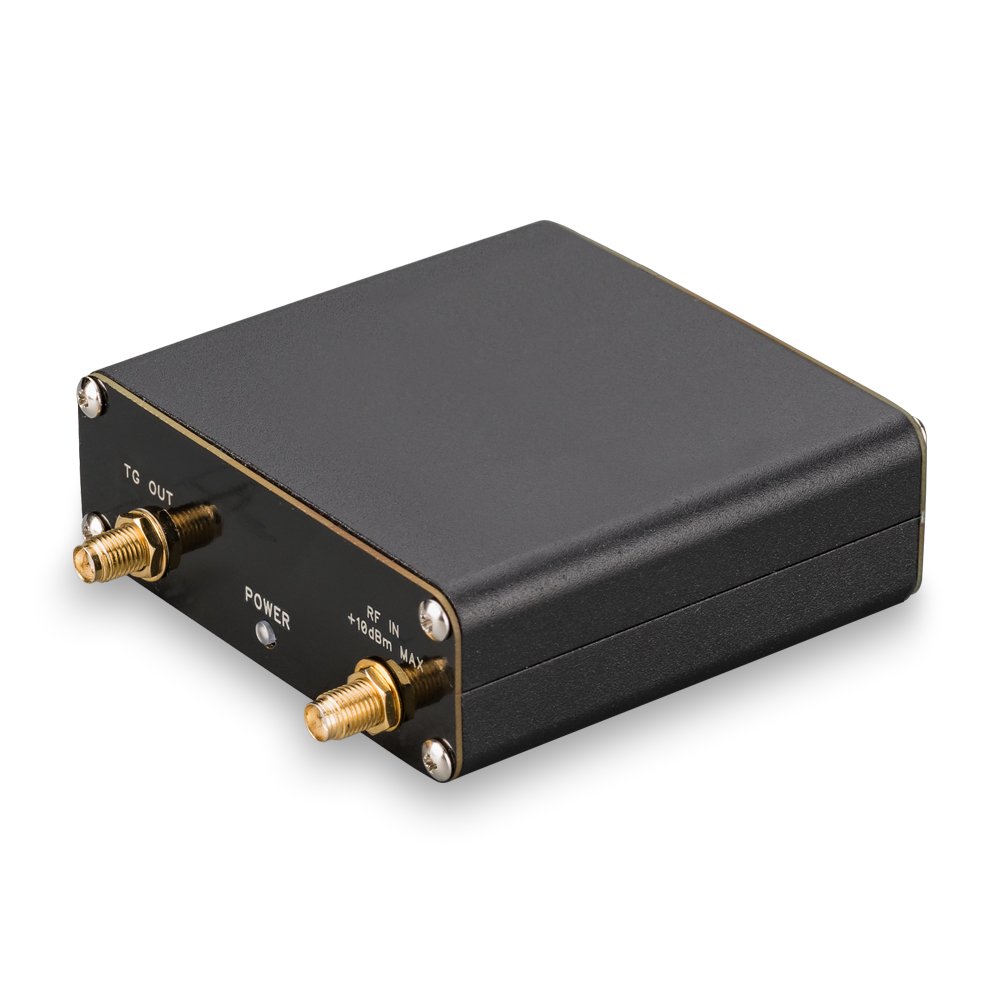

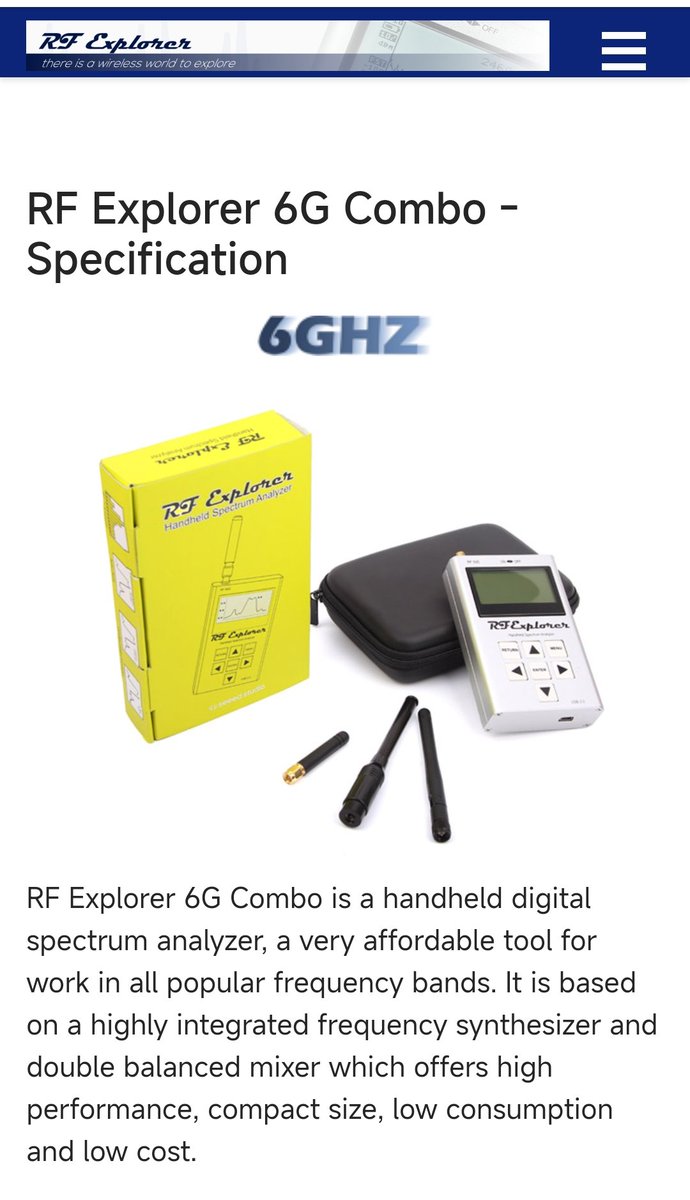

I have both of the TinySA series. The Ultra version is much better. I also have and use from the low cost category the Arinst SSA-TG LC R2 35-6000 Mhz with tracking generator and the RFExplorer 6G Combo 15-6100 Mhz. #SpectrumAnalyser
1
3
319
17 Jan 2025

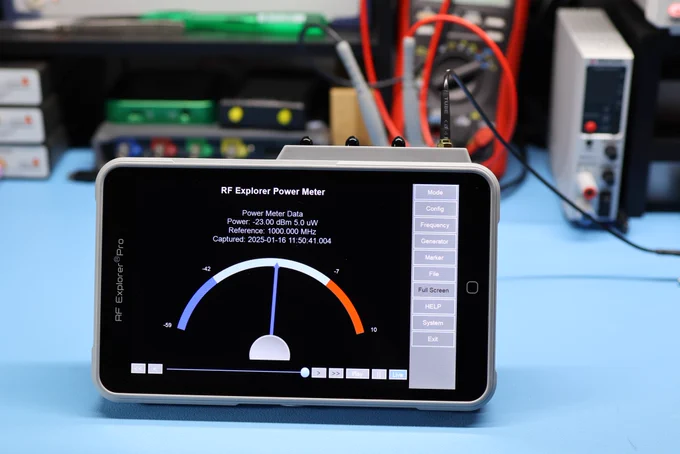

Newest product from RFExplorer is a very special and unique device: RFExplorer Pro, a new RF multi tool (spectrum analyzer, power meter, cable tester, tracking generator, and Wi-Fi analyzer) covering 15MHZ up to 7.5GHZ. It's running Windows. Display is 8 inches IPS touchscreen. Comes with a protective carrying case. It's very light at 570g (Siglent SHA852A is 3.2kg!) It's still early for me to share a review. I have positive and negative first impressions to share (about the design choices, build quality, accuracy, and also the software) To my knowledge there's still no review of this device, so feel free to ask questions and I will try to test the device and answer them in the upcoming days. Apart from UI/software, I'm particularly going to check the measurement accuracy. One thing is clear though: there's no competition in this price segment: tinySA is small and with many limitations, and portable devices from established brands (Rigol, Anritsu etc) cost a few times more. Probably it won't replace my Signal Hounds, but will come in very handy for field use. Also pictured side by side with tinySA for scale. Price for the base version: €1200 To unlock 7.5GHZ you need to buy a license.
4
28
175
15,402
ご質問ありがとうございます。 切り物は冷蔵庫、換気扇など電源を切ったら静かになる物の総称です。鳴り物ともいいます。 アナライザーはRFexplorerが一般的です。 #mond_nemoasu mond.how/ja/topics/5gvd3hlq8…
2
886
7 Dec 2024

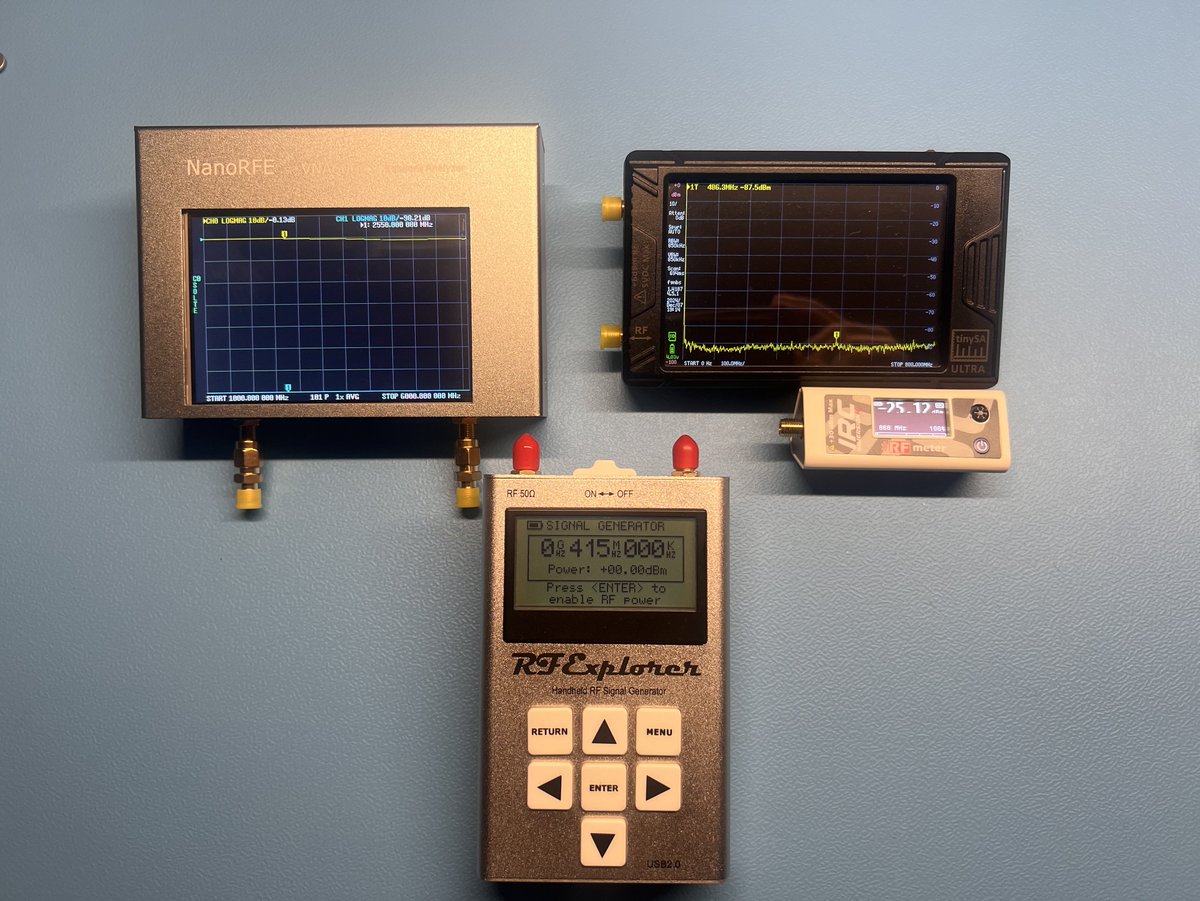

If you can't find GenComm or don't like it, here's an alternative: 4 devices that you can buy new, which provide similar functionality to GenComm: 1. NanoVNA: an affordable VNA (vector network analyzer). Comes in different models (from 50$ to 1500$) depending on the frequency range, manufacturer, and other features (like dynamic range) 2. tinySA Ultra: amazing little spectrum analyzer. 3. RFExplorer signal generator: 0-6GHZ RF signal generator. 4. ImmersionRC RF power meter: small portable power meter originally built for FPVers. 4/7
2
2
66
7,542

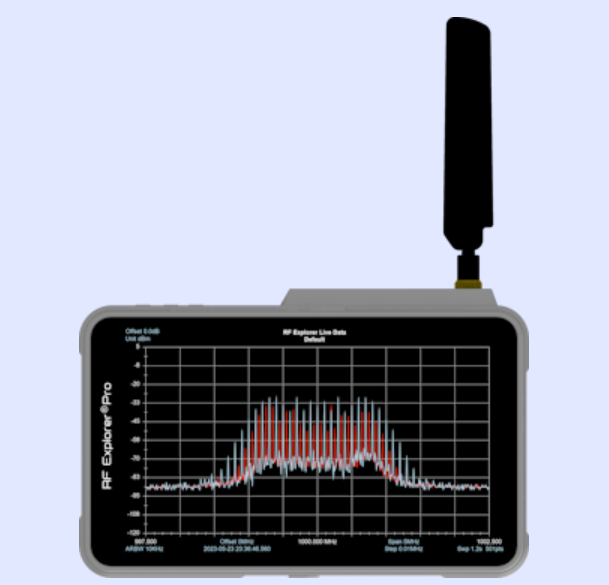

🚀 New Features in RF Explorer Pro! 📡 7.5GHz Support – Extend your frequency range. 📊 Dynamic Marker – Gesture control for precision spectrum analysis. And more... Details at xr284.mjt.lu/nl3/IHyFyeCdaoV… Upgrade to new firmware v1.18 j3.rf-explorer.com/rf-explor… #RFExplorer
2
196
安価なスペアナなRFExplorerのProってのが出てる! スペアナ、パワーメーター、シングルジェネレータの全部入りでタッチパネル搭載。 これはラズパイ向けに出てるTouchをパッケージにしたのかな。 約1000ドル。 seeedstudio.com/RF-Explorer-…
2
214

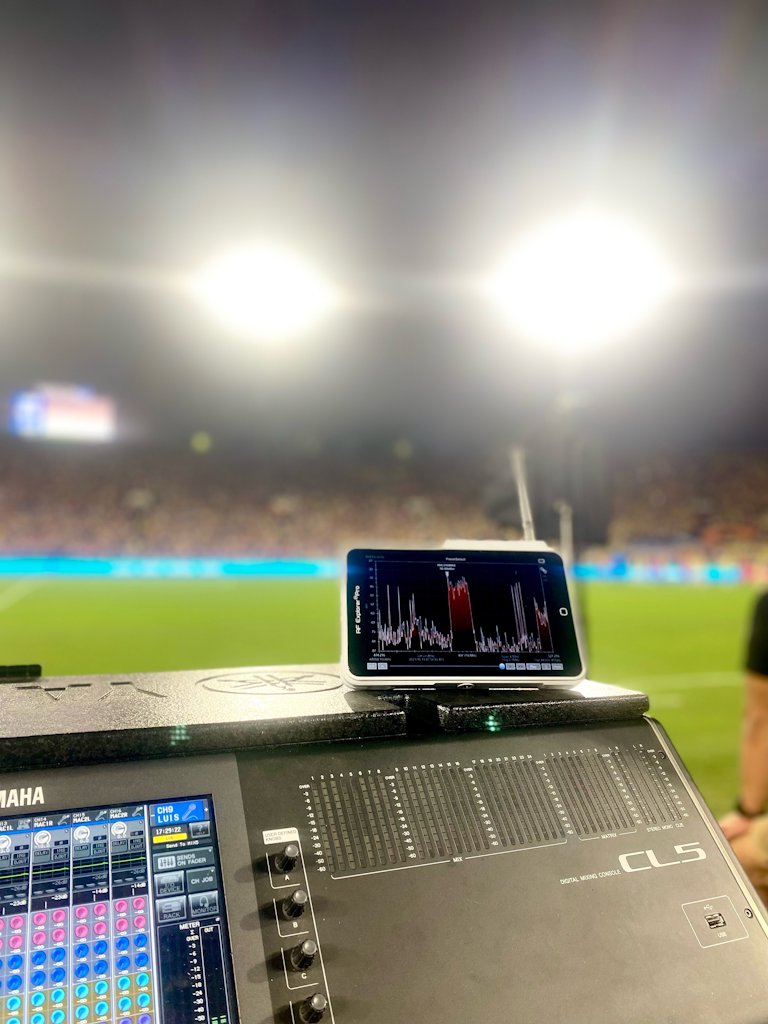

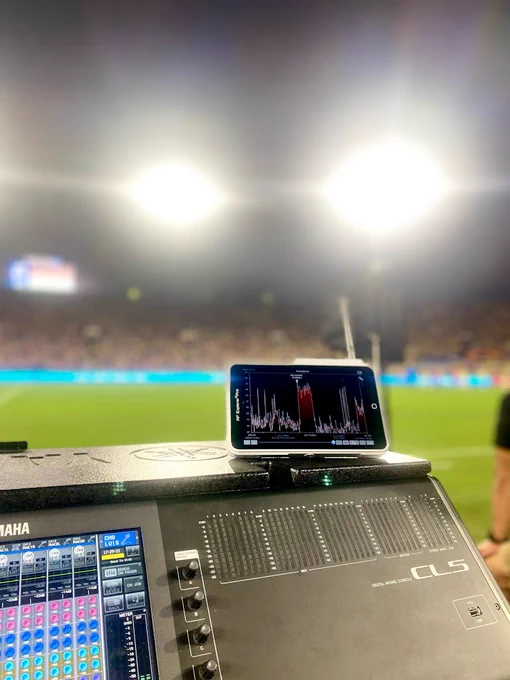

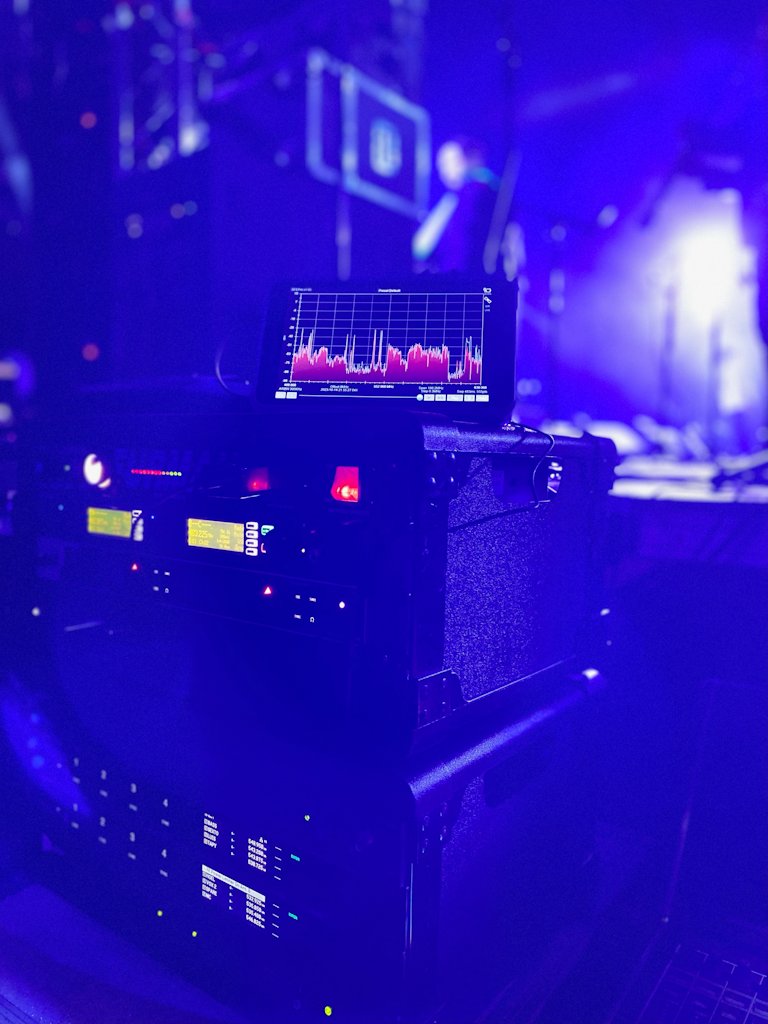

🚀 Explore RF Explorer®Pro designed by @rfexplorer: Your go-to #RF analysis tool for #concerts and #stadiums! Diagnose cables, measure signal strength, and more. Perfect for A/V and #WiFi analysis. Discover now: bit.ly/3PwFpU6 #RFExplorer 📶🔍🌐
2
3
2,517
1 Oct 2023

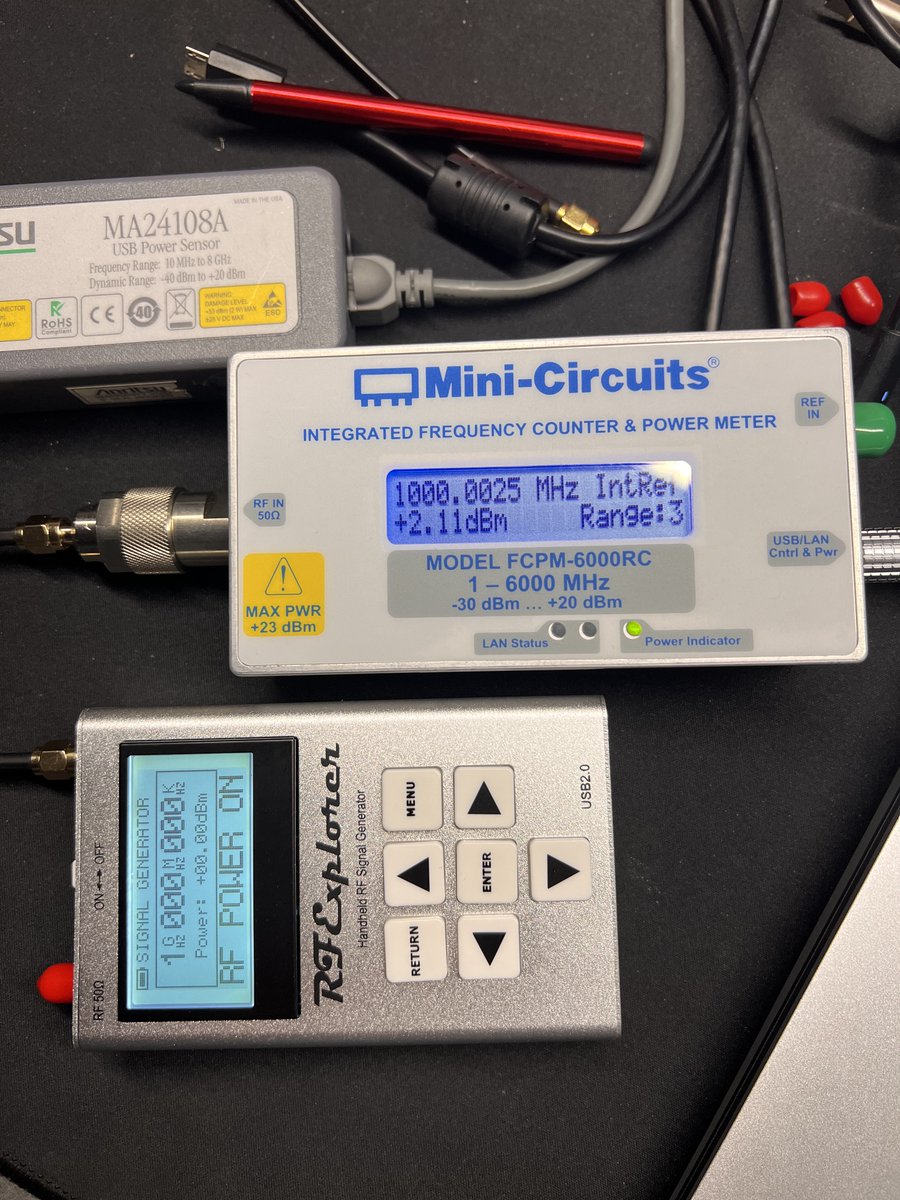

Interestingly, GenComm is consistently the most accurate across all frequencies. RFExplorer is usually within spec, but shows weird behaviour in some frequencies (e.g. 2dB higher at 1GHZ 0dBm) All get less accurate in higher frequencies; moRFeus unusually so! 2/3
3
1
7
777

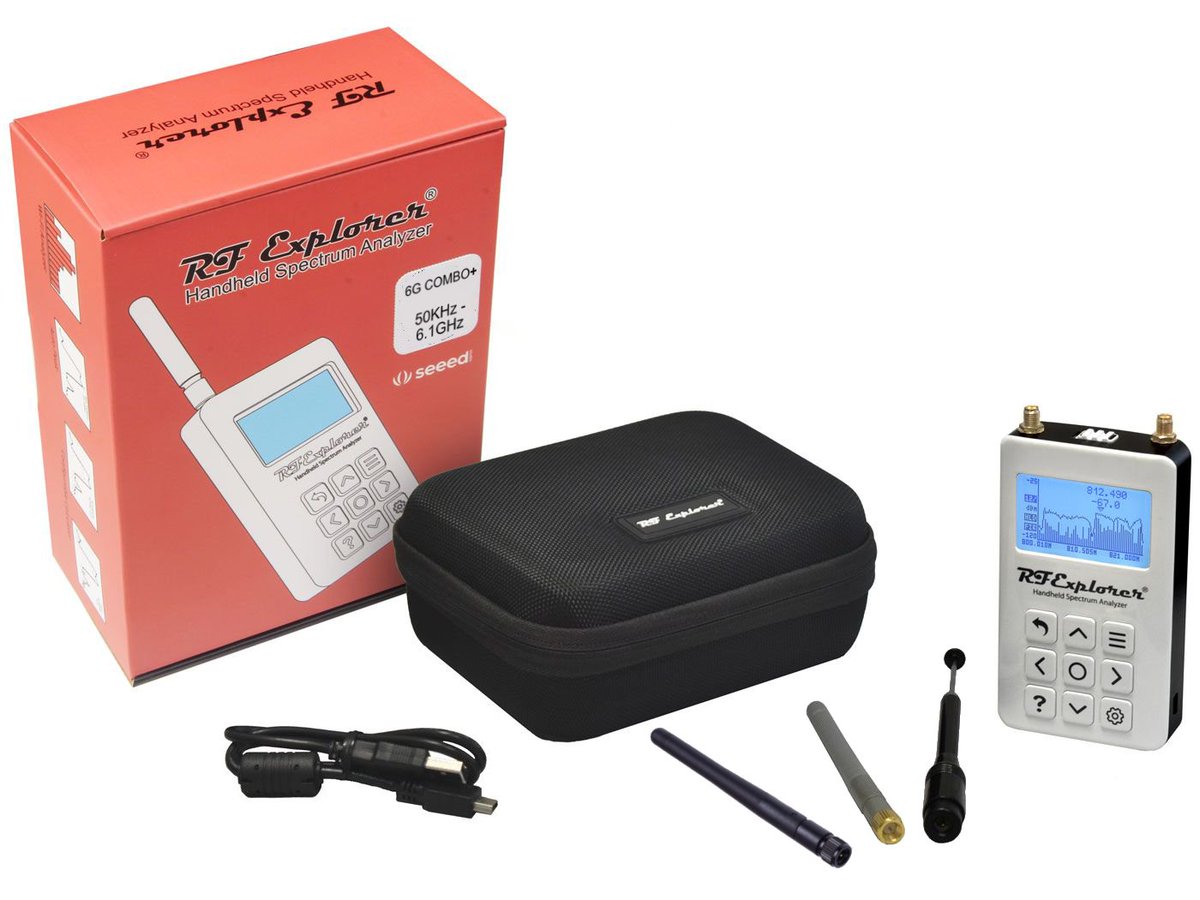

Dive into the realm of #signals with the #RFExplorer #Spectrum Analyzer designed by @rfexplorer!📡🔍Whether pinpointing signal interference, fine-tuning antennas, or uncovering hidden bugs, this device has you covered. 🌐Compact, sensitive, and built to last, the RF Explorer 6G COMBO spans 50KHz to 6.1GHz seamlessly. Its new #SLIM design boasts a sturdy metallic body, convenient side USB connector, and a larger battery. Your essential tool for precise #indoor #and outdoor measurements! 📶✨bit.ly/3QbKNwt
8
2,041
10 Aug 2023
Replying to @rfexplorer
Hi there! I apologize for the past experience you had with us. I know this can be upsetting situation. Please DM us along with the email address and related screenshot by hiding bank/card details for further assistance. ^VIB x.com/messages/compose?recip…

20
📡🔍 Discover the future of spectrum analysis with the #RFExplorer 6G Combo PLUS- Slim #SpectrumAnalyzers! 🌐✨ Unleash the power of advanced RF scanning capabilities, offering precise insights into wireless environments. Whether you're an #engineer, #hobbyist, or #techenthusiast, this tool is a game-changer! 🚀🔧 bit.ly/3QbKNwt
4
14
2,770
23 Apr 2023
El airspy r2 rules!
3
137

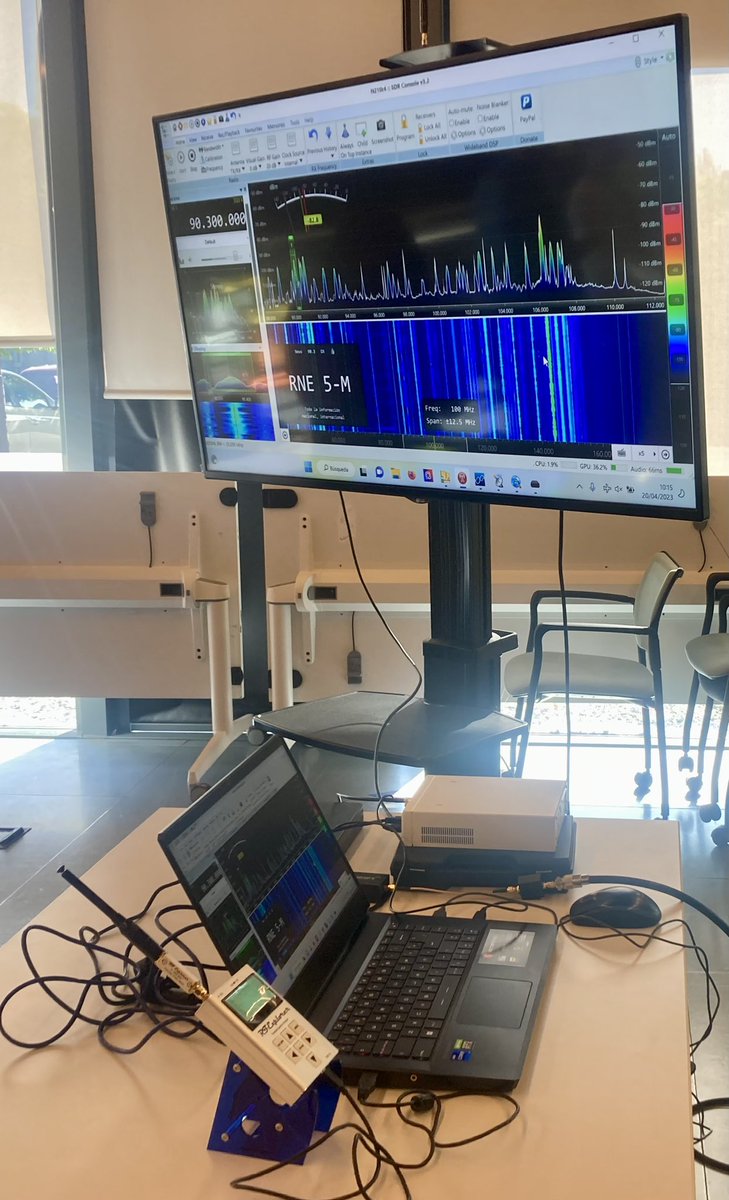

ℹ️ Para las personas que me han preguntado por los equipos #SDR y analizadores de espectro que expusimos en #MundoHackerDay2023: ✅ Analizador RF Explorer @rfexplorer ✅ SDR Ettus USRP N210 @EttusResearch ✅ SDR Airspy R2 @airspy_com #SDR #Radio #RF 📡
1
10
47
3,287
