Pinned Tweet
Replying to @shell_jim
3/n This animated plot illustrates the evolution of the orbit plane of the debris field, with the color coded to the area/mass of the objects. Only objects with an accuracy < 1000 km at epoch are shown (677 as of 2025-02-24).
3
3
26
4,396

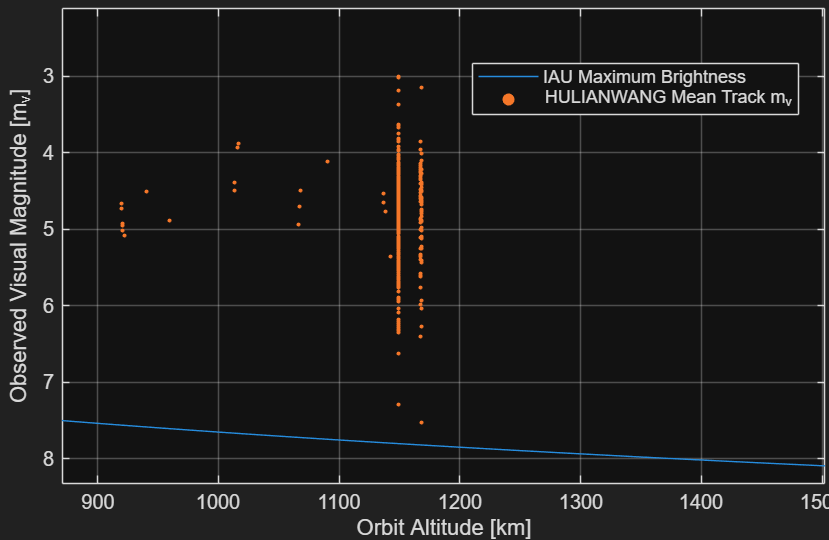

🛰️ Satellite megaconstellation optical brightness compared to @IAU_CPS maximum recommendations So how are things looking for the international Dark and Quiet Skies initiatives to preserve ground-based astronomical observations? Not very good.... I'm working on a more extensive article, but among the "big four" constellations currently on orbit, China's GuoWang (aka Weixing Hulianwang Digui) is the most significant violator of the standard by a meaningful margin. (In fact, all four primary constellations are in violation of the recommended standard). The graphic below presents the average visual magnitude of individual tracks of GuoWang satellites since 01 Jan 2026, as taken by the Russian MMT system. (Data comprised of 427 tracks with 299,225 observations). Results summarized: These satellites on average exceed the maximum recommended brightness for their altitude by 2.96 visual magnitudes. Translating visual magnitude into a linear irradiance scale, or units directly related to the "digital counts" on a telescope's focal plane results in exceeding the brightness recommendation by 1524% !!! Orbital data (satellite altitudes) courtesy of @S4S_SDA via @SpaceTrackOrg , used with permission per ODR 24-002-4.
4
9
24
2,156

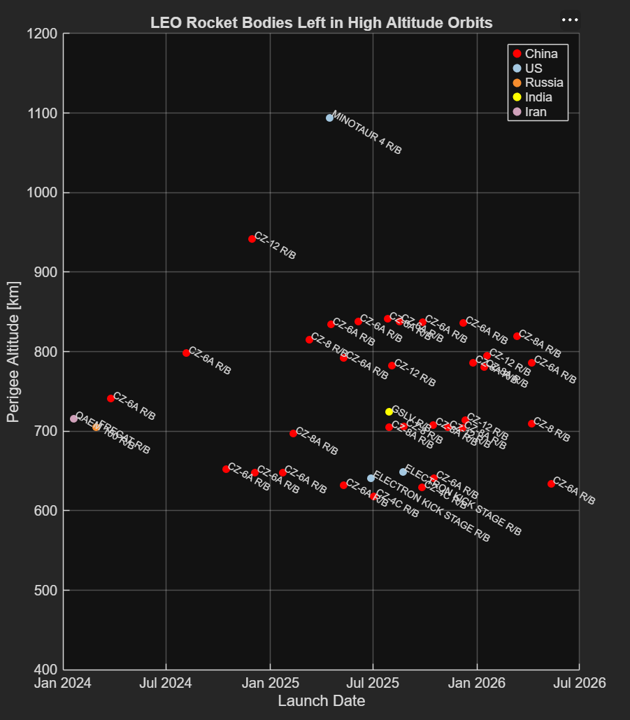

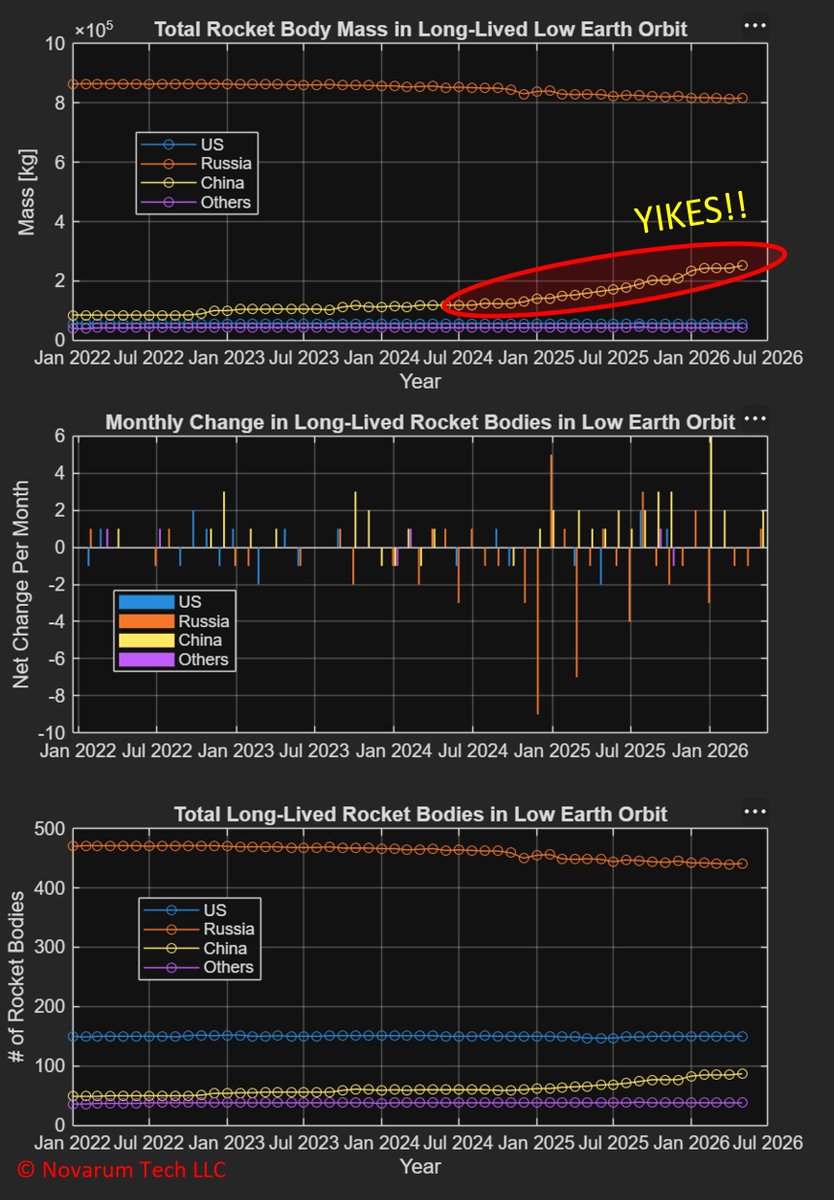

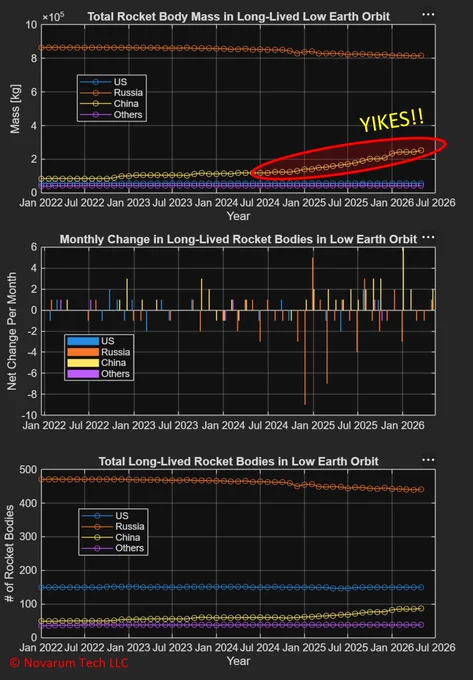

Not a good story. Over the past year, China continues to abandon numerous upper stages in long-lived low earth orbit,* counter to best practices for the long term sustainment of space. I initially sounded the alarm on this issue in April 2025, and further highlighted the issue in an August 2025 article and...the update is that things only continue to get worse. For those not familiar, the total orbital debris mass is a key variable for the long term sustainment of space. There is broad agreement that abandoning rocket body upper stages in long-lived orbits is NOT a best practice. In fact, all the major space-faring nations have acknowledged this (e.g., IADC signatories). However, as China's "mega constellations" launch rate increases, so does the number of abandoned rocket bodies in long-lived high LEO orbits. Russia and the US dominate the number of rocket bodies remaining in such long-lived orbits, rooted in historical practices from decades ago with minimal orbital debris concerns (graphic, bottom panel). HOWEVER, China's upper stages are estimated to have much higher masses on average. Although the US has almost double such objects, China's total mass of such objects is 252 metric tons and increasingly rapidly vs the US total of 57 metric tons (and holding steady). It's acknowledged there are some uncertainties in PRC upper stage dry mass values (Graphic, top panel). No matter, things are not going well. * "Long-lived LEO" is defined here as having a min perigee height of 600 km and an orbit height less than 2000 km (to preclude HEO rocket bodies) ** Object mass estimate use @planet4589 's dry mass from the GCAT *** Orbit data from U.S. Space Forces – Space (S4S) via space-track.org, used with permission per ODR 24-002-4.
5
20
50
5,072

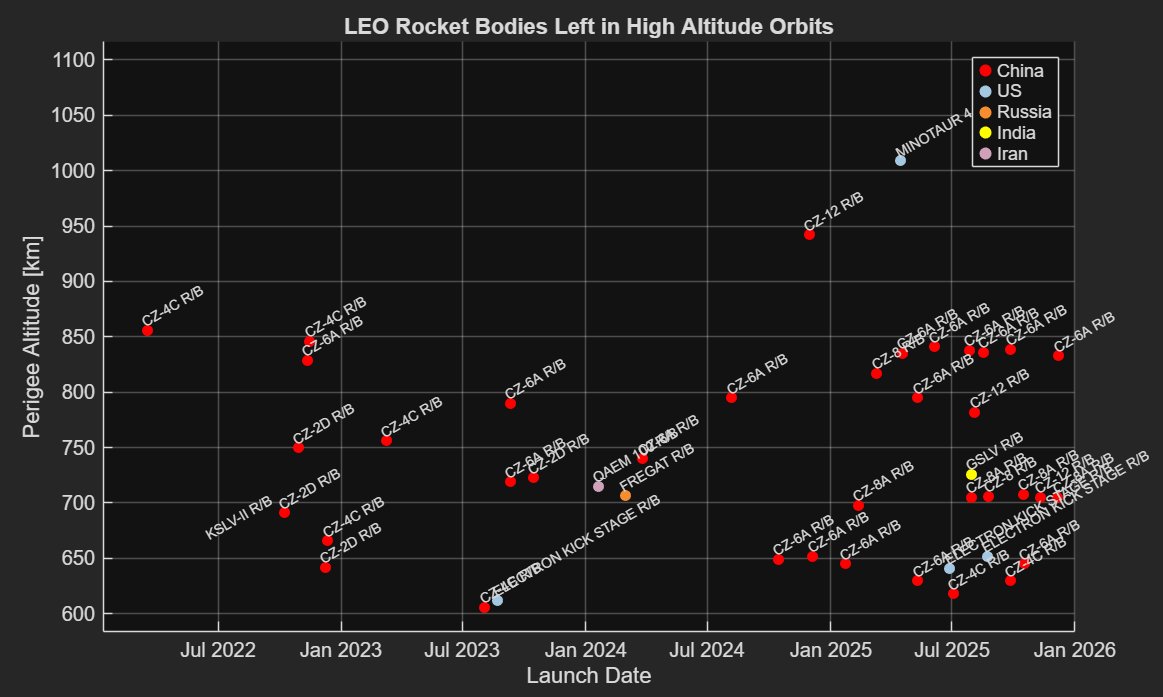

Here are some specific objects from Jan 2022 to date.
2
10
502
1/n Thank you @heospace for facilitating "Positive ID" of a Chinese payload (OBJECT A - 57424) from this 2023 PRC launch with multiple payloads (launch 2023-104). x.com/heospace/status/205724…

May 20
HEO has a #NoUFOPolicy. Objects we image leave with an identity and characterisation, as it is critical to identify space objects to maintain space and Earth safety. For example, this object is currently listed as Object A in public tracking databases, a designation assigned to newly launched objects pending formal cataloguing. HEO has imaged and characterised it as the Lingxi 03 communications satellite, a designation corroborated by publicly available information on the mission. When identities and capabilities in orbit remain obscure, whether by cataloguing lag, sparse public data, or the absence of independent characterisation, operators work with an incomplete understanding. Unknown no longer has to be a permanent state. *Measured in the 2D image plane. Any extension into the image plane is not captured, so this figure represents a minimum. The true length may be greater.
1
2
7
955

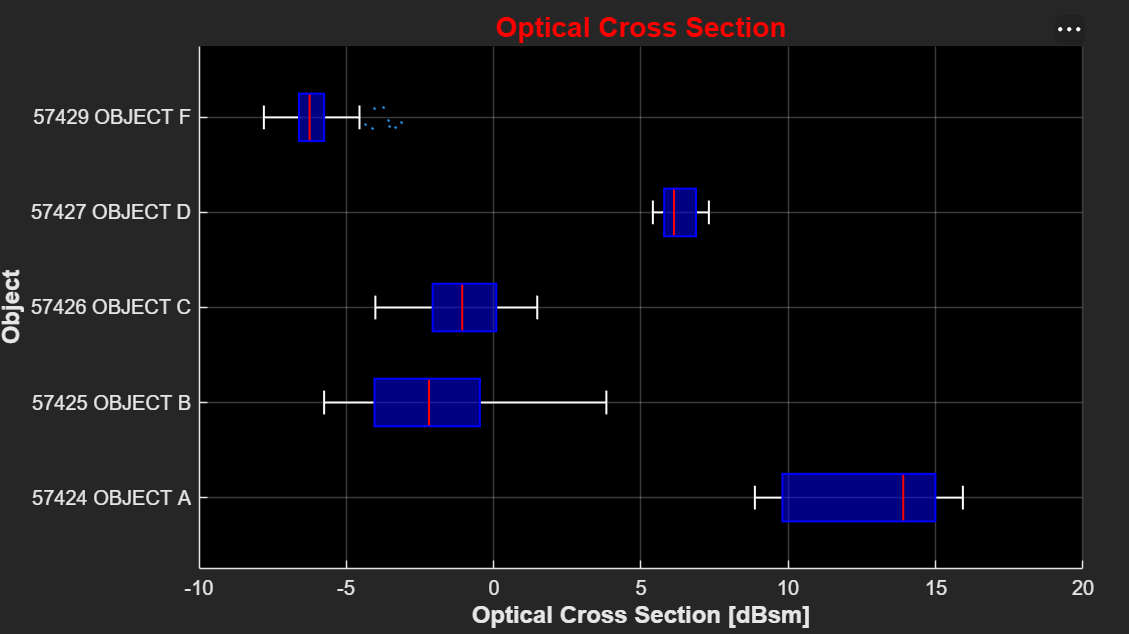

2/n It's constructive to examine the optical signatures of all PRC objects associated with this launch (2023-104), simply identified as Objects A-F in the US public catalog (space-track.org). A total of 6 objects have been cataloged from the launch; however, none of the objects are identified by name (SATNOs 57424-47529). Given HEO's NEI image of an object from the launch, it's constructive to examine the optical signatures of all objects associated with the launch. "OBJECT A" has a median optical cross section (OCS) of 13.9 dBsm, or ~24 m^2 (derived via a diffuse sphere model with albedo of 0.2). OBJECT A's optical cross section (OCS) is significantly larger than all of the objects from this launch for which optical signature data are available* (ref graphic). * Optical signature data is open source courtesy of the Russian MMT system.
2
3
307
3/n @Skyrocket71 's page on the probable identity of OBJECT A -> space.skyrocket.de/doc_sdat/…

245
Military Space History #18: 1976: @NRO_gov Satellite Survivability Mandatory reading for all @USSpaceForce Guardians, and my reminder that space was "born contested!" It's been a while since my last "Military Space History" installment. This highlight comes courtesy of the NRO's annual "Sunshine Week" declassification and public release of historical documents, with this trove largely consisting of documents hitting the 50 year declassification milestone. 1/2
1
7
31
2,267

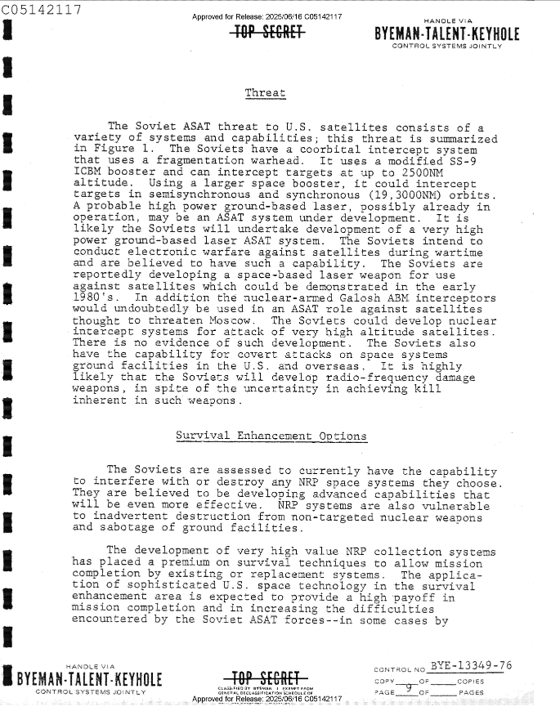

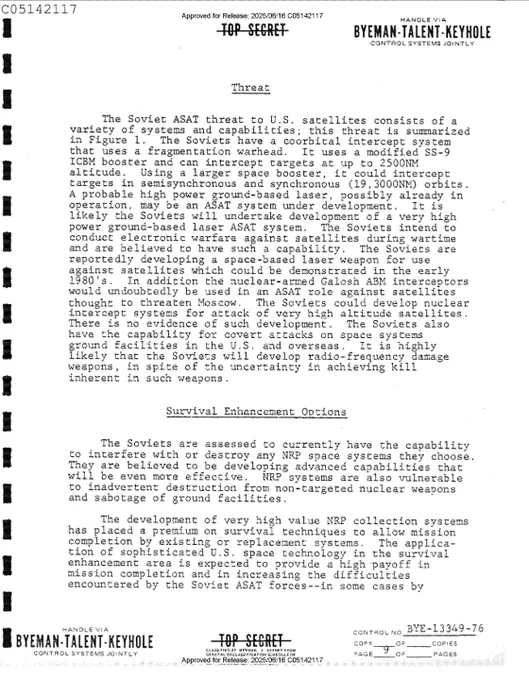

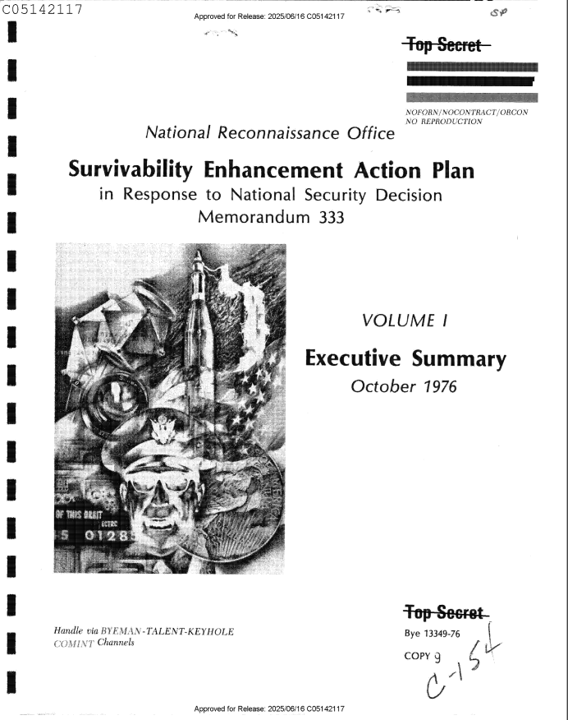

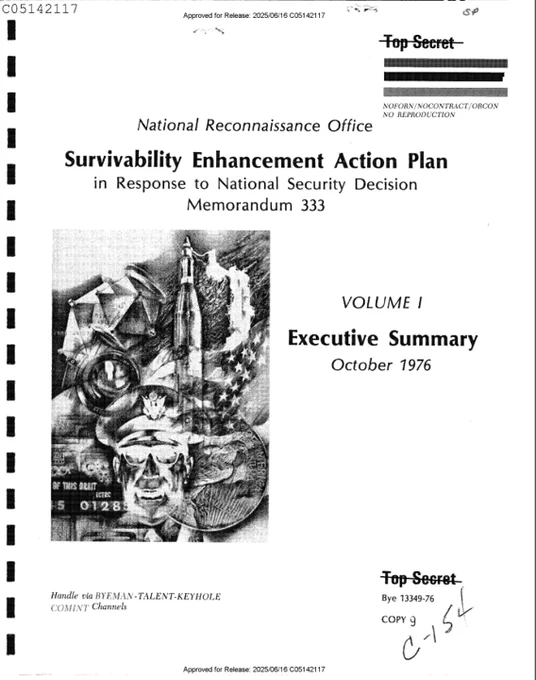

On July 7, 1976, President Ford issued National Security Decision Memorandum 333 (NSDM 333) "Enhance Survivability of Critical U.S. Military and Intelligence Space Systems." The growing dependence of the U.S. on satellite reconnaissance coupled with the growing Soviet ASAT threat prompted NSDM 333. NSDM called for the SecDef and DCI to balance the level of survivability of satellite systems commensurate with their mission importance. The NRO's response was quantified via the NRO's "Survivability Enhancement Action Plan," with the study completed in October 1976. The declassified study is a treasure of information regarding the assessed Soviet counterspace threats at the time, and an assortment of options to "Protect and Defend" (today's vernacular) against these threats. The full document in it's entirety may be downloaded here: nro.gov/Portals/135/document… (nro.gov URL) 2/2 #SpaceDomainAwareness #MilitarySpaceHistory #AlwaysContested #OurGrandparentsHaveBeenThereAndDoneThat! #ASAT
1
3
10
1,521
Ug - "its" entirety
2
411

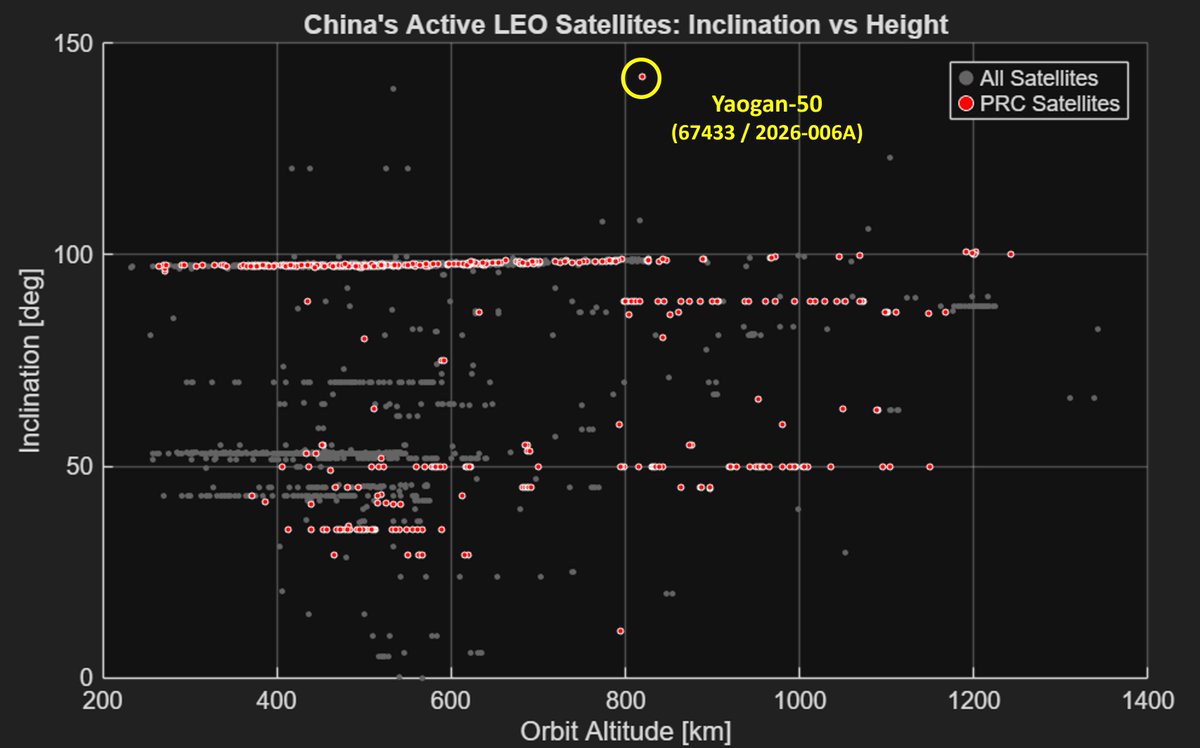

*** Yaogan-50 - China's First Retrograde LEO Satellite *** On 13 Jan 2026 China launched Yaogan-50-01, its first LEO satellite in a highly retrograde orbit (ref graphic). While the payload is unknown, a probable contender is a synthetic aperture radar (SAR) system as the higher velocity relative to the earth's surface also serves to increase the spatial resolution(?). Such a high inclination also provides improved revisit times time for lower latitude locations--such as the South China Sea. (Orbit data from U.S. Space Forces – Space (S4S) via space-track.org, used with permission per ODR 24-002-4).
1
19
100
5,915

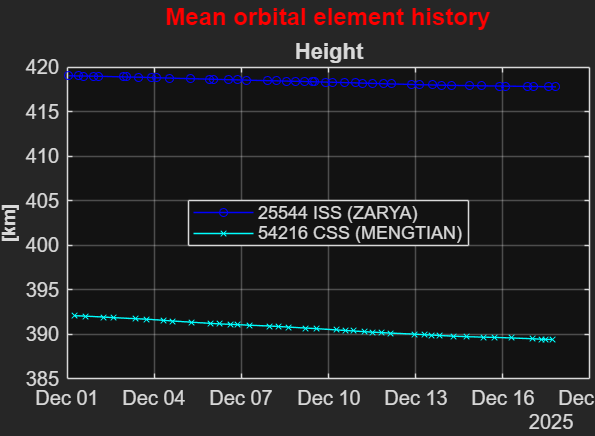

Starlink's first space debris event occurred on December 17, 2025. A remarkable response by commercial SSA companies--but a misstep by not acknowledging PRC crewed flight concerns which will only fuel Chinese rhetoric. Event summary -> spacedomain.substack.com/p/s…
17
28
3,172

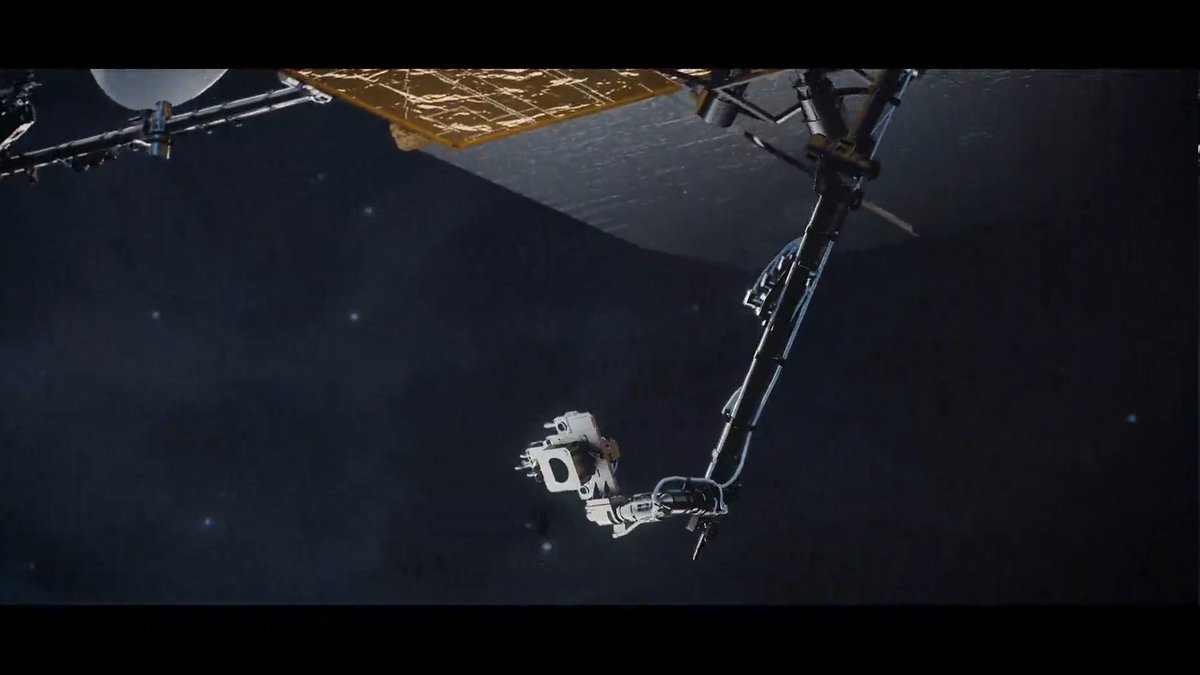

Questions on China's new Feng Yun 4C (FY-4C) meteorological satellite launched on 2025-12-26. Looking for answers.... A post by @SegerYU indicates robotic arms? I have not seen this elsewhere? Presumably this may facilitate on-orbit servicing? (Also wondering now if there is a designation for this SAST bus)? x.com/SegerYU/status/2004250…

25 Dec 2025
卫星平台,从渲染图里应该已经能看出机械臂和电推力器。 太阳翼上挂的那个像摄像头的东西是太阳极紫外成像仪(SUVI),太阳翼和 SUVI 都需要指向太阳,可以共用一个驱动机构。这是国内第一次从地球静止轨道做太阳极紫外成像。
1
10
1,867
OK, seems I should have just read @PhazzeeYeehaw's article on the launch first! So, the robotic arms have electric thrusters on the end of them, which apparently facilitates an ability to dial in a thrust direction without having to change the satellite attitude-which is honestly pretty innovative. x.com/PhazzeeYeehaw/status/2…

China has a new weather satellite heading for geostationary space following the launch of Fengyun-4C atop of a Long March 3B/E from Xichang. Details -> china-in-space.com/p/upgrade…
4
6
878
Adding this for reference
26 Dec 2025
Fengyun-4C employs the "thruster on stick" design with electric propulsion for stationkeeping.
2
4
877
🚨 A new "must have" book on the history of U.S. space surveillance has been published by @aiaa . Particularly honored to have been gifted a copy from Dr. Felix Hoots whom I've had the privilege of working with for many years. I'm also blessed to have had some meaningful interactions with Drs. Schumacher and Alfriend. Thank you gentlemen for preserving this valuable history! You can get your copy here -> arc.aiaa.org/doi/10.2514/4.1… #KnowWhereYouveBeenToKnowWhereYouAreGoing!
5
42
361
13,198

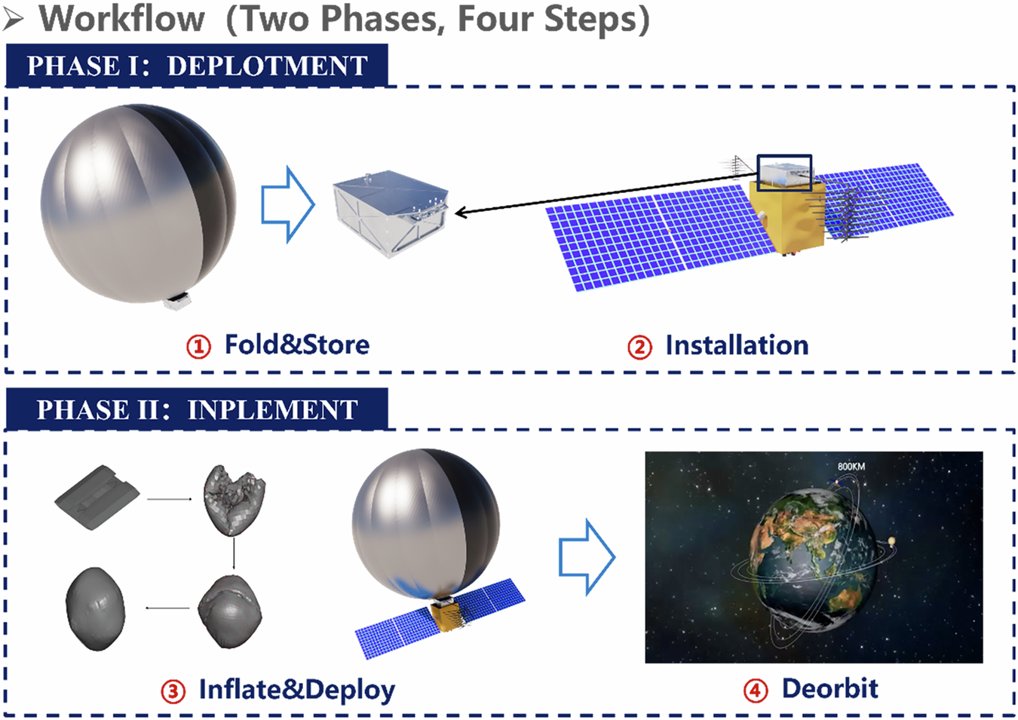

🛰️ *** China Launches Satellite with Inflatable "Drag Sphere" --> potential dual use technology for a decoy *** On December 1, 2025, Beijing Institute of Technology (BIT) authors published an eye-opening article in the "Space Exploration" journal on an inflatable drag-augmentation device termed “QingHuan.” The device was launched on September 5, 2025, as a payload on the “Eros orbit test platform” alternatively termed “Eros 1 02” or “Aishenxing LSP 2.” The device has an inherent capability to tailor an optical signature given the two hemispheres with different reflection properties, or characteristics ideal for employment as a decoy. Read all about it in my latest substack article --> spacedomain.substack.com/p/c…. Figure below is from the open PRC paper (ref substack article).
3
36
174
21,278
