تیغچه کهنه وایرکات. ایزار threadmilling

Threadmilling 304 SS to end the week

Spreading the gospel of threadmilling, one thread at a time.

切削条件などの詳細はこちらです💡 ■被削材 : Ti-6Al-4V ■機械 : ROBODRILL ■使用油剤 ブラザー・スイスルーブ・ジャパン株式会社 バスコ601 blaser.com/ja/航�%a… ■製品： TungEightMill（タング・エイト・ミル） TungMeister（タング・マイスター） ThreadMilling（スレッド・ミリング） ■製品情報 ツール : TAOW05M063B22.0R05 catalog.tungaloy.com/Item.as… インサート : OWHT05T3C07AFER-MM AH3135 catalog.tungaloy.com/Item.as… ヘッド : VCR100L09.5R25-02S06 catalog.tungaloy.com/Item.as… ねじ切り工具（数字1） : MTECD1009D261.75ISO AH725 catalog.tungaloy.com/Item.as… ねじ切り工具（その他の数字） : MTECD0806D181.25ISO AH725 catalog.tungaloy.com/Item.as… ■切削条件 [平面フライス加工（φ63）] Vc = 荒 80 / 仕上げ 80 m/min fz = 荒 0.2 / 仕上げ 0.06 mm/t ap = 荒 1.7 / 仕上げ 0.02 mm ae = 荒 50 / 仕上げ 50 mm [R2.5面取り加工] Vc = 77～150 m/min fz = 0.05 mm/t ※刃先位置により周速変化 [M12×1.75（並目）ねじ切り加工] Vc = 51 m/min fz = 0.014 mm/t [M8×1.25（並目）ねじ切り加工] Vc = 50 m/min fz = 0.012 mm/t

Leak-free precision from DrillMeister to ThreadMilling 🔧💧 #PortHole

📸NestWorks C500: Machining a Professional Camera Quick Release Plate. Its integrated workflow includes accurate thread milling for the attachment points, providing a reliable and smooth interface for your camera gear. #nestworks #threadmilling #desktopcnc

Thread milling is great for prototypes, tough materials, mixed thread sizes. But for medium/high prod runs downsides are real Tapping is faster, cheaper, doesnt require high spindle speeds. Also Taps are more fire and forget in forgiving materials. #CNC #ThreadMilling #Tapping

I threadmilling on our swiss lathes 🙌

for centric ID threads in SUS310 lathe parts, feels like single point is the noob trap and threadmilling is the way to go for unattended process

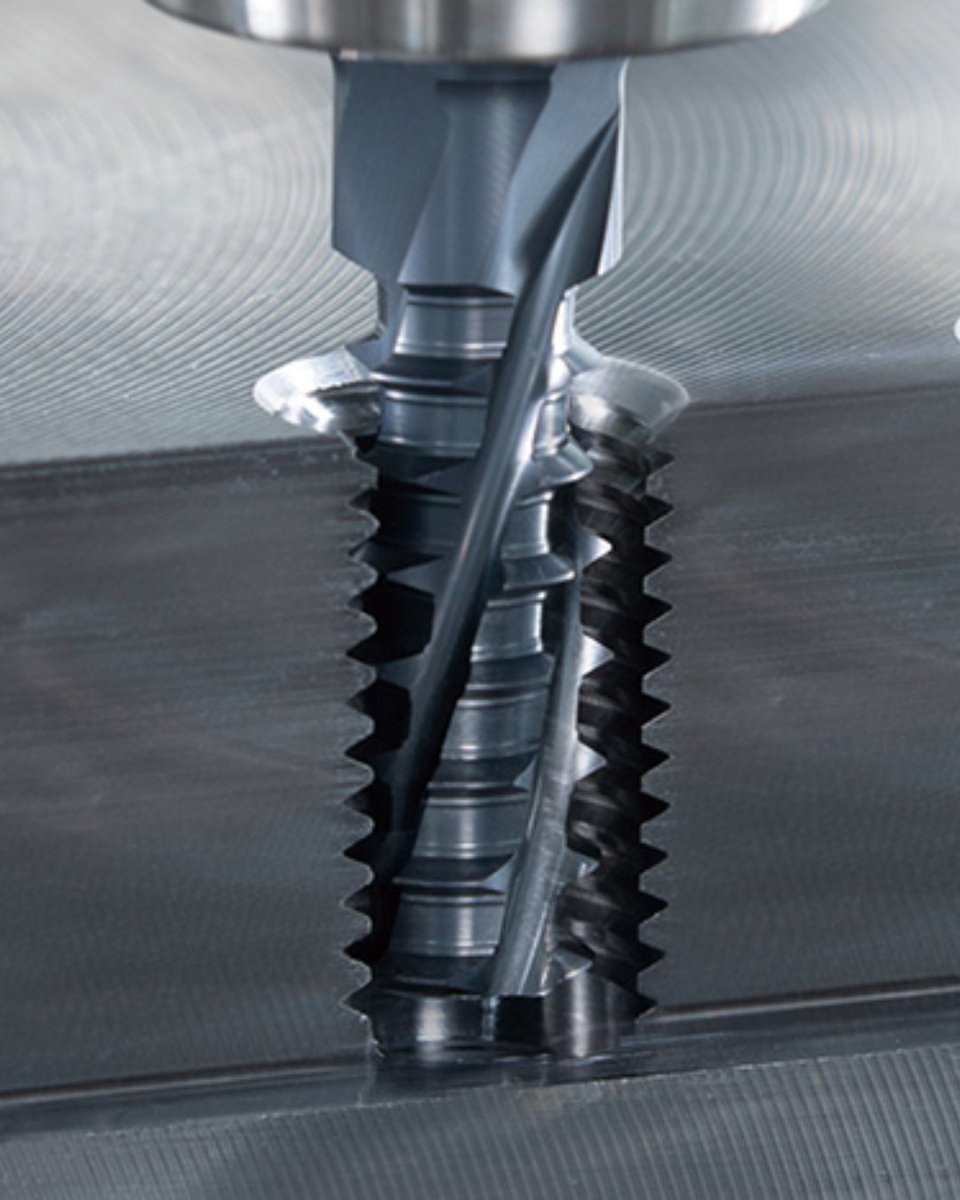

🧵 SolidThread just got smoother. New step-release design reduces cutting resistance for more stable, accurate thread milling. 👉 tungaloy.com/uk/press-releas… . . . #CNC #Machining #ThreadMilling #UKmfg

Try adding threadmilling and dancing when you see other poros (yes it was ranked) 😜

I learned how to tap in SS304. After a dozen broken taps I switched to threadmilling. Definatly the way with hard materials.

If that was my tap, I would immediately be threadmilling those holes.

#タンガロイ新製品情報 高精度スレッドミル工具 #ThreadMilling SolidThreadに、ステップリリース仕様を拡充✨切削抵抗を低減し、安定性と工具寿命を向上👍 📋おススメ使用例 航空機部品などの高強度材ねじ切り加工 tungaloy.com/jp/press-releas…

threadmilling is the only way in my experiance.

Easy peasy. Haas mill or lathe? Fyi i use polar or incremental H for threadmilling small ID threads. Keeps axis locked and then just C is rotating (and Z for the helix). Very accurate and easy to fine tune too.

I'm threadmilling 4-40 in stainless right now on one of our swiss lathes. Slower than tapping but Waaaaay safer and flawless.

I *rarely* do in our swiss lathe live tooling usually only for simple 4-40 rigid tap in copper electrical parts. Otherwise I am threadmilling because of superior little chips and just about perfection for running 24 x 7 with no drama

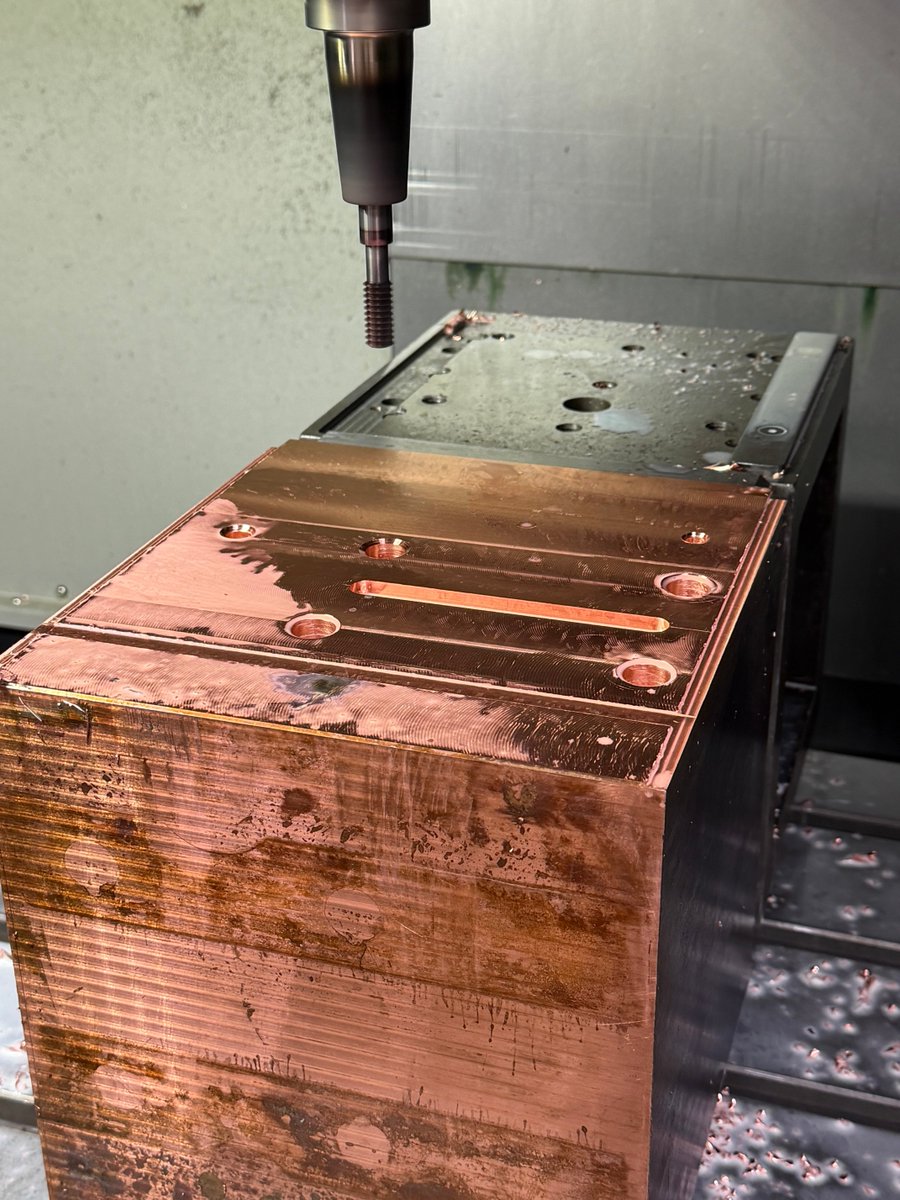

Threadmilling 5/8-11 STI threads in an 8,000 dollar block of copper.

GM! 🌞 Just programming some threadmilling for a part that will be running "lights out" 24x7 on one of our Swiss Lathes at Chynuhh-busting low prices but with aviation level quality ⚙️🫡🇺🇸 What are y'all up to? #cnc #manufacturing
