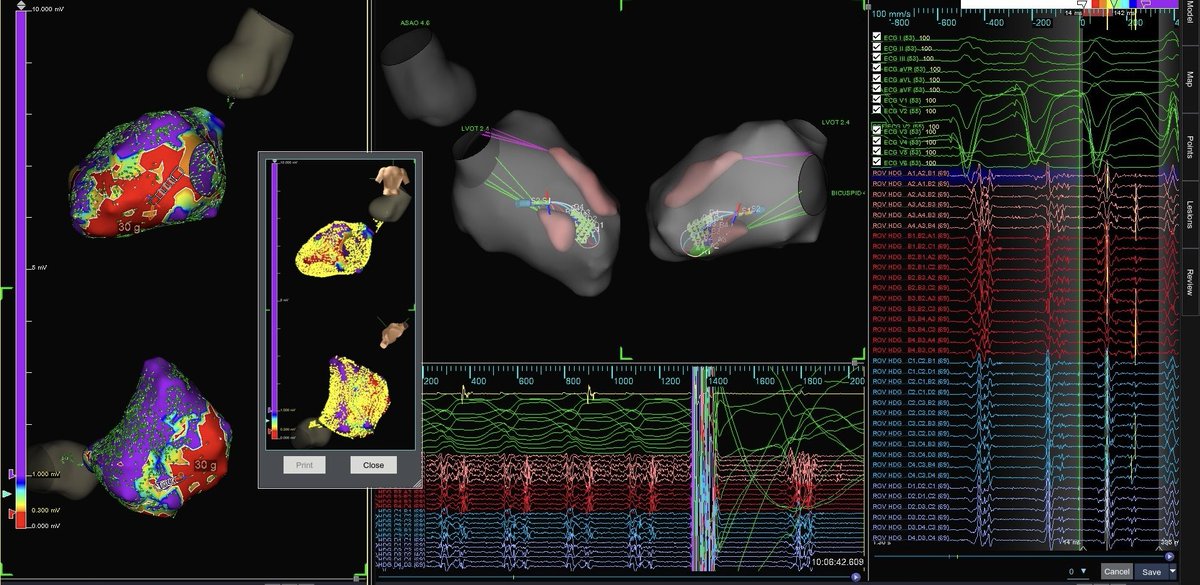

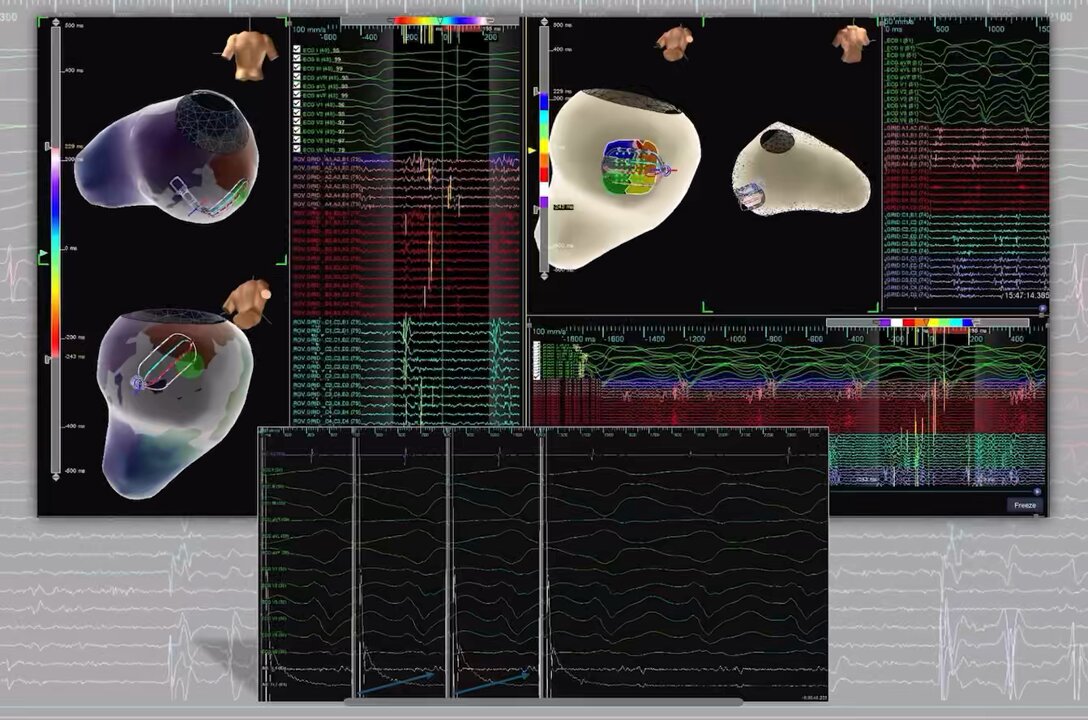

An unstable VT. Mappable with #StaMP. Guided by S3 Protocol. @JeffHsingMD @EP_EmilyS - StaMP @DrRoderickTung - S3 Protocol @ivroca - PDX Technique @B_Naz_MD - #EnSite @AbbottCardio

Premature ventricular complexes with a QRS morphology almost identical to the sinus rhythm was caused by a His-LBB twig that could be successfully ablated in or underneath the right coronary cusp without injury to the conduction system. jacc.org/doi/10.1016/j.jacep… #JACCCEP

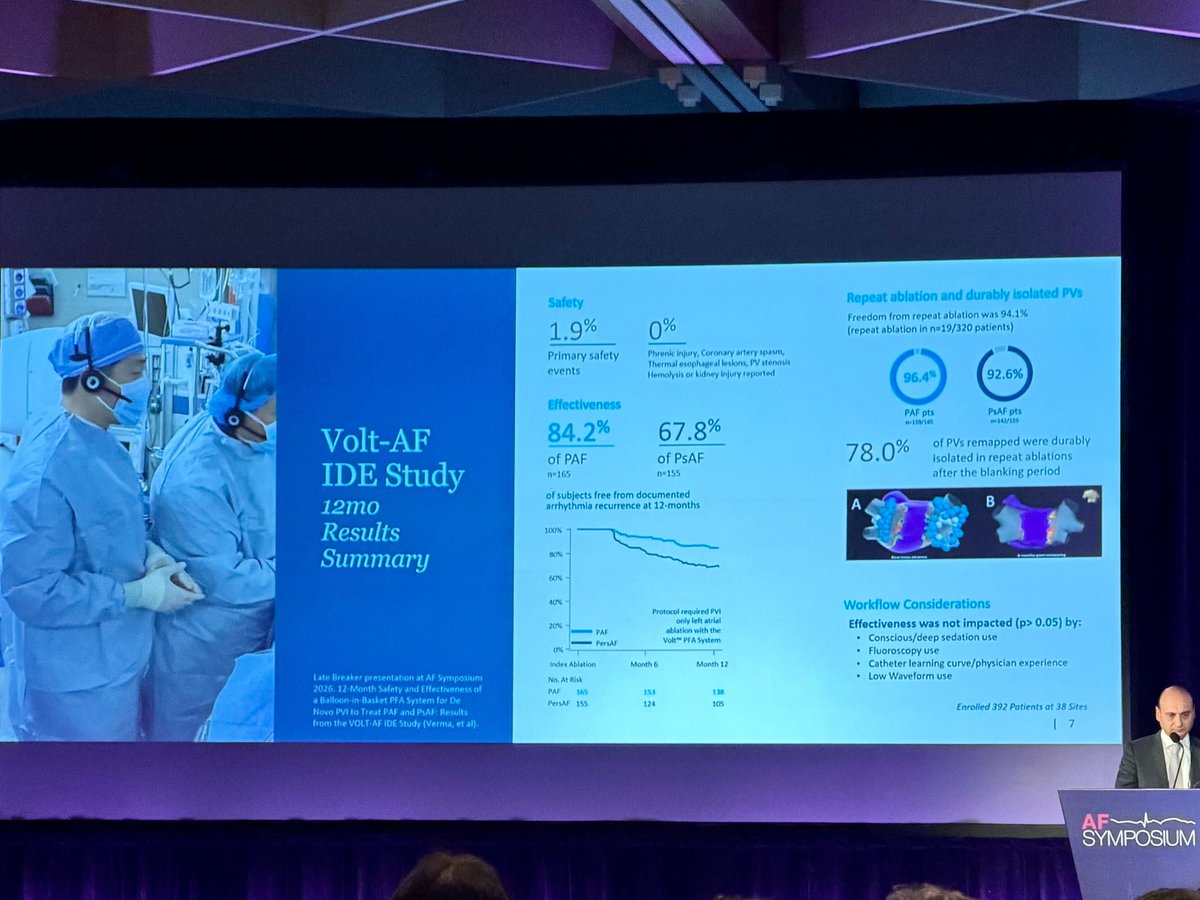

Volt released some pretty impressive 12 month data with over 80% success in paroxysmals and excellent persistent AF results. Read the simultaneous publication! kwnsfk27.r.eu-west-1.awstrac…

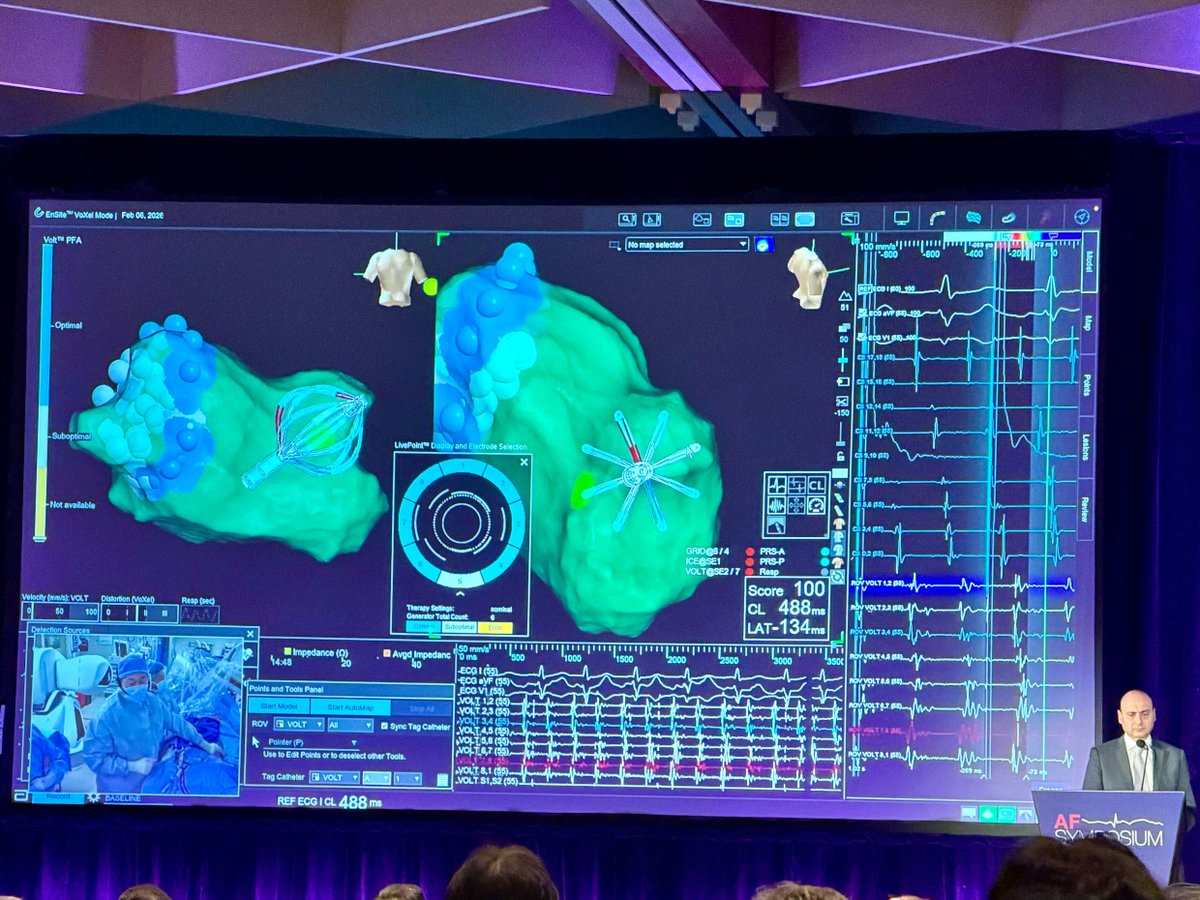

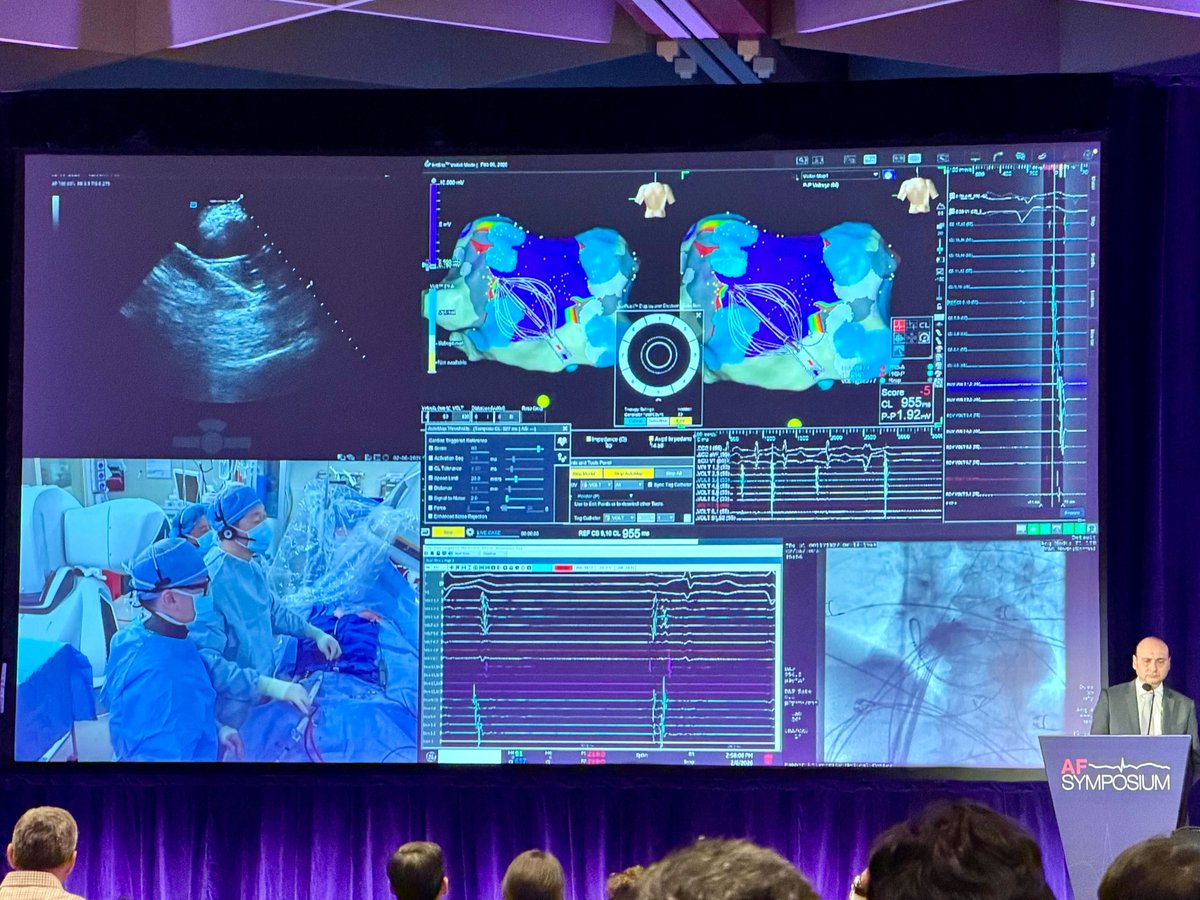

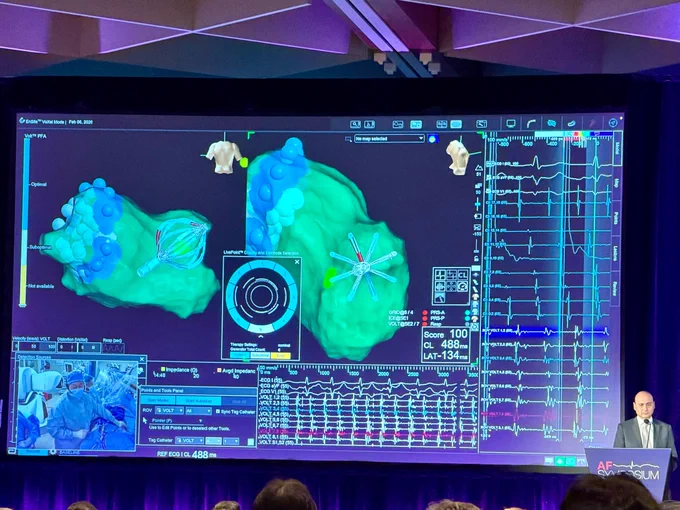

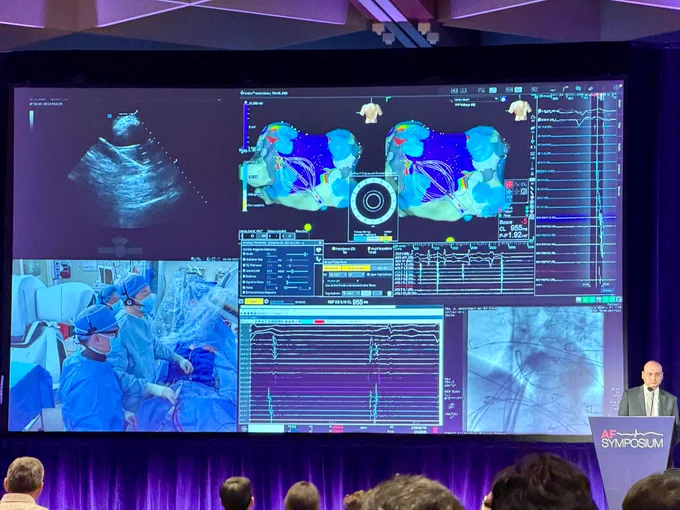

An honor to stand side-by-side with Dr Su in today’s limited market release live case with Volt PFA system.

First-in-Nation: Integrating ViewFlex X SE ICE with VOLT PFA This week started with a meaningful milestone at St. Bernards Healthcare (Jonesboro, AR) — first-in-nation combining Abbott’s ViewFlex X Sensor Enabled ICE with the VOLT PFA platform. This builds on our prior experience with: • FIH clinical trial use of ViewFlex X SE • Post-FDA VOLT PFA cases as part of the VOLT LMR What stood out was how well imaging mapping energy delivery functioned as one ecosystem in a zero fluoroscopy / zero contrast workflow . Key takeaways 🔹 ICE integrated into EnSite X for real-time anatomic confirmation during PFA 🔹 Safe ICE-in-LA workflow and transseptal planning that reduced unnecessary manipulation in small LA anatomy. Integration helped support transseptal decision-making up front—optimizing trajectory and reducing unnecessary catheter manipulation in small LA anatomy. 🔹 Quick LA shell creation to confirm ridge/posterior wall/carina geometry early 🔹 Small atria lesion strategy: integration helped us decide tighter antral lesions vs intentionally addressing a posterior “critical isthmus” when the posterior corridor was inherently narrow 🔹 During VOLT delivery: very low microbubble visualization on ICE and no clinical hemolysis observed VOLT workflow highlights: single-catheter mapping/pacing/ablation, impedance-based contact visualization, balloon-in-basket (8 splines), selective electrode delivery; PVI ± PVI as clinically indicated (GA used). Grateful for the St. Bernards EP Lab team and the Abbott clinical support team. #ViewFlexXSE #VOLTPFA #FirstInNation #ICE #EnSiteX #ZeroFluoro #ZeroContrast #EPWorkflow #Innovation #epeeps @StBernards | @ARGJonesboro I @AbbottNews I @AbbottCardio

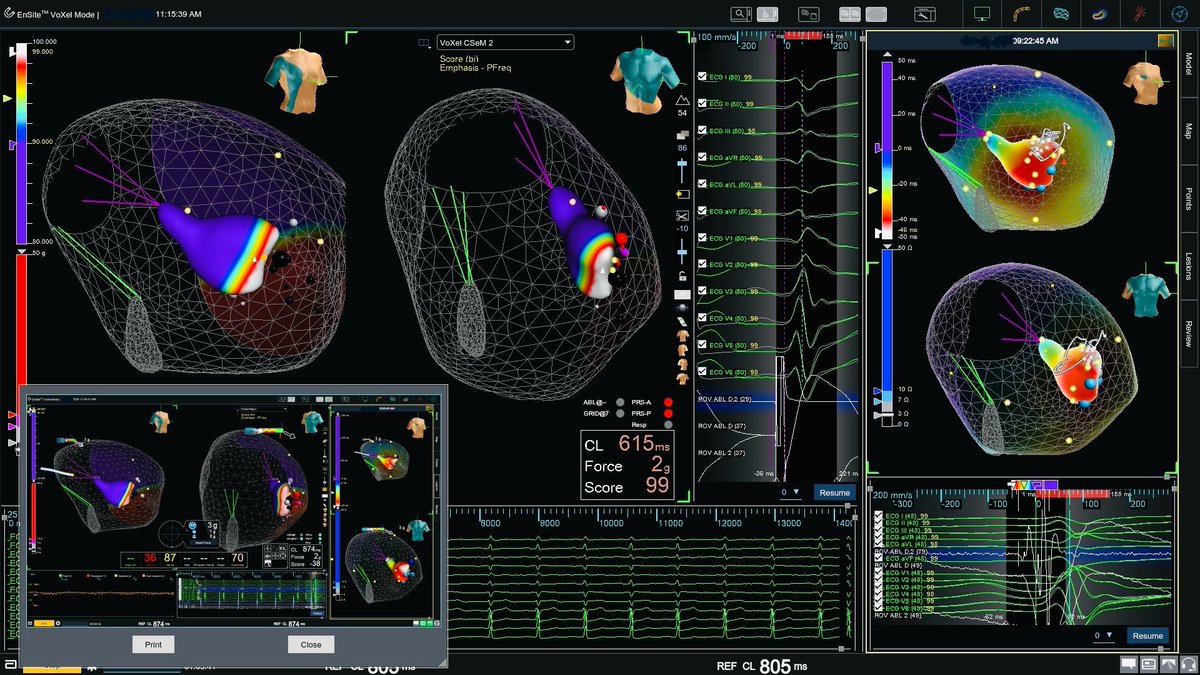

Pablo J. Sánchez Millán - MB created using PDX with confirmation by a combo of ICE, grid deflection and force vector. -not an excessive amount that would have kept us from accurately finding the source. Keeping the score match criteria to >97% minimized points taken from bumps.

Successful ablation of PVC arising from a complex moderator band apparatus by @swatirao24 of @MUSChealth. Conspicuous Purkinje at target site.

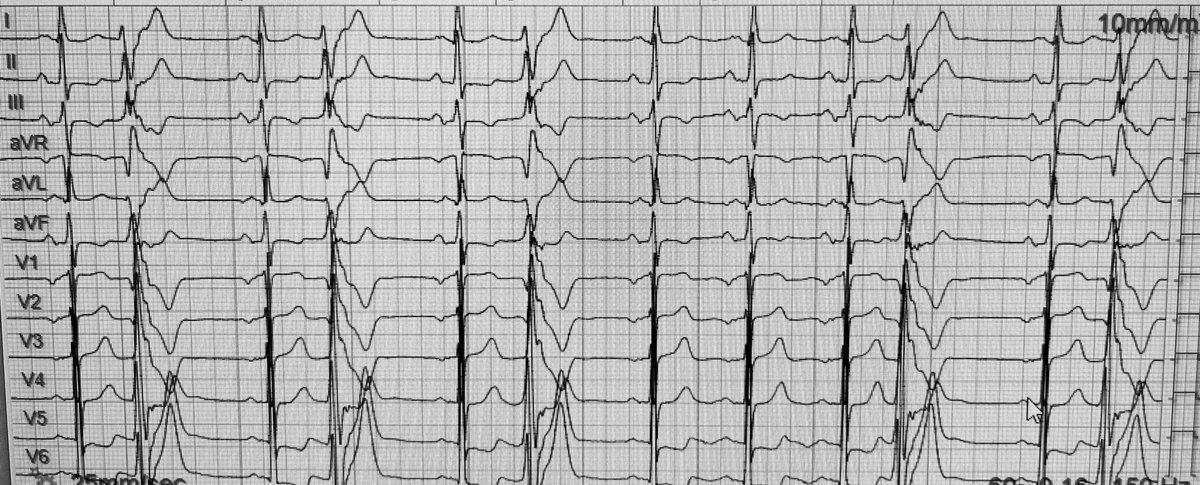

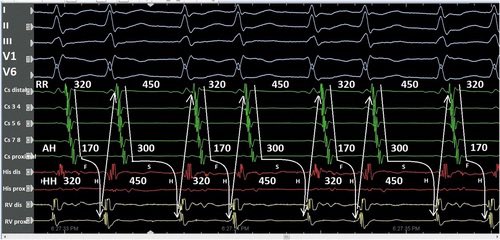

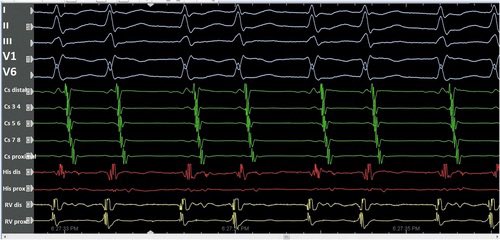

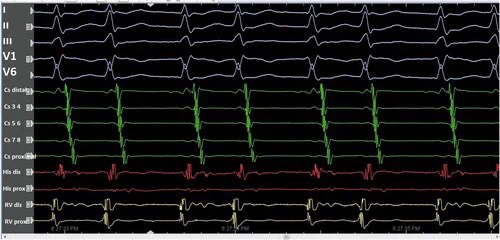

Fast pathway とslow pathway を交互に順行性伝導した左側ケント束を介したORT🌟🌟🌟🌟🌟🌟🌟🌟🌟🌟🌟🌟🌟🌟🌟🌟 onlinelibrary.wiley.com/doi/…

Happy to share!We Just completed our first Chagas VT ablation integrating anatomy & EAM @inheartmedical 🔹Precise visualization of phrenic nerves & coronary vessels🔹Detailed scar heterogeneity/transmurality🔹 LV wall thickness & maps.Massive leap for complex CMP #ablateVT

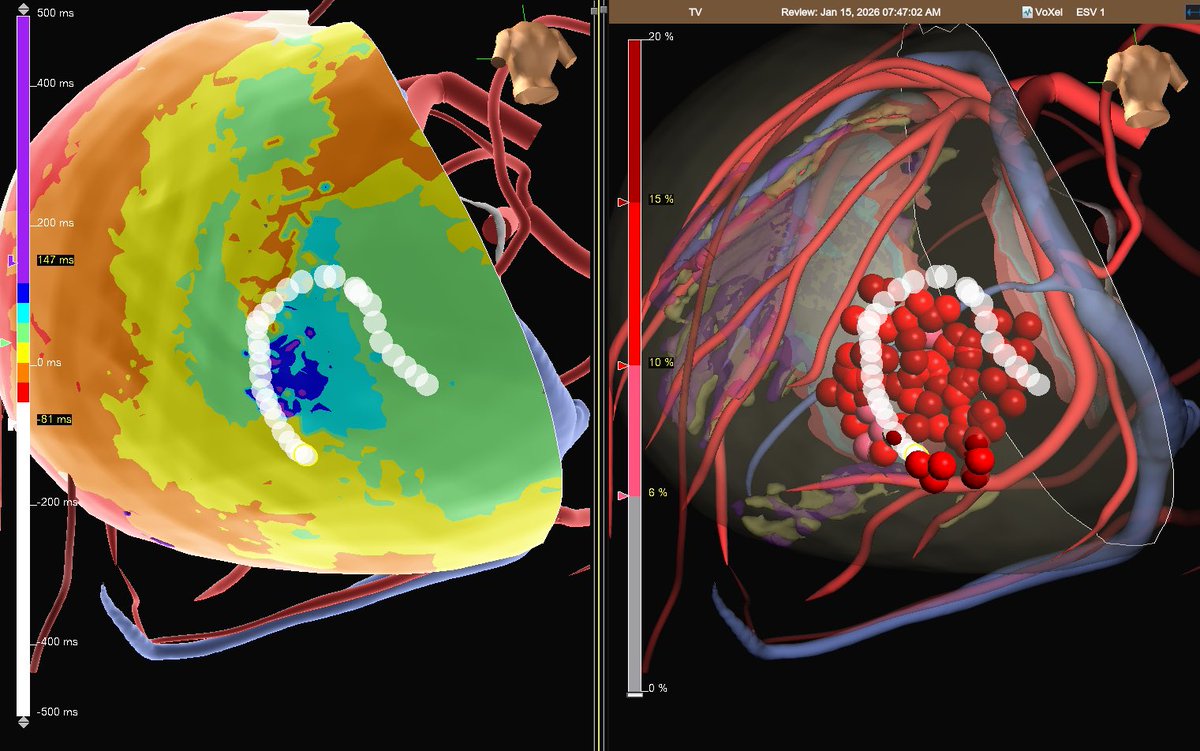

Starting the year with a recap on a recent challenging VT case at @mhshospital @Mapbastian @JC_EPMaps @mike_lean @joel_chic A 3rd time redo in a non-ischemic VT patient. Success in these cases requires the use of advanced techniques - however, advanced techniques do not mean unsafe procedures.   Some specific workflow highlights that led to a successful bipolar case without complications and 0 clinical VT on follow-up: - Meticulous mapping was performed to fully understand each VT before delivering energy. - Reentrant VTs are inherently 3D in nature, often revealing only a portion of the channel in the chamber mapped (in this case, only the exit for each VT). - Entrainment at the presumed VT exit confirmed what the map suggested. - Remote entrainment from the RV was helpful to confirm diastolic signals on mapping catheter were within circuit. #AblateVT #EPpeeps #WIC #WomenInEP

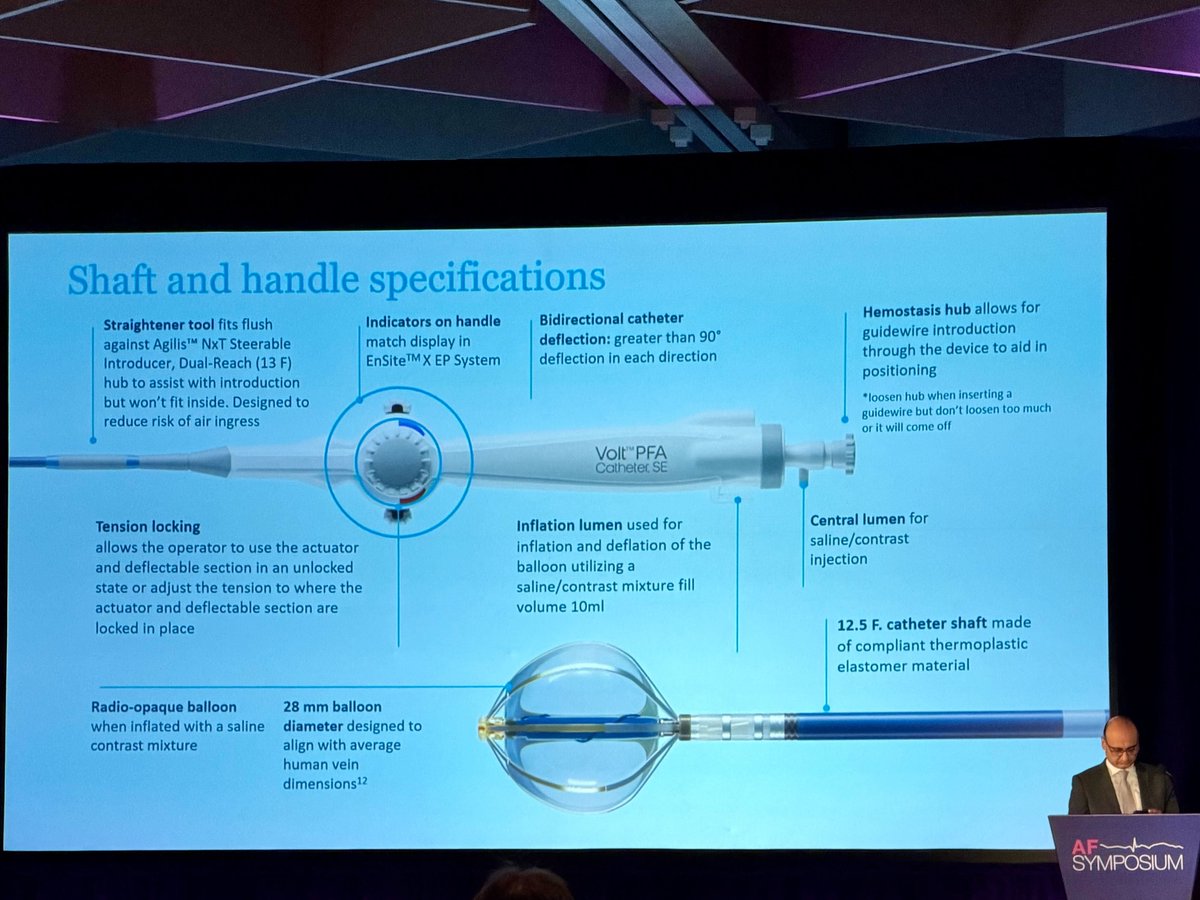

Meet Volt™ PFA System, now FDA-approved: The latest-generation tech to treat AFib. Shorter procedures, smoother recovery, and better long-term results — Volt makes it possible. More 👉 abbo.tt/3Le5vf6

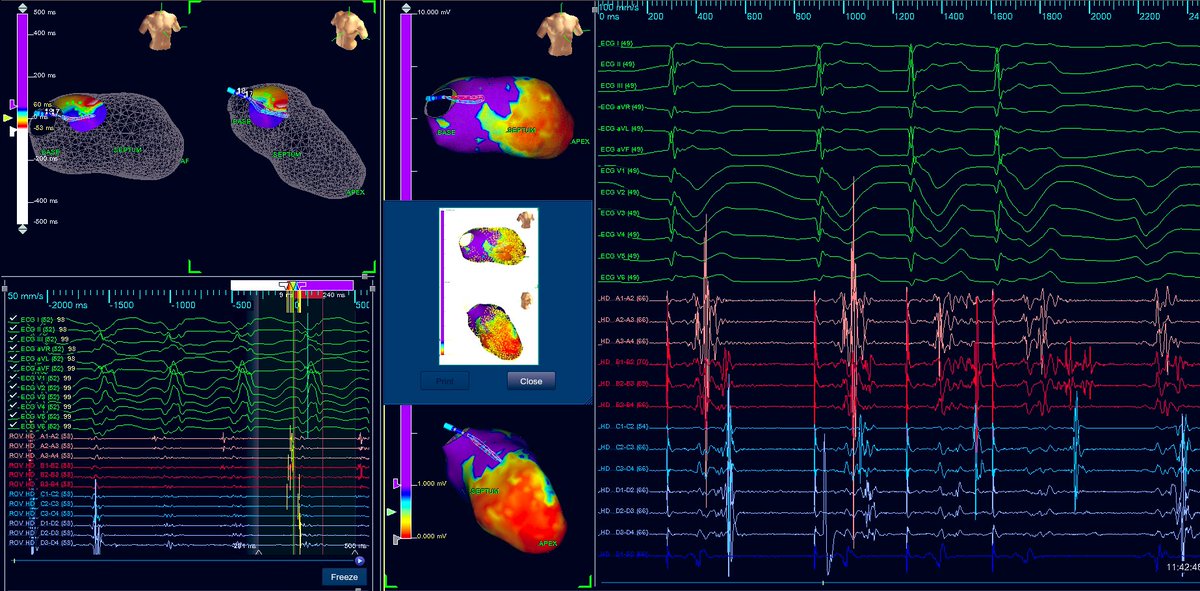

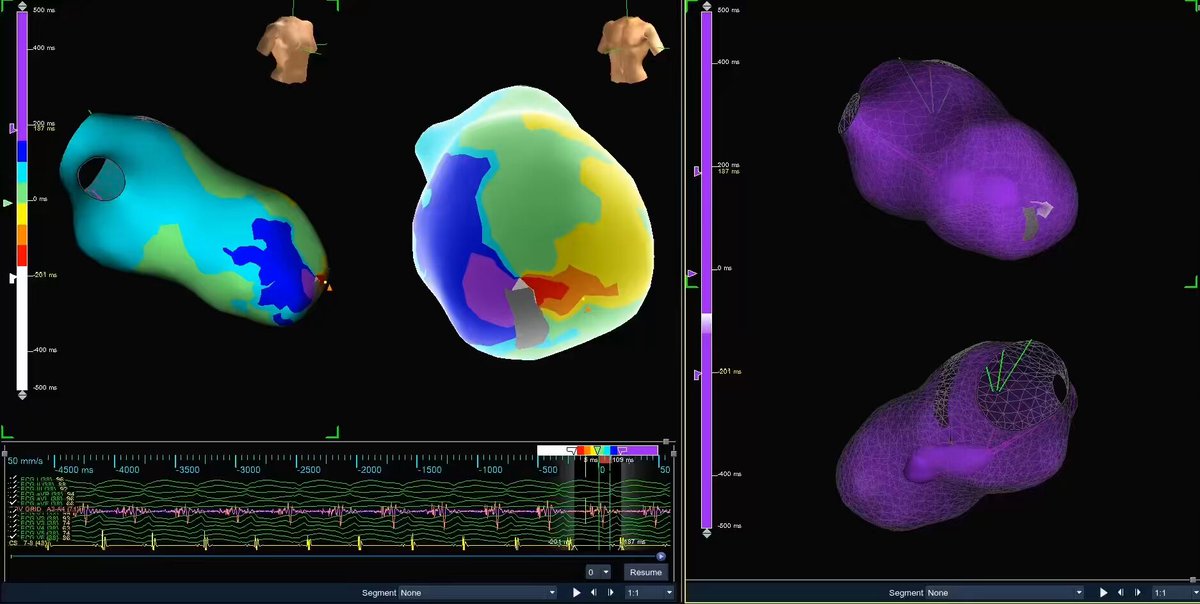

Here are LAT & voltage maps in VT with each detection algorithm. I do agree about the need to appropriately delineate LOB/split signals. With that, we have actually found NF to work great in objectively annotating those signals. However to your point, it does come down to physician preference and many prefer to see the full circuit. With that, in some cases we will switch to FD to force annotation of signals that are presumably deeper in the myocardium and not detected by OT NF. Either way, it is helpful to TurboMap and have both maps in a case.

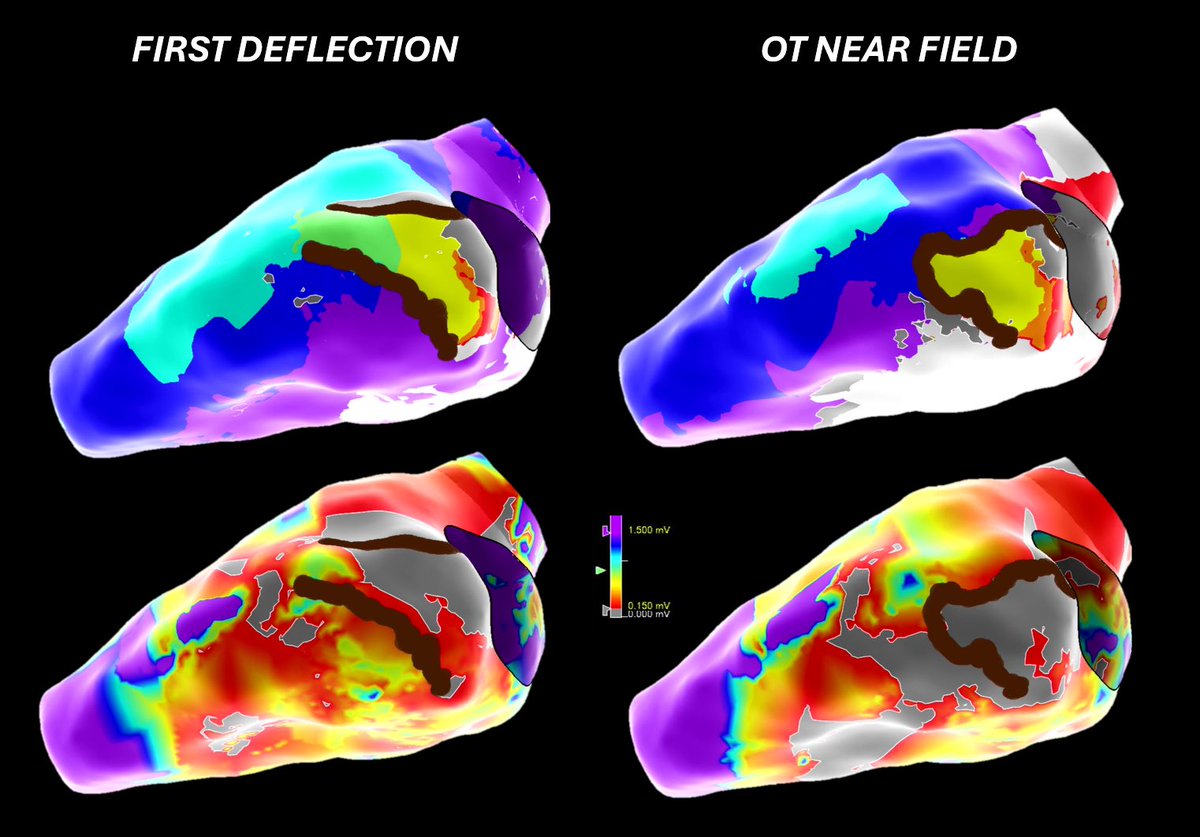

Some post-case learning with @danealson (Dr. Neal Bhatia) and @_shannonmillard: following an ischemic VT case, together we compared how the clinical VT circuit presented when mapped with the First Deflection algorithm versus EnSite™ OT Near Field.   What we found brings up an interesting question. Is it better to…. - Force the system to visualize the full circuit with First Deflection, or - Illustrate the potential midmyocardial bridges and touchdown points with OT NF? While there may not be a "correct" answer, we think there is value in appreciating both pieces of information. And if nothing else, it makes for a fun discussion with talented colleagues like Dr. Bhatia and Shannon.

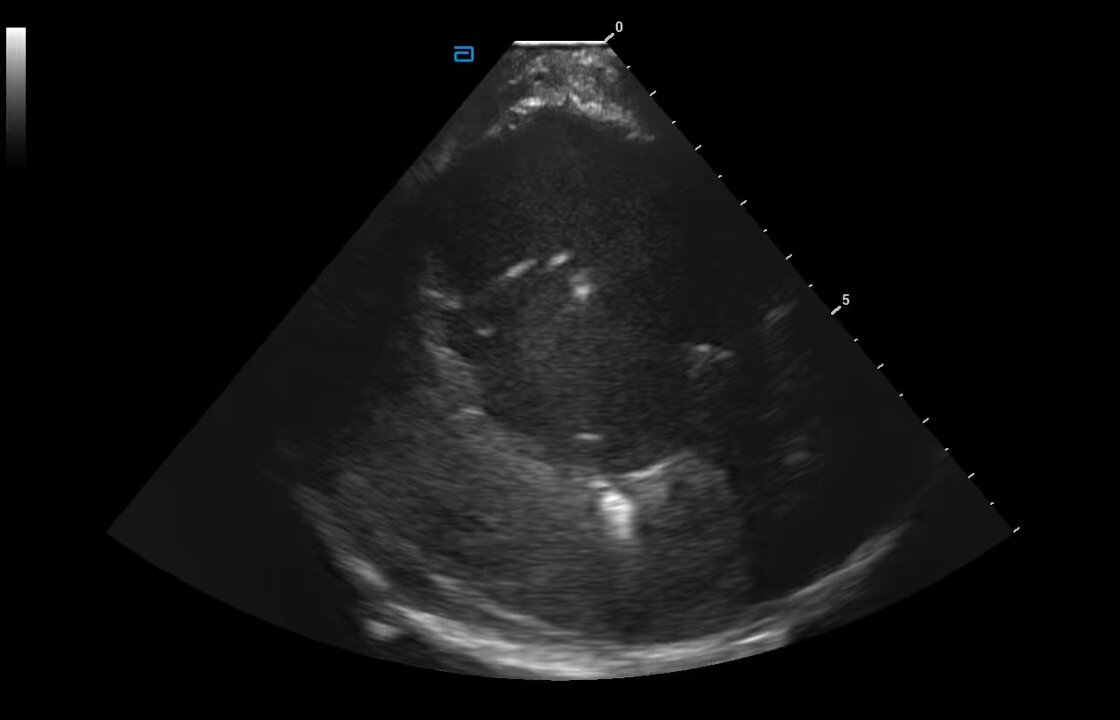

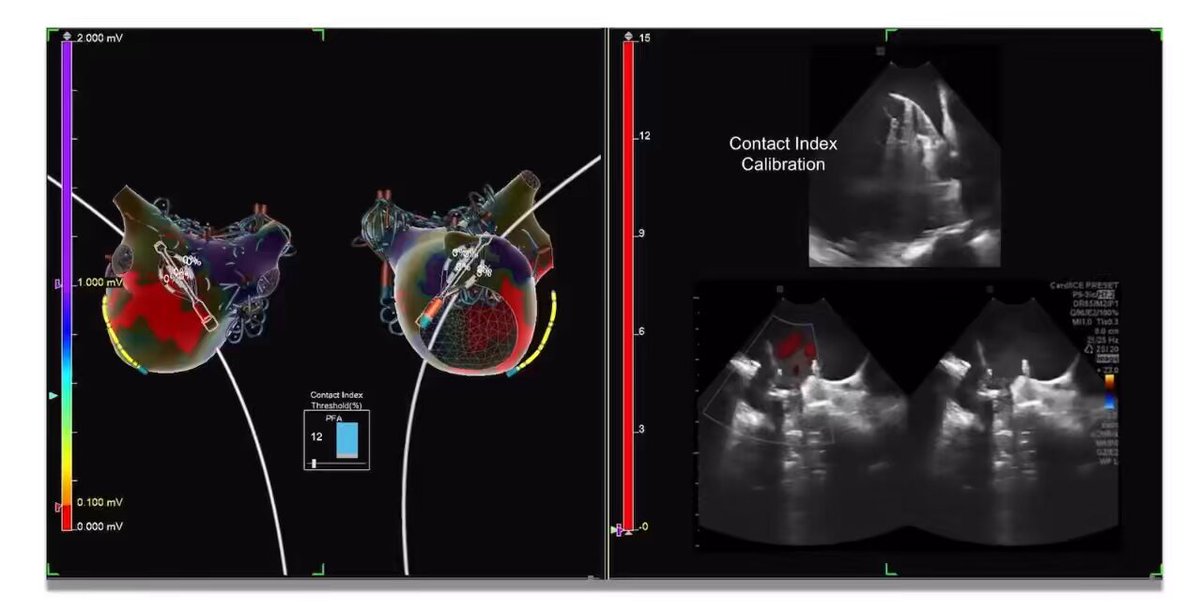

What actually "looks good" on ICE: #ViewFlex Left Atrial imaging @EPS_PDX Training @MRazminia Sponsored @AbbottCardio Complemented #EnSiteX PFA Visualization & Contact Index software. A post PFA induced tachycardia, entrained at downstream electrogram, with long upstream capture (>75%, seen on splines) confirmed #Reentrant mechanism & circuit participation.

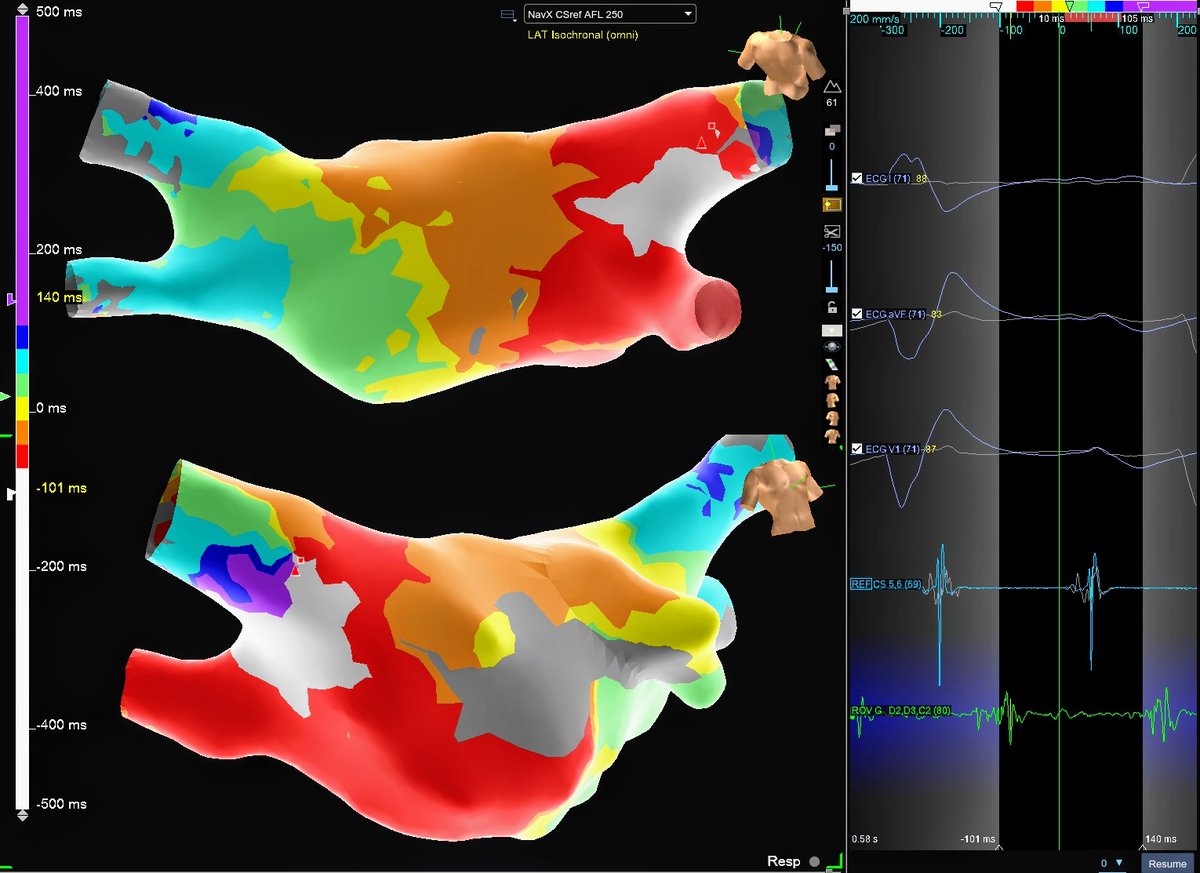

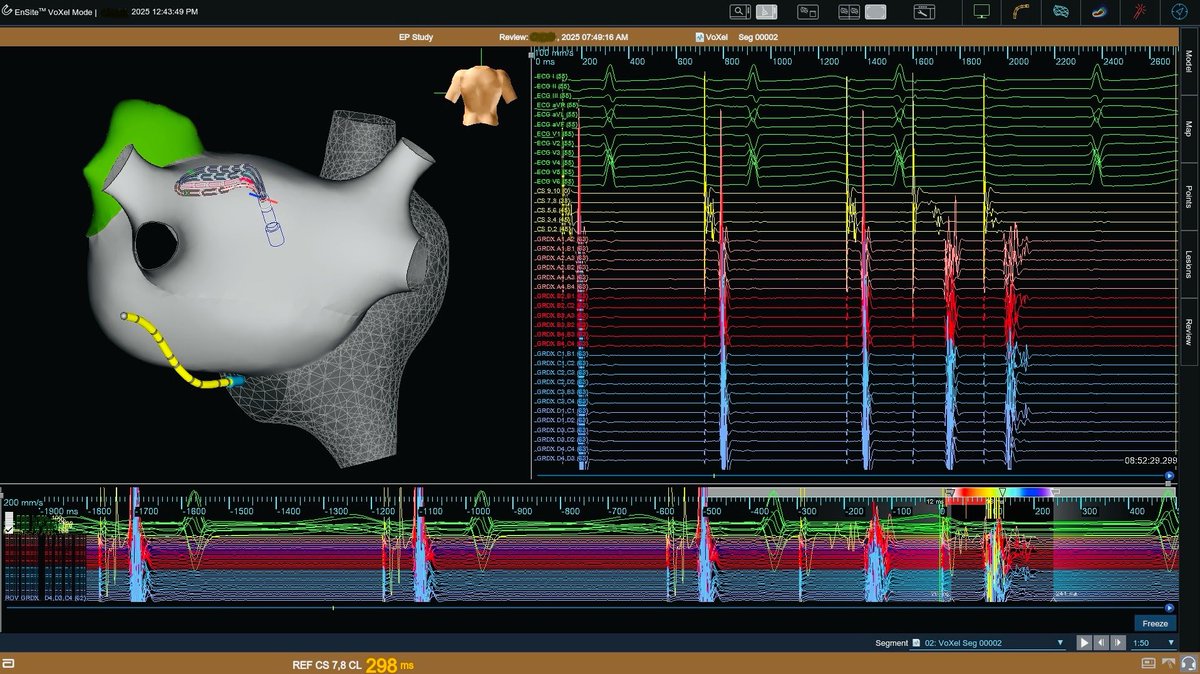

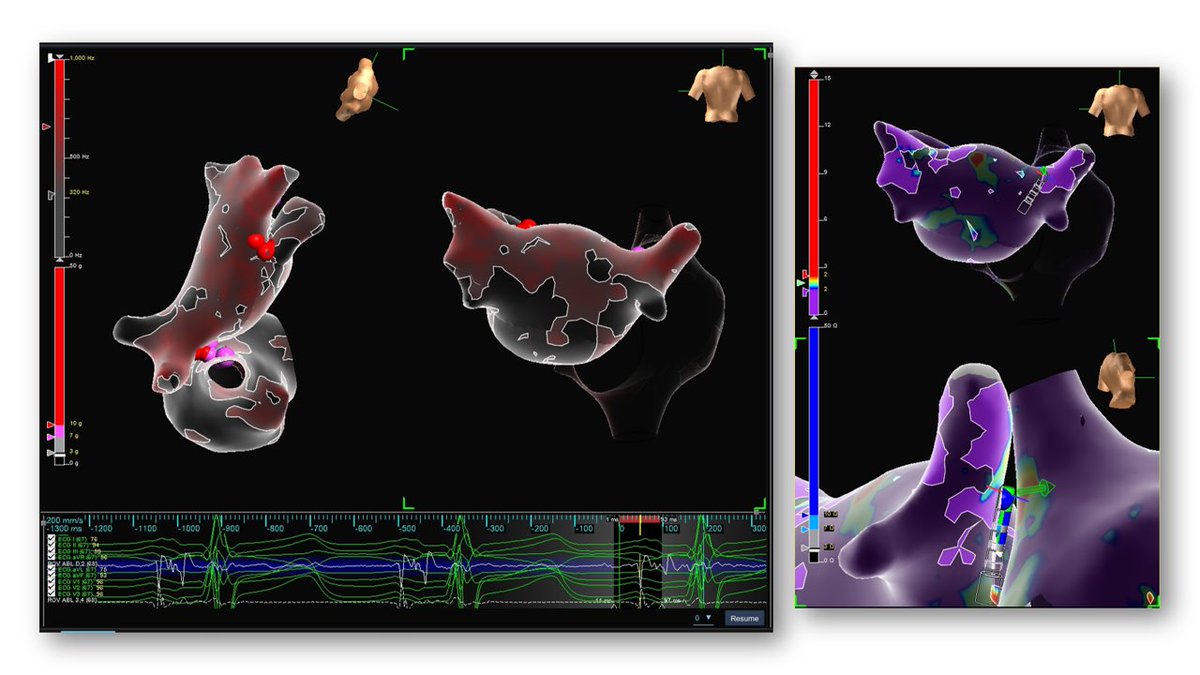

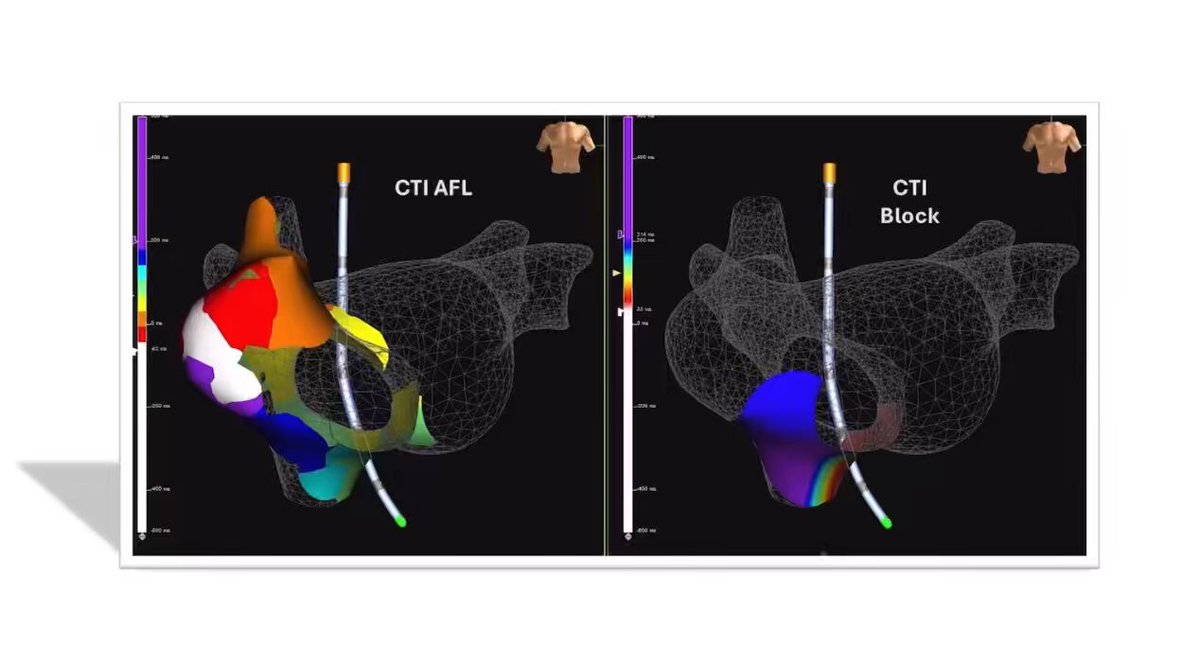

Rare RA septal flutter on a patient with prior mitral valve surgery as well as PFA PVI, SVC isolation, intercaval line for lateral wall atriotomy scar flutter, and RF CTI line. Where would you burn? Or would you go transseptal to map LA? @narrowQRS @Maeskander @jeffrey_vinocur

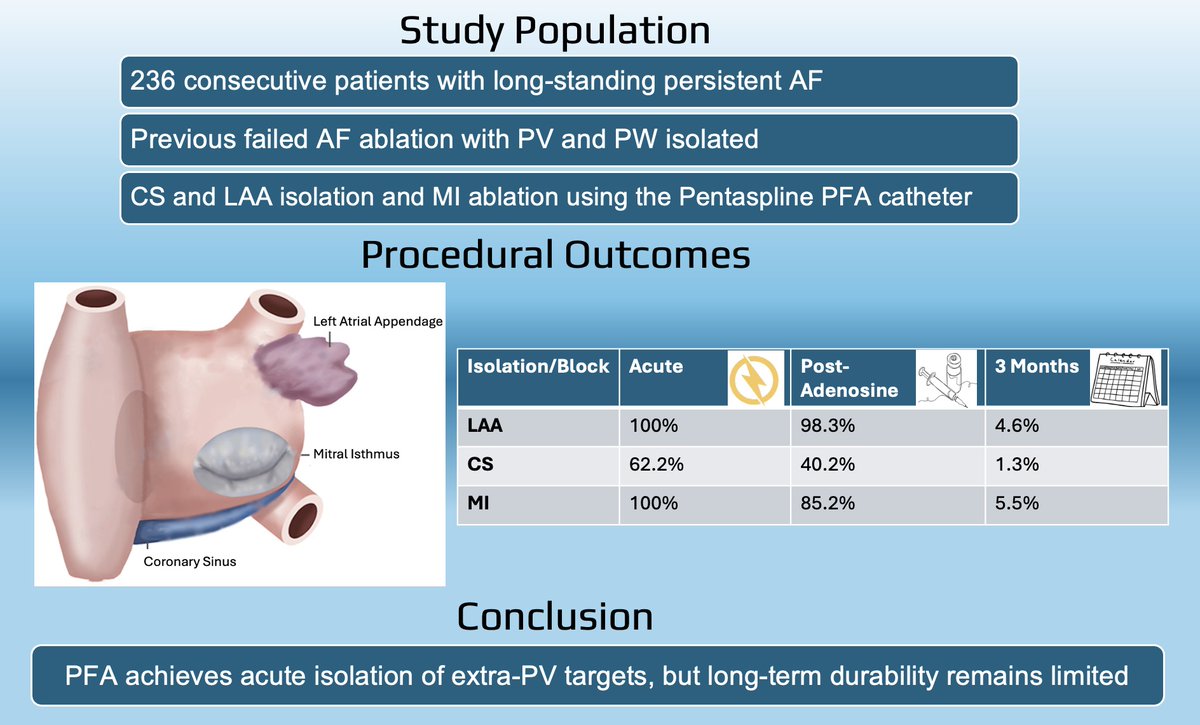

PFA with the pentaspline catheter achieves acute CS, LAA isolation and MI block, but lesion durability is poor at 3-month remapping @luigidibiasemd @aalahmadmd @giuseppe.stifano @WeeBodeMD @_nicolapierucci @dogi84md #AHAJournals #Epeeps doi.org/10.1161/CIRCEP.125.0…

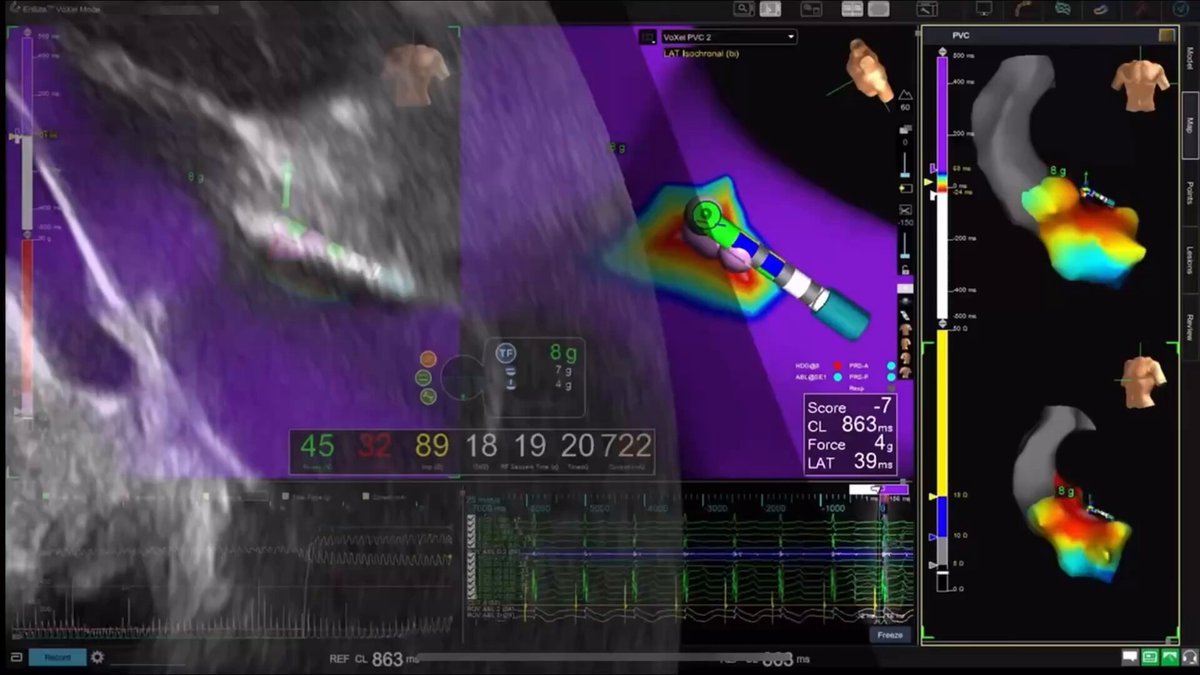

A frequent PVC, ablated at interleaflet triangle, an anatomic gift. 12 lead ECG morphology consistent with successful site. ILT catheter navigation & contact enhanced with Intracardiac Echo. @georgecrowell @AbbottCardio #TactiFlex #ViewFlex

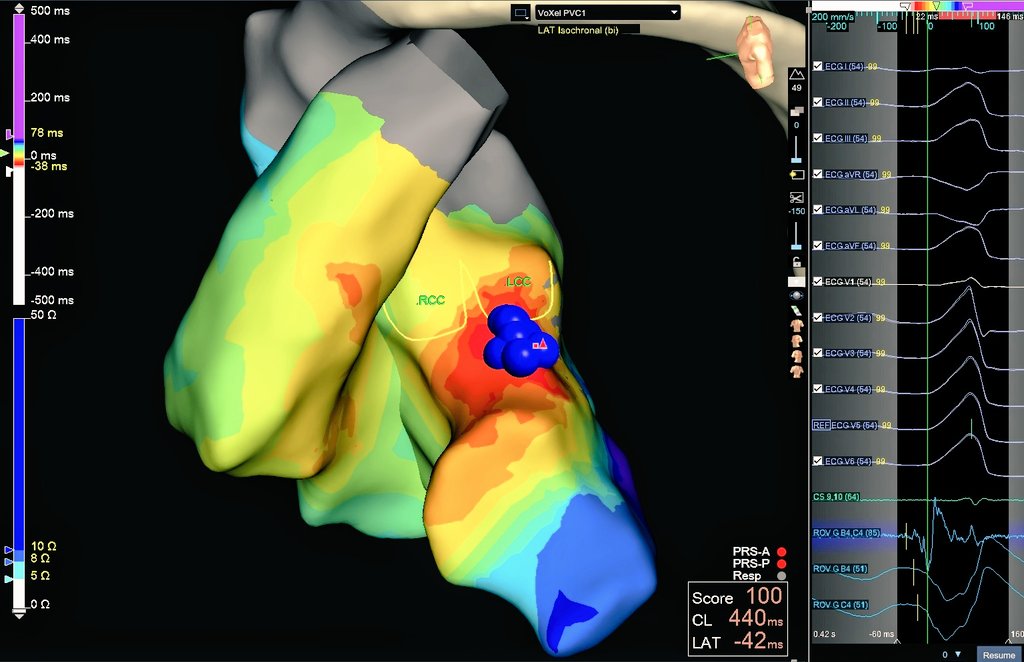

An ideal outcome. A single morphology with bigeminal burden. PVC with an ATV3 morphology, localized and ablated at RCC/LCC commissure (65 msec pre QRS). Credit: @Ashit_EPS @isabelmauckEP @AbbottCardio #EnSite #TactiFlex #ViewFlex

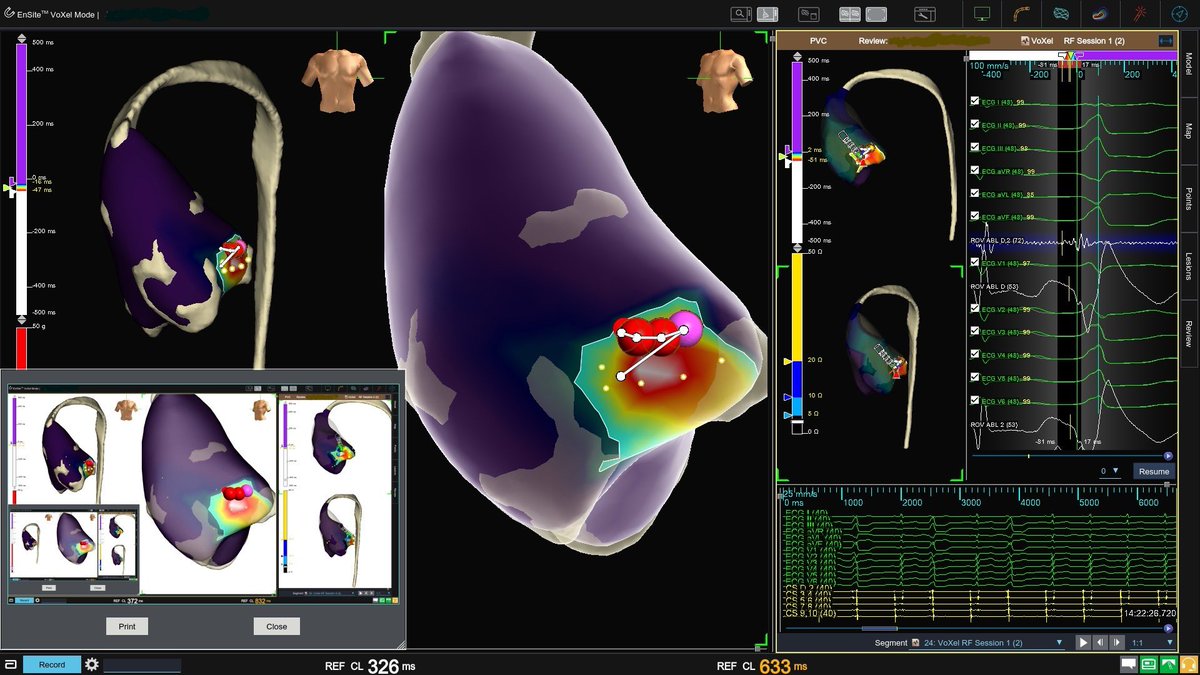

Full lesion set with consolidation rosette 🏵️. The PVC never came back after the first lesion, consolidation RF, and a 20-minute waiting period. Should we give isuprel even though the patient was in bigeminy up until RF? We did not, but now I am wondering if we should have.

Fractionated mid-diastolic signal in the "whurple" ⬜🟪 early-meets-late zone (using De Ponti windowing 🪟).

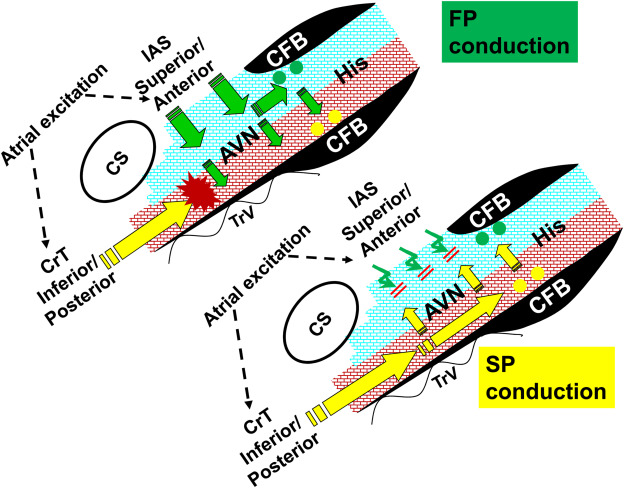

Uncovering the mystery of the atrioventricular node dual-pathway electrophysiology @nyit #EPeeps heartrhythmopen.com/article/…
